Slack Adjuster Adjustment: Complete Guide for Fleets

Slack adjuster adjustment stands as one of the most critical maintenance tasks affecting commercial vehicle safety on America’s highways. Every fleet manager and diesel technician must understand that brake failures rarely stem from air system malfunctions—instead, neglected routine maintenance and skipped daily inspections cause most brake-related crashes. Foundation brakes represent the most vital component of any braking system, and slack adjusters serve as the mechanical link that transforms compressed air power into stopping force.

Federal and state regulations mandate that drivers conduct thorough pre-trip inspections of brake components daily. This legal requirement places ultimate accountability squarely on the driver’s shoulders, regardless of company maintenance crews. Operating vehicles with improperly adjusted brakes can result in substantial fines, out-of-service orders, and potential liability in the event of an accident.

This comprehensive guide walks through the essential steps of brake system adjustment, from initial inspection to final verification. You’ll learn the techniques professional mechanics use and the standards federal inspectors enforce during roadside checks.

Last Updated: December 2025

Understanding Slack Adjusters in Air Brake Systems

Slack adjusters serve as the critical mechanical link that transforms compressed air power into stopping force in commercial vehicles. These components work in conjunction with brake chambers, suspension parts, and other trailer components to maintain correct brake clearance for safe and efficient stopping power. When brakes are adjusted by slack adjusters, the shoes move toward the drum, minimizing free travel during brake application and reducing the volume of air required.

The slack adjuster function extends beyond simple force transmission. This component ensures consistent brake performance by compensating for brake lining wear over time. Without properly functioning slack adjusters, even the most powerful air brake system would fail to deliver reliable stopping capability.

What Is a Slack Adjuster and How It Works

A slack adjuster is a lever arm mechanism that converts linear pushrod motion from the brake chamber into rotational force at the S-cam. This conversion process activates the foundation brakes that ultimately stop the vehicle. The component maintains proper clearance between brake shoes and drums throughout the lifespan of the brake linings.

When the driver presses the brake pedal, compressed air flows into the brake chamber. The chamber’s pushrod moves forward, activating the slack adjuster. The slack adjuster rotates, transferring force to the brake camshaft, which then moves the brake shoes against the brake drum. This friction creates the stopping force that brings the vehicle to a halt.

The mechanical function relies on the lever arm principle to multiply force efficiently. Slack adjusters amplify the linear force from the pushrod into stronger rotational torque at the S-cam shaft. This force multiplication allows relatively modest air pressure to generate substantial braking power at the wheel end.

S-Cam and Brake Chamber Connection

The S-cam and brake chamber connection creates the complete force pathway in air brake systems. Compressed air activation begins in the brake chamber, where air pressure pushes against a diaphragm. This pressure extends the pushrod, which connects directly to the slack adjuster arm.

As the slack adjuster rotates, it turns the S-cam through a splined shaft connection. The S-cam’s unique shape spreads the brake shoes outward as it rotates, forcing the brake linings against the drum surface. This entire sequence happens in milliseconds, demonstrating the efficiency of this mechanical arrangement.

Manual vs. Automatic Slack Adjusters

Two distinct types of slack adjusters exist in commercial vehicle applications. Understanding the differences between manual and automatic systems helps operators maintain their vehicles properly and avoid regulatory violations.

Manual slack adjusters have been standard on older vehicles for decades. These components require periodic manual adjustment using wrenches to turn adjustment bolts. A mechanic must physically access each wheel position and make adjustments to compensate for brake wear.

Automatic slack adjusters represent the modern industry standard. According to 49 CFR 393.53, commercial motor vehicles manufactured on or after October 20, 1994, and equipped with air brake systems must meet automatic brake adjustment requirements. These advanced components self-adjust as brake linings wear, using internal mechanisms to maintain optimal brake clearance.

Despite their self-adjusting capabilities, automatic slack adjusters still require regular inspection. Mechanics must verify that the automatic adjustment mechanism functions correctly and that brake stroke remains within acceptable limits. Manual adjustment of automatic slack adjusters should only occur when replacing brake components or addressing specific failure conditions.

Safety Precautions Before Starting Slack Adjuster Maintenance

Every slack adjuster maintenance task begins with implementing strict safety precautions that can prevent serious injury or death. Working with air brake systems presents multiple hazards including unexpected vehicle movement, high-pressure air release, and exposure to toxic brake dust. Following comprehensive brake safety procedures protects technicians while ensuring maintenance work is performed correctly.

Personal Protective Equipment Requirements

Proper personal protective equipment forms your first line of defense against brake maintenance hazards. Specific safety gear must be worn throughout the entire maintenance process according to industry safety standards and manufacturer recommendations.

Eye protection is mandatory when working under vehicles. ANSI-approved safety glasses or face shields protect against flying debris, brake dust particles, and unexpected fluid discharge. Head protection prevents serious injury from overhead hazards—a bump cap or hard hat is essential when crawling under vehicles where you may contact frame components or axle housings.

Respiratory protection represents the most critical PPE requirement for brake work. Both asbestos-containing and non-asbestos brake linings release hazardous fibers during service that can cause lung disease. According to OSHA respiratory protection standards, workers must wear appropriate respiratory protection when exposed to harmful dusts. A HEPA-filtered respirator approved by NIOSH should be worn whenever servicing brake components.

Vehicle Positioning and Securing Procedures

Correct vehicle positioning establishes the stable foundation necessary for safe brake maintenance. Vehicle securing procedures must be completed before any technician works beneath or around the vehicle. A single oversight in positioning can result in fatal accidents.

Always position the vehicle on level, stable ground with adequate drainage before beginning maintenance. Never attempt slack adjuster work on inclines, soft surfaces, or unstable ground that could allow vehicle movement. Concrete or asphalt surfaces provide ideal stability.

Heavy-duty wheel chocks must be placed both in front of and behind wheels on the opposite axle from the one being serviced. The chocks must be rated for the vehicle’s gross weight and positioned firmly against tire treads. For maximum effectiveness, position chocks as close to the tires as possible without gaps, contacting the tire tread at approximately a 45-degree angle.

Air Pressure Release and Lockout Guidelines

Safely depressurizing the air brake system prevents sudden component movement and air blast injuries during maintenance. Begin with the air system at full pressure and spring parking brakes released. This initial state allows you to check for air leaks before depressurization.

Open the petcock valves on all air tanks including primary, secondary, and wet tanks to drain the system fully. Listen for air escaping and wait until airflow completely stops. Check all air pressure gauges in the cab to verify they read zero PSI.

Implement lockout/tagout procedures to prevent accidental engine start or air system pressurization during maintenance. Remove the ignition key and place a lockout device on the steering wheel with a tag identifying who is performing the work.

Tools and Equipment for Slack Adjuster Adjustment

Having the right tools at hand transforms slack adjuster adjustment from a challenging task into a straightforward maintenance procedure. Proper brake adjustment tools improve work efficiency and ensure measurements meet federal safety standards. The quality of your tools directly impacts the accuracy of brake adjustments.

Essential Hand Tools and Wrenches

The foundation of any slack adjuster adjustment toolkit begins with proper wrenches and hand tools. A 9/16-inch wrench serves as the primary tool for most manual slack adjuster applications, fitting the adjustment bolt found on standard brake systems. Combination wrenches offer superior performance compared to open-end types.

Keep both shallow and deep-well socket wrenches available, as recessed adjustment bolts require extended reach capabilities. A sturdy pry bar or heavy-duty screwdriver proves essential for the pushrod leverage method of measurement. A flashlight or headlamp becomes indispensable when working in dark wheel well areas.

Measuring Devices and Brake Stroke Indicators

Accurate measurement separates proper adjustment from guesswork that compromises safety. A standard tape measure or metal ruler capable of reading to 1/16-inch increments provides the precision needed for stroke measurements. Federal regulations specify exact brake stroke limits, making accurate measuring devices non-negotiable for compliance.

A permanent marker or chalk serves the critical function of marking reference points on pushrods before brake application. Brake stroke indicators offer visual confirmation of adjustment status at a glance—these devices attach to brake chambers and display color-coded zones showing acceptable and excessive stroke ranges.

Pre-Adjustment Inspection and Assessment

Successful slack adjuster maintenance begins with systematic inspection of all brake components before attempting any adjustments. A comprehensive brake inspection reveals whether excessive pushrod stroke results from simple adjustment needs or underlying component failures requiring replacement.

Visual Inspection of Brake Components

Start your brake inspection by examining the entire brake assembly for cleanliness and contamination. Look for oil leaks from wheel seals that saturate brake linings and reduce friction capacity. Check all mounting hardware for tightness and proper torque specifications.

The brake chamber condition directly affects adjustment effectiveness and overall system safety. Inspect the chamber housing for cracks, dents, or corrosion that compromise structural integrity. Examine the pushrod boot carefully for tears or deterioration. New air brake chamber pushrods feature a marking, usually red, indicating when immediate adjustment is necessary.

Listen for air leaks around chamber seals and fittings while air pressure remains in the system. Audible leaks signal diaphragm failure that demands chamber replacement rather than adjustment. The clevis pin connection between pushrod and slack adjuster experiences constant stress during brake applications—check for wear in pin holes by grasping the connection and testing for excessive play.

Checking for Wear and Damage

Critical wear points determine whether adjustment will restore proper brake function or if component replacement is necessary. The S-cam bushing supports the camshaft and maintains proper alignment during brake applications. Check for excessive cam-to-bushing free play by grasping the slack adjuster arm firmly and attempting to move it radially in a side-to-side motion.

Movement exceeding 1/8 inch indicates worn S-cam bushings requiring replacement before adjustment will be effective. Excessive bushing wear creates inconsistent brake application and prevents accurate brake stroke measurement.

If dust shields are removed or inspection slots provide visibility, measure remaining lining thickness. According to 49 CFR 393.47, air braked commercial motor vehicles shall not be operated with brake lining thickness less than 1/4 inch at the shoe center for drum brakes. Examine wear patterns across the lining surface—uneven wear indicates seized anchor pins or improper cam rotation requiring correction before adjustment.

Measuring Current Brake Stroke

Accurate brake stroke measurement determines whether adjustment is needed and establishes baseline data for comparison. Two methods provide reliable measurements: the pry method and the applied stroke method.

The pry method measures free stroke by using a pry bar to pull the pushrod outward while brakes are released. Normal free stroke measures between 1/2 and 3/4 inch. The applied stroke method provides more comprehensive data: mark the pushrod position when brakes are released, apply service brakes at 90-100 psi air pressure, and measure the distance the pushrod travels.

Record brake stroke measurement results for each wheel position and compare against manufacturer specifications and federal standards.

Step-by-Step Manual Slack Adjuster Adjustment Process

Proper manual slack adjuster adjustment follows a systematic approach that balances brake effectiveness with component longevity. Following these steps in sequence helps prevent common mistakes that lead to brake failure or premature component wear.

Step 1: Secure the Vehicle and Verify Air Pressure

Safety begins with proper vehicle securing before any manual slack adjuster adjustment work starts. Place heavy-duty wheel chocks both ahead of and behind wheels on the axle not being serviced. The vehicle must rest on level ground with the parking brake fully engaged.

Verify that the air system pressure gauge reads between 90-100 psi before proceeding. This pressure level ensures spring parking brakes remain released, allowing service brake components to move freely during adjustment. Turn off the engine after achieving proper air pressure.

Step 2: Locate the Adjustment Mechanism

Manual slack adjusters feature an adjustment bolt typically located at the end of the slack adjuster body opposite the clevis connection. This bolt usually has a 9/16-inch hex head surrounded by a spring-loaded locking collar or sleeve. Road grime and accumulated dirt often obscure the adjuster, requiring cleaning with a wire brush before access becomes possible.

Determining the correct adjustment direction prevents damage to brake components. The key principle: observe the camshaft end while turning the adjustment bolt. Proper rotation causes the camshaft to turn in the same direction it moves during brake application. Incorrect direction causes the slack adjuster arm to pull away from the brake chamber.

Step 3: Measure Initial Pushrod Stroke

Use a permanent marker or chalk to make a clear, visible line on the pushrod where it exits the brake chamber face. Draw the mark circumferentially around the entire rod to ensure visibility from multiple angles during measurement.

Have an assistant make full brake applications at 90-100 psi while you observe pushrod movement relative to your reference mark. Measure the distance between the reference mark and the brake chamber face during full application. Record this measurement for comparison with federal standards.

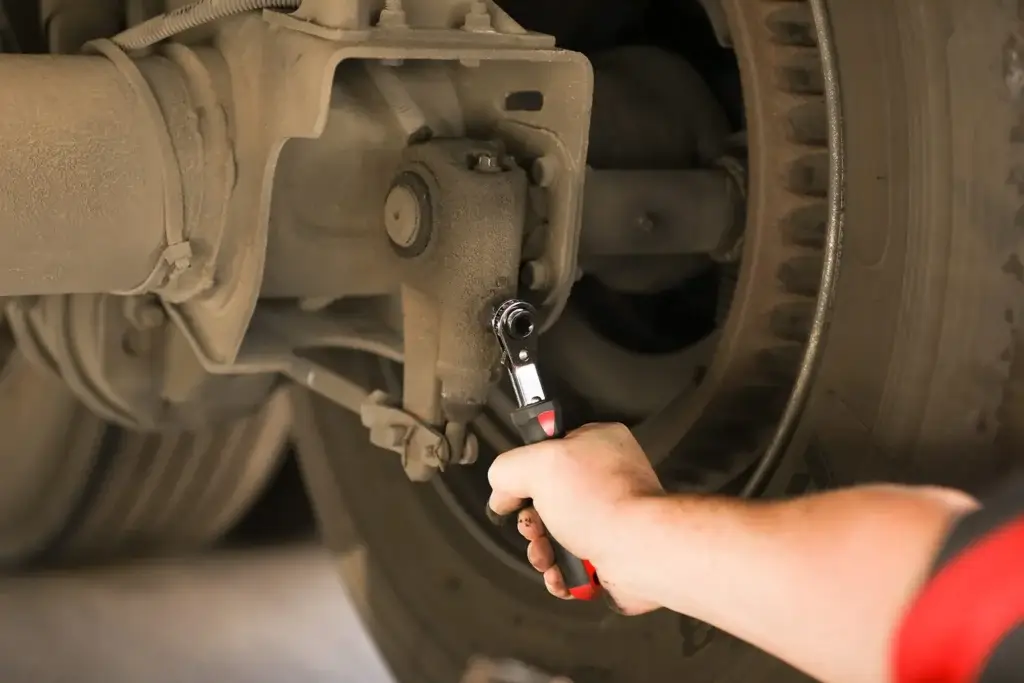

Step 4: Make the Adjustment

Press and hold the spring-loaded locking sleeve inward with one hand while rotating the adjustment bolt with a wrench in the other hand. Continuously monitor the camshaft to verify correct adjustment direction as you turn. Proceed with steady turning until you feel solid mechanical resistance indicating brake shoe contact with the drum.

The resistance indicates the brake linings have made contact with the brake drum surface, establishing the zero-clearance position. Back off the adjustment bolt approximately 1/3 turn (about 120 degrees) after achieving solid contact. This critical step establishes proper running clearance between the brake lining and drum.

Over-adjusted brakes cause multiple serious problems including premature lining wear, reduced fuel economy, brake overheating, and potential brake fire or wheel bearing failure. Ensure the locking sleeve re-engages the adjustment bolt properly after completing the adjustment.

Step 5: Verify Proper Brake Stroke Length

Verification confirms that your manual slack adjuster adjustment meets federal safety requirements. The Federal Motor Carrier Safety Administration establishes maximum allowable brake stroke for different brake chamber types to ensure adequate reserve stroke capacity.

Step 6: Repeat for All Wheel Positions

Complete brake system adjustment requires repeating the entire process at every wheel position on the vehicle. Check and adjust both sides of each axle to ensure balanced braking performance. Each brake on an axle should have similar pushrod travel measurements—significant differences create brake imbalance that causes vehicle pulling during stopping.

Document stroke measurements and adjustments for each wheel position in your maintenance records. This documentation demonstrates compliance and provides valuable diagnostic information for future inspections.

Testing and Verifying Proper Slack Adjuster Function

Verification testing transforms guesswork into certainty, confirming that brake adjustments achieve regulatory compliance and operational safety. Systematic brake testing validates that all components function within acceptable parameters after completing slack adjuster adjustments.

Static Brake Test Procedures

Begin static brake testing by ensuring your air system pressure sits between 90 and 100 psi. With the brakes fully released, make a clear mark where each pushrod exits its brake chamber. Apply and hold full brake pressure at 90 to 100 psi and measure the distance between your original mark and the brake chamber face at each wheel position.

Uniform brake application across all wheel positions indicates proper adjustment and balanced brake force distribution. Observe each slack adjuster arm during brake application to verify they rotate approximately the same distance on both sides of each axle. Unequal movement signals adjustment problems or mechanical issues requiring correction.

Listen carefully at each wheel position for audible contact between brake shoes and drums. All brakes should engage simultaneously with similar sound characteristics. Delayed application at any position reveals adjustment errors, air system leaks, or binding components.

CVSA Standards and Compliance

The Commercial Vehicle Safety Alliance coordinates enforcement standards across North America through uniform inspection criteria. CVSA standards establish specific out-of-service limits for brake defects including pushrod stroke measurements. Inspectors place vehicles out of service immediately when brake conditions exceed established tolerances.

Out-of-service violations affect carrier safety ratings through FMCSA’s Safety Measurement System. Multiple violations or patterns of brake defects can lead to compliance reviews, intervention requirements, or operating authority restrictions. According to CVSA’s 2024 Brake Safety Week results, over 63% of vehicles placed out of service had stand-alone brake violations.

Road Test Procedures

After completing static testing, road test procedures validate brake performance under dynamic operating conditions. Begin testing in a safe area away from traffic. Make several gentle brake applications at speeds below 10 mph to verify smooth engagement without pulling or grabbing.

Gradually increase speed and application force while monitoring brake response characteristics. Verify the vehicle stops straight without pulling to either side during moderate braking. Conduct a final hard stop from highway speed in a safe location to confirm emergency stopping capability.

Monitor brake behavior during descent of a moderate grade to verify brakes maintain effectiveness during sustained application. Heat buildup from prolonged braking reveals fade tendencies or inadequate adjustment. Vehicles must not return to service until all measurements fall within acceptable limits.

Troubleshooting Common Slack Adjuster Problems

When adjustment procedures fail to correct excessive brake stroke, deeper mechanical problems demand investigation. Effective brake troubleshooting requires a systematic approach that distinguishes between simple adjustment issues and component failures.

Diagnosing Excessive Brake Stroke

Pushrod stroke measurements that exceed acceptable limits signal problems requiring immediate attention. Verify that air reservoir pressure remained above 90 psi during all brake applications. Make six full brake applications at 90-100 psi before measuring stroke to ensure automatic adjusters have opportunity to function.

Brake lining wear beyond serviceable limits cannot be corrected through adjustment alone. Worn or damaged S-cam bushings create excessive clearance that prevents proper shoe positioning. Broken or weak return springs fail to retract brake shoes adequately after application, causing brake drag and producing false stroke readings.

Contaminated brake linings from oil or grease leaks drastically reduce friction coefficients and require replacement. Damaged or worn camshaft splines prevent the slack adjuster from properly rotating the cam. Brake chamber diaphragm leaks cause incomplete pushrod extension appearing as excessive stroke.

Automatic Slack Adjuster Failure

Automatic slack adjusters should not require manual adjustment during normal service life. If pushrod stroke remains excessive after making six full brake applications with reservoir pressure above 90 psi, the automatic slack adjuster has either failed, been incorrectly installed, or foundation brake problems exist.

Manufacturers explicitly state that automatic slack adjusters should not need manual adjustment in service. The excessive brake stroke serves as a warning signal rather than a simple adjustment need. Manual adjustment at this point serves only as a temporary measure allowing the vehicle to reach a service facility.

Forcing manual adjustment on automatic units masks serious problems and violates manufacturer specifications. According to 49 CFR Part 396, any brake found to be out of adjustment on initial inspection must be evaluated to determine why the automatic brake adjuster is not functioning properly, and the problem must be corrected for the vehicle to pass inspection.

Dealing with Seized or Corroded Adjusters

Road salt, moisture, and contamination cause adjustment mechanisms to seize in harsh operating environments. Apply penetrating catalyst or rust-dissolving spray directly to adjustment bolt threads and locking sleeve mechanisms. Allow adequate dwell time of 15-30 minutes for the penetrant to break down corrosion bonds.

Gently work the adjustment bolt back and forth to break corrosion without forcing. Never apply excessive force that requires more than normal hand tool pressure—this can strip threads, break adjustment bolts, or crack slack adjuster housings. If penetrating oil and patient work do not free the mechanism, the slack adjuster requires replacement.

When to Replace Rather Than Adjust

Clear criteria determine when slack adjusters require replacement instead of adjustment. Replace when you find worn or damaged splines connecting the slack adjuster to the camshaft, stripped or damaged threads on adjustment bolts, any cracks in the slack adjuster housing, excessive internal play indicating gear mechanism wear, or units in service beyond manufacturer-recommended replacement intervals.

Maintenance Schedule and Best Practices

A proactive brake maintenance schedule safeguards vehicle operation by identifying potential issues before they compromise safety or trigger enforcement violations. Implementing structured inspection protocols reduces unexpected breakdowns while ensuring compliance with federal and state regulations.

Recommended Inspection Intervals

Federal and state laws require drivers to conduct thorough pre-trip inspection procedures before operating commercial vehicles. The National Safety Code and U.S. Department of Transportation regulations mandate daily verification of brake adjustment and component condition.

Daily brake inspection tasks include visual examination of brake chambers, hoses, and connections for damage or leaks; listening for air leaks during system pressurization; measuring pushrod stroke on at least one brake per axle; and documenting findings in Driver Vehicle Inspection Reports. Drivers must also inspect brakes before descending steep grades marked with regulatory warning signs.

Comprehensive brake inspections at regular service intervals complement daily driver checks. Standard service intervals typically occur every 12,000 to 15,000 miles or three months for line-haul operations. Severe-service applications require more frequent inspection schedules.

Lubrication Requirements

Proper brake lubrication practices are essential for slack adjuster longevity and reliable brake operation. Use only manufacturer-recommended lubricants: NLGI Grade 2 lithium complex grease with EP additives for slack adjuster bodies, and high-temperature brake grease for camshaft bushings.

Apply anti-seize compound to exposed splines during brake service reassembly to prevent galling. Clean grease fittings thoroughly before attaching grease gun, pump slowly while observing for old grease purging at seals, and wipe excess grease from external surfaces to prevent dirt accumulation and lining contamination.

Never use petroleum-based greases on rubber components as they cause deterioration of seals and boots. Avoid over-greasing which forces lubricant past seals and contaminates brake linings.

Documentation and Compliance Requirements

Comprehensive maintenance documentation provides legal protection, aids troubleshooting, and demonstrates regulatory compliance. Essential documentation components include Driver Vehicle Inspection Reports completed daily, maintenance work orders recording all brake service, parts replacement records with part numbers and dates, and periodic inspection checklists signed by qualified inspectors.

Retention requirements mandate keeping maintenance records for at least one year after a vehicle leaves the fleet. Many carriers maintain records longer for liability protection and warranty claims.

Frequently Asked Questions

What is the maximum allowable brake stroke for a Type 30 standard brake chamber?

The maximum allowable applied stroke for a Type 30 standard brake chamber is 1-3/4 inches under FMCSA regulations. The CVSA out-of-service criteria will remove a vehicle from operation if the stroke exceeds 2 inches. For free stroke measurement, the acceptable limit is typically 3/4 inch. These limits ensure adequate reserve stroke capacity for emergency situations and compensate for brake heating during prolonged use. Exceeding these measurements indicates the need for immediate adjustment or component replacement before the vehicle returns to service.

Can I manually adjust an automatic slack adjuster if the brake stroke is excessive?

Manual adjustment of automatic slack adjusters is prohibited during normal service. If an automatic slack adjuster shows excessive stroke after six full brake applications at proper pressure, this indicates an underlying problem such as worn brake linings, damaged S-cam bushings, broken return springs, or a failed automatic adjustment mechanism. Manually adjusting masks root causes without resolving them and can damage internal mechanisms. Manufacturers allow manual adjustment only as an emergency measure to reach repair facilities safely, where proper diagnosis and repair must be performed by qualified technicians.

How often should slack adjusters be inspected during normal operations?

Federal regulations require daily pre-trip inspections of all brake components, including slack adjusters, before operating a commercial vehicle. During daily checks, drivers must verify absence of visible damage, check for air leaks, and conduct brake stroke measurements on at least one brake per axle. Comprehensive brake system evaluations should occur every 12,000-15,000 miles or three months for line-haul operations, with more frequent inspections for severe-service applications. Qualified mechanics should inspect automatic slack adjusters at each chassis lubrication service, typically every 25,000-50,000 miles.

What safety precautions are required before adjusting slack adjusters?

Critical safety procedures include wearing ANSI-approved safety glasses, heavy-duty gloves, steel-toed boots, and NIOSH-approved HEPA-filtered respirators to protect against hazardous brake dust. Position the vehicle on level, stable ground with heavy-duty wheel chocks placed both in front of and behind wheels on the opposite axle. Verify proper air pressure of 90-100 psi, then implement lockout/tagout procedures by removing the ignition key and placing a lockout device on the steering wheel. Drain all air tanks completely through petcock valves and verify zero pressure on all gauges before beginning work.

What causes automatic slack adjusters to fail?

Common causes include worn brake linings beyond serviceable limits, damaged S-cam bushings creating excessive clearance, broken or weak return springs, contaminated brake linings from oil leaks, worn camshaft splines, and internal mechanism failure due to wear or corrosion. Environmental factors like road salt and moisture accelerate wear on internal components. Improper installation, using incompatible replacement parts, or forcing manual adjustment can also damage automatic adjustment mechanisms. When automatic slack adjusters consistently fail to maintain proper stroke despite correct foundation brake condition, they have reached end of life and require replacement.

When should a slack adjuster be replaced instead of adjusted?

Replace slack adjusters when you find worn or damaged splines at the camshaft connection, stripped or damaged threads on adjustment bolts or clevis connections, any cracks in the housing or arm, excessive internal play indicating gear mechanism wear, automatic adjusters that consistently fail to maintain adjustment despite proper foundation brake condition, severe corrosion compromising structural integrity, or units in service beyond manufacturer-recommended replacement intervals. Attempting to service severely damaged components wastes time and creates liability—component replacement provides known reliability.

Maintaining Brake Safety Through Proper Slack Adjuster Adjustment

Proper slack adjuster adjustment stands as a cornerstone of air brake safety in commercial vehicles. Every adjustment performed directly impacts brake system reliability and the safety of everyone on the road. Drivers must commit to daily pre-trip brake inspections, fleet managers need comprehensive maintenance programs with proper documentation, and technicians should follow systematic procedures that meet federal compliance standards.

The consequences of neglected brake maintenance extend beyond equipment failure. Federal regulations exist because brake-related incidents often trace back to inadequate service rather than system defects. Your diligence in following proper procedures fulfills both legal obligations and the responsibility to protect public safety on America’s highways.
