Heavy Truck ABS Diagnostics: Complete Fleet Guide [2025]

Modern commercial vehicle antilock brake systems protect drivers, cargo, and other motorists on the road. These sophisticated electronic networks prevent wheel lockup during emergency braking, yet many failures remain hidden until a warning light illuminates on the dashboard. For fleet managers and diesel technicians working with Class 3-8 vehicles, mastering heavy truck ABS diagnostics is essential for maintaining safety and regulatory compliance.

Silent malfunctions can persist for weeks without obvious symptoms. The challenge intensifies when air brake components integrate with electronic control modules across multiple axles. This comprehensive guide equips heavy-duty diagnostics professionals with proven techniques for identifying, testing, and resolving brake system issues efficiently.

Last Updated: December 2025

Understanding Heavy Truck ABS Systems and Components

The architecture of heavy truck ABS differs fundamentally from passenger vehicle systems. Commercial trucks integrate antilock brake technology with pneumatic air brake systems rather than hydraulic fluid, creating unique diagnostic challenges that technicians must understand thoroughly.

Unlike light-duty applications, a typical tractor-trailer combination may have ABS coverage across six or more axles. The system coordinates between multiple control modules while accounting for varying load weights, trailer connections, and road surface conditions simultaneously. When the electronic control unit detects potential wheel lockup during hard braking, it modulates air pressure to individual wheel circuits within milliseconds.

Major System Elements and Their Functions

Every heavy truck ABS consists of several critical elements forming an integrated safety network. The primary components include the electronic control module, modulator valves, wheel speed sensors, tone rings, wiring harnesses, and warning indicators. Each performs a specific role in the overall braking control strategy.

The system follows a hierarchical structure: sensors gather data, the control module processes information, and modulators execute braking commands. This three-tier approach enables rapid response times essential for preventing wheel lockup.

Control Modules and Pneumatic Modulation

The electronic control unit serves as the brain of the heavy truck ABS, continuously processing data from all wheel speed sensors. This microprocessor-based controller compares individual wheel speeds against vehicle speed and predetermined algorithms. When it detects wheel deceleration rates indicating impending lockup, the ECU sends commands to the appropriate modulator valves.

Modern control modules operate at processing speeds exceeding 100 calculations per second during braking events. The ECU also stores diagnostic trouble codes when it detects malfunctions, providing valuable information for troubleshooting procedures.

ABS modulators function as electronically controlled air valves that regulate brake chamber pressure. Each modulator valve assembly typically contains multiple solenoid-operated valves for different wheel positions. The solenoids open and close rapidly during ABS activation, creating the characteristic pulsing sensation drivers feel through the brake pedal—up to seven times per second during emergency braking.

Wheel Speed Sensor Technology

Wheel speed sensors generate the critical input data enabling ABS functionality. Two main sensor technologies appear in commercial vehicle applications: passive magnetic sensors and active Hall-effect sensors.

Passive sensors generate their own AC voltage through magnetic induction without requiring external power. Active sensors use semiconductor technology and need voltage input but provide more accurate signals at low speeds. The mounting location and air gap between sensors and tone rings critically affects signal quality. Most manufacturers specify air gaps between 0.020 and 0.050 inches for proper operation.

Tone rings, also called reluctor wheels, feature precisely machined teeth around their circumference. As teeth pass the sensor tip, they create fluctuations in the magnetic field that generate electrical signals. Most heavy truck applications use 100-tooth configurations for optimal signal resolution.

Air Brake Integration Considerations

The unique challenge of air brake integration distinguishes heavy truck ABS from passenger vehicle systems. Commercial vehicles use compressed air stored in reservoirs to apply braking force through diaphragm-type brake chambers. Air pressure dynamics create response time considerations that don’t exist in hydraulic systems—compressed air takes longer to flow through lines and build pressure compared to incompressible brake fluid.

Tractor-trailer combinations require additional complexity because the trailer has its own ABS system. The tractor and trailer systems communicate through standardized electrical connections, coordinating their braking responses to prevent jackknifing or loss of control.

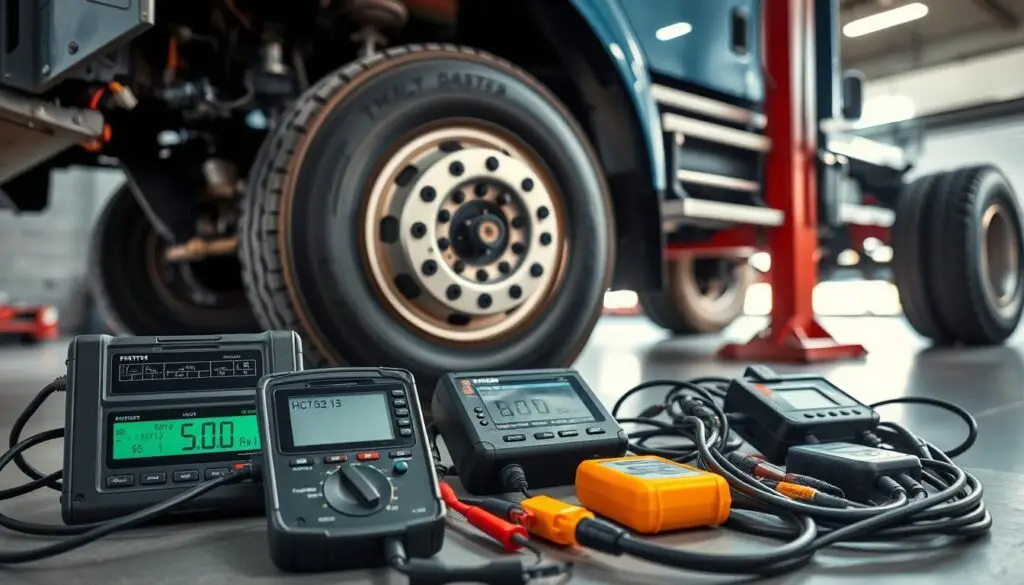

Essential Diagnostic Tools and Equipment

Accurate ABS troubleshooting begins with selecting the right diagnostic equipment for commercial vehicle applications. Heavy truck technicians need specialized tools that communicate effectively with Class 4-8 vehicle systems operating on both 12V and 24V electrical platforms.

Modern commercial vehicles use multiple communication protocols requiring compatible diagnostic equipment. SAE J1587/J1708 and J1939 CAN standards govern data transmission between electronic control modules and diagnostic interfaces. Understanding these protocols helps technicians select appropriate tools for their specific fleet requirements.

Heavy-Duty Diagnostic Scan Tools

Professional heavy-duty scan tools represent the foundation of modern ABS diagnostics. The NEXIQ Technologies USB-LINK 3 offers both wired and wireless connectivity through Bluetooth and Wi-Fi editions, allowing technicians to diagnose vehicles from convenient positions without being tethered to the truck.

The Autel AL529HD vehicle code reader provides an entry-level solution for shops beginning their diagnostic equipment investment. For comprehensive diagnostics, the Autel MS909CV delivers advanced functionality with a tablet-based interface. Jaltest diagnostic kits combine hardware and software in integrated packages designed specifically for commercial vehicle applications.

Multimeters and Electrical Testing Devices

Digital multimeters remain essential for validating electrical circuits in ABS systems. These instruments measure voltage, resistance, and continuity in sensor circuits and power supply networks. Quality automotive multimeters include features like automatic ranging and protective fuses for circuit safety.

Resistance testing identifies faulty wheel speed sensors by comparing measured values against manufacturer specifications. Typical passive wheel speed sensors show resistance between 800 and 2,000 ohms. Active sensors require voltage testing to verify proper power supply and signal generation.

Voltage measurements confirm proper operation of ABS control module power supplies and ground circuits. A 12V system should maintain battery voltage between 12.4V and 14.4V during operation, while 24V systems require measurements in the 24V to 28V range.

Manufacturer-Specific Software

ABS diagnostic software platforms transform hardware interfaces into comprehensive diagnostic systems. JPRO Professional exemplifies advanced software capabilities with coverage for the majority of ABS diagnostic trouble codes, including OEM-level fault information matching or exceeding dealership capabilities.

The software provides integrated troubleshooting guides and wiring diagrams, eliminating the need for separate service manual subscriptions. Bi-directional control functions allow technicians to activate ABS components for functional testing without road testing the vehicle.

Reading and Interpreting ABS Trouble Codes

Diagnostic trouble codes serve as the primary communication between the ABS control module and technicians, translating system faults into actionable information. These codes identify specific component failures, electrical problems, and performance issues affecting braking safety.

Heavy truck ABS systems store both active and historic fault codes in the electronic control unit. Active codes indicate current malfunctions affecting system operation, while historic codes represent intermittent problems that occurred previously but are no longer present.

Methods for Accessing Fault Codes

Two primary methods exist for retrieving diagnostic trouble codes from heavy truck ABS systems. Professional diagnostic scan tools connected to the vehicle’s diagnostic port provide the most comprehensive information, accessing troubleshooting data and displaying detailed fault code information within approximately one minute of connection.

When scan equipment is unavailable, the dashboard ABS warning light can display blink codes through specific flash patterns corresponding to stored fault codes. Activating the blink code sequence typically requires cycling the ignition on and off a certain number of times within a specified timeframe. The warning light then flashes in sequences separated by pauses—for example, three short flashes, a pause, then two short flashes indicates code 32.

However, blink codes provide only basic fault identification without the detailed information available through scan tools, including freeze frame data, circuit-specific details, and troubleshooting guidance.

Common ABS Fault Code Categories

Heavy commercial vehicles generate specific fault codes falling into three primary categories based on the affected component or circuit.

Wheel speed sensor faults represent the most frequently encountered ABS codes in heavy trucks. These sensors operate in harsh environments exposed to road debris, moisture, and mechanical vibration. Common sensor-related codes include open circuit codes indicating broken wiring or failed sensor elements, short circuit codes from damaged insulation, erratic signal codes from inconsistent sensor output, and air gap codes triggered by excessive spacing between sensor and tone ring.

Electrical system fault codes identify problems with power supply, ground circuits, and communication networks. These include low voltage codes, ground fault codes, and communication error codes when data transmission between control modules fails.

Modulator and valve malfunction codes indicate mechanical or electrical failures within this critical component, including solenoid coil failures and valves stuck in open or closed positions.

Interpreting Code Severity

Not all diagnostic trouble codes demand immediate attention or represent equal safety concerns. ABS systems classify codes by severity levels that guide repair prioritization and vehicle operation decisions.

Critical faults disable ABS functionality completely and may illuminate warning lamps continuously. These codes indicate serious safety system compromises requiring immediate repair before returning vehicles to service. Moderate severity codes may allow continued vehicle operation with reduced ABS capability. Informational codes document intermittent issues or conditions needing monitoring.

Technicians should address active critical codes first, followed by active moderate codes, then investigate patterns in historic codes. Multiple historic codes affecting the same component suggest intermittent problems requiring thorough diagnosis.

Visual Inspection and Initial System Assessment

A methodical visual assessment identifies the majority of ABS system failures without requiring advanced diagnostic tools. This preliminary approach provides technicians with critical information about component condition, environmental damage, and installation quality.

Starting with thorough visual inspection saves time and prevents unnecessary component replacement. Damaged wiring, corroded connectors, and debris-covered sensors account for a significant percentage of ABS malfunctions.

Safety Protocols

Safety procedures form the foundation of professional ABS inspection work. Before beginning any diagnostic activity, secure the vehicle on level ground with wheel chocks properly positioned. Air brake systems require complete depressurization before inspection—drain all air tanks and verify zero pressure on dashboard gauges.

Electrical system lockout protocols protect both technician and vehicle electronics. Disconnect the battery negative terminal and apply a lockout device to prevent accidental circuit activation.

Sensor and Wiring Inspection

Sensor inspection begins at each wheel position where speed sensors mount to the steering knuckle, axle housing, or suspension components. Look for physical damage including cracks, impact marks, or missing protective caps. Examine mounting brackets for cracks, excessive corrosion, or loose fasteners that allow sensor movement.

The air gap between sensor tip and tone ring requires verification at each location using a feeler gauge. Check the gap at multiple points around the wheel rotation. Excessive gaps prevent proper signal generation, while insufficient clearance causes sensor contact with the tone ring.

Wiring inspection focuses on cable routing, physical condition, and connection integrity throughout the ABS system. Trace each sensor wire from the wheel position back to the main harness junction point. Look for abrasion damage where harnesses pass through frame holes, cross suspension pivot points, or route near rotating driveline components.

Connector examination reveals moisture intrusion, corrosion, and mechanical damage. Remove connector covers to inspect pin terminals for green or white corrosion deposits that increase electrical resistance and cause signal degradation.

Tone Ring and Control Module Inspection

Tone ring inspection requires wheel removal for complete visual access. Examine each tooth around the complete circumference looking for chips, cracks, or broken sections. Metallic debris buildup on tone rings—attracted by the magnetic field—creates false signal variations requiring periodic cleaning.

Verify the ABS control module mounts securely to its bracket. Loose modules experience excessive vibration that damages internal circuits. Check the main electrical connector for proper engagement and inspect ground connections for corrosion that creates high-resistance ground paths affecting all module functions.

Wheel Speed Sensor Testing Procedures

Wheel speed sensors act as the eyes of the ABS system, and proper testing determines whether these critical components function correctly. Heavy trucks use two distinct sensor technologies requiring different diagnostic approaches.

Resistance Testing

Resistance testing provides the first line of defense in identifying faulty sensors. Set your multimeter to the ohms setting in the 800-1,400 ohm range for passive sensors. Connect the meter to the disconnected sensor terminals and compare readings against manufacturer specifications.

Readings significantly higher than specification indicate an open circuit or damaged coil windings. Readings below specification suggest a short circuit. Active sensors require checking both power supply voltage (typically 5V or 12V from the ABS control module) and ground circuit resistance, which should measure less than one ohm.

AC Voltage Output Testing

Voltage testing on passive sensors provides dynamic confirmation of sensor operation. Connect your multimeter to measure AC voltage, safely raise the vehicle, and slowly spin the wheel by hand while observing the voltage reading.

The voltage amplitude should increase proportionally with wheel speed. At slow rotation speeds, expect 0.1 to 0.5 volts AC. As rotation speed increases, voltage should rise to 1.0 volt or higher. The signal should remain consistent throughout entire wheel rotation without dropouts.

Air Gap and Wiring Continuity

Use a feeler gauge to measure clearance between sensor face and tone ring. Excessive gap reduces signal strength and may cause intermittent ABS operation at low speeds. Insufficient clearance risks physical contact damaging both components.

For wiring continuity testing, disconnect both ends of the sensor circuit and test each wire individually. Each conductor should show less than one ohm of resistance. Test for shorts between wires and to ground—expect infinite resistance indicating complete isolation between circuits.

Electronic Control Module and Circuit Testing

When sensor-level diagnostics don’t reveal the problem, technicians must examine the control module and its supporting electrical circuits. This advanced diagnostic phase requires specialized equipment and knowledge.

Power Supply and Ground Verification

Power supply testing begins with identifying voltage sources feeding the ABS control module. Most systems receive power from two separate circuits: a constant battery supply maintaining system memory and an ignition-switched source activating the module during operation.

Measure voltage at the ECU connector with the key in both off and on positions. Proper voltage typically ranges from 12.0 to 14.5 volts. Voltage drops exceeding 0.5 volts indicate resistance problems requiring investigation. Testing under load during ABS self-test reveals whether circuits maintain adequate power during system operation.

Ground circuits deserve equal attention. Measure ground circuit resistance using a multimeter set to ohms—total resistance from module ground pin to battery negative should not exceed 0.1 ohms. Corroded ground connections are common failure points requiring cleaning and application of dielectric grease.

Modulator Solenoid Testing

Begin with passive resistance testing of each solenoid coil. Disconnect the modulator connector and measure resistance across each valve’s terminals. Typical solenoid resistance ranges from 2 to 8 ohms depending on manufacturer and design.

Advanced diagnostic software enables active solenoid testing through bi-directional controls, commanding individual valves to activate while monitoring system response. Listen for audible clicking sounds indicating proper valve movement. Monitor current draw during activation—normal solenoid current typically ranges from 0.5 to 2.0 amps.

Communication Network Testing

Modern heavy truck ABS systems rely on J1939 CAN communication networks to exchange data with other vehicle control modules. Diagnostic software provides real-time monitoring of network traffic and communication errors.

Test physical CAN bus wiring using a multimeter to measure resistance between CAN High and CAN Low terminals. With all modules disconnected, terminating resistors should produce approximately 60 ohms. Significant deviations indicate missing terminators, short circuits, or open wiring.

Dynamic Testing and Road Evaluation

Road testing represents the final critical phase of heavy truck ABS diagnostics, revealing issues that only appear during vehicle operation. Static bench testing identifies many component failures, but dynamic testing validates complete system functionality under actual driving conditions.

Preparing for Controlled Tests

Select an empty parking lot or closed test course with adequate space for multiple braking maneuvers. Conduct thorough pre-trip inspection before beginning dynamic evaluation—check tire condition, inflation pressure, and tread depth across all positions.

Verify all previous static testing showed satisfactory results before proceeding. Connect diagnostic equipment securely and route cables away from pedals and steering components. Test with representative loading conditions whenever possible, as ABS performance varies significantly between empty and loaded configurations.

Low-Speed ABS Activation Tests

Accelerate to speeds between 15 and 25 mph on a surface with adequate traction. Apply firm, steady brake pedal pressure to induce wheel lockup and activate the ABS system. Properly functioning systems produce distinct pedal pulsation as modulator valves cycle rapidly—typically 4 to 15 cycles per second.

Observe wheel behavior during activation. Wheels should maintain rotation without locking, leaving skip marks rather than continuous skid marks. Uneven activation between wheels indicates sensor problems, valve malfunctions, or air system issues. Document stopping distances for comparison with manufacturer specifications.

Data Logging for System Analysis

Configure your scan tool to record comprehensive data streams before road evaluation. Select parameters including wheel speeds, brake application timing, valve commands, and system voltage. Advanced diagnostic software captures information at high sampling rates, revealing subtle timing issues that technicians cannot observe in real-time displays.

Review recorded data after test drives to analyze system behavior in detail. Compare performance across multiple wheels and axles using playback features. These comparisons often reveal problems with individual sensors, damaged tone rings, or modulator valve failures affecting specific positions.

Troubleshooting Common ABS Malfunctions

Heavy truck ABS systems experience predictable failure modes that technicians can efficiently diagnose using targeted troubleshooting techniques. Understanding these patterns accelerates repair times and improves diagnostic accuracy.

Intermittent Warning Light Behavior

Intermittent faults represent one of the most challenging scenarios. The warning light illuminates sporadically, often without stored fault codes or with codes that disappear before verification. Start by accessing freeze frame data and fault occurrence counters in your diagnostic software to reveal patterns.

Vibration-induced wiring faults cause many intermittent problems. Inspect wire routing near suspension components, frame rails, and areas where harnesses contact metal surfaces. Gently wiggle connectors and wiring while monitoring live data to reproduce the fault condition.

Wheel Speed Sensor Failures

Sensor failures account for the majority of ABS-related service calls. Begin by determining whether the fault originates from the sensor itself, wiring, or tone ring condition. Common causes include physical impact damage from road debris, water intrusion through damaged seals, excessive air gap from improper installation, and internal coil breakdown from heat exposure.

When replacing sensors, always inspect mounting surfaces and clean the hub area thoroughly. Apply anti-seize compound to threaded fasteners for future removal. Verify proper torque specifications during installation.

Electrical Connection Degradation

Connector corrosion creates resistance interfering with signal quality and power delivery. The harsh operating environment exposes connections to salt, moisture, chemicals, and temperature extremes. Inspect all connectors for green or white corrosion deposits, paying special attention to wheel-end connections where road spray impacts are greatest.

Use electrical contact cleaner for light corrosion. After cleaning, apply dielectric grease to protect against future moisture intrusion. Replace connectors when terminals show pitting or spring tension is lost.

Air System Complications

Air system problems affect ABS operation even when all electronic components function correctly. Check system air pressure with engine running and brakes released—most systems need at least 100 PSI to enable ABS functionality. Apply soapy water solution to suspected leak areas while the system is pressurized to locate leaks.

Contaminated air supply causes valve sticking and erratic modulator operation. Inspect air dryer operation and replace desiccant cartridges according to maintenance intervals.

Preventive Maintenance and Diagnostic Best Practices

The most effective way to ensure ABS system reliability involves implementing structured maintenance practices that identify potential issues early. Proactive preventive maintenance reduces unexpected breakdowns and extends component service life.

Establishing Inspection Intervals

Inspection frequency should match vehicle usage patterns and operating environment severity. Most manufacturers recommend baseline ABS inspections every 30,000 to 50,000 miles for standard operations. Severe-duty applications may warrant inspections at 15,000 to 25,000-mile intervals.

During routine inspections, verify sensor physical condition and mounting security, wiring harness condition including abrasion points, connector integrity for corrosion or moisture intrusion, tone ring condition for cracks or debris accumulation, and modulator valve mounting security.

Sensor Care and Protection

Regular cleaning maintains optimal sensor performance and prevents false fault codes. Clean sensor faces and tone rings during brake service using a soft brush or compressed air—avoid harsh chemicals or abrasive materials that could scratch surfaces.

Apply dielectric grease to connector terminals to prevent moisture intrusion. Route sensor wiring away from heat sources and moving components. Keep lubricants away from magnetic pickup areas while ensuring adequate protection for electrical connections.

Documentation and Technical Updates

Maintaining accurate service records provides essential information for trend analysis and future diagnostics. Document all fault codes encountered, repairs performed, replacement parts with part numbers, and system test results. This history proves invaluable for identifying recurring problems and supporting warranty claims.

Stay current with technical service bulletins from manufacturers addressing known issues, software updates, and improved diagnostic techniques. The Technology & Maintenance Council (TMC) provides industry-standard recommended practices that help fleets maintain their vehicles more effectively.

Frequently Asked Questions

What diagnostic tools are essential for heavy truck ABS troubleshooting?

Professional heavy truck ABS diagnostics require a heavy-duty diagnostic scan tool that supports SAE J1587/J1708 and J1939 CAN protocols used in Class 3-8 vehicles. Options include NEXIQ USB-LINK 3 (wireless or wired), Autel MS909CV, or Jaltest diagnostic kits. A quality digital multimeter for measuring resistance, voltage, and continuity is also essential. Advanced diagnostic software like JPRO Professional provides OEM-level fault coverage, integrated troubleshooting guides, wiring diagrams, and bi-directional control capabilities. Feeler gauges for measuring sensor air gaps complete the basic toolkit.

What is the proper air gap specification for wheel speed sensors?

Most heavy truck wheel speed sensors require an air gap between 0.020 and 0.050 inches (approximately 0.5-1.3 mm) between the sensor tip and tone ring teeth. Exact specifications vary by manufacturer and sensor type. Passive magnetic sensors are more sensitive to air gap variations than active sensors. Use precision feeler gauges to measure clearance at multiple points around the tone ring rotation to identify runout issues. Excessive gaps reduce signal strength and cause intermittent ABS operation, while insufficient clearance risks physical contact damaging both components.

How do I retrieve ABS fault codes without a scan tool?

When professional diagnostic tools are unavailable, you can retrieve basic fault codes by reading blink codes from the ABS warning light. The procedure varies by manufacturer but typically involves cycling the ignition on and off in a specific pattern. The warning light flashes in sequences corresponding to fault codes—for example, three flashes, pause, two flashes indicates code 32. However, blink codes provide only basic identification without freeze frame data, circuit-specific details, or troubleshooting guidance that professional scan tools provide. For thorough diagnostics in commercial fleet applications, professional tools remain essential.

Why does my ABS warning light come on intermittently with no stored codes?

Intermittent warning lights without stored codes typically result from temporary electrical issues that resolve before the control module records a fault. Common causes include loose connector terminals losing contact during vibration, corroded pins creating intermittent high resistance, wiring harnesses with internal breaks making contact only in certain positions, and sensor mounting issues allowing excessive movement. Access freeze frame data to identify patterns, inspect connectors for corrosion and proper engagement, examine wiring for abrasion points, and perform wiggle tests while monitoring live sensor signals with diagnostic software.

What ABS-related violations can place a commercial vehicle out of service?

Under 49 CFR 393.55 and CVSA’s North American Standard Out-of-Service Criteria, vehicles face out-of-service violations for malfunctioning ABS systems. Specifically, if the ABS warning lamp does not illuminate briefly at startup and then turn off (indicating normal function), the vehicle has a violation. A lamp that stays on continuously indicates an ABS malfunction requiring inspection before the vehicle can return to service. Trailers manufactured after March 1, 2001 must have functioning external ABS malfunction indicator lamps. Operating with a malfunctioning ABS is considered a safety violation that can result in out-of-service orders during roadside inspections.

How often should ABS systems be inspected on commercial vehicles?

Most manufacturers recommend baseline ABS inspections every 30,000 to 50,000 miles for standard highway operations. Vehicles operating in severe conditions—winter operations with road salt, unpaved roads, or construction environments—should be inspected every 15,000 to 25,000 miles. Integrate ABS checks into existing preventive maintenance routines during tire rotations or brake service. Inspections should verify sensor condition and mounting, wiring harness integrity, connector condition for corrosion, tone ring condition, and modulator valve security. Document all inspections and findings to establish baseline performance data and identify developing problems before failures occur.

Mastering Heavy Truck ABS Diagnostics for Fleet Safety

Proper heavy truck ABS diagnostics represent a fundamental pillar of commercial vehicle safety and operational efficiency. Mastering the systematic approach detailed throughout this guide equips technicians with the diagnostic expertise necessary to identify and resolve brake system issues across all heavy truck configurations.

The combination of professional diagnostic tools, methodical testing procedures, and thorough component inspection creates a comprehensive framework for effective maintenance. While advanced platforms streamline the diagnostic process through detailed fault information and bi-directional testing capabilities, the knowledge and judgment of skilled technicians remain irreplaceable when interpreting data and executing repairs.

This reality reinforces a critical point: thorough brake system maintenance protects substantial fleet investments and safeguards everyone sharing the road with commercial vehicles. Proper antilock brake system function directly prevents accidents and saves lives. The systematic diagnostic approach outlined here provides the foundation for maintaining the highest standards of commercial vehicle safety in demanding fleet operations.
