Grain Trailer Tarp System Maintenance & Troubleshooting Guide

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: February 2026

📖 Estimated reading time: 22 minutes

A failed grain trailer tarp system during harvest season doesn’t just risk your load—it costs you money with every hour of downtime. Weather elements threaten every shipment, and when your electric tarp motor dies or a cable snaps at the elevator, you need solutions fast. This guide covers everything grain haulers need to know about tarp system maintenance, motor troubleshooting, and keeping your covering mechanisms reliable throughout the hauling season.

Whether you’re running a roll-style drum system or arm-style retractable configuration, the maintenance principles and diagnostic procedures outlined here apply to the equipment you use daily. You’ll find specific troubleshooting steps for electric motor failures, proven preventive maintenance schedules, and practical techniques drawn from real-world grain hauling operations that keep systems running when it matters most.

Understanding Grain Trailer Tarp System Types

The grain hauling industry uses several tarp system technologies, each engineered to balance convenience, reliability, and operational efficiency. Selecting the right system depends on hauling frequency, budget constraints, and operator preferences. Understanding your specific configuration prevents incorrect repair attempts and helps identify compatible replacement parts when components fail.

Roll-Style Tarp Systems

Roll-style tarp systems represent the most common configuration on grain trailers today. These systems use a drum mechanism mounted at the front of the trailer that winds and unwinds the tarp material. The tarp extends backward over the load when deployed and retracts forward during unloading.

Several manufacturers produce reliable roll-style systems with varying features and price points. Shurco systems are frequently praised by operators for dependable performance and responsive technical support. Sioux City Tarp (SCT) offers budget-friendly options starting around $1,499 while maintaining solid reliability ratings. Roll-Rite stands out for exceptional build quality and knowledgeable customer service teams that provide comprehensive troubleshooting support.

Arm-Style Retractable Systems

Arm-style retractable systems operate differently from drum-based designs. These configurations use multiple bows or arms that slide along tracks mounted to the trailer’s side rails. The tarp material attaches to these arms and moves in an accordion-like pattern across the load, providing more even weight distribution across the tarp surface.

The retractable arms fold compactly at the trailer’s front or rear when not in use. Maintenance focuses on keeping the track channels clean and ensuring smooth arm movement. These systems require regular lubrication of pivot points and track surfaces. Proper alignment of the arms prevents binding and premature wear on both the tarp material and mechanical components. Arm-style systems generally cost more initially but offer excellent longevity with proper care.

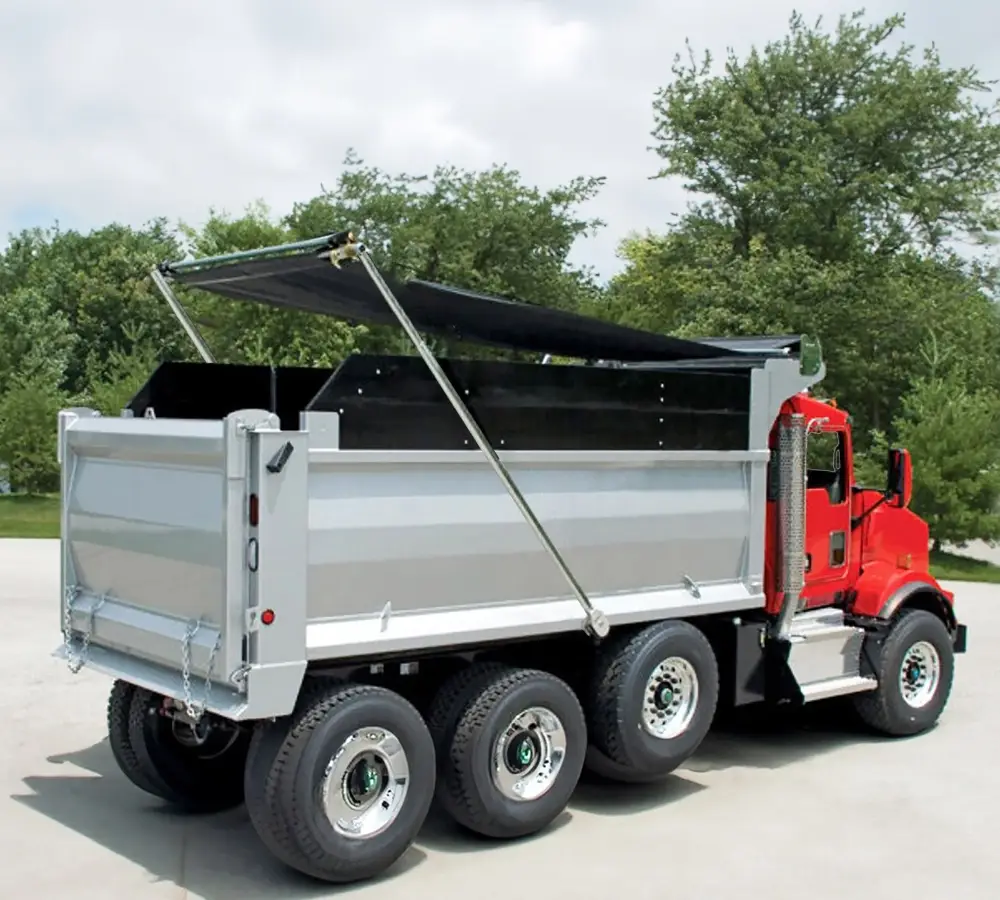

Electric Motor Systems vs. Manual Cranks

The choice between electric tarp motor systems and manual crank operation significantly impacts daily operations and maintenance requirements. Electric systems provide rapid deployment and retraction—typically 30-45 seconds for full coverage—with the push of a button. They reduce physical strain on operators and save valuable time during loading operations.

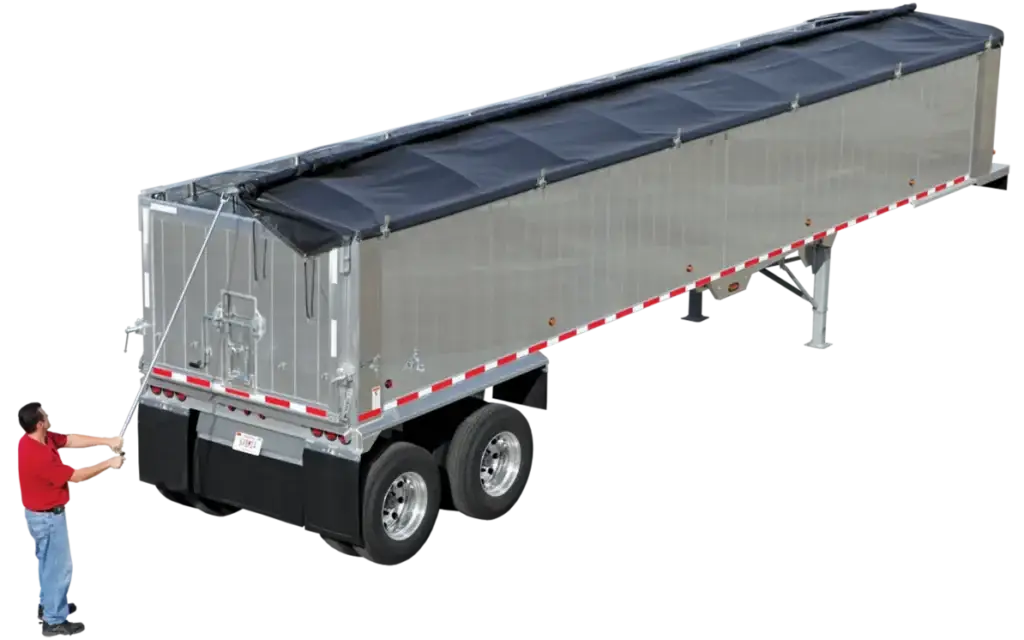

Manual crank systems offer simplicity and independence from electrical components. They function reliably regardless of battery condition or electrical system health. However, they require considerable physical effort, especially with larger tarps or in cold weather conditions, often taking 2-4 minutes for full deployment.

Thunderstone systems, now standard equipment on Timpte trailers, represent another electric option. Operators report these systems operate slower than some competitors but maintain consistent performance. The reduced speed may actually extend motor life by reducing stress on electrical components.

Critical Components to Know

All tarp systems share common components regardless of specific design. The motor or crank assembly provides the power source for tarp movement. Cable or chain drive mechanisms transfer that power to move the tarp across the load, while pulleys and guide wheels direct cable movement and reduce friction.

Mounting hardware secures all components to the trailer frame and must withstand constant vibration during transport. Electrical connections in motorized systems deliver power and control signals. Additional components include limit switches that prevent motor overrun, protective covers for electrical elements, and tensioning devices. Regular inspection of these components prevents unexpected failures during critical hauling periods.

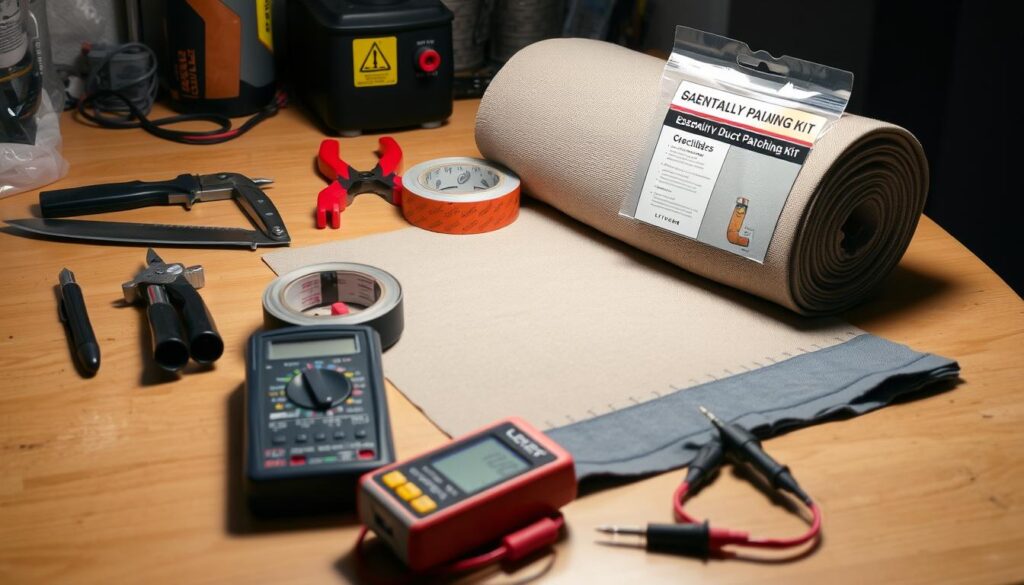

Essential Tools for Tarp System Maintenance

Having the right tools transforms tarp system maintenance from a frustrating challenge into a manageable routine. Grain haulers who invest in quality maintenance tools experience less downtime and fewer emergency repairs during harvest.

A quality digital multimeter stands as the single most important diagnostic tool for electric tarp systems. This instrument measures whether the motor receives proper 12V power when you activate the switch, identifies voltage drops across connections, and confirms circuit breaker function. Battery load testers help identify power supply issues before they cause motor failures in the field.

When selecting lubrication products, choose based on your operating environment. Dry lubricants for cables resist dust and grain debris accumulation better than traditional oils—a critical consideration when grain dust acts as an abrasive agent. Keep cleaning supplies including wire brushes, compressed air, and electrical contact cleaner readily available for maintaining motor housings and connections.

Building an Effective Tarp Maintenance Schedule

A structured maintenance schedule transforms equipment management from reactive crisis response to proactive care. Manufacturers recommend following their maintenance intervals to ensure the tarp system operates safely and reliably. Regular inspections identify small issues before they become expensive problems, and the framework below adapts to the demanding grain hauling environment.

Pre-Trip Visual Checks

Daily inspections before hauling should become an ingrained habit. These pre-trip checks take only five to ten minutes but potentially prevent major failures during transport. Complete them before loading to avoid discovering problems when the trailer is already full. Federal load securement regulations under 49 CFR Part 393 require that cargo be properly secured during transport, and a functioning tarp system plays a direct role in meeting those requirements for agricultural commodities.

Verify the tarp deploys and retracts smoothly without binding or hesitation. Examine visible cable portions for fraying, kinks, or damage. Confirm electrical connections appear secure with no visible corrosion. Listen for unusual grinding, clicking, or scraping noises during operation. Check the tarp material for new tears or excessive wear patterns.

Weekly Service Checkpoints

Weekly service represents the next maintenance tier, conducted during slower periods or designated maintenance windows. Test the full range of tarp motion from completely open to fully closed. Inspect cable tension and alignment across the entire system length. Check motor mounting bolts for proper tightness and signs of vibration damage. Examine pulley wheels for smooth rotation and bearing wear. Clean accumulated grain dust from motor housings and mechanical components.

Documenting weekly findings creates a maintenance history that reveals patterns and predicts component replacement timing. This proactive approach reduces unexpected breakdowns during peak harvest season when every hour of downtime costs money.

Monthly Deep Maintenance

Monthly sessions require more time investment but address issues before they become critical. Apply thorough lubrication to all moving parts including cables, pulleys, and pivot points. Conduct detailed electrical connection inspection with contact cleaning. Perform comprehensive cable and pulley system evaluation for wear indicators. Examine tarp material closely for early signs of UV deterioration or stress cracking. Document wear patterns, component conditions, and developing issues in maintenance logs for long-term replacement planning and budget forecasting.

Seasonal Preparation and Winterization

Seasonal preparation is particularly crucial for operations in cold climates where freezing temperatures threaten system integrity. Winter conditions cause ice buildup, material brittleness, and motor failures that require specific protective measures.

Essential winterization procedures include applying cold-weather lubricants rated for sub-zero temperatures and treating electrical connections with dielectric grease for moisture protection. Inspect tarp material for flexibility retention in cold conditions and consider heated motor covers for extreme climates. Spring preparation reverses winter protection while addressing warm-weather concerns—switch back to standard lubricants, check for winter damage from ice accumulation, and prepare systems for increased operational tempo during harvest.

Stay Ahead of Equipment Failures

Get maintenance tips, troubleshooting guides, and industry updates delivered to your inbox. Built for the professionals who keep grain moving.

Email

Email *

Submit

Motor Maintenance Best Practices

Systematic preventive care dramatically reduces tarp motor failure rates and extends equipment lifespan beyond manufacturer expectations. The agricultural environment exposes motors to grain dust that acts as an abrasive agent accelerating component wear. The practices below form the foundation of a reliable maintenance program.

Cleaning Motor Housing and Components

Compressed air provides the most effective method for blowing accumulated material from cooling vents and motor housing seams. Direct the air stream around the motor shaft area where debris typically concentrates. Follow with a clean, dry cloth to wipe external surfaces without introducing moisture. Pay special attention to ventilation openings that allow heat dissipation—blocked vents cause motors to overheat and trigger thermal cutoff switches.

Cover terminal connections with plastic bags or waterproof tape during cleaning to prevent moisture intrusion. Water and cleaning solvents can cause shorts and accelerate corrosion on exposed terminals. Some tarp systems, particularly Thunderstone models, experience stray voltage at the motor when wet. Replacing metal washers with plastic alternatives better insulates components and eliminates this voltage issue.

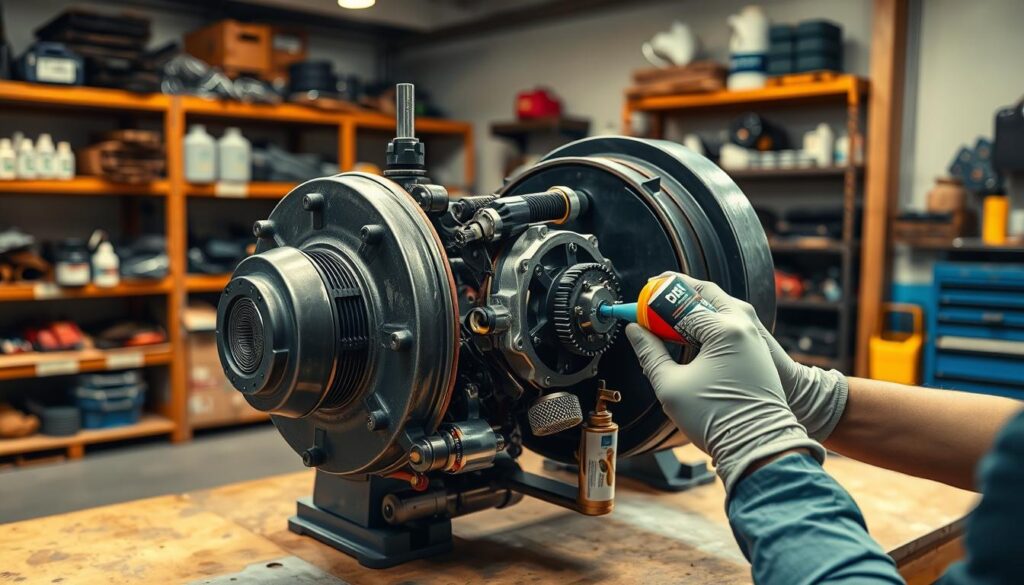

Proper Lubrication Techniques

Lubrication should be included in every tarp maintenance routine. Gearboxes require specific gear oil types as specified by your system’s manufacturer—apply at recommended intervals to prevent gear tooth wear and ensure quiet, efficient power transmission. Check oil levels through inspection ports and top off as needed. Grinding or whining sounds signal gears running dry and require immediate attention. Neglecting gearbox lubrication leads to expensive replacement rather than simple oil changes.

Motor shaft bearings need appropriate grease applied through designated fittings. For sealed bearing systems, lubrication occurs during periodic motor disassembly according to manufacturer schedules. Over-greasing causes as many problems as under-greasing by creating excess pressure that damages seals. Follow manufacturer guidelines for grease quantity and application frequency.

Inspecting Electrical Connections

Examine all wire terminals during monthly maintenance for signs of corrosion—greenish discoloration around connection points. Looseness or heat damage shows as discolored insulation near terminals. Clean corroded connections with electrical contact cleaner and apply dielectric grease to protect against future corrosion. Corroded or damaged connections can cause system malfunctions or pose fire hazards.

Tighten all terminal screws to manufacturer specifications using appropriate tools that prevent over-tightening and thread damage. Test connections after tightening by gently tugging on wires to verify secure attachment. Loose connections create electrical resistance that generates heat and accelerates deterioration.

Checking Motor Mounting Hardware

Verify all mounting bolts remain tight and lock washers are properly seated during each monthly inspection. Vibration during transport gradually loosens hardware, allowing the motor to shift position and create misalignment that increases mechanical stress. Inspect mounting brackets for cracks or elongated bolt holes indicating metal fatigue, and replace compromised brackets immediately before they fail completely.

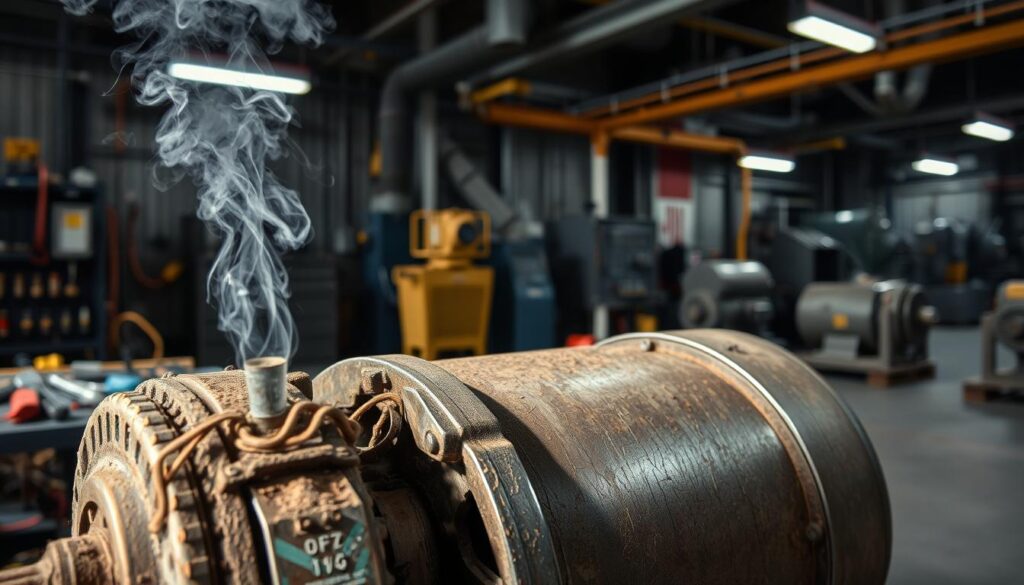

Identifying Common Motor Failures and Warning Signs

Recognizing motor failure symptoms early transforms potential roadside emergencies into planned maintenance stops. Your tarp motor communicates problems through distinct sounds, performance changes, and operational behaviors. Learning to interpret these signals lets you schedule repairs during downtime rather than facing unexpected breakdowns.

Unusual Sounds From the Motor Assembly

A loud grinding noise during tarp deployment often signals developing problems within the motor system. This sound may originate from worn gear teeth in the reduction gearbox or failing bearings that no longer support smooth rotation. Sometimes the grinding comes from debris trapped inside the motor housing, or the plastic motor cover simply vibrates against the housing. Remove the cover and test the system again to determine the actual cause. Clicking sounds typically indicate electrical problems—loose connections or failing relays within the control circuit.

Reduced Performance and Extension Issues

Sluggish tarp movement represents one of the clearest warning signs of developing motor problems. The motor may operate at noticeably slower speeds than normal, or the tarp might stop before reaching full extension. These symptoms typically indicate insufficient power reaching the motor from weak battery voltage, or excessive mechanical resistance from binding cables or seized pulleys. Internal motor wear also gradually reduces power output capacity over time.

Motors that work in one direction but not the other indicate serious internal failures. Systems where the tarp unrolls by itself when power disengages require immediate motor replacement.

Total Motor Shutdown

Complete loss of motor function—no response to switch activation—requires systematic diagnosis. Blown fuses or tripped circuit breakers represent the most common and easiest causes to resolve. Completely failed motor windings prevent any current from creating mechanical motion. Severed or disconnected wiring stops power from reaching the motor assembly, and faulty control switches fail to send activation signals even when engaged.

Overheating and Thermal Cutoff

Thermal cutoff protection circuits temporarily disable motors working under excessive load or high ambient temperatures. The motor stops until internal components cool to safe operating levels. Mechanical binding forces the motor to work harder than designed, while inadequate cooling airflow accelerates temperature buildup. Operating motors beyond their designed duty cycle generates excessive heat that triggers these protective systems.

Intermittent Operation

Motors that start and stop without consistent control input indicate electrical connection problems rather than mechanical motor failure. Loose or corroded connections create intermittent circuits disrupting power flow. Failing control switches develop worn contacts that provide inconsistent activation signals.

Step-by-Step Tarp Motor Troubleshooting

When your grain trailer tarp motor fails, a systematic approach saves both time and money. Following structured troubleshooting steps eliminates guesswork and ensures accurate diagnosis. This process moves from simple to complex, starting with power supply verification before advancing to motor testing.

Step 1: Verify Power Source and Battery Condition

All electrical troubleshooting begins with confirming adequate power supply. Set your digital multimeter to DC voltage mode and connect the red probe to the positive battery terminal and black probe to negative. A fully charged battery should display at least 12.4 volts. Readings below 12.0 volts indicate insufficient charge—charge or replace the battery before proceeding.

Next, locate the automatic circuit breaker on the positive wire running from the truck battery to the tarp system. Test voltage on both the line side (battery side) and load side (motor side). If the load side shows zero voltage while the line side reads 12 volts, the breaker has failed and requires replacement. Similarly, test the manual circuit breaker on the rotary switch kit to confirm it passes voltage from line to load.

Step 2: Inspect Wiring and Connections

Trace the entire electrical path from battery to motor, identifying damaged components that interrupt power flow. Visually inspect all wires for damaged insulation, frayed conductors, or corroded terminals. Corrosion appears as white, green, or blue crusty deposits at connection points. Verify ground connections by confirming the motor’s ground wire connects to clean, bare metal on the trailer frame. Test continuity between the motor ground point and battery negative terminal. Clean rust or paint from ground connection points with a wire brush.

Step 3: Test Motor Function Directly

Bypass the control system to determine whether the motor itself operates correctly. Carefully connect jumper cables from the truck battery directly to motor terminals, observing correct polarity. If the motor runs during this test, the problem lies in the wiring or control system rather than the motor.

To check directional operation, swap the two wires attached to the tarp motor. If the motor now turns the opposite direction, the rotary switch needs replacement. If it continues operating in the same direction after swapping, the motor itself requires replacement. Connect an amp meter in series with the motor power wire to measure current draw—excessive amperage indicates mechanical binding or internal motor problems, while zero flow confirms breaks in the circuit.

Step 4: Assess Mechanical Resistance

Mechanical issues often mimic electrical failures. Disconnect power and manually attempt to rotate the output shaft. Smooth rotation indicates proper gear function, while grinding or locked conditions point to gear damage or insufficient lubrication. Examine the complete drive train from motor output through cables to the tarp drum, looking for seized pulleys, kinked cables, or binding pivot points that create excessive motor load.

Step 5: Replace or Repair Defective Components

Implement repairs based on troubleshooting findings. If the red indicator light illuminates when turning the switch but the motor doesn’t operate, either wiring to the motor is compromised or the motor has failed. Use manufacturer-specified replacement parts to ensure compatibility. Document all troubleshooting steps and repairs to establish maintenance history.

Cable, Pulley, and Arm System Maintenance

While motors provide the power, cable and pulley systems translate that force into smooth tarp movement. These mechanical components experience constant stress and represent common failure points. A comprehensive approach to hardware inspection ensures reliable operation throughout the demanding harvest season.

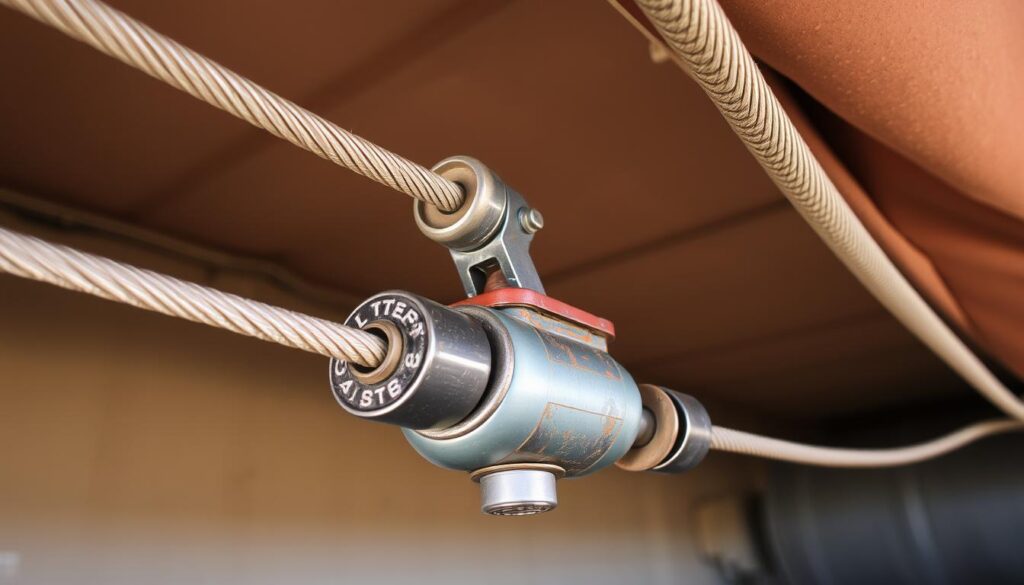

Inspecting Cables for Wear

Weekly cable inspections should cover the entire length from motor connection to tarp attachment points. Look for broken or frayed wire strands, corrosion or rust compromising integrity, kinks or sharp bends weakening internal structure, fraying at terminal connections, and wear marks from rubbing against sharp edges. Even a few broken wire strands mean the cable needs immediate replacement. A breaking cable can whip violently, damage the tarp, and expose your load to weather.

Adjusting Cable Tension

Correct cable tension ensures smooth operation and prevents premature component wear. Cables need sufficient tightness to eliminate slack without creating excessive stress on the motor and pulleys. Test tension by applying moderate pressure to the cable midpoint between supports—properly tensioned cables should deflect approximately one inch. Too much slack causes uneven tarp movement, while excessive tension overworks the motor and wears pulleys faster. Make small adjustments and test after each change.

Lubricating Pulleys and Pivot Points

Use dry lubricants or light oils designed for cable systems rather than heavy greases that attract grain dust. Focus on pulley wheel bearings and axles, cable guide channels, all pivot points where arms connect to the trailer, and connection points between arms and tarp material. Apply lubricant sparingly, clean components before application, and schedule monthly during active hauling.

Aligning Tarp Arms and Bows

Arm-style retractable systems require parallel alignment of all components for proper operation. Misalignment creates uneven stress across the tarp material and causes binding. Verify mounting brackets remain straight and secure. Keep track systems clean and free from obstructions. Consistent spacing between arms prevents tarp bunching and premature tearing. Many operators upgrading systems choose spring-tensioned arm assemblies for the rear section rather than cable return systems for better performance and reduced maintenance.

Replacing Worn Cables and Hardware

Cable replacement requires attention to manufacturer specifications for diameter, length, and terminal fittings. Use proper cable cutting tools to ensure clean cuts without fraying. Install terminals with appropriate swaging or crimping tools. Consider stainless steel cables in corrosive environments. Replace associated pulleys and brackets showing wear simultaneously, and test the complete system under no-load conditions before hauling.

Corrosion Prevention and Weatherproofing

Road salt, grain dust that absorbs moisture, temperature extremes, and constant exposure to rain and snow create conditions where metal components and electrical connections deteriorate rapidly. Proactive corrosion prevention protects your investment and prevents system failures that leave you stranded during critical harvest periods.

Protective Coatings for Metal Components

Rust-preventive spray coatings form the first defense line against corrosion on exposed steel components. Apply to mounting brackets, frame members, and all visible hardware before rust begins. Anti-seize compound on threaded fasteners prevents them from corroding together—this simple step during assembly saves hours when you need to disassemble components for future repairs. Powder-coating or galvanizing treatments provide superior long-term protection in severely corrosive environments, costing more upfront but delivering extended service life.

Sealing Electrical Connections

Water intrusion into electrical systems causes immediate malfunctions and represents the most critical weatherproofing challenge. Dielectric grease creates a waterproof seal that protects terminal connections while maintaining conductivity. Apply to every connection point during assembly rather than waiting for corrosion to develop. The CVSA’s out-of-service criteria address vehicle electrical system integrity, and corroded connections that create fire hazards can result in compliance issues during roadside inspections.

Heat-shrink tubing provides superior protection compared to electrical tape, which degrades rapidly under weather exposure. Install rubber boots or covers over switch assemblies and connection points exposed to direct weather. In severe moisture environments, add liquid electrical tape or silicone sealant as an additional layer.

Preventing Ice Buildup in Cold Climates

Freezing temperatures can completely immobilize tarp systems when ice forms on mechanical components. Silicone spray applied to tarp material and components before winter prevents ice adhesion, allowing tarps to move freely even below zero. Ensure water cannot pool in areas where freezing and expansion might damage components. Operate the tarp through several complete cycles before extremely cold weather arrives to distribute lubricants. In sub-zero conditions, consider auxiliary heating solutions like motor heater wraps or heated storage between uses.

Long-Term Storage Protection

Extended storage requires additional weatherproofing beyond routine maintenance. Clean the entire system thoroughly to remove grain dust and debris that holds moisture against metal surfaces. Apply extra lubricant to create a protective coating. Position the tarp in a neutral state to minimize stress on springs and cables. Disconnect the battery or use a maintainer to prevent discharge damage, and cover the trailer if indoor storage isn’t available. The TMC Recommended Practices provide additional guidance on equipment preservation during off-season storage periods.

Safety Guidelines for Tarp System Maintenance

Following comprehensive safety guidelines during tarp system maintenance is mandatory, not optional. These systems present hazards including electrical shock risks, fall dangers from 12-14 foot trailer heights, and mechanical pinch points. Every technician must prioritize safety over speed, ensuring all work complies with applicable OSHA fall protection standards. All operators should receive thorough training on safe operation, proper installation techniques, safe handling methods, and emergency procedures.

Lockout/Tagout Implementation

Implementing lockout/tagout procedures prevents accidental motor activation during maintenance. Disconnect the battery or remove the motor power fuse completely. Place a lock on the battery disconnect that only you can remove and attach a tag showing your name, date, and that maintenance is in progress. Always verify the system is de-energized by attempting to activate the motor before starting work. Remove lockout/tagout only after clearing all tools and confirming the system is ready for operation. These procedures align with OSHA’s lockout/tagout standard (29 CFR 1910.147).

Working Safely on Trailer Tops

Grain trailers position tarp systems 12 to 14 feet above ground. Never climb on tires or trailer components to access the work area—always use appropriate access equipment. Maintain three points of contact when climbing ladders. Clear the work area of trip hazards before beginning maintenance. Work from a stable platform rather than leaning or overreaching. Avoid working on trailer tops during high wind conditions that affect balance.

Electrical Safety Practices

While 12-volt systems operate at lower voltage than household current, they can still cause severe shocks or fires under certain conditions. Always disconnect power before working on electrical components and use insulated tools when testing energized circuits. Keep all connections dry during maintenance. Never bypass safety devices like circuit breakers or fuses, even temporarily. Grain dust can create conductive paths that increase shock risk significantly, making electrical safety protocols especially important in grain hauling environments.

Ladder and Fall Prevention

Proper ladder safety follows OSHA standards for portable ladders and fall protection equipment. Ladders must extend at least three feet above the working surface. Set ladder angles at the 4-to-1 ratio—one foot out for every four feet up. Have a second person steady the ladder when accessing significant heights. Use fall arrest harnesses and anchor points for extended work on trailer tops, and inspect all fall protection equipment before each use. The FMCSA’s driver safety resources provide additional guidance on safe practices during loading and securement operations.

Frequently Asked Questions

How often should I inspect my grain trailer tarp system?

Perform visual inspections before every trip, taking 5-10 minutes to verify smooth deployment and retraction, check cables for fraying, and confirm electrical connections are secure. Conduct more detailed weekly service checks including full range-of-motion testing, cable tension verification, and motor mounting bolt inspection. Monthly deep maintenance sessions should include comprehensive lubrication, thorough electrical testing, and documentation of component conditions. Seasonal preparation—especially winterization before cold weather—requires 2-4 hours of dedicated attention to protect against freeze-related failures.

What causes a grain trailer tarp motor to stop working?

The most common causes include blown fuses or tripped circuit breakers, insufficient battery voltage (below 12.0V), corroded or loose electrical connections, and failed motor windings. Mechanical issues like binding gearboxes, seized pulleys, or kinked cables also prevent operation by creating excessive resistance. Start troubleshooting by checking power supply and circuit protection, then inspect wiring, and finally test the motor directly with jumper cables from the truck battery. If the motor runs during direct testing, the problem is in the control circuit rather than the motor itself.

Can I convert a manual crank tarp system to electric?

Yes, most manual crank systems can be converted to electric motor operation. Conversion kits typically include a 12-volt motor assembly, rotary control switch, circuit breaker, wiring harness, and mounting hardware. The motor replaces the manual crank mechanism and connects to the existing drum or drive system. Expect costs between $1,200-$2,500 depending on brand and trailer configuration. Professional installation is recommended to ensure proper electrical connections, correct circuit protection, and safe mounting. Verify your trailer’s electrical system can handle the additional current draw before purchasing.

How do I know when tarp system cables need replacement?

Replace cables immediately when you observe any broken or frayed wire strands, visible corrosion compromising structural integrity, kinks or sharp bends weakening the cable internally, or significant wear marks from contact with edges. Even a few broken strands mean the cable is compromised—partial damage weakens the entire cable and risks sudden failure during operation. A breaking cable can whip violently, damage the tarp, and expose your load. Always use manufacturer-specified diameter, length, and terminal fittings when replacing cables to maintain system safety.

What lubricant should I use on tarp system components?

Different components require different lubricants. Use manufacturer-specified gear oil for gearboxes, checking levels monthly. Apply high-temperature bearing grease through designated fittings for motor shaft bearings, following manufacturer quantity guidelines to avoid over-greasing. For cables, pulleys, and track systems, use dry lubricants or light oils rather than heavy greases—heavy grease attracts grain dust and creates abrasive buildup. In cold climates, switch to lubricants rated for sub-zero temperatures before winter. Apply dielectric grease to all electrical connections for moisture protection.

Maintaining Tarp System Reliability for the Long Haul

Grain haulers who implement systematic tarp system maintenance experience fewer roadside breakdowns, reduced repair expenses, and consistent on-time deliveries. A well-maintained system often extends service life by years compared to neglected equipment—significant capital preservation for operations facing tight margins. The troubleshooting procedures, safety protocols, and maintenance schedules in this guide provide a complete framework for professional-level system management. Reference specific sections as maintenance situations arise, and remember that the time invested in regular checks is a fraction of the cost required for emergency failures that halt operations during peak harvest.
