Replacing trailer air bag suspension components correctly is the difference between a safe, level ride and a dangerous roadside breakdown. These pneumatic systems support massive loads across commercial trailers, RVs, and heavy-duty tow vehicles, and when they fail, handling deteriorates rapidly. Air springs are aftermarket installations added by companies like Firestone, Air Lift, and Hendrickson after vehicles leave the factory, which means no universal master list exists showing which part numbers fit each model.
This guide walks professional technicians, fleet managers, and experienced owner-operators through every phase of air spring replacement: identifying failure, selecting the right parts, performing the swap safely, and maintaining the system for maximum service life. Each 1 PSI of pressure supports approximately 40 pounds of combined load, with operating pressure ranging from a mandatory 5 PSI minimum to a 100 PSI maximum. Getting these details right protects your equipment, your cargo, and everyone sharing the road.
Key Takeaways
- Air springs operate between 5 PSI minimum and 100 PSI maximum, supporting approximately 40 pounds of combined load per PSI across both springs.
- Replace air springs when pressure loss exceeds 5 PSI in 24 hours, visible cracking appears on bellows surfaces, or ride height varies more than 1 inch side-to-side.
- A calibrated torque wrench is the single most critical tool—upper brackets require 20 lb-ft maximum, frame mounting bolts need 31 lb-ft (42 Nm).
- GVWR compliance remains mandatory throughout installation. Air suspension does not alter your vehicle’s Gross Vehicle Weight Rating or payload capacity.
- Professional installation runs $400-$800 for labor alone, while DIY replacement costs $250-$500 in parts with 4-6 hours of work for first-time installers.
- Weekly pressure checks and quarterly leak testing extend air spring service life from 50,000 miles to 100,000 miles under normal conditions.
Understanding Trailer Air Bag Suspension Systems
Air bag suspension technology uses compressed air to create an adaptable support system that responds dynamically to changing load conditions. Unlike traditional leaf springs that offer a single compromise setting, air systems provide infinitely variable adjustment without requiring hardware changes. When you add cargo, the system adjusts to maintain proper stance and handling characteristics.
Modern air suspension excels at load leveling, keeping your trailer at the correct angle regardless of cargo distribution. This capability proves invaluable when coupling with different hitch heights or managing unbalanced loads. The system maintains factory ride quality while expanding practical hauling capacity within your vehicle’s 49 CFR Part 393 equipment requirements.
Pneumatic Operation and Pressure Dynamics
Air spring suspension operates through controlled inflation and deflation of flexible rubber bellows positioned between the frame and axle assembly. These bellows function as adjustable cushions responding immediately to pressure changes, typically operating within 5 to 100 PSI for trailer applications.
Increasing air pressure causes the springs to expand and stiffen simultaneously, raising the trailer and providing greater load-carrying capacity. The increased stiffness prevents excessive body roll and maintains proper alignment during cornering and highway driving. Reducing pressure allows softer compliance for lighter loads or empty travel.
The compressed air within each spring distributes pressure evenly across the mounting surface, reducing stress concentration points that cause premature wear in traditional suspension components. This uniform distribution extends service life for both the air springs and related chassis elements.
Essential System Components
A complete air suspension kit consists of multiple integrated components. The air springs themselves come in two primary designs: reversible sleeve style, which provides greater extension range, and convoluted bellows configuration, which offers superior lateral stability.
Mounting hardware forms the structural foundation and includes frame brackets distributing loads across multiple attachment points, upper and lower mounting plates sandwiching the air spring, roll plates preventing lateral shifting during cornering, and carriage bolts with lock nuts engineered for dynamic loading conditions.
The pneumatic delivery system comprises nylon air lines, push-to-connect fittings for tool-free installation, and Schrader-type inflation valves compatible with standard air compressors. Optional components include onboard air compressors for on-the-go adjustments, electronic control systems providing automated load sensing, and cab-mounted pressure gauges for real-time monitoring.
Performance Advantages Over Conventional Springs
The adjustability factor stands as the most significant advantage. You can modify ride height and stiffness instantly without removing hardware or compromising the vehicle’s gross vehicle weight rating. This load leveling capability maintains optimal geometry regardless of cargo weight, preserving steering response and brake effectiveness.
Frame stress reduction occurs through superior load distribution across mounting points. Traditional leaf springs concentrate forces at specific attachment locations, creating stress risers that lead to frame cracking over time. Air springs distribute loads more evenly, extending chassis life and reducing structural failure risk.
Coupling assistance simplifies hitch alignment—adjusting air pressure raises or lowers the vehicle to match any hitch height. Independent left and right air springs can be adjusted to different pressures, compensating for off-center loads that would cause conventional suspensions to lean dangerously.
Identifying When Air Springs Require Replacement
Detecting air spring failure early prevents dangerous situations during transport operations and saves significant repair costs. Trailer operators must develop systematic inspection routines aligned with FMCSA driver vehicle inspection report (DVIR) requirements that catch problems before they escalate. The three primary categories of failure indicators include visual damage, performance degradation, and pressure system problems.
Visual Indicators of Wear and Damage
Physical inspection reveals the most obvious signs of deterioration. Cracking or dry rot on the rubber bellows surface, typically appearing near crimp areas where the bellows attaches to mounting plates, represents the first warning that replacement is approaching.
Abrasion marks or flat spots indicate contact with frame components, tires, or brake assemblies. This rubbing creates permanent damage compromising structural integrity until complete failure occurs. Bulging or deformation of the bellows shape suggests internal damage or improper installation—normal air springs maintain consistent cylindrical or conical shapes when inflated.
Oil or fluid contamination on the air spring surface accelerates rubber compound degradation rapidly. Visible separation between the bellows and mounting plates indicates imminent failure requiring immediate attention. Corrosion or damage to metal components including pistons and bead plates also affects system integrity.
Performance Issues and Handling Problems
Suspension diagnostics extend beyond visual checks to ride quality assessment. Uneven ride height side-to-side or front-to-back signals that one or more air springs have lost capacity. Properly functioning systems maintain level stance regardless of load distribution.
Excessive body roll during cornering indicates insufficient support from weakened air springs. Bottoming out over bumps even with proper air pressure reveals suspension collapse where the trailer frame contacts the axle during compression events. Changes in ride quality—a harsh or bouncy ride inconsistent with pressure settings—suggest internal air spring damage.
Air Leaks and Pressure Loss Symptoms
⚠️ Safety Warning
Air springs operate under significant pressure. Always wear ANSI-rated safety glasses during leak testing and never position your face directly over air fittings during pressurization. Rapid pressure release can create projectile hazards from loose debris.
Air leak detection represents the most critical diagnostic skill for suspension maintenance. A loss of 2-4 PSI after initial installation is normal as the system seats and stabilizes. However, loss exceeding 5 PSI within 24 hours indicates a leak requiring immediate repair.
Audible hissing sounds near air springs or fittings pinpoint leak locations. Apply a soapy water solution (one part liquid dish soap to four parts water) systematically to all fittings, valve stems, and bellows surfaces. Active leaks manifest as growing bubbles at connection points.
| Symptom | Normal Condition | Problem Indicator | Action Required |
|---|---|---|---|
| Pressure Loss Rate | 2-4 PSI initial settling | More than 5 PSI in 24 hours | Immediate leak repair |
| Ride Height Variation | Within 0.5 inches side-to-side | More than 1 inch difference | Inspect air springs and valves |
| Compressor Cycling | Occasional activation | Continuous or frequent running | Check entire system for leaks |
| Surface Condition | Smooth, consistent bellows | Cracks, abrasions, or bulging | Replace damaged air springs |
Compressor cycling excessively when equipped with onboard air systems reveals system leaks. The compressor runs continuously trying to maintain pressure setpoints, eventually burning out the motor from overwork. Weekly pressure checks prevent catastrophic failure and should be documented in a maintenance log to track deterioration trends over time.

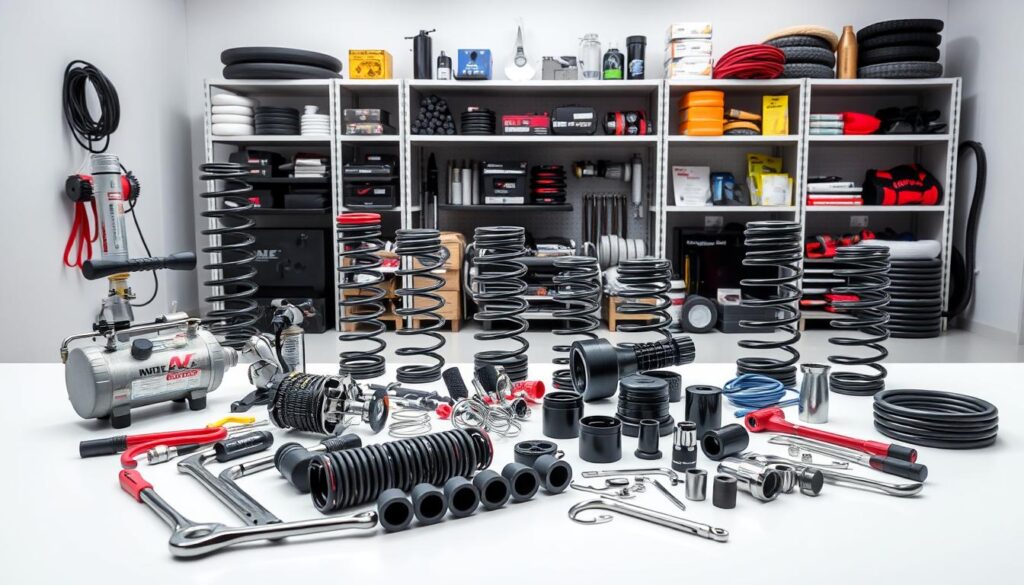

Essential Tools and Equipment for Air Spring Replacement
Proper equipment preparation prevents project delays and reduces the risk of component damage during air spring installation. Professional-grade results depend on three distinct categories: standard hand tools, safety gear, and specialized suspension service tools.

Standard Hand Tools and Socket Sets
You need both SAE and metric combination wrenches ranging from 8mm to 19mm (5/16 inch through 3/4 inch). Box-end wrenches provide superior grip on corroded fasteners, while open-end versions excel in tight spaces. Socket sets require 3/8-inch and 1/2-inch drive options with both standard and deep-well variations.
The single most critical tool is a calibrated torque wrench spanning 10 to 150 lb-ft minimum. Upper brackets require 20 lb-ft (27 Nm), lower mounting points need 31 lb-ft (42 Nm), and shock bolts demand 100 lb-ft (135 Nm). Under-torqued fasteners allow components to shift during operation, while over-torqued bolts risk stripping threads or breaking studs.
Safety Equipment
ANSI-rated safety glasses protect against metal shavings, rust particles, and pressurized air during testing. Heavy-duty work gloves shield hands from sharp metal edges, and steel-toed boots provide foot protection when working beneath suspended loads.
Jack stands rated for your trailer’s weight represent non-negotiable safety equipment—a minimum of two stands is required, though four provide superior stability. Floor jacks lift the trailer to working height before transferring weight to stands. Verify weight ratings exceed your trailer’s gross vehicle weight rating by at least 25 percent.
Specialized Air Suspension Tools
Sharp drill bits (1/4-inch and 5/16-inch) create mounting holes for aftermarket installations. A heavy-duty corded drill with at least 7 amps provides consistent power through steel trailer frames. An angle grinder with metal-rated cutting wheels removes factory jounce bumper cups and smooths mounting surfaces.
Professional hose cutters ensure clean, square cuts on air lines—scissors create ragged edges that prevent proper seal formation and cause persistent leaks. An air compressor capable of reaching 100 PSI enables system inflation and leak testing. Black paint or undercoating spray protects newly drilled holes from corrosion.
| Tool Category | Equipment | Specification | Critical Use |
|---|---|---|---|
| Wrenches | Combination wrench set | 8mm-19mm (5/16″-3/4″) | Mounting hardware removal and installation |
| Torque Tools | Calibrated torque wrench | 10-150 lb-ft range | Precise fastener tightening to spec |
| Safety Equipment | Jack stands (2 minimum) | Rated above trailer GVWR + 25% | Secure weight support during service |
| Power Tools | Corded electric drill | 7+ amps, variable speed | Drilling mounting holes through frame |
| Air Tools | Air compressor | 100 PSI minimum capacity | System inflation and pressure testing |
Selecting the Right Replacement Air Springs
Finding the correct air springs starts with proper identification and specification matching. The selection process involves evaluating load requirements, understanding compatibility factors, and choosing between quality tiers. Making an informed decision prevents costly mistakes and installation delays.

OEM vs Aftermarket Components
Original equipment components from manufacturers like Firestone, Goodyear, and Continental guarantee exact fit and proven compatibility but come at a premium price point ($150-$400 per spring). Aftermarket options from Air Lift, Hellwig, and Triangle Suspension Systems often meet or exceed OEM specifications at $80-$250 per spring, though they require careful specification verification.
| Feature | OEM Components | Aftermarket Options |
|---|---|---|
| Compatibility | Guaranteed exact fit | Requires specification verification |
| Price Range | $150-$400 per air spring | $80-$250 per air spring |
| Load Capacity | Matches original specifications | Often exceeds OEM ratings |
| Warranty | Standard manufacturer warranty | Varies by brand (1-3 years typical) |
Technical Specifications and Capacity Requirements
Load rating represents the maximum weight capacity per pair of air springs, typically 2,500 to 5,000 pounds for trailer applications. The relationship between pressure and capacity follows a straightforward formula: air springs support approximately 40 pounds per PSI. A 5,000-pound rated pair at 100 PSI handles heavy trailer loads, while minimum operating pressure must remain above 5 PSI to prevent bellows damage.
Dimensional specifications include collapsed height, extended height, and bead plate diameter. Measure your current air springs in both loaded and unloaded conditions to verify replacement compatibility. Operating pressure range affects ride quality flexibility across varying load conditions.
Identifying Part Numbers From Leading Manufacturers
Firestone dominates the commercial suspension market with a dual identification system. Part numbers starting with W01 or W02 (such as W01-358-9082) appear on stickers on top of each assembly. When stickers are missing or illegible, the bellows number stamped into the rubber underneath the Firestone logo starts with 1T (example: 1T15M-6). The same bellows number may appear across multiple assemblies with different top plates and pistons, so the assembly number provides the most precise match.
Other reputable manufacturers include Goodyear for commercial-grade applications, Hendrickson as an OEM supplier for many trailer manufacturers, Continental with European engineering standards, and Air Lift Company specializing in complete vehicle-specific kits that eliminate custom fabrication. Cross-referencing existing part numbers against manufacturer databases provides the most reliable identification method.
Stay Current on Suspension Service and Trailer Maintenance
Get technical guides, maintenance procedures, and fleet management insights delivered to your inbox. Written by diesel professionals for diesel professionals.
Pre-Replacement Safety and Preparation Procedures
The most critical phase of any air suspension service occurs before tools touch the trailer. Proper preparation establishes a secure foundation preventing equipment damage and serious injuries. Many trailer operators underestimate these requirements, leading to preventable accidents.
⚠️ Safety Warning
Never work under any vehicle supported only by hydraulic jacks. These devices can fail catastrophically without warning due to seal failures, hydraulic fluid loss, or valve malfunctions. Jack stands rated for your trailer weight provide the only acceptable support during service procedures. Per CVSA out-of-service criteria, defective suspension components can result in immediate vehicle removal from service.
Establishing a Secure Work Environment
Select a flat, solid surface—concrete or asphalt provides the stability required for safe jack stand operation. Never attempt service on sloped driveways, gravel, or soft ground. Engage the parking brake fully and disconnect the trailer from the tow vehicle if working on towable units, supporting the tongue with dedicated jack stands.
GVWR compliance remains mandatory throughout the entire service process. Installation of air suspension components does not alter the vehicle’s Gross Vehicle Weight Rating or payload capacity. Always consult the vehicle owner’s manual for maximum load specifications.
Wheel Blocking and Depressurization
Standard rubber wheel chocks provide insufficient security for suspension work. Use heavy-duty metal or hardwood blocks measuring at least 2×6 inches, positioned both forward and rearward of wheels remaining on the ground. For tandem axle trailers, block wheels on the axle not being serviced.
Gradual depressurization protects internal components from damage. Never completely deflate air springs to zero PSI—maintain 5 PSI minimum throughout deflation. Slowly depress the valve core, monitoring pressure reduction over three to five minutes per spring. Disconnect any onboard compressor systems before beginning work, as automatic compressors can engage unexpectedly during service.
Strategic Jack Stand Placement
Identify manufacturer-specified jacking points on the frame rails. Never position jacks or stands under axles, suspension arms, control arms, or body panels—these components cannot safely support vehicle weight. The frame must remain supported while creating 12 to 18 inches of vertical clearance between the frame and axle mounting points for spring removal.
Use minimum two jack stands per side being serviced. Select stands rated at least 150% of expected corner weight. After positioning stands, lower vehicle weight gradually onto them, verify lock mechanisms engage fully, and gently shake the frame to confirm stable support before working underneath. Monitor brake line position throughout axle lowering to avoid excessive stretching.
Removing Damaged Air Springs Step-by-Step
With the trailer secured and air system depressurized, methodical removal prevents component damage and maintains proper reinstallation alignment. Before touching any fasteners, verify that system pressure has dropped to 5 PSI or lower using your gauge. Take photos of original air line routing and component orientation—these reference images prove invaluable during reassembly.

Disconnecting Air Lines and Fittings
For push-to-connect fittings, press the colored collar firmly against the fitting body with one hand while pulling the air line straight out with steady, even pressure. Avoid twisting motions that damage internal gripper rings. Barbed fittings require cutting the line several inches from the connection, then using pliers with a combined twisting and pulling motion to extract the remaining segment. Never cut flush to the fitting.
Threaded swivel fittings demand the two-wrench method: hold the bead plate fitting with one wrench while turning the swivel counterclockwise with a second. This prevents rotational stress on the air spring body. Mark each air line with tape labels indicating original position before complete disconnection.

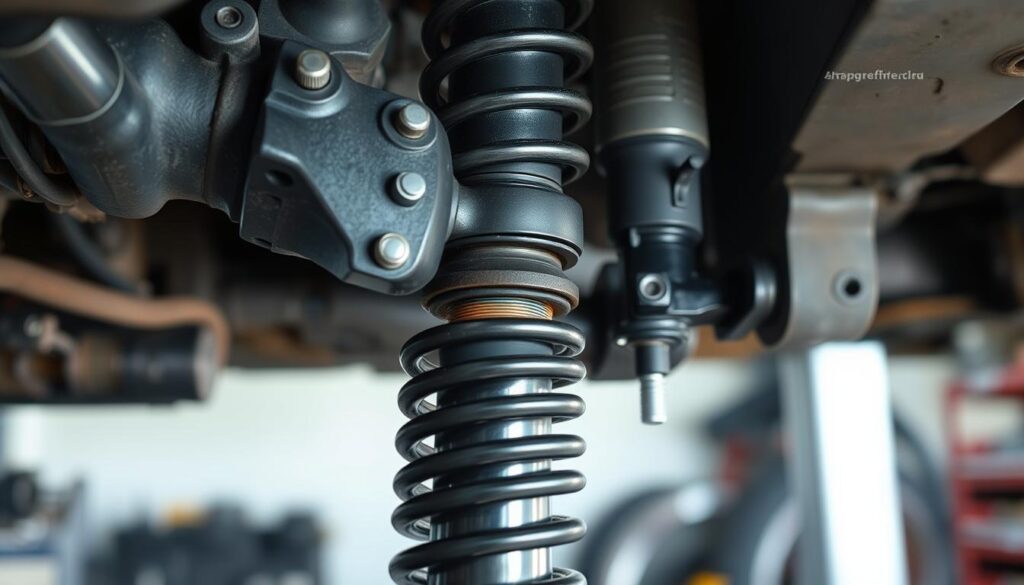

Removing Mounting Hardware
Always begin with upper frame bracket fasteners before addressing lower mounting points. This top-down approach allows controlled lowering. Upper brackets typically use 3/8″-16 carriage bolts with serrated lock nuts. Apply penetrating oil to corroded fasteners and allow 10-15 minutes soak time before removal.
Support the air spring assembly before removing the final upper fastener to prevent sudden dropping that could damage brake lines or wiring. Loosen all lower fasteners by 2-3 turns before completely removing any single bolt, maintaining alignment pressure. Remove fasteners in a diagonal pattern when multiple bolts secure a single plate.
Inspecting Mounting Plates and Related Components
Thorough inspection of all mounting interfaces is essential before installing new springs. Examine upper frame brackets for stress cracks radiating from bolt holes or weld points. Check for excessive corrosion reducing material thickness below safe levels. Inspect lower mounting pistons for bent studs, damaged threads, and surface wear.
Check bead plate mounting surfaces for deep scratches, gouges, or corrosion pitting. Minor imperfections can be addressed with fine emery cloth, but deep damage requires component replacement. Evaluate shock absorber bushings, sway bar links, and control arm bushings while access is available. Clean all mounting surfaces with wire brush and solvent, then apply fresh paint or undercoating to bare metal.
The HDJ Perspective
After 15 years of seeing air spring failures in the shop, the pattern is clear: most premature replacements trace back to skipped preparation steps, not defective parts. Technicians who rush through mounting surface inspection and torque specs end up doing the job twice. The 30 extra minutes spent cleaning corrosion, verifying thread integrity, and documenting torque values during installation saves hours of diagnostic work six months later. For fleet operations, building this discipline into standard maintenance procedures per TMC Recommended Practices reduces per-unit suspension costs measurably across the fleet lifecycle.
Installing New Air Spring Components
Successful air spring installation depends on surface preparation, component alignment, and correct fastener torque. Each step builds upon the previous one to create a reliable system withstanding years of road stress. The precision required for air-tight connections differs significantly from traditional leaf spring replacement.
Surface Preparation and Component Positioning
Clean all mounting surfaces using a wire brush or angle grinder to remove rust, paint, and scale. Bare metal contact between components ensures proper load transfer. Apply rust-preventive primer to all exposed surfaces before mounting.
Begin positioning by identifying left and right-specific assemblies. Air fittings must face outboard toward the tire side for proper air line routing and maintenance access. Set the roll plate with the rounded edge cradling the bellows to prevent pinching during articulation. Install the swivel fitting finger-tight, then add exactly 1.5 additional turns with 2-3 layers of PTFE tape on threads. Over-tightening can crack the bead plate.
Securing Hardware and Reconnecting Air Lines
Start all fasteners hand-tight before applying final torque values. Attach the upper bracket using two 3/8″ hex-head bolts with lock washers and flat washers. Secure the lower bracket with flat-head screws, then cap all carriage bolts with serrated lock nuts. Apply thread-locking compound to vibration-exposed fasteners.
Air line reconnection requires clean, square cuts using professional hose cutters. Insert air line fully into push-to-connect fittings until resistance is felt, then push an additional 1/4 inch. Properly seated lines show approximately 3/8 inch insertion depth. Route lines with minimum 1-inch bend radius to prevent kinking, securing with zip ties every 6-8 inches to fixed chassis components.
Leave at least 2 inches of slack for suspension articulation and maintain minimum 1/2 inch clearance from potential rubbing points. Keep at least 6 inches clearance between air lines and exhaust components to prevent heat damage.
Quick Reference
- Upper air spring bracket: 20 lb-ft maximum
- Lower bracket assembly: 20 lb-ft (27 Nm)
- Frame mounting bolts: 31 lb-ft (42 Nm)
- Swivel fitting: Finger-tight plus 1.5 turns with PTFE tape
- Shock bolts: 100 lb-ft (135 Nm)
- Re-torque: After 50 miles and again at 500 miles
Torque Specifications and Fastener Requirements
Upper bracket hardware connecting the bead plate requires exactly 20 lb-ft maximum to prevent crushing the rubber-to-metal bond. Frame mounting bolts receive 31 lb-ft (42 Nm) final torque after all fasteners are started and components properly seated. Use a calibrated torque wrench for all critical fasteners—visual estimation results in inconsistent clamping force and premature failures.
Follow a star pattern when tightening multiple fasteners on the same component to distribute stress evenly. Re-torque all fasteners after the first 50 miles of operation and again at 500 miles, as initial settling reduces clamping force. Document torque values and re-check intervals in your maintenance records.
Free Professional Fleet Tools
Cost calculators, fault code lookup, maintenance planners, and more—built for owner-operators, fleet managers, and diesel techs. No signup required.
Testing and Calibrating the Air Suspension System
Validating your installation through systematic testing protects your investment and ensures safe operation. Complete a thorough visual inspection before introducing air, verifying all mounting bolts remain torqued and air lines are routed with adequate clearance.
Building Pressure and Detecting Leaks
Connect your compressor to the inflation valve and increase pressure in controlled 10 PSI increments while observing the bellows for proper expansion. Watch for unusual bulging, asymmetric inflation, or movement at mounting points. Bring the system to 30 PSI for comprehensive pressure testing without risking component failure.
Apply leak detection solution generously to all threaded fittings at air spring inlets first, then to push-to-connect fittings, valve cores, and the entire length of air lines. Mark any leak locations with a paint marker for correction. Undertorqued swivel fittings typically need an additional half-turn, while improperly seated air lines need re-cutting with a square edge and complete reinsertion.
After correcting identified leaks, perform a 24-hour pressure retention test at 30 PSI. A loss of 2-4 PSI is acceptable due to temperature changes and initial settling. Pressure loss exceeding 5 PSI indicates unresolved leaks requiring additional detection.
Ride Height Calibration and Load Testing
Establish baseline measurements by measuring from the ground to a consistent frame reference point with the trailer unloaded. Add your typical cargo load and increase air pressure in 5 PSI increments until the frame returns to baseline height. This pressure becomes your baseline operating setting.
Perform a clearance test at 75-90 PSI, verifying at least 1/2 inch clearance between the bellows and all chassis components, brake lines, and hardware. Execute a structured road test of approximately 10 miles including various surfaces and speeds. Park immediately after and recheck all fastener torques, then reinspect for leaks—heat generated during operation can reveal problems that weren’t apparent during cold testing.
| Testing Phase | Pressure Setting | Acceptance Criteria | Action if Failed |
|---|---|---|---|
| Initial Leak Test | 30 PSI | No visible bubbles at connections | Tighten fittings, replace damaged lines |
| 24-Hour Retention | 30 PSI | Loss under 5 PSI | Repeat leak detection |
| Clearance Check | 75-90 PSI | Min 1/2″ clearance all around | Adjust mounting or reroute components |
| Road Test | Operating pressure for load | Stable handling, no rubbing, no leaks | Retorque fasteners, recheck clearances |
Preventive Maintenance for Maximum Air Spring Longevity
The difference between air springs lasting 50,000 miles versus 100,000 miles comes down to consistent preventive maintenance. Regular attention delivers measurable returns through extended component life and reduced repair costs. Per ATRI’s operational cost research, maintenance and repair represent a significant portion of per-mile operating costs, making preventive programs essential for fleet profitability.
Inspection Schedule
Weekly pressure checks represent the single most important maintenance task. Use a quality digital gauge with 1 PSI resolution, measuring each spring when the trailer is unloaded at ambient temperature. Record readings in a maintenance log—pressure variations between sides exceeding 5 PSI suggest developing leaks or valve issues.
Monthly inspections should include visual examination of bellows for cracks, dry rot, or abrasion, plus air line routing checks for chafing and heat damage. Quarterly assessments add soap solution leak testing, ride height measurements against baseline values, and inspection of related suspension components including shock absorbers and frame mounts.
| Frequency | Tasks | Time | Focus Areas |
|---|---|---|---|
| Weekly | Pressure checks with digital gauge | 5 minutes | Both springs, record values |
| Monthly | Visual inspection, hardware check | 15 minutes | Bellows condition, mounting tightness |
| Quarterly | Leak testing, ride height, component review | 30 minutes | System integrity, related components |
| Post-Install (30 days/500 mi) | Full retorque, comprehensive leak test | 45 minutes | Fastener settling, initial wear patterns |
Cleaning, Protection, and System Monitoring
Wash air springs monthly with mild soap and water to remove road salt, petroleum products, and abrasive debris. Never use harsh solvents or petroleum-based cleaners that degrade rubber compounds. Apply UV-inhibiting rubber protectant after cleaning—avoid tire shine products containing harmful silicones that accelerate deterioration.
Maintain minimum 5 PSI at all times to prevent internal damage and preserve seal integrity. Loaded vehicles require at least 25 PSI for proper support. Systems requiring constant adjustment or frequent reinflation indicate leaks demanding immediate attention. Operating below minimum pressure voids most warranties and accelerates component wear.
Inspect shock absorbers for leaking seals, spring mounting bushings for wear, and verify exhaust system maintains minimum 6-inch clearance from air springs and lines. Address chassis rust near mounting points before structural integrity becomes compromised. Air springs typically last 50,000 to 100,000 miles under normal conditions, but visual condition and pressure retention matter more than mileage alone for determining replacement timing.
Troubleshooting Common Air Suspension Issues
Systematic troubleshooting follows elimination principles, testing from simplest to most complex causes. This approach saves time and reduces diagnostic costs by pinpointing exact failure points before ordering replacement parts.
Diagnosing Uneven Ride Height
Park on level ground with no cargo. Check both air springs independently with a calibrated gauge. If pressures differ by more than 5 PSI, inflate the lower side to match and wait 24 hours to determine if one side loses pressure consistently. Equal pressure with uneven height points to mechanical problems: damaged mounting brackets, bent frame rails, worn suspension bushings, or manufacturing defects in the springs themselves.
Locating Persistent Air Leaks
Push-to-connect fittings represent the most common leak location. Deflate the spring completely, remove the line by pressing the collar, trim 1 inch from the end with a clean square cut, and reinsert firmly. For threaded connections, add a half-turn while holding the spring fitting with a backup wrench. If leaking persists, remove the fitting entirely, clean threads, re-coat with sealant, hand-tighten, and add two wrench turns.
Air line leaks along their length require magnification to identify pinholes from rock impact or abrasion. Damaged sections demand line replacement or splice fitting installation. Never attempt tape or adhesive repairs on pressurized air lines.
Resolving Compressor and Sag Issues
Compressors that fail to activate require systematic electrical testing: verify voltage at the compressor, inspect pressure switch calibration, check ground connections, and test relay operation. A clicking sound without motor operation suggests a seized motor. Compressors running continuously indicate system leaks exceeding capacity—address all leaks before replacing compressor components.
Suspension sag despite adequate pressure indicates exceeded load capacity, worn mounting components, or companion spring failure on combination systems. Calculate actual load against the air spring rating. Persistent bottoming may require bump stop replacement or higher-capacity springs. Ensure cargo weight remains balanced side-to-side and front-to-back within the trailer.
Cost Analysis and Replacement Service Intervals
Professional installation at qualified shops typically costs $400-$800 for labor alone, representing 2-4 hours at $100-$200 per hour. Total installed costs reach $800-$1,500 depending on vehicle complexity. Post-installation alignment checks add $75-$150 when suspension geometry was altered. Per 49 CFR Part 396 inspection and maintenance requirements, commercial vehicles must maintain suspension components in safe operating condition.
DIY installation eliminates labor charges, requiring 4-6 hours for first-time installers and 2-3 hours for subsequent replacements. Tool investment from scratch runs $300-$600 for equipment serving multiple projects. Some manufacturers offer rebates up to $150 on qualifying products when professionally installed through certified dealers.
| Approach | Cost Range | Time | Advantages |
|---|---|---|---|
| Professional | $800-$1,500 complete | Drop off and pickup | Warranty protection, guaranteed results |
| DIY | $250-$500 parts only | 4-6 hours first time | Significant savings, skill development |
| Hybrid | $800 initial, $250 ongoing | Learn then maintain | Professional first install, DIY replacements |
Parts pricing spans three tiers: budget universal springs at $50-$100 each requiring custom bracket fabrication, mid-range vehicle-specific kits at $200-$400 complete with all hardware, and premium systems from $400-$800 per kit featuring heavy-duty construction and comprehensive warranties. Budget for complete system replacement including springs, lines, fittings, and hardware at $250-$500 for quality results.
Under normal conditions with proper maintenance, quality air springs last 50,000-100,000 miles or 5-8 years. Severe-duty applications reduce this to 30,000-60,000 miles. Replace in pairs for balanced performance. Total cost of ownership over 100,000 miles runs $1,600-$3,000 for professional service versus $500-$1,000 for owner-maintained systems—a $1,100-$2,000 advantage for DIY operators with the skills and tools to do it properly.
Frequently Asked Questions
How often should trailer air springs be replaced?
Quality air springs typically last 50,000 to 100,000 miles or 5 to 8 years under normal conditions with proper maintenance including regular pressure checks and load management within GVWR. Severe-duty applications involving constant maximum loads, extreme temperature cycling, or corrosive environments reduce service life to 30,000 to 60,000 miles. Replacement should be condition-based rather than strictly mileage-driven. Inspect quarterly for cracking, abrasion, or pressure loss, and replace proactively when degradation becomes evident rather than waiting for catastrophic failure. Always replace air springs in pairs to maintain balanced performance and prevent accelerated wear on the remaining older unit.
What PSI should trailer air bags be set at?
Trailer air springs operate within a range of 5 to 100 PSI. Maintain a minimum of 5 PSI at all times, even when unloaded, to prevent internal damage and preserve seal integrity. Never exceed 100 PSI maximum, as this risks bellows rupture and mounting hardware failure. For loaded vehicles, maintain at least 25 PSI minimum for proper support. Air springs support approximately 40 pounds of combined load per 1 PSI of pressure. To find your optimal operating pressure, measure frame height unloaded, add your cargo, and increase air in 5 PSI increments until the frame returns to its original unloaded baseline height.
Can you replace trailer air bags yourself or do you need a professional?
Experienced DIY operators with proper tools and safety equipment can replace trailer air springs successfully. The job requires a calibrated torque wrench, jack stands rated for your trailer weight, an air compressor capable of 100 PSI, and standard hand tools. First-time installations typically take 4 to 6 hours, while subsequent replacements require 2 to 3 hours. Professional installation at qualified shops costs $400 to $800 for labor alone but includes warranty protection and alignment verification. Consider professional installation for your first replacement to observe proper procedures, then perform future maintenance independently for long-term savings.
How do you find the correct replacement air spring part number?
Start by locating the identification sticker on top of your existing air spring assembly. Firestone parts use W01 or W02 prefix numbers (such as W01-358-9082) on these stickers. When stickers are missing or illegible, look for the bellows number stamped directly into the rubber component underneath the manufacturer logo—Firestone bellows numbers start with 1T. Note that the same bellows number may appear across multiple assemblies with different mounting hardware, so the complete assembly number provides the most precise match. Cross-reference against manufacturer databases for exact replacements, or measure collapsed height, extended height, and bead plate diameter to match aftermarket alternatives.
What are the signs of a failing trailer air spring?
Key failure indicators span three categories. Visual signs include cracking or dry rot on bellows surfaces (especially near crimp areas), abrasion marks from contact with frame or brake components, bulging or deformation suggesting internal damage, and oil contamination accelerating rubber degradation. Performance symptoms include uneven ride height with more than 1 inch side-to-side difference, excessive body roll during cornering, and bottoming out despite proper pressure. Pressure system problems include loss exceeding 5 PSI in 24 hours, audible hissing near fittings, and continuous compressor cycling. Weekly pressure checks with a quality digital gauge catch developing problems before they become roadside emergencies.
What torque specifications are required for air spring mounting hardware?
Upper air spring bracket hardware connecting the bead plate requires exactly 20 lb-ft maximum torque to prevent crushing the rubber-to-metal bond that seals the air spring. Lower bracket hardware similarly requires 20 lb-ft (27 Nm) maximum. Frame mounting bolts receive 31 lb-ft (42 Nm) final torque after all fasteners are started and properly seated. Swivel fittings should be finger-tight plus 1.5 additional turns with PTFE tape on threads. Shock bolts require 100 lb-ft (135 Nm). Always use a calibrated torque wrench and follow a star pattern for multi-bolt components. Re-torque all fasteners after the first 50 miles and again at 500 miles of operation.
Keep Your Air Suspension Performing Safely
Proper trailer air bag suspension service protects your equipment, your cargo, and your operating budget. The fundamentals come down to disciplined inspection, correct part selection, precise installation torque, and consistent preventive maintenance. Weekly pressure checks take five minutes but can double component life from 50,000 to 100,000 miles.
Whether you handle air spring replacement yourself or route through a qualified shop, following proper torque specifications, clearance requirements, and systematic leak testing ensures safe operation across all load conditions. Document everything—installation dates, torque values, pressure trends, and inspection findings—because that maintenance record is what separates proactive fleet management from reactive emergency repairs.
Help Fellow Techs and Fleet Managers
If this guide helped you tackle an air spring replacement or tighten up your maintenance program, share it with your crew. Good technical information keeps everyone safer on the road.
