Motor Grader Blade Maintenance: Complete Setup Guide [2025]

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: December 2025

📖 Estimated reading time: 18 minutes

Effective motor grader blade maintenance stands as a cornerstone of successful equipment management for fleet operations and road construction crews. For fleet managers overseeing grader fleets, the difference between proactive cutting edge replacement and reactive repairs can mean thousands of dollars in moldboard damage, fuel waste, and productivity losses.

Regular inspection, timely replacement, and proper blade configuration directly impact your bottom line through reduced downtime and improved grading performance. Modern quick-change systems have transformed what was once a shop-bound repair into a 15-minute field operation that a single operator can complete. This guide covers everything maintenance supervisors and equipment operators need to know about grader blade setup, cutting edge materials, and replacement procedures.

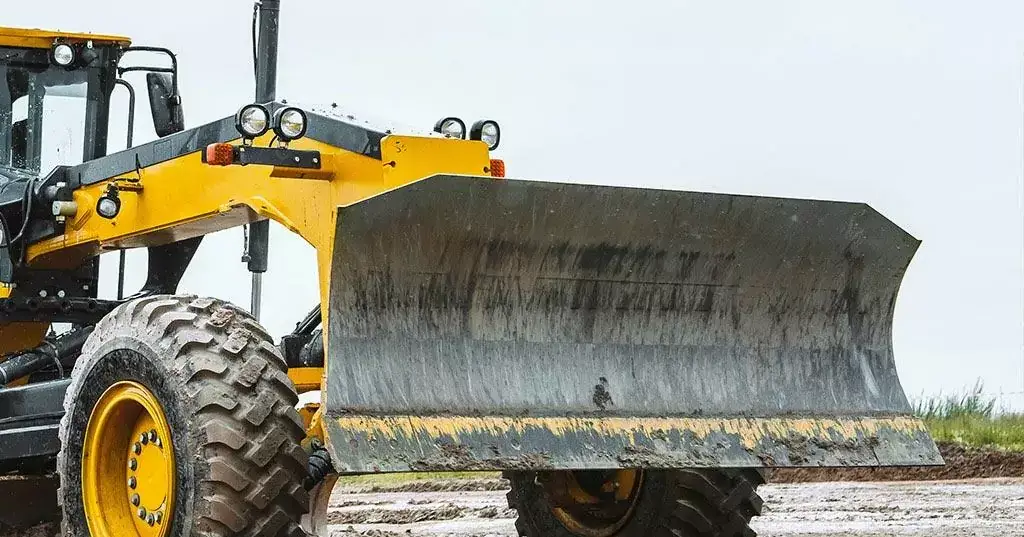

Understanding Motor Grader Blade Components

Before performing any maintenance or replacement work, understanding the individual parts that make up a grader blade system is essential. The blade assembly integrates three primary components: the moldboard, the cutting edge, and the hardware fastening system. Each element plays a specific role in achieving effective grading performance and must work together to withstand constant forces during earthmoving operations.

Moldboard Construction and Materials

The moldboard serves as the primary structural foundation for the entire blade system. This heavy-duty steel plate provides the mounting surface for cutting edges and withstands tremendous lateral forces during grading operations. Most moldboards feature reinforced construction with strengthening ribs that prevent warping under stress.

Manufacturers typically construct moldboards from high-strength structural steel with thickness ranging from 3/4 inch to 1 inch. The curved design allows material to flow smoothly across the blade surface without accumulation while distributing ground contact forces evenly across the mounting surface.

Protection of the moldboard extends equipment lifespan significantly. Many operators install sacrificial mounting boards between the moldboard and cutting edge. These protective layers prevent costly moldboard damage when cutting edges wear through to expose the mounting surface. Replacing a damaged moldboard costs substantially more than maintaining proper cutting edge replacement intervals—often 10 to 15 times the cost of a new edge.

Cutting Edge Types and Specifications

Selecting appropriate cutting edge materials determines blade performance and service life in different applications. The three main categories address varying ground conditions and operational demands, with each type offering distinct advantages based on specific job requirements.

Carbon Steel Cutting Edges

Standard carbon steel edges represent the most economical option for general grading applications. These edges contain high-carbon steel alloys that provide adequate wear resistance for light to moderate duty work. Typical applications include regular road maintenance, fine grading, and working in softer soil conditions.

Carbon steel edges offer a hardness rating between 300 and 400 Brinell, as measured using ASTM E10 standard test methods. This hardness level balances wear resistance with impact absorption capabilities, allowing edges to flex slightly under impact rather than fracturing. Replacement intervals typically range from 200 to 400 hours depending on soil abrasiveness.

Boron Steel and Carbide Options

Boron steel edges deliver superior performance in demanding applications through heat treatment processes. Caterpillar’s DH-2 through-hardened steel represents this category with hardness ratings exceeding 500 Brinell. These edges withstand heavy road construction, hard-packed surfaces, and frozen ground conditions effectively.

The heat treatment process creates a wear-resistant surface while maintaining a tough core. This combination prevents edge cracking under impact loads while resisting abrasive wear. Boron steel edges typically last 2 to 3 times longer than standard carbon steel in severe applications.

Tungsten carbide-tipped edges provide unmatched wear life for extremely abrasive environments. Manufacturers insert carbide blocks into steel edge bodies, combining extreme hardness with structural support. According to Caterpillar technical specifications, tungsten carbide edges can provide up to 20 times the life of a standard through-hardened edge in high-abrasion, low-impact applications.

Hardware and Fastening Systems

Proper blade fastening systems ensure cutting edges remain securely attached during operation. The hardware components must match the strength and durability of the ground engaging tools they secure—inferior fasteners create safety hazards and lead to premature blade failure.

Grade 8 bolts represent the minimum acceptable standard for securing cutting edges to moldboards. According to SAE J429 specifications, these high-strength fasteners provide tensile strength of 150,000 psi, which resists the severe vibrational and impact loads encountered during grading. Using lower-grade bolts significantly increases the risk of fastener failure and edge separation.

Proper torque application during installation ensures optimal clamping force without over-stressing fasteners. Most cutting edge bolts require torque values between 400 and 600 foot-pounds depending on size. Under-torquing allows movement and accelerated wear, while over-torquing risks bolt failure or thread stripping.

Signs Your Cutting Edge Needs Replacement

Grader blade wear follows predictable patterns that experienced operators learn to identify before costly damage occurs. Catching these warning signs early protects your equipment investment and maintains job site productivity. The key lies in combining regular physical measurements with awareness of operational performance changes.

Minimum Thickness Requirements

The critical threshold occurs at approximately 2 inches of remaining material between the worn edge and the moldboard surface. This measurement represents your point of no return—operating beyond this limit exposes the moldboard to direct ground contact.

Take measurements at five locations along the blade length: both ends, center, and two quarter-points. This approach accounts for uneven wear patterns common in real-world operations. Record measurements in your maintenance log to track wear rates over time. The measurement process works best when the blade is positioned horizontally and cleaned of packed material.

Performance Degradation Symptoms

Equipment behavior often signals wear problems before measurements confirm the need for replacement. A worn edge requires multiple passes to achieve results that once took a single pass. Specific indicators include inability to maintain grade on the first pass, rough surface finish requiring additional smoothing, and material rolling ahead of the blade instead of cutting cleanly.

Fuel consumption rises noticeably as edges wear beyond optimal thickness. A 10 to 15 percent increase in fuel consumption commonly occurs with severely worn edges. On a grader burning 8 gallons per hour, this represents nearly one additional gallon hourly. Monitor fuel consumption as part of your wear assessment—sudden increases without corresponding changes in material or operating conditions often indicate edge problems.

Safety Protocols for Blade Maintenance Operations

Working with motor grader blades involves heavy components weighing hundreds of pounds, potentially seized fasteners requiring significant force, and positioning yourself beneath large equipment. These conditions create serious hazards that demand strict adherence to established procedures.

Personal Protective Equipment Requirements

Every worker performing blade maintenance must wear appropriate protective gear before beginning any task. ANSI-rated safety glasses or face shields provide essential protection during bolt removal operations when metal fragments frequently break free. Steel-toed boots rated for impact and compression protection are mandatory given the weight of cutting edges—a single section can weigh 50-150 pounds.

Boots must meet ASTM F2413 standards with impact resistance rated at 75 pounds and compression resistance at 2,500 pounds. High-visibility clothing becomes particularly critical during roadside maintenance operations where passing motorists must be able to see workers from sufficient distance.

Machine Lockout and Tagout Procedures

Lockout and tagout procedures prevent equipment energization during maintenance activities. OSHA’s Control of Hazardous Energy standard (29 CFR 1910.147) mandates these protocols to eliminate catastrophic injuries from unexpected equipment startup or release of stored energy.

Motor graders contain multiple energy sources including the engine, hydraulic systems, and stored pressure in accumulators. Each energy source requires specific de-energization procedures before maintenance begins. The systematic lockout/tagout sequence includes shutting down the engine using normal procedures, lowering the blade completely to eliminate stored hydraulic energy, turning the ignition off and removing the key, applying lockout devices to prevent key insertion, and attempting to start the equipment to verify lockout effectiveness.

Each worker performing maintenance must apply their own personal lock to the lockout system. This ensures equipment cannot be energized until every person has completed their work and removed their individual lock.

Tools and Equipment Required for Cutting Edge Replacement

The tools required for cutting edge installation vary significantly depending on your blade mounting system. Traditional bolt-on configurations demand comprehensive equipment, while modern quick-change designs simplify requirements dramatically.

Professional Hand Tools and Power Equipment

Traditional cutting edge installation requires substantial power tools capable of handling high-torque applications. An impact wrench rated for at least 600 ft-lbs of torque represents the minimum for blade bolt removal—many properly tightened fasteners require even more breakaway force, especially after exposure to road chemicals and moisture.

Complete socket sets should include both 3/4-inch and 1-inch drive configurations. Cordless electric impact wrenches offer significant advantages in field conditions by eliminating the need for air compressors while providing consistent power delivery regardless of temperature.

For seized or corroded fasteners, an oxy-acetylene cutting torch or pneumatic cutoff grinder becomes necessary when bolts refuse to turn. Proper torque application during reinstallation requires calibrated torque wrenches—click-type wrenches provide the most reliable method for achieving specified values between 400 and 600 ft-lbs.

Lifting and Support Devices

Cutting edges for 8-foot blade sections can exceed several hundred pounds. Hydraulic jacks must be rated for at least 150% of the cutting edge weight you’re handling. Substantial wooden blocking or heavy steel stands provide the only acceptable blade support during hardware removal—industrial-grade blocking materials at least 6×6 inches prevent crushing and maintain stable positioning.

Step-by-Step Cutting Edge Removal Process

Removing a worn cutting edge from a motor grader requires careful preparation and a methodical approach to ensure both worker safety and equipment protection. The procedure involves several distinct phases, each building on the previous one.

Positioning the Blade for Access

Begin by lowering the moldboard until the cutting edge makes contact with the ground or sits just slightly above it. This position provides stability and prevents the blade from shifting during fastener removal. Park the machine on stable, level terrain and engage the parking brake fully with the transmission in park position.

Install wheel chocks on both sides of at least two wheels to prevent any rolling motion. Verify that no hydraulic pressure remains in the blade lift system before beginning work—releasing residual pressure prevents sudden blade movement that could trap hands or tools.

Removing Worn Bolts and Hardware

Bolt removal follows a systematic sequence that prevents binding and distributes stress evenly across the mounting interface. Work from the center of the blade outward—this approach reduces the likelihood of fasteners seizing or breaking during removal. Apply steady, controlled force rather than excessive torque that might round off bolt heads or strip threads.

For seized fasteners, apply penetrating oil liberally and allow adequate soaking time of at least 15 to 30 minutes. If penetrating oil fails, controlled heat application expands the bolt and breaks the corrosion bond. Use an oxy-acetylene torch to heat the bolt head until it glows dull red, focusing the flame on the bolt itself rather than surrounding moldboard material.

Inspecting the Moldboard Surface

The period between removing the old edge and installing the new one provides an ideal opportunity for thorough moldboard maintenance. Inspect carefully for stress cracks, particularly near bolt holes and at blade ends where forces concentrate. Check for wear grooves that indicate the old cutting edge wore through or sat improperly.

Remove all rust scale, compacted dirt, and old paint from the mounting surface using wire wheels, scrapers, or media blasting. The cleanliness of this surface directly affects how well the new edge seats and how evenly clamping forces distribute.

Installing New Cutting Edges Correctly

Correct cutting edge installation directly impacts equipment performance, safety, and operational costs. The quality of installation matters just as much as the quality of the replacement edge itself.

Selecting the Right Replacement Edge

Start by matching the dimensions and hole pattern of your original cutting edge. Measure the length, width, and thickness of the worn edge you removed, and count the mounting holes while measuring spacing between them. Operating conditions often justify upgrading to a different edge material than the original.

Proper Alignment and Positioning Techniques

Achieving accurate grader blade alignment determines whether your new edge performs properly or fails prematurely. Begin by locating the center mounting hole on both the moldboard and the new edge. Insert a tapered drift pin through the center hole to hold the edge in position, preventing shifting while you align remaining holes.

The entire length of the cutting edge must sit firmly against the moldboard surface without gaps. Run your hand along the joint between edge and moldboard to feel for any separation—even small gaps concentrate stress during grading operations and lead to premature cracking.

Bolt Installation and Torque Specifications

Use only Grade 8 hardware or manufacturer-specified bolts designed for this high-stress application. Apply torque in multiple passes using a specific sequence—start from the center mounting hole and alternate toward each end to prevent the edge from shifting during installation.

Use a three-pass tightening method: first pass at approximately 30% of final torque specification, second pass at 60%, and final pass at full torque value. Most cutting edge bolts require 400 to 600 ft-lbs depending on bolt diameter. Plan to recheck bolt torque after the first 2-4 hours of operation as fasteners settle.

Blade Angle and Height Setup Procedures

Installing a cutting edge is only half the job—optimal grading results require precise blade angle and height adjustments. Even the highest-quality cutting edge will underperform if not configured correctly for your specific application.

Optimal Blade Angles for Different Applications

Caterpillar recommends grading with the cutting edge at 90 degrees to the road surface while maintaining a fixed angle. This approach ensures constant edge thickness throughout the operation. A laid-back blade angle reduces penetration and can cause premature moldboard wear, while frequent angle changes shorten edge life significantly.

For finish grading operations, relatively shallow angles between 30 and 45 degrees from vertical work best. Road reconstruction and material excavation scenarios benefit from steeper angles approaching 60 to 70 degrees that maximize penetration and material breakup.

Penetration Depth Settings

Optimal penetration typically ranges from 0.5 to 2 inches depending on material type and edge configuration. Excessive penetration causes unnecessary wear, high fuel consumption, and potential edge damage. Insufficient penetration results in multiple passes and poor productivity.

Special edge types require specific penetration limits. For tungsten carbide edges, maintain maximum 1.5-inch penetration with operating speeds not exceeding 5 mph to prevent carbide damage. GraderBit systems demand even stricter control with 1.5-inch maximum penetration depth and 6 mph maximum speed.

Motor Grader Blade Maintenance Best Practices

Establishing a comprehensive grader maintenance schedule protects your investment and maximizes cutting edge performance throughout its service life. Systematic maintenance proves far more cost-effective than reactive repairs and emergency replacements.

Daily Pre-Operation Inspections

Quick checks performed before each shift create a foundation for reliable performance. Walk-around inspections should examine the cutting edge for obvious thinning, cracks or chips in the material, and signs of looseness or separation at the moldboard junction. Accessible bolts require a quick physical check—a properly torqued bolt produces a clear, sharp ring when tapped lightly with a hammer, while loose fasteners create a dull thud.

Scheduled Maintenance Intervals

Set aside time each week for a comprehensive examination that goes beyond visual assessment. Weekly tasks include measuring edge thickness at multiple points, performing detailed hardware inspection using proper torque verification, examining the moldboard for cracks or damage, and testing hydraulic cylinder response.

Monthly evaluations require 1-2 hours and address components not easily checked during operation. Evaluate cutting edge performance against productivity benchmarks and compare current grading speed and quality against baseline measurements. Lubricate all grease points including circle rotation bearings, drawbar pivot points, and blade lift cylinder mounting pins using heavy-duty lithium-based or synthetic greases rated for extreme pressure and temperature variations.

Frequently Asked Questions

How often should motor grader cutting edges be replaced?

Replacement frequency depends on operating conditions, material abrasiveness, and edge material type. Standard carbon steel edges typically last 200-400 hours in normal conditions, while boron steel extends to 400-1,200 hours and tungsten carbide can reach 1,000-4,000 hours. Rather than relying solely on hour intervals, measure edge thickness regularly and replace when material remaining reaches the 2-inch threshold. Fleet managers tracking their specific conditions can predict replacement timing more accurately by recording wear rates over time.

What causes uneven wear patterns on grader cutting edges?

Uneven wear typically results from incorrect blade geometry or operational habits. Excessive toe-in or toe-out angles force one end of the blade to bear most cutting load while the opposite end drags along. Operators who habitually grade with the blade angled predominantly in one direction create asymmetric wear. Excessive operating speed also causes edge skipping and uneven loading. Correction requires adjusting blade geometry to achieve even contact and may indicate need for operator training on proper technique.

Can I use aftermarket cutting edges on my Caterpillar motor grader?

Yes, but quality matters significantly. Aftermarket edges must match your OEM specifications for dimensions, hole pattern, and material grade. Reputable aftermarket suppliers produce edges meeting or exceeding original specifications at lower cost. However, inferior products may use softer steel that wears prematurely or incorrect dimensions that prevent proper fit. Always verify material hardness specifications and ensure bolt hole spacing matches your moldboard exactly before purchasing aftermarket edges.

What torque specifications apply to cutting edge mounting bolts?

Most cutting edge bolts require torque values between 400 and 600 foot-pounds depending on bolt diameter and grade. Always use SAE Grade 8 bolts minimum, which provide tensile strength of 150,000 psi per SAE J429 specifications. Consult your equipment manual for exact torque values specific to your grader model. Apply torque in multiple passes using center-outward sequence, and recheck torque after the first 2-4 hours of operation as fasteners settle.

How do quick-change blade systems compare to traditional bolt-on mounting?

Quick-change systems enable one-person replacements in approximately 15 minutes using only a hammer and wedge, compared to traditional methods requiring impact wrenches, multiple socket sizes, and often 1-2 hours of labor. They eliminate workplace injuries associated with handling heavy tools and seized fasteners, reduce downtime dramatically, and allow operators to carry multiple blade types for changing conditions. While initial system cost is higher, total cost of ownership often favors quick-change systems for high-utilization fleets.

Maximizing Your Grader Blade Investment

Effective motor grader blade maintenance combines systematic inspection, timely replacement, and proper setup techniques to deliver consistent performance and controlled operating costs. Fleet managers who implement the practices outlined in this guide distinguish their operations through superior productivity and extended equipment life.

The investment in proper maintenance returns substantial value through reduced fuel consumption, decreased equipment downtime, and improved operational safety. Whether you’re operating a single grader or managing a fleet of road maintenance equipment, attention to blade condition and replacement timing creates measurable benefits that extend far beyond the cutting edge itself. Start by establishing measurement routines, maintaining proper edge inventory, and ensuring your team understands both the safety requirements and economic impact of proactive blade maintenance.
