Wheel Loader Brake Problems: Complete Troubleshooting Guide

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: December 2025

📖 Estimated reading time: 21 minutes

When a wheel loader’s brakes fail on a busy job site, the consequences extend far beyond a simple repair ticket. Wheel loader brake problems create immediate safety hazards for operators and ground crews while bringing productivity to a halt. Understanding these hydraulic brake system failures—and knowing how to diagnose them before they become emergencies—separates proactive equipment managers from those constantly reacting to breakdowns.

This comprehensive troubleshooting guide covers the complete spectrum of hydraulic stopping system failures affecting Caterpillar, John Deere, Komatsu, XCMG, Shantui, and Liugong wheel loaders. You’ll learn to identify early warning signs, understand root causes, and implement repairs that restore reliable braking performance. Whether you manage a single machine or coordinate maintenance across an entire fleet, these diagnostic techniques will help you minimize downtime and protect your workforce.

Understanding Wheel Loader Brake System Architecture

Modern wheel loader brake systems represent sophisticated hydraulic engineering designed to halt machines weighing 15 to 50 tons safely and repeatedly. The brake system architecture integrates multiple components that must work in concert—when one element fails, the entire stopping system can be compromised. Understanding how these hydraulic brake components interact is the foundation for effective diagnosis and maintenance.

Master Cylinder and Brake Valve Operation

The brake master cylinder serves as the command center for hydraulic pressure distribution. When an operator depresses the brake pedal, the brake valve receives this mechanical input and directs pressurized fluid to wheel brake assemblies. The relationship between pedal travel and hydraulic pressure output must remain consistent for predictable stopping performance.

Many wheel loaders employ air-over-hydraulic systems where compressed air powers a booster pump. This compressed air typically operates between 0.45 and 0.70 MPa (65 to 100 PSI). The booster pump amplifies hydraulic pressure significantly, providing the force necessary to stop heavy loads. When air pressure drops below specifications, operators notice dramatically increased pedal effort and extended stopping distances.

Caliper Disc Brakes and Piston Assemblies

Caliper disc brakes contain pistons that clamp friction pads against rotating brake discs mounted to the wheel assemblies. When hydraulic pressure reaches the caliper, these pistons extend outward and squeeze brake pads against the disc surface. This friction converts the loader’s kinetic energy into heat, bringing the machine to a controlled stop.

Piston seal condition directly affects brake performance. Worn seals allow pressure to bypass the piston rather than extending it fully, resulting in reduced clamping force. Internal caliper corrosion—common when contaminated fluid remains in the system—causes pistons to stick or bind, creating uneven brake application between wheels.

Hydraulic Accumulator Function

The hydraulic accumulator stores pressurized brake fluid and maintains system pressure even when the engine stops. This safety-critical component provides emergency stopping capability when hydraulic pump output fails. A properly functioning accumulator should deliver 3 to 5 full brake applications after engine shutdown—anything less indicates pressure loss requiring immediate attention.

Nitrogen pre-charge within the accumulator creates the stored energy that maintains brake pressure. Over time, nitrogen gradually escapes through seal deterioration, reducing the accumulator’s capacity. Regular pre-charge testing according to manufacturer specifications—typically 90 to 100 PSI for most wheel loaders—ensures this emergency reserve remains available when needed.

Wet Disc vs. Dry Disc Brake Configurations

Wheel loaders use two primary brake configurations, each with distinct maintenance requirements and failure modes. The choice between wet and dry disc systems affects everything from inspection intervals to the types of problems you’ll encounter during the machine’s service life.

Wet disc brake systems immerse brake components in oil that continuously removes heat and reduces friction wear. This design is common in transmission-integrated configurations where brakes share the same oil supply as the drivetrain. Oil contamination monitoring becomes critical because worn clutch material can migrate to brake surfaces.

Dry disc systems expose brake components to air for natural convection cooling. These systems are typical in wheel-end caliper configurations and offer easier access for pad and disc inspection. However, dust and debris accumulation accelerates wear in harsh operating environments common to construction and mining applications.

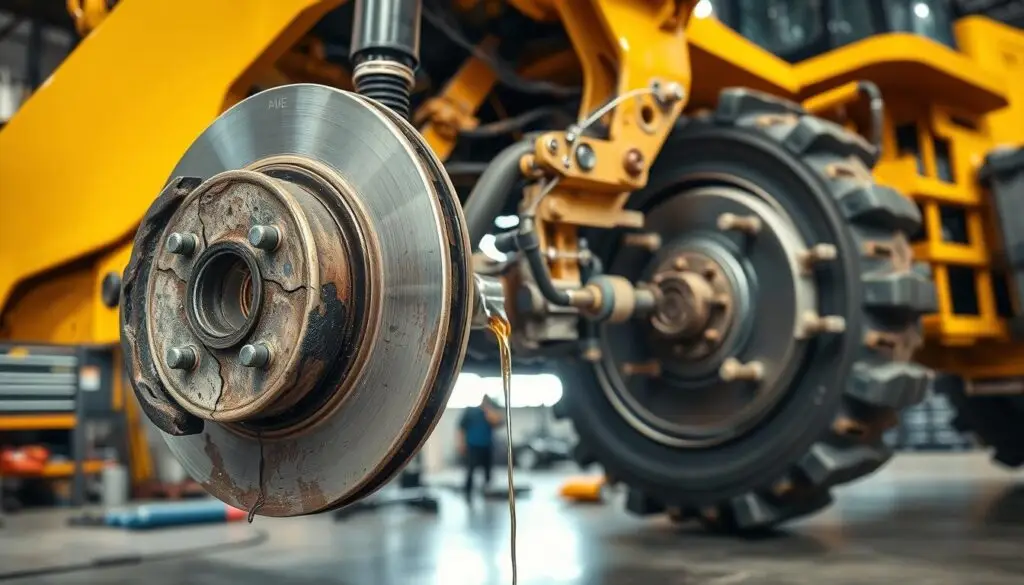

Identifying Wheel Loader Brake Failure Symptoms

Wheel loader brake problems rarely appear without warning—recognizing early symptoms prevents dangerous situations and reduces repair costs. Each brake system malfunction produces distinct indicators that point toward specific component failures. Operators and maintenance personnel who understand these patterns catch problems before they escalate.

Loss of Braking Power

This dangerous condition occurs when the brake pedal feels normal but the loader fails to decelerate properly. Insufficient braking force develops when hydraulic pressure drops below the 65 PSI threshold required for adequate clamping. Operators notice the machine continues moving despite full pedal application—a situation demanding immediate shutdown.

Several factors create weak brakes: hydraulic fluid loss, failed pressure accumulators, or worn brake components that no longer generate sufficient friction. The pedal may travel its full range without producing adequate stopping force. This represents one of the most serious brake failure symptoms requiring immediate attention to protect operators and personnel working near the equipment.

Spongy or Soft Brake Pedal

A spongy brake pedal feels mushy and travels further than normal before engaging the brakes. This symptom typically indicates air contamination within hydraulic brake lines. Air compresses under pressure—unlike brake fluid—creating inconsistent force transmission to the calipers. The pedal may gradually rise when pumped repeatedly, confirming air presence in the system.

Failing seals within the master cylinder or booster pump also produce soft pedal response. Internal component wear allows pressure to bypass pistons instead of transmitting force to the brake calipers. This condition progressively worsens over operating hours until proper braking becomes impossible without bleeding the system and replacing worn seals.

Brake Fade Under Heavy Loads

Brake fade develops during repeated braking cycles or sustained downhill operation with loaded buckets. Thermal degradation reduces the friction coefficient between brake pads and discs as components absorb heat faster than they can dissipate it. The loader requires increasingly longer distances to stop despite consistent pedal pressure.

This overheating particularly affects wheel loaders moving heavy materials in load-and-carry operations or working on inclined surfaces. Brake components temporarily lose effectiveness until they cool down. Continued operation under these conditions accelerates wear, glazes friction surfaces, and can permanently damage brake discs.

Grinding and Squealing Noises

Metal-on-metal contact produces grinding sounds signaling severely worn brake pads. The friction material has worn completely through, exposing backing plates or rivets that now contact brake discs directly. This causes rapid disc damage and creates metal shavings that contaminate the brake system.

Squealing noises often precede grinding and indicate brake pads approaching end of service life. Both conditions create safety hazards and require immediate pad replacement. Continued operation damages expensive brake discs and increases total repair costs substantially—replacing pads costs a fraction of replacing scored or cracked rotors.

Brake Pedal Sinking to Floor

A brake pedal that gradually sinks indicates internal hydraulic leaks within the brake system. Failed seals in the booster pump or brake cylinders prevent proper pressure buildup. The pedal may initially provide braking but slowly descends toward the floor under sustained pressure as fluid bypasses worn seals.

External fluid leaks produce the same symptom as hydraulic fluid escapes the closed system. Operators notice the pedal reaches the floor without providing adequate stopping force. This condition demands immediate repair—the loader should not operate until the leak source is identified and corrected.

Uneven Braking Performance

When the loader pulls left or right during braking, unequal brake force exists between opposite wheels. Contaminated brake pads, stuck pistons, or air in individual brake lines create this imbalance. The steering wheel jerks noticeably in one direction when brakes are applied, making the machine difficult to control.

Misadjusted brake clearances also produce uneven braking that affects directional stability. One wheel’s brake engages before the other, creating asymmetric friction. This condition increases tire wear and creates unpredictable handling during braking maneuvers.

Hydraulic Fluid Leaks and Contamination Diagnosis

Maintaining clean, leak-free hydraulic brake fluid is essential for reliable wheel loader operation and operator safety. Brake fluid leaks create dangerous pressure loss that compromises stopping power. Contaminated fluid degrades performance and accelerates component wear throughout the entire brake system. Early detection prevents minor issues from escalating into complete brake failure.

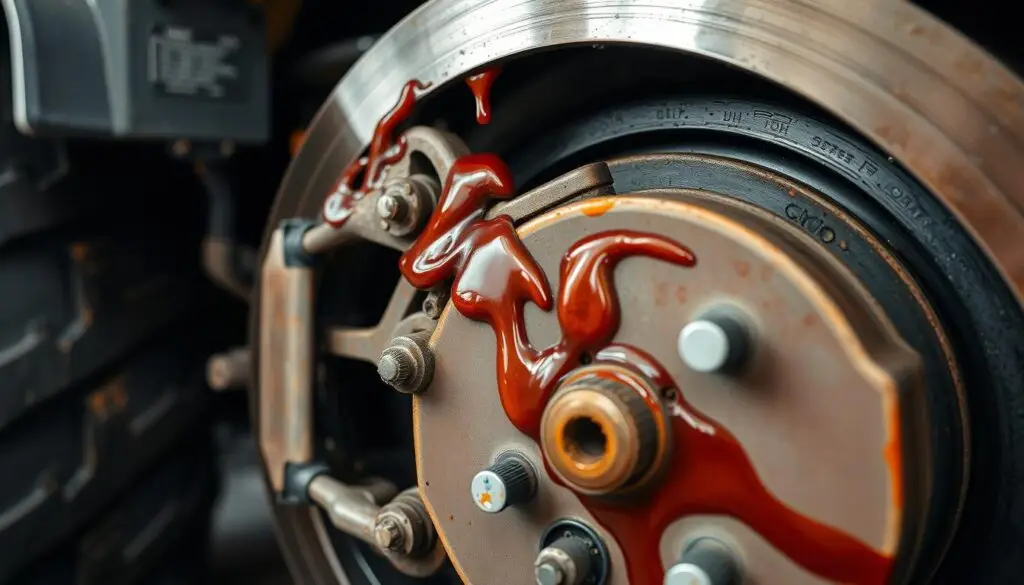

External Leak Detection Methods

Start your inspection by checking all brake lines and connections while the system operates under pressure. Look for wet spots, fluid accumulation, or staining around these common failure points:

• Brake valve housings and connection joints where fittings may loosen over time
• Booster pump assemblies and cylinder connections subjected to pressure cycling
• Brake caliper mounting points and hydraulic lines exposed to debris impact
• Oil pipe joints and damaged fitting seals at vibration-prone locations

Park the wheel loader on clean cardboard overnight to identify leak locations through drip patterns. Run the engine and apply brakes repeatedly to pressurize the system—some leaks only appear under operating conditions. This simple technique often reveals intermittent leaks that remain invisible during static inspection.

Check the brake fluid reservoir level regularly. Proper levels typically sit 15-20mm below the filler cap edge according to most manufacturer specifications. Rapid fluid loss indicates active leaking requiring immediate attention before operating the equipment.

Internal Leak Symptoms

Brake seal failure inside cylinders and valves allows fluid to bypass pistons without producing visible external leaks. These internal problems manifest as a sinking brake pedal or reduced stopping force despite adequate reservoir fluid levels. Internal leaks are more difficult to diagnose but equally dangerous.

Open the reservoir cap and observe fluid behavior while an assistant applies the brakes. Vigorous churning or bubbling indicates internal cylinder seal damage allowing pressure to escape back into the reservoir rather than reaching the calipers. Worn seals in the afterburner cylinder, booster cylinder, or brake valve assembly require component rebuild or replacement.

Water Contamination Effects

Water enters brake systems through damaged reservoir seals, condensation in humid environments, or hygroscopic absorption by the fluid itself. Even small amounts of water create serious problems throughout the hydraulic circuit that worsen over time.

Water contamination lowers the fluid’s boiling point dramatically, causing vapor lock under high operating temperatures. This results in sudden, complete brake loss during heavy work cycles precisely when stopping power matters most. Moisture also promotes internal corrosion and accelerates seal deterioration, compounding problems over the machine’s service life.

The Federal Motor Vehicle Safety Standard 116 establishes brake fluid performance requirements including boiling point specifications. While this standard applies primarily to on-road vehicles, the underlying fluid chemistry principles apply equally to heavy equipment brake systems.

Particulate Contamination

Contamination from worn seals, deteriorated hoses, or external dirt causes multiple system failures. Particulate matter leads to valve sticking, piston scoring, and accelerated component wear that reduces brake system lifespan. Fine particles act as abrasives that damage precision-machined surfaces throughout the hydraulic circuit.

Regular fluid inspection includes checking for discoloration, visible particles, or unusual odor indicating contamination requiring immediate flushing. Dark fluid suggests oxidation or heat damage, while milky appearance indicates water contamination. Both conditions require complete system flushing with fresh fluid matching manufacturer specifications.

System Flushing Procedures

Complete system restoration requires proper repair techniques and thorough fluid replacement. Begin by identifying and replacing all failed components causing leaks or contamination. Replace damaged brake lines, worn seals, and corroded fittings before refilling the system.

Brake fluid replacement must include complete system flushing with clean fluid matching manufacturer specifications. Never mix different fluid brands as incompatible formulations cause chemical reactions that damage seals. If changing fluid brands, flush the entire system multiple times to remove all traces of old fluid. Fill the reservoir to correct level and bleed all air from lines following the sequence specified in the service manual.

Brake Disc and Pad Wear Diagnosis

Understanding brake component deterioration patterns helps maintenance teams schedule replacements before system failures occur. Brake pad wear is inevitable in wheel loader operations, but recognizing when replacement becomes necessary prevents secondary damage to expensive brake discs. Regular monitoring keeps equipment running safely while controlling long-term repair costs.

Visual Pad Inspection

Check friction material thickness through caliper inspection ports or by removing wheels for direct access. Warning signs include unusual noises during braking, increased stopping distances, and brake dust accumulation around wheel assemblies signaling active wear. These indicators suggest pads approaching replacement threshold.

Uneven wear patterns across the pad surface indicate caliper piston problems or improper pad installation. Oil contamination on pads creates shiny, hardened surfaces with drastically reduced friction coefficients. Contaminated pads must be replaced since cleaning rarely restores proper function—residual oil remains embedded in the friction material.

Measuring Pad Thickness

Industry standards recommend friction lining replacement when material wears to one-third of original thickness. This typically occurs when 3-5mm of material remains above the backing plate. The SAE J237 standard establishes minimum performance criteria for brake systems on off-highway wheel loaders and dozers, including requirements that inform pad replacement thresholds.

Measuring brake pad thickness accurately requires calipers or specialized gauge tools. Precise measurements prevent premature replacement while avoiding operation with dangerously thin pads. Exposed rivets or backing plate material contacting discs signals immediate replacement need—any delay causes expensive rotor damage.

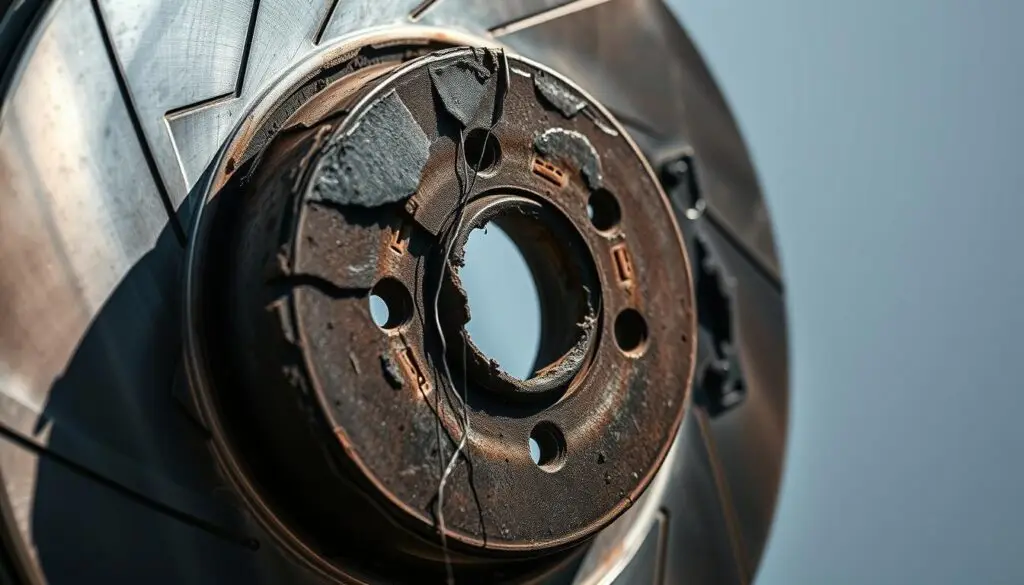

Disc Damage Assessment

Scoring and grooving occur when worn pads allow backing plate rivets or metal-to-metal contact that cuts radial grooves into disc surfaces. Light scoring under 1mm depth can sometimes be machined away if the disc remains above minimum thickness specifications. Deeper grooves compromise structural integrity and require disc replacement.

Warping and heat damage result from excessive braking, thermal cycling, or uneven cooling. These conditions create thickness variations causing pedal pulsation and uneven braking. Severely warped discs exceeding 0.15mm runout cannot be safely resurfaced and must be replaced. Blue or purple tinting on disc surfaces indicates extreme heat exposure that has altered the metal’s structural properties.

Replacement Standards

Proper replacement procedures ensure optimal system performance and prevent recurring problems. Follow manufacturer torque specifications when installing new pads and discs. Correct pad break-in procedures condition new friction material for maximum effectiveness—typically involving a series of moderate stops followed by a cool-down period.

Adjustment of brake clearances typically maintains 0.5-1.0mm gap between pads and disc surfaces for proper operation. Insufficient clearance causes brake drag and premature wear; excessive clearance increases pedal travel and delays brake engagement.

Hydraulic Accumulator and Pressure System Failures

Pressure system failures represent some of the most critical brake issues in wheel loader operations, requiring immediate attention to prevent safety hazards. The hydraulic accumulator serves as a backup power source storing pressurized fluid for emergency brake applications. When this component or related pressure systems fail, the loader loses essential safety protection.

Accumulator Pressure Loss Symptoms

Accumulator failure manifests through several distinct warning signs operators should never ignore. The most noticeable symptom is decreased brake pedal firmness, where the pedal feels softer than normal during application. Your wheel loader should provide 3 to 5 full brake applications with the engine off under normal conditions—when accumulator pressure drops, this number decreases significantly.

The brake warning light illuminates when system pressure falls below the safe operating range of 0.45 to 0.70 MPa (65-100 PSI). Pressure gauge readings provide direct confirmation of brake pressure problems. Slower brake engagement response indicates insufficient stored pressure for immediate braking action.

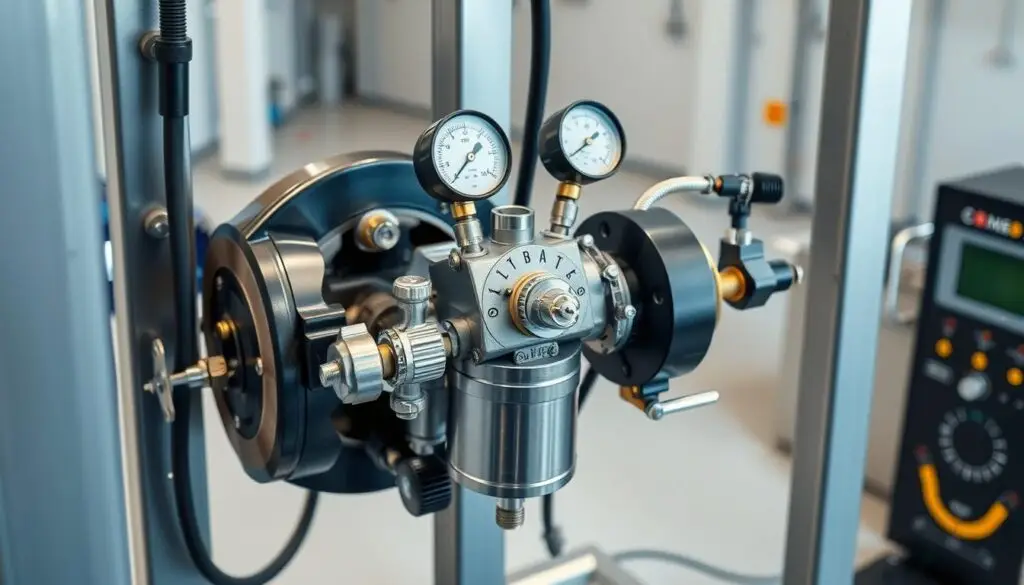

Nitrogen Charge Testing and Recharging

The nitrogen charge inside the accumulator gradually depletes over time as seals deteriorate. The gas bladder or piston seal allows microscopic amounts of nitrogen to escape, reducing the accumulator’s capacity to maintain system pressure. This depletion accelerates when seals experience excessive heat or contamination exposure.

Testing requires specialized nitrogen charging equipment and proper safety procedures. Before beginning any test, completely relieve all hydraulic pressure from the brake system. Connect a pressure gauge to the accumulator charging valve and record the reading. Most wheel loader brake systems require pre-charge pressure between 90 and 100 PSI—compare readings against manufacturer specifications.

For recharging, system depressurization comes first. Connect a nitrogen bottle equipped with a proper pressure regulator to the accumulator charging valve. Slowly fill while continuously monitoring pressure gauges. Stop at the manufacturer’s specified level to prevent over-pressurization damage to the bladder or seals.

Hydraulic Pump Performance Issues

Hydraulic pump problems develop when the pump supplying brake system pressure experiences internal wear or mechanical failure. Common causes include worn pump components, cavitation damage from contaminated fluid, and drive coupling breakage. Symptoms include extremely slow pressure buildup, inability to reach specified operating pressure, or complete pressure loss.

Testing pump performance requires measuring output pressure and flow rate against factory specifications. Install pressure testing equipment at the pump outlet for accurate diagnostics. Low readings indicate pump wear requiring rebuild or replacement—continuing to operate with a failing pump eventually leads to complete brake system failure.

Brake Control Valve Malfunctions

Brake valve malfunction significantly impacts overall system operation and safety. The control valve regulates pressure distribution throughout the brake system, directing fluid to appropriate brake assemblies. When this component fails, brake response becomes unpredictable or completely ineffective.

Contamination, corrosion, or component wear prevents smooth spool valve movement within the valve body. This sticking causes delayed brake application or complete failure to release brakes after pedal release. Operators notice jerky brake response or brakes that remain partially engaged after the pedal returns to rest position. Blocked vent holes prevent pressure equalization, causing brake drag and overheating.

Air Contamination in Hydraulic Brake Lines

Invisible yet destructive, air in brake lines creates some of the most frustrating performance issues in wheel loader hydraulic brake systems. Unlike physical component failures that leave visible evidence, air contamination produces symptoms that confuse operators and complicate diagnosis. The compressible nature of air disrupts hydraulic pressure transmission that brake systems depend on for reliable stopping power.

How Air Enters the System

Air finds multiple pathways into sealed hydraulic brake systems despite protective measures. Any maintenance work involving brake system disassembly introduces air contamination risk. When technicians disconnect brake lines, remove calipers, or service the master cylinder, air immediately enters opened passages. Even careful component installation cannot completely prevent air intrusion during these procedures—proper bleeding afterward is essential.

Deteriorated cylinder seals create the most insidious air entry pathway. Loose fittings, cracked brake lines, or worn seal surfaces allow air infiltration during brake release when slight vacuum conditions exist within hydraulic circuits. Low brake fluid levels expose internal passages to air, which gets drawn into the system during normal operation. These gradual leaks often worsen over time, progressively degrading brake performance.

Recognizing Air-Related Problems

Air contamination produces distinctive symptoms that differentiate it from other brake failures. The spongy brake pedal represents the hallmark indicator—instead of firm resistance, the pedal feels soft or mushy and travels further than normal before brake engagement. Pumping the pedal repeatedly causes it to gradually become firmer and rise higher. This temporary improvement disappears once the pedal releases and reapplies, confirming air presence.

Additional symptoms include weak braking performance requiring excessive pedal force, inconsistent stopping power varying between applications, delayed response after pedal depression, and pedal position changes where initial depression feels low but rises with continued pressure. Any of these indicators warrant systematic air removal through proper bleeding procedures.

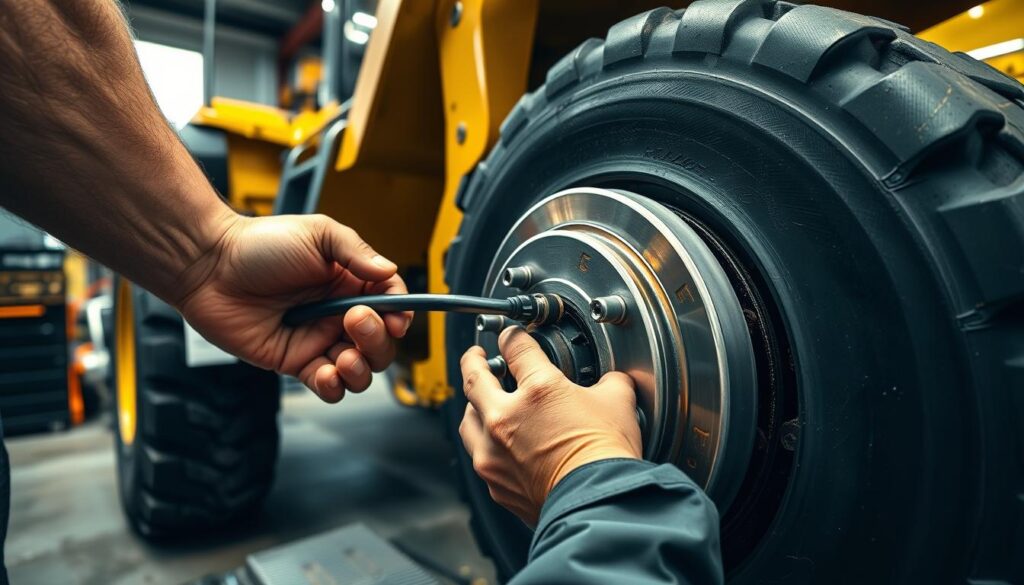

Complete Brake Bleeding Procedures

Effective hydraulic system air removal requires systematic approaches ensuring complete air evacuation. Two primary methods accomplish thorough brake line purging depending on available equipment and technician preference.

Manual bleeding requires two technicians working together for optimal results. Open bleeder screws at each brake caliper while an assistant repeatedly depresses and holds the brake pedal. Air bubbles and old fluid escape until only clear, bubble-free fluid flows from the bleeder valve. Always start with the wheel furthest from the master cylinder and work progressively closer—this sequence prevents reintroducing air into already-bled circuits.

Pressure bleeding equipment offers superior efficiency for large brake systems. These tools pressurize the brake fluid reservoir, forcing fluid through the entire system and expelling air without pedal pumping. Pressure bleeding reduces service time significantly while ensuring more complete air removal throughout all hydraulic circuits. This method particularly benefits wheel loaders with complex brake systems where manual bleeding becomes time-consuming.

Parking Brake System Failures

When parking brake systems malfunction, they create immediate safety hazards that can result in equipment damage or operator injury. Wheel loaders typically employ spring-applied, hydraulically-released parking brakes that automatically engage when hydraulic pressure drops. This fail-safe design provides reliable holding power during maintenance operations and prevents unintended machine movement on slopes.

Spring-Applied Parking Brake Issues

Spring brake problems originate from the robust coil springs and chambers providing fundamental braking force. These components endure constant stress cycles throughout the equipment’s service life. The housing containing powerful brake springs can develop structural weaknesses over time—cracks, corrosion, or metal fatigue compromise chamber integrity and allow sudden brake release.

Spring fatigue reduces clamping force gradually as metal loses elasticity. Loaded machines may roll unexpectedly when weakened springs cannot maintain adequate brake holding power. Replacement becomes necessary when spring tension falls below manufacturer specifications. Regular inspection for visible rust, deformation, or fluid seepage around spring chambers identifies impending failures.

Release Mechanism Failures

Hydraulic release cylinders contain internal seals that must hold pressure to compress brake springs. Seal deterioration allows hydraulic fluid to bypass the piston, leaving the parking brake permanently engaged. Operators experience difficulty moving the machine despite activating the release control.

Control valves directing pressure to release mechanisms can stick or fail completely. Contaminated hydraulic fluid introduces particles that jam valve spools in fixed positions. Electrical solenoids controlling these valves may burn out from excessive heat or develop wiring faults preventing proper signal transmission. Systematic diagnosis identifies whether the problem lies in the hydraulic circuit, electrical controls, or mechanical components.

Parking Brake Won’t Hold Load

When the machine rolls despite parking brake engagement, immediate action is required. This dangerous condition creates hazards during maintenance procedures or when parking on inclined surfaces. Multiple factors contribute to reduced brake holding power: worn friction disc material reduces surface contact area, oil contamination from leaking wheel seals creates slippery brake surfaces, insufficient spring force from fatigued springs, excessive brake clearance from improper adjustment, and glazed brake surfaces from overheating.

Oil leaking from wheel seals onto parking brake surfaces dramatically reduces holding capacity. Even small amounts of hydraulic fluid create a slippery film preventing proper friction engagement. Thorough cleaning and seal replacement restore normal operation.

Adjustment and Calibration

Proper parking brake adjustment ensures reliable holding performance and prevents premature component wear. Mechanical linkage connecting the parking brake control to the brake mechanism requires correct free play settings. Excessive cable stretch or binding prevents complete engagement and reduces holding power. The adjustment process sets the correct engagement point where springs apply full clamping force.

Hydraulic release systems require specific pressure levels—typically 200 to 300 PSI—to fully compress brake springs. Insufficient pressure prevents complete brake release, while excessive pressure damages seals and components. Pressure gauges verify system performance during calibration procedures. According to OSHA regulation 29 CFR 1926.600, equipment parked on inclines must have wheels chocked and parking brakes set—requirements that depend on properly functioning parking brake systems.

Systematic Troubleshooting Methodology

Proper troubleshooting methodology separates guesswork from precision when addressing wheel loader brake failures. A structured approach to brake diagnostics prevents misdiagnosis and unnecessary part replacement while quickly identifying actual problem sources. Following established procedures ensures technicians address root causes rather than symptoms.

Pre-Diagnostic Safety Checks

Safety must come first before beginning any brake system testing. Park the loader on level ground and apply the parking brake fully. Lower the bucket to the ground and shut off the engine completely. Block all wheels to prevent unexpected movement during inspection.

Relieve all hydraulic pressure by repeatedly depressing the brake pedal until firm resistance develops. This critical step prevents dangerous fluid spray when opening hydraulic connections. Ensure proper ventilation if working indoors since brake fluid vapors can accumulate. Wear appropriate safety equipment including chemical-resistant gloves and eye protection when handling brake fluid, which is highly corrosive to skin and eyes.

Visual Inspection Protocol

Thorough visual brake inspection forms the foundation of effective diagnosis. This non-invasive examination often reveals obvious problems before more complex testing becomes necessary. Remove the brake fluid reservoir cap and verify fluid level—proper levels typically measure 15-20mm below the filler cap edge.

Examine fluid color and clarity carefully. Fresh brake fluid appears clear to light amber. Dark, cloudy, or contaminated fluid indicates water intrusion or component deterioration requiring complete system flushing. Examine all visible brake lines for cracks, abrasion, or physical damage. Check every fitting for proper tightness and evidence of leaking. Look for fluid stains or wet areas around brake components indicating active leaks.

Functional Testing Procedures

Functional tests verify actual brake performance under controlled conditions. Start the engine and allow system pressure to build completely. Firmly apply the brakes while attempting to drive the loader forward in low gear. Properly functioning brakes should prevent all machine movement. If the loader creeps forward despite full brake application, significant brake problems exist requiring further diagnosis.

Carefully test brakes while driving in an open area away from personnel and obstacles. Note stopping distances, pedal feel, and any pulling tendencies. Unusual noises during braking indicate specific component problems requiring investigation. Compare performance against the machine’s known baseline when brakes were functioning correctly.

Hydraulic Pressure Testing

Pressure testing provides definitive diagnostic data when visual inspection and functional tests prove inconclusive. Use pressure gauges rated for brake system pressures between 0-3000 PSI with appropriate fittings matching the loader’s test port connections exactly. Always have manufacturer service specifications available for comparison—testing without reference values produces meaningless data.

Compare measured values against manufacturer specifications during brake application and release cycles. Proper brake air pressure should measure 0.45-0.70 MPa in pneumatic systems. Hydraulic systems vary by model but typically operate between 1500-2500 PSI. Low pressure readings indicate pump problems, accumulator failures, or internal leaks. Slow pressure buildup suggests worn pumps or valve malfunctions.

Diagnostic Fault Code Reading

Newer electronically-controlled wheel loaders feature onboard computers monitoring brake system sensors continuously. These systems record fault codes when abnormal conditions occur, providing valuable diagnostic information. Connect manufacturer-specific diagnostic software to access stored codes.

Each code corresponds to specific sensor readings or system faults. Cross-reference codes with manufacturer documentation to identify exact problem locations. Remember that fault codes indicate where problems exist but rarely explain why failures occurred—use codes as starting points for deeper investigation rather than definitive answers.

Preventive Maintenance and Inspection Schedules

Establishing consistent inspection routines dramatically reduces emergency brake repairs and extends component service life. A structured brake maintenance schedule protects both equipment investment and operator safety. Following manufacturer guidelines while adapting to specific operating conditions creates the most effective preventive maintenance program.

Research from industry sources indicates that unplanned equipment downtime rates between 20-30 percent are common across the construction industry—much of which traces back to deferred maintenance. Proactive brake system inspection reduces this significantly.

Daily Operator Checks

Operators should complete these inspection tasks before each shift:

• Test brake pedal firmness and immediate response during startup
• Verify brake system pressure gauge reads between 65-100 PSI once system pressurizes
• Check brake fluid reservoir level for adequate supply
• Visually inspect around brake components for fluid leaks
• Test parking brake holding ability on a slight slope before beginning work
• Listen for unusual grinding or squealing during initial operation
• Clean exposed brake calipers and discs of accumulated debris

After completing daily work, drain the air tank on air-over-hydraulic systems to prevent moisture buildup. This simple step protects the entire brake system from contamination that accelerates component wear.

Periodic Maintenance Intervals

Scheduled brake service intervals depend on operating hours and working conditions. These checkpoints ensure long-term reliability:

These intervals provide baseline guidance. Harsh operating environments—dusty quarries, steep grades, high-cycle applications—may require more frequent attention. Track actual brake performance and wear rates to develop site-specific intervals.

Brake Fluid Testing and Replacement

Contaminated brake fluid causes multiple system failures. Test brake fluid using moisture test strips to measure water content. Replace fluid if water content exceeds 3 percent. Check temperature specifications if testing equipment is available—significant drops below manufacturer specifications require immediate fluid change.

Visual inspection remains valuable: examine fluid clarity and color. Dark or cloudy appearance indicates contamination requiring replacement. Complete fluid replacement involves draining the entire system and flushing with clean fluid. Refill only with manufacturer-specified brake fluid. Always bleed all air from the system after replacement following the sequence in the service manual.

Component Lifespan Guidelines

Brake pads typically last between 1,000 and 3,000 operating hours depending on load cycles, operator technique, and working conditions. Heavy-duty applications with frequent braking shorten pad life. Monitor thickness regularly and replace pads before reaching minimum specifications.

Hydraulic seals generally require replacement between 2,000 and 5,000 operating hours. However, any visible leakage demands immediate seal replacement regardless of hours. Preventive seal replacement during scheduled overhauls prevents unexpected failures and maintains consistent brake performance. Caterpillar’s wheel loader maintenance guidelines provide OEM-specific intervals that serve as good baselines for similar equipment.

Operator Practices for Brake Longevity

Proper operating techniques significantly extend brake component life. Training operators on these practices reduces maintenance frequency and improves safety:

• Control travel speed to avoid excessive brake applications by maintaining appropriate operating speeds
• Use transmission retarding when available for downhill descending instead of relying solely on service brakes
• Plan stopping distances to allow gradual braking rather than emergency stops
• Remove foot from brake pedal during operation to prevent continuous friction and heat buildup

These techniques reduce thermal stress and mechanical wear. Operators following these practices consistently report longer component service intervals and fewer emergency repairs.

Frequently Asked Questions

What causes a wheel loader brake pedal to feel spongy?

A spongy brake pedal almost always indicates air contamination in the hydraulic brake lines. Air compresses under pressure unlike brake fluid, creating inconsistent force transmission to the calipers. This condition develops after any brake system service that opened hydraulic connections, from deteriorated seals allowing air infiltration, or from low fluid levels exposing internal passages to air. Systematic bleeding following manufacturer procedures—starting from the wheel furthest from the master cylinder—removes trapped air and restores firm pedal feel. If the spongy condition returns quickly after bleeding, suspect a continuing air entry point such as a failing master cylinder seal.

How often should wheel loader brake fluid be replaced?

Most manufacturers recommend brake fluid replacement every 500 operating hours or annually, whichever comes first. However, operating conditions significantly affect this interval. Equipment working in humid environments or experiencing frequent temperature swings may require more frequent replacement due to moisture absorption. Test fluid using moisture strips—if water content exceeds 3 percent, replace immediately regardless of hours. Dark or cloudy fluid also indicates contamination requiring immediate attention. Always use fluid matching manufacturer specifications and never mix different brands, as incompatible formulations can damage seals.

Why do my wheel loader brakes pull to one side?

Uneven braking causing the machine to pull left or right results from unequal brake force between opposite wheels. Common causes include contaminated brake pads on one side creating different friction coefficients, stuck caliper pistons preventing full engagement, air trapped in individual brake lines, or misadjusted brake clearances. Diagnose by inspecting pads for oil contamination, checking caliper piston movement, and bleeding each wheel circuit independently. Correct the underlying cause—simply adjusting the stronger brake weaker creates temporary masking rather than solving the problem.

What should I do if the parking brake won’t hold on a slope?

A parking brake failing to hold on grades represents a serious safety hazard requiring immediate attention. First, chock wheels and avoid leaving the machine unattended on slopes until repairs are complete. Check for oil contamination on brake surfaces from leaking wheel seals—even small amounts of hydraulic fluid dramatically reduce holding capacity. Inspect spring force by measuring brake chamber stroke—excessive stroke indicates weakened springs needing replacement. Verify proper adjustment of brake clearances. If springs and adjustments check out, the friction material may be worn or glazed and require replacement.

How do I know if the brake accumulator is failing?

A failing hydraulic accumulator manifests as decreased brake pedal firmness and reduced emergency stopping capability. Test by shutting off the engine and counting how many full brake applications you get before the pedal becomes soft—a healthy accumulator provides 3 to 5 applications. Fewer applications indicate low nitrogen pre-charge. Warning lights illuminating below 65 PSI confirm pressure problems. Check pre-charge pressure with specialized equipment—most loaders require 90-100 PSI. Low pre-charge requires nitrogen recharging following manufacturer procedures; never use compressed air or oxygen due to explosion risk.

Can I use automotive brake fluid in my wheel loader?

Using automotive brake fluid in heavy equipment depends entirely on manufacturer specifications. While some wheel loaders use DOT 3 or DOT 4 glycol-based fluids similar to automotive applications, others require specific hydraulic fluids or mineral oils incompatible with standard brake fluid. Using wrong fluid damages seals and can cause complete brake failure. Always verify fluid specifications in the operation and maintenance manual before adding or replacing brake fluid. Mixing incompatible fluids requires complete system flushing to prevent seal damage and ensure proper brake function.

Protecting Your Investment Through Proactive Brake Maintenance

Wheel loader brake problems demand immediate action to protect operators and equipment. Recognizing warning signs early—spongy pedals, reduced stopping power, unusual noises, pulling during braking—prevents minor issues from becoming dangerous failures. Equipment safety depends on properly functioning brakes every operating day.

The maintenance importance of brake systems cannot be overstated. Regular inspections catch worn components before they fail. Daily operator checks combined with scheduled service intervals keep brake system reliability at peak levels. This proactive approach saves money by preventing emergency breakdowns and the costly cascading damage that follows deferred maintenance.

Simple problems like fluid contamination or air in lines respond well to standard procedures. Complex issues involving hydraulic pressure systems or electronic controls need specialized attention. Knowing when to handle repairs in-house versus calling for professional service protects your investment and keeps workers safe. Maintaining detailed service records helps identify patterns and predict future maintenance needs.

Caterpillar, Komatsu, John Deere, and other manufacturers provide detailed service specifications for their machines. Following manufacturer guidelines ensures repairs meet safety standards. Factory-trained technicians bring diagnostic tools and expertise that speed problem resolution. Keeping brake systems properly maintained protects your most important asset—the people operating your equipment.
