Freightliner Cascadia mirrors are a layered visibility system, not a single part. Each side carries a door-mounted main assembly with flat and convex glass, the hood carries a pair of fender-style mirrors, and newer trucks add radar watching the passenger-side blind zone. Federal rules require two outside rear-vision mirrors that meet FMVSS No. 111, and every replacement has to meet that same standard.

Clear visibility from that system comes down to three things: parts that match the right Cascadia generation, glass aimed correctly with the trailer straight, and a pre-trip check that treats mirrors as safety equipment rather than trim. In this guide, Michael Nielsen and the Heavy Duty Journal editorial team at heavydutyjournal.com cover all three, along with where radar and camera monitor systems fit as of September 2026.

How Freightliner Cascadia Mirrors Work as a System

Freightliner Cascadia mirrors split the job of seeing around a tractor-trailer into three parts: flat glass for judging distance, convex glass for width of view, and hood mirrors for the areas close to the cab. No single mirror covers everything, which is why a problem with any one of them shows up as a gap in the driver's picture rather than a total loss of view.

A unit-magnification mirror is a flat mirror that shows objects at their true size and distance, which is why federal rules treat it as the primary rear-vision mirror on heavy trucks. A convex mirror is curved outward to show a wider area, at the cost of making everything in it look smaller and farther away than it really is.

The Cascadia mirror system's individual components, and what each one is actually responsible for, break down as follows:

Why the Cascadia Generation Matters

The Cascadia has been in production since the 2008 model year, and its mirror hardware has not stayed the same. The redesign for the 2018 model year brought reshaped, more aerodynamic hood mirrors along with a new hood, grille, and bumper, and door mirror assemblies changed with it. Aftermarket catalogs reflect that split, listing most Cascadia mirror parts as either 2008–2017 or 2018-and-newer fitments.

The generation question gets harder in mixed fleets that still run older conventionals, such as the Freightliner Classic, Century, or FLD, alongside their Cascadias. Mirror hardware for those trucks is no longer current OEM stock, so a supplier that carries classic truck parts alongside current-model components can save a second search.

The current Fifth Generation Cascadia adds another layer. According to Freightliner's own product information, Detroit Assurance with Active Brake Assist 6 is standard on that truck, and its radar-based side monitoring changes what the mirror system is expected to cover on its own. For anyone ordering parts or setting up a new driver, knowing which generation is in the bay is the first step, not a detail to confirm later.

Federal Mirror Requirements for Class 8 Trucks

Federal rules require every truck and truck tractor to carry two outside rear-vision mirrors, one on each side, firmly attached and positioned to show the highway to the rear along both sides. That requirement comes from 49 CFR 393.80 rear-vision mirror requirements, which also says that the mirrors and their replacements must meet FMVSS No. 111 as it stood when the vehicle was built.

Federal Motor Vehicle Safety Standard (FMVSS) No. 111 sets the mirror hardware requirement for heavy trucks. Under its section S8.1, trucks rated at 11,340 kg (about 25,000 lb) GVWR or more must have flat, unit-magnification outside mirrors on both sides, each with at least 323 cm² of reflective surface, on stable supports and adjustable both horizontally and vertically. The full text is in FMVSS No. 111 rear visibility standard.

That 323 cm² figure works out to roughly 50 square inches of flat glass per side. It is the reason the upper, flat section of a Cascadia door mirror is the compliance-critical piece — the convex spot glass below it and the hood mirrors ahead of it add coverage on top of the legal minimum, but none of them substitute for it.

The Driver's Obligation Before Every Trip

Mirror compliance does not stop at the parts counter. Under 49 CFR 392.7 equipment inspection rules, no commercial motor vehicle may be driven unless the driver is satisfied that its rear-vision mirrors are in good working order — and the driver has to actually use them when needed.

Rear-vision mirrors also appear on the list of items a driver vehicle inspection report (DVIR) must cover under 49 CFR 396.11. In practice, that means a cracked main glass, a dead heater in freezing weather, or a hood mirror knocked out of position is a documented defect, not a cosmetic note — and it should be written up and repaired before the truck is dispatched again.

Keep Your Fleet Running at Full Capacity

Get HDJ's maintenance guides, compliance updates, and fleet management strategies delivered weekly — built for working diesel professionals.

Email

Email *

Submit

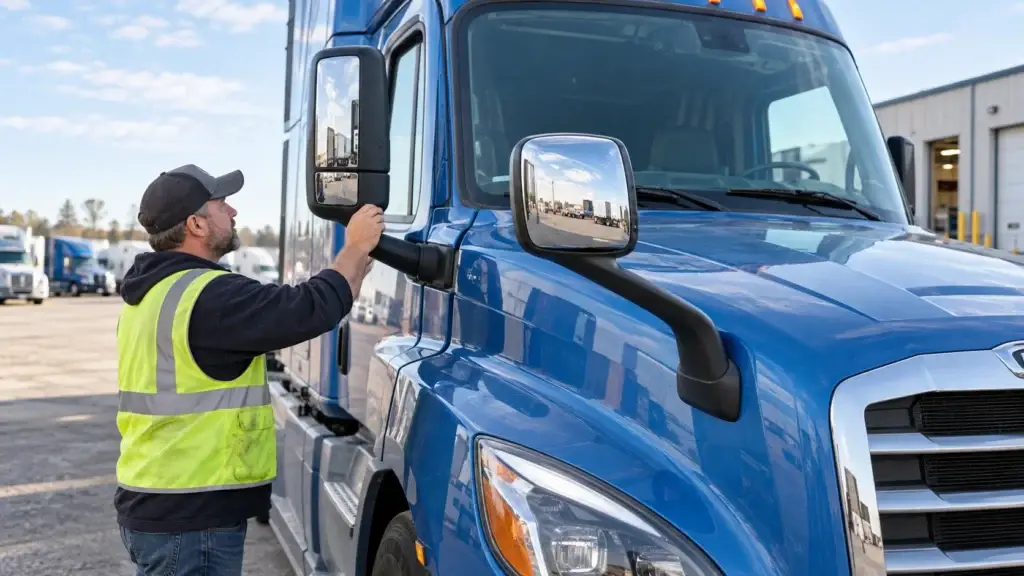

How to Adjust Cascadia Mirrors for Maximum Visibility

Cascadia mirrors should be adjusted from the normal driving position with the tractor and trailer pulled into a straight line, flat glass first, then convex glass, then hood mirrors. Adjusting with the trailer at an angle bakes that angle into the aim, and the error shows up the moment the rig straightens out on the highway.

1. Set the seat and steering wheel first. Mirror aim is only correct for one eye position, so lock in seat height, fore-aft position, and wheel tilt before touching the glass.
2. Straighten the combination. Pull forward in a straight line until the trailer tracks directly behind the tractor.
3. Aim the flat glass. Set the inside edge to show a thin strip of the trailer's side, with the rest of the glass showing the adjacent lane. Set the vertical angle so the road behind the trailer and the trailer tandems are visible.
4. Aim the convex glass. Angle it slightly outward and downward so its view picks up where the flat glass ends, covering the lane beside the tractor and along the trailer.
5. Aim the hood mirrors. Set each to cover the front corner and the lane alongside the cab, with the passenger-side hood mirror given particular attention because that side has the largest blind zone.
6. Verify with a walk-around or cones. Have someone walk the length of the rig on each side, or set cones one lane out, and confirm there is no point where they vanish from every mirror at once.

Convex glass needs one more habit on the road. Because it makes vehicles look smaller and farther away than they are, the convex mirror is best used to detect that something is there, and the flat glass to judge how close it is before a lane change or merge. HDJ's truck driver safety tips guide covers the scanning habits that go with a well-aimed mirror set.

When to Re-Check Mirror Aim

Mirror adjustment is not a one-time setup job. Re-check aim after every driver change on a slip-seat truck, after any seat adjustment, after a truck wash where brushes can push glass out of position, and after the hood has been tilted for service, since the hood mirrors move with it. A hood mirror that gets bumped a few degrees can leave the passenger-side front corner uncovered without any obvious sign from the driver's seat.

According to Heavy Duty Journal's assessment of shop and fleet practice, most mirror visibility complaints on shared Cascadias trace back to aim rather than hardware. A mirror set perfectly for one driver's seat height is misaimed for the next, which is why fleets that fold a quick re-aim into every driver handoff tend to get fewer "bad mirror" write-ups than fleets that only look at mirrors when something breaks.

Blind Spots Mirrors Can't Cover — and the Tech That Helps

Even perfectly adjusted Freightliner Cascadia mirrors leave four blind zones, often called No-Zones, around a tractor-trailer. The Commercial Vehicle Safety Alliance (CVSA) describes them as the area directly in front of the hood, a zone on the driver's side running from the door to about the middle of the trailer, a much larger zone on the passenger side, and the area directly behind the trailer.

Those zones are why mirror discipline and driver scanning habits matter more on the passenger side than anywhere else on the truck. The right-side hood mirror and convex glass exist mainly to shrink that zone, and a Cascadia with either one misaimed is effectively driving with a wider blind spot than it was built to have.

The same principle works in reverse for everyone else on the road. The FMCSA's guidance for passenger vehicle drivers tells motorists that if they cannot see a truck driver's face in the truck's mirror, the driver cannot see them either — a rule that only holds when the mirrors are clean and correctly aimed.

Detroit Assurance Side Monitoring on the Cascadia

Detroit Assurance side monitoring adds radar to the passenger-side blind zone on equipped Cascadias. According to Detroit, Side Guard Assist launched in 2020 as a warning-only system that detects moving objects along the passenger side of the tractor and trailer. Active Side Guard Assist followed in 2022, adding automatic braking when a pedestrian or cyclist is detected during a right turn at speeds below 12 mph.

As of September 2026, Freightliner states that Detroit Assurance with Active Brake Assist 6 is standard on the Fifth Generation Cascadia, and that Active Side Guard Assist 2 — which extends braking support to left turns — is available on Cascadias built beginning in 2027. None of these systems changes the mirror requirement; they add a second layer of warning on top of the mirrors, not a replacement for looking.

Camera Monitor Systems and the FMCSA Exemption

A camera monitor system (CMS) is a set of exterior cameras and cab-mounted displays that replaces the view conventional mirrors provide. Because 49 CFR 393.80 specifically requires mirrors, a CMS can only replace them on a Class 8 truck under an FMCSA exemption, and as of September 2026 the Stoneridge MirrorEye system holds one.

The FMCSA's MirrorEye exemption renewal notice runs from February 13, 2024, through February 12, 2029. It applies to that system only, not to other camera products, and it carries conditions: drivers must inspect the system before each trip, note any defects on the end-of-day inspection report, and the carrier must repair those defects before the truck operates again.

Inspecting and Troubleshooting Cascadia Mirrors

Cascadia mirrors should be checked on every pre-trip inspection, because federal rules treat them as required safety equipment the driver must be satisfied with before moving. A good mirror check takes under a minute per side and catches most problems before they become a roadside write-up.

On each side, confirm the flat and convex glass are intact, clean, and free of cracks or desilvering at the edges. Grab the mirror arm and housing and check for movement at the mounts, then do the same for each hood mirror. From the seat, run the power adjustment in all four directions and switch on the mirror heat. HDJ's DOT pre-trip inspection checklist shows where these checks fit in a full walk-around.

Common Cascadia Mirror Problems

Most Cascadia mirror problems fall into four groups: broken glass from road debris or yard contact, loose mounts that blur the image at highway speed, heater grids that stop clearing frost, and power motors that stop moving the glass. Each one has a different fix, so it pays to identify which one you have before ordering parts.

A mirror image that shakes at speed but looks steady at idle usually points to the mounting hardware, not the glass. Check the arm fasteners and the mount where the arm meets the door or cab, and tighten to Freightliner's service specification rather than by feel — an over-tightened plastic housing can crack, and an under-tightened arm will keep vibrating.

Free Instant PDF Download

Free Diesel Maintenance Checklist

Get HDJ's free, field-tested diesel maintenance checklist delivered instantly to your inbox — print it, laminate it, keep it in the shop.

Email

Email *

Submit

Instant PDF • 100% Free • No Spam

Diagnosing Heated and Power Mirror Faults

Heated and power mirror faults on a Cascadia are usually traced by asking one question first: is it one side or both? When both sides fail together, the likely suspects are shared components — the switch, fuse, relay, or common power feed. When only one side fails, the problem is more likely local to that side, such as a connector, the harness where it passes through the door, the heater grid itself, or that side's motor.

For power mirrors, listen as the switch is pressed. A motor that runs but does not move the glass suggests a worn or stripped drive, while a completely silent motor points back toward power, ground, or the switch. HDJ's heavy-duty electrical troubleshooting guide covers the voltage-drop and continuity testing that confirms which of those it is.

Whatever the fault, the paperwork matters as much as the repair. A mirror defect noted on a DVIR has to be repaired, or the carrier has to certify that repair is unnecessary, before the truck is dispatched again — so the repair order should record exactly what was replaced and that aim was re-checked afterward.

Replacing Freightliner Cascadia Mirrors: Fitment and Sourcing

Replacing Freightliner Cascadia mirrors starts with deciding between glass-only and a full assembly. Replacement glass makes sense when the housing, arm, heater connection, and motor are all sound and only the glass is cracked. A full assembly makes sense when the housing is broken, the arm is bent, the motor has failed, or the mount has been damaged in a strike.

Fitment is where most mirror orders go wrong. Before ordering, pin down the model year generation (2008–2017, 2018 and newer, or Fifth Generation), which side, whether the glass is heated, whether the assembly is power or manual, and the finish. Confirming the part number against the truck's VIN through a Freightliner dealer or parts catalog removes most of the guesswork.

Compliance belongs in the same decision. Whatever brand goes on the truck, the main door mirror glass must remain flat, unit-magnification glass that meets FMVSS No. 111 — a convex-only or undersized main glass creates exactly the violation the mirror was supposed to prevent. HDJ's OEM vs aftermarket parts guide covers how to weigh the two sources for components like these.

Sourcing for Mixed and Older Fleets

Many fleets and owner-operators run Cascadias alongside older conventionals, such as the Freightliner Classic, Century, or FLD, that are no longer current OEM models. Sourcing mirrors and brackets for both from one supplier cuts down on separate orders, and it helps to work with a vendor that carries both older-model and current-model components.

After the new mirror is installed, keep the repair record with the truck's maintenance file. Under 49 CFR 396.3, carriers must keep inspection, repair, and maintenance records for each vehicle they have controlled for 30 consecutive days or more, and a clear record of which mirror was replaced, with what part, and when makes the next order faster and supports compliance during an audit.

Frequently Asked Questions

Do 2008–2017 Freightliner Cascadia mirrors fit a 2018 or newer Cascadia?

Generally, no. The 2018 model-year redesign changed the hood mirrors and door mirror assemblies, so most parts are catalogued as 2008–2017 or 2018-and-newer fitments. Confirm the part against the truck's VIN before ordering, and match the side, heater, and power options too.

Is it legal to drive a semi truck with a cracked side mirror?

A driver must be satisfied that the mirrors are in good working order before driving, under 49 CFR 392.7. A crack that distorts or blocks the view should be written on the DVIR and repaired before dispatch, and a roadside inspector can cite a mirror that fails 49 CFR 393.80.

Can I replace my Cascadia's mirrors with cameras?

Only with a camera system covered by an FMCSA exemption. As of September 2026, the Stoneridge MirrorEye exemption runs through February 12, 2029, applies to that system only, and requires pre-trip checks, DVIR defect reporting, and repair before the truck runs again.

Why do cars look farther away in a truck's convex mirror?

Convex glass curves outward to show a wider area, which shrinks everything in the image, and drivers read smaller as farther away. Use the convex mirror to spot a vehicle, then check the flat glass to judge the actual gap before changing lanes.

How do I know if my Cascadia's heated mirrors are working?

Switch on the mirror heat and check each glass after a few minutes — it should feel warm and clear light frost or fog. If one side stays cold, suspect that side's connector or heater grid; if both do, check the switch, fuse, and power feed first.

The Bottom Line

Freightliner Cascadia mirrors deliver clear visibility only as a complete system: legal flat glass on both sides, convex and hood mirrors aimed to fill the gaps, heat and power that actually work, and a driver who re-checks aim whenever the seat or the driver changes. Radar and camera systems add useful coverage on newer trucks, but they sit on top of that foundation rather than replacing it.

For shops and fleets, the practical takeaways are straightforward. Order by generation and VIN, keep the main glass compliant, fix heated mirrors before the first frost, and treat every mirror defect on a DVIR as a repair to close out properly. Michael Nielsen and the heavydutyjournal.com editorial team will keep tracking how Cascadia visibility technology develops — including the camera exemption's path toward its 2029 end date.
