Diesel Injector Calibration: Complete Step-by-Step Guide

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: December 2025

📖 Estimated reading time: 18 minutes

Modern diesel injector calibration demands precision to deliver optimal engine performance. When your injection pump operates out of specification, you’ll experience reduced power output, increased emissions, and poor fuel efficiency. Proper calibration ensures each cylinder receives the exact amount of fuel at precisely the right moment, maximizing combustion efficiency and extending engine longevity.

The calibration process involves comparing actual performance measurements against manufacturer standards and adjusting components to eliminate inconsistencies. This critical diesel engine maintenance procedure synchronizes timing, fuel delivery volume, and spray patterns across all injectors. For fleet managers running Class 8 trucks and diesel technicians maintaining commercial vehicles, mastering these procedures means fewer breakdowns, lower fuel costs, and engines that consistently pass emissions inspections.

This comprehensive guide walks you through professional calibration procedures from initial diagnosis through final verification. Whether you’re troubleshooting performance issues or performing preventive maintenance, these step-by-step instructions provide the technical foundation for achieving precise injector calibration and maintaining peak engine efficiency.

Understanding Diesel Injector Calibration Fundamentals

The foundation of diesel engine maintenance rests on proper injector calibration, ensuring each component delivers fuel with microscopic precision. Without this critical alignment between hardware and software, even new injectors can cause performance issues that mimic serious mechanical failures. Modern diesel technology has transformed simple mechanical systems into sophisticated electronic networks that demand specialized knowledge for proper maintenance and repair.

Every diesel engine component must work in harmony to achieve optimal efficiency. The fuel delivery system depends on exact measurements and timing to convert diesel fuel into usable power. Understanding these fundamentals helps technicians diagnose problems quickly and implement effective solutions.

The Technical Definition of Injector Calibration

Injector calibration encompasses programming a diesel engine’s electronic control module to recognize individual fuel injectors’ distinct characteristics. Each injector has unique flow rates, opening pressures, and spray patterns that vary slightly from manufacturing specifications. These variations, though measured in microscopic tolerances, significantly impact engine performance when left unaddressed.

Injector coding involves recording specific data into the ECM that compensates for these manufacturing differences. The diesel injection pump works with calibrated injectors to deliver precise fuel quantities at exact moments during the combustion cycle. This synchronization ensures uniform performance across all cylinders regardless of minor component variations.

The calibration process compares actual injector performance against manufacturer standards. Technicians measure key parameters including fuel delivery capacity, response time, and atomization quality. These measurements become the reference points that allow the ECM to adjust pulse width and timing for each individual injector.

Modern Common Rail Injector Operation

Common rail injectors represent the current standard in diesel fuel delivery technology. These systems maintain fuel under extreme pressure in a common supply rail, typically between 20,000 and 30,000 PSI. Modern third-generation systems can reach pressures up to 36,000 PSI (2,500 bar) using piezoelectric injectors for increased precision. Electronic solenoids or piezoelectric actuators control when each injector opens and closes with millisecond precision.

The fuel delivery system operates through multiple injection events per combustion cycle. A typical modern diesel engine executes pilot injection, main injection, and post-injection sequences for each power stroke. This multi-phase approach reduces noise, improves combustion efficiency, and minimizes emissions production. Some advanced systems perform as many as five injections per stroke.

Piezoelectric actuators respond faster than conventional solenoids, enabling more injection events per cycle. These crystals expand when voltage is applied, mechanically opening the injector valve. The ECU controls voltage duration and intensity to regulate fuel quantity with extreme accuracy. Fuel atomization quality depends on injector nozzle design and operating pressure, with common rail injectors using multiple orifices to create fine fuel mist that mixes thoroughly with compressed air.

Warning Signs Indicating Calibration Is Needed

Several distinct symptoms signal calibration problems before complete injector failure occurs. Recognizing these early warning signs prevents minor issues from escalating into expensive repairs. Regular monitoring helps maintain optimal engine performance between scheduled maintenance intervals.

Fuel efficiency degradation often appears as the first noticeable symptom. Drivers may observe decreased miles per gallon without obvious changes in driving conditions or patterns. This occurs when injectors deliver incorrect fuel quantities due to calibration drift or component wear. Power loss, reduced acceleration, and diminished pulling capacity indicate inconsistent fuel delivery across cylinders.

Excessive exhaust smoke provides visual confirmation of calibration problems. Black smoke suggests over-fueling, while white smoke indicates incomplete combustion from poor atomization. Extended cranking times during cold starts reveal timing or delivery problems. Rough idling with uneven engine operation at idle speed points to cylinder-to-cylinder fuel delivery variations. Knocking or ticking noises during operation suggest incorrect injection timing or pressure.

Dashboard warning lights provide electronic confirmation of injector malfunctions detected by the ECM. Modern diagnostic systems monitor injection timing, fuel pressure, and combustion quality continuously. These systems generate fault codes when measured values fall outside acceptable ranges, prompting investigation and calibration.

Why Proper Calibration Matters for Engine Performance

The precision of diesel injector calibration directly determines whether your engine operates at peak efficiency or struggles with costly performance issues. Improper injector coding creates a cascade of problems that impact every aspect of engine operation. Misfires, uneven power delivery, and excessive fuel consumption become daily realities when calibration falls outside optimal parameters.

Accurate calibration ensures that each injector delivers the exact fuel quantity at the precise moment required for complete combustion. This synchronization between fuel delivery and engine demand separates high-performing engines from those plagued by operational inefficiencies.

Impact on Fuel Efficiency and Power Output

Properly calibrated injectors transform fuel economy optimization from an abstract goal into measurable results. Each injector must atomize diesel fuel into microscopic droplets that burn completely within milliseconds. When calibration accuracy ensures optimal spray patterns, combustion efficiency reaches its maximum potential.

Power output suffers dramatically when injection timing deviates even by microseconds. Calibration establishes the exact moment fuel enters the combustion chamber relative to piston position. Early injection causes knocking and inefficient combustion, while late injection reduces power and increases exhaust temperatures.

The calibration process optimizes injection duration (controlling total fuel quantity delivered), injection pressure (determining fuel atomization quality and penetration depth), spray pattern geometry (ensuring even fuel distribution throughout the combustion chamber), and multi-injection timing (coordinating pilot, main, and post-injection events for complete combustion). Miscalibrated injectors waste fuel through incomplete combustion and excessive smoke production, translating directly into higher operating costs and reduced machine productivity.

Emissions Control and Environmental Compliance

Emissions reduction represents a critical regulatory concern for diesel engine operators across the United States. The Environmental Protection Agency enforces strict limits on particulate matter, nitrogen oxides (NOx), and hydrocarbon emissions. Starting with model year 2027, NOx limits for heavy-duty diesel engines will be 82.5% lower than current standards. Injector calibration directly controls whether engines meet these mandatory requirements.

Complete combustion produces minimal harmful emissions, while incomplete combustion generates excessive pollutants. Calibration ensures that fuel and air mix in optimal ratios throughout all engine operating conditions. Particulate matter increases when injection pressure falls below specifications, NOx emissions rise when injection timing advances or combustion temperatures exceed optimal ranges, and hydrocarbon emissions escalate when injectors deliver insufficient fuel atomization.

Failed emissions inspections trigger operational shutdowns and expensive remediation efforts. Proper calibration prevents these compliance violations before they occur. Regular calibration maintenance ensures continuous adherence to EPA standards and equivalent state-level regulations, including California’s more stringent Low NOx Omnibus requirements.

Engine Longevity and Component Protection

Engine wear prevention begins with accurate fuel delivery control. Calibrated injectors protect critical engine components from damage caused by combustion irregularities. The long-term reliability of diesel engines depends heavily on maintaining calibration specifications throughout the equipment lifecycle.

Excessive fuel delivery creates cylinder washing, where unburned diesel fuel dilutes lubricating oil on cylinder walls. This condition accelerates wear on piston rings, cylinder liners, and bearing surfaces. Proper calibration prevents over-fueling that leads to premature engine failure.

Carbon buildup represents another calibration-related threat to engine longevity. Incomplete combustion deposits carbon on pistons, valves, and combustion chamber surfaces. These deposits alter compression ratios, reduce heat transfer efficiency, and eventually cause mechanical failures. Calibrated injectors produce clean combustion that minimizes carbon accumulation.

Component protection extends beyond the combustion chamber to include injector tip coking, turbocharger damage from unburned fuel, exhaust system degradation from corrosive temperatures, and emission system clogging from particulate matter that blocks diesel particulate filters. A complete engine overhaul can exceed $25,000 for commercial diesel applications, while catastrophic turbocharger failure costs $3,000-$8,000 in parts and labor. Regular calibration maintenance represents a fraction of these emergency repair expenses.

Essential Tools and Equipment Required

Proper equipment selection forms the foundation of accurate diesel injector calibration procedures. Technicians must gather both electronic diagnostic tools and mechanical equipment before beginning any calibration work. This comprehensive toolkit ensures measurements meet manufacturer specifications while maintaining safety standards throughout the process.

Diagnostic Software and Interface Tools

Multi-brand diagnostic platforms like Jaltest provide comprehensive capabilities across numerous engine manufacturers including Cummins, Caterpillar, Volvo, and Detroit Diesel. These platforms offer OEM-level access for reading injector codes and programming ECUs with precision. For Cummins engines specifically, technicians can access calibration downloads through Cummins QuickServe Online with proper licensing.

Interface tools create the vital connection between diagnostic software and engine control systems. OBD-II connectors serve as the standard communication port for most modern diesel engines, though manufacturer-specific adapters may be required for certain vehicle models or industrial equipment applications. Wireless communication modules have revolutionized the calibration process by eliminating cable restrictions, enabling technicians to monitor real-time data while moving around the workspace.

Calibration Test Benches and Flow Meters

Calibration test bench equipment simulates actual engine operating conditions while measuring critical injector parameters. Organizations like Southwest Research Institute offer specialized test bench services for diesel fuel pumps and injectors, including detailed measurements, 3D scanning, and high-resolution imaging. These specialized machines accommodate various injector brands including Siemens, Delphi, Denso, and Bosch, measuring injection pressure up to 30,000 PSI or higher for common rail systems.

Injection duration measurement requires microsecond precision to ensure proper fuel delivery timing. Test benches evaluate fuel atomization quality and spray pattern geometry with sophisticated sensors, revealing how effectively each injector breaks down diesel fuel into fine droplets. A quality flow meter measures volumetric fuel delivery with exceptional accuracy, verifying that each injector delivers the correct fuel quantity across different operating conditions.

Hand Tools and Specialized Equipment

A comprehensive wrench set in both metric and standard sizes provides access to various engine components. Different injector designs require specific removal tools to prevent damage during extraction. An injector calibration tool kit typically includes specialized sockets and adapters for different manufacturers.

Torque wrenches with precise specifications ensure proper reinstallation. Over-tightening can damage injector bodies or mounting surfaces while under-tightening causes fuel leaks. Digital torque wrenches offer readability advantages in dimly lit engine compartments. Seal installation devices ensure new O-rings and copper washers seat properly without damage.

Safety Precautions Before Starting Calibration

Working with high-pressure fuel systems requires meticulous safety preparation before any calibration begins. Diesel injector calibration involves exposure to flammable fuels, pressurized components, and sensitive electrical systems. A systematic approach to safety protects technicians from injury while preventing costly equipment damage.

Workspace Preparation and Ventilation Requirements

Proper workshop ventilation stands as the first line of defense against diesel vapor hazards. Diesel fuel vapors accumulate quickly in enclosed spaces and pose significant fire risks. Your workspace must maintain a minimum air exchange rate of six complete air changes per hour. According to OSHA fuel handling and storage regulations, smoking and open flames shall be prohibited in areas used for fueling, fuel storage, or enclosed storage of equipment containing fuel.

Install mechanical ventilation systems that actively exhaust fumes rather than relying on natural airflow. Position exhaust fans near floor level where heavier-than-air diesel vapors tend to concentrate. Position Class B fire extinguishers within 10 feet of the work area and ensure all staff know their locations. Keep absorbent pads, drip trays, and approved disposal containers readily accessible for spill containment.

Electrical Safety Considerations

Modern diesel engines operate electrical systems at multiple voltage levels simultaneously. Following strict electrical safety procedures prevents both personal injury and damage to sensitive electronic control units. High-voltage circuits powering glow plugs can deliver dangerous shocks, while low-voltage signal circuits are vulnerable to static discharge.

Begin by disconnecting the negative battery terminal before removing any injector. This simple step eliminates the risk of short circuits when working near electrical connections. Wait at least five minutes after disconnection to allow capacitors in the ECU to fully discharge. Static electricity poses a serious threat to electronic components—wear anti-static wrist straps when handling injectors with integrated electronics.

Fuel System Pressure Release Procedures

Follow this systematic depressurization sequence before beginning injector removal: First, locate the fuel pressure relief valve on the common rail or high-pressure pump housing. Place an approved fuel collection container beneath the relief valve to capture released diesel. Slowly open the relief valve using the appropriate tool while monitoring for fuel discharge. Allow complete pressure release until fuel flow stops entirely, typically 30-60 seconds. Finally, verify zero pressure using a mechanical pressure gauge before proceeding with line disconnection.

Never attempt to disconnect fuel lines without first releasing system pressure. Even small amounts of pressurized fuel can penetrate skin and cause severe injection injuries requiring immediate emergency medical attention. When disconnecting fuel lines, wrap clean shop towels around connection points to contain residual fuel spray, and position your face and body away from the connection point during loosening.

Pre-Calibration Inspection and Diagnostics

The pre-calibration phase represents the most critical step in determining whether injectors require adjustment, replacement, or additional repairs. Comprehensive diagnostic testing establishes the baseline necessary for measuring calibration effectiveness and validating performance improvements. This systematic approach prevents wasted effort on injectors with mechanical damage that calibration cannot fix.

Conducting Visual Inspection of Injectors

Begin the injector inspection process by examining each injector body for physical damage. Look for cracks in the metal housing, corrosion around fuel inlet connections, and signs of external fuel leakage. Even minor cracks can compromise injector performance beyond what calibration can address. Check electrical connectors for damage, corrosion, or bent pins that affect signal transmission.

Critical visual indicators include carbon buildup around nozzle tips indicating incomplete combustion, fuel staining on injector bodies suggesting seal failure, heat discoloration indicating excessive operating temperatures, and damaged or missing identification labels needed for ECU programming.

Running Initial Diagnostic Tests

Connect your diagnostic scan tool to perform comprehensive baseline measurements of injector performance. Turn on the engine and let it reach ideal operating temperature with stable idle before beginning tests. Navigate to the injector test function which systematically disables each injector one by one. This cylinder contribution test monitors engine RPM and vibrations as each injector is deactivated.

A healthy injector will cause a noticeable RPM drop between 50-100 RPM when disabled. A malfunctioning injector shows minimal or no impact on RPM during testing. Record cylinders that demonstrated no RPM change or lower than normal drop to identify problem injectors. Analyze additional parameters including injector pulse width variations across cylinders, fuel trim data showing compensation patterns, and rail pressure fluctuations during injector actuation.

Recording Baseline Performance Data

Create detailed documentation of current engine performance before calibration begins. These baseline measurements serve as comparison points for verifying calibration success. Measure and document current fuel consumption rates under standardized conditions, power output measurements at specific RPM points, and emission levels when equipment is available.

Identifying Injector Code Information

Locate injector identification codes stamped on each injector body. These codes contain critical manufacturing specifications and calibration values specific to each injector. The codes typically appear on the side of the injector housing as alphanumeric sequences. Bosch injectors typically use a 16-digit alphanumeric code, while Delphi systems may feature a 20-character sequence.

Check ECU memory for stored injector codes using diagnostic software. Some systems store codes electronically even if physical labels are damaged or missing. Verify that physical codes match ECU stored values to ensure proper synchronization. Photograph or transcribe each injector code before removal, organizing this information by cylinder position to prevent mix-ups during reinstallation.

Removing and Preparing Injectors for Calibration

Before calibration can begin, technicians must safely extract injectors from the engine while maintaining component integrity. This critical phase demands careful execution to avoid damaging expensive parts or creating contamination issues. Taking time to properly remove and prepare injectors prevents costly mistakes during calibration.

Safe Extraction Methods for Diesel Injectors

The injector removal procedure begins with disconnecting the battery to prevent electrical shorts or unintended engine starts. Always wait at least 10 minutes after shutdown to allow residual fuel system pressure to dissipate. Start by carefully disconnecting electrical connectors from each injector—some connectors feature locking tabs that require specific release tools rather than simple pulling.

Next, disconnect fuel lines following the proper sequence to minimize spillage. High-pressure fuel lines typically use banjo bolts or specialized quick-disconnect fittings. Place absorbent materials beneath work areas to catch diesel fuel. Remove injector hold-down bolts or clamps using calibrated torque wrenches to note original specifications. For stubborn units, use dedicated injector puller tools that apply even, controlled force preventing injector body damage.

Thorough Cleaning and Component Assessment

Injector cleaning methods vary based on carbon deposit severity and injector type. Begin with external cleaning using dedicated injector cleaning solvent and soft brushes. Avoid wire brushes or abrasive materials that scratch precision surfaces. Soak heavily carbonized injectors in approved cleaning solutions for 30-60 minutes—these solutions dissolve carbon without damaging O-rings or internal seals. Never use gasoline, carburetor cleaner, or generic solvents that deteriorate rubber components.

After cleaning, conduct detailed visual inspections under adequate lighting. Examine nozzle tips for erosion patterns indicating excessive wear or poor fuel quality. Inspect all O-rings and sealing surfaces carefully. Hardened, cracked, or compressed O-rings must be replaced before reinstallation. Reusing damaged seals leads to fuel leaks, combustion gas blowby, and rapid injector failure.

Systematic Organization and Identification Protocols

Component organization during injector removal prevents mix-ups that compromise calibration accuracy. Each cylinder’s injector exhibits unique wear patterns based on its specific operating conditions. Mixing injectors between cylinders after calibration creates performance inconsistencies and potential engine damage.

Use labeled containers or divided trays to maintain cylinder identification throughout the process. Mark each container clearly with cylinder numbers matching engine specifications. Place each injector in its designated container along with corresponding hold-down hardware, washers, and heat shields. These codes become critical during ECU programming after calibration completion.

Diesel Injector Calibration Step-by-Step Process

Once preparation work is complete, the actual calibration procedure unfolds through a series of carefully controlled measurement cycles. This systematic approach transforms raw injector performance data into precise adjustments that restore optimal fuel delivery. Each step builds upon the previous one, creating a comprehensive evaluation of injector function.

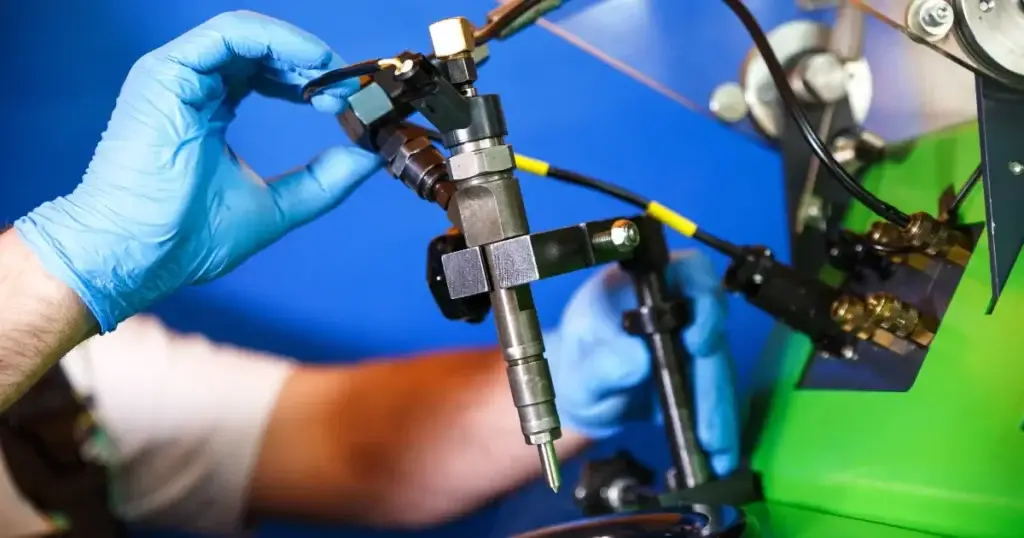

Mounting Injectors on the Test Bench

Proper test bench setup begins with secure positioning of the injector in the calibration fixture. The injector must be aligned perfectly vertical to ensure accurate spray pattern evaluation and prevent measurement errors. Most test benches feature adjustable clamps that hold the injector body firmly without damaging sensitive components.

The mounting process requires connecting high-pressure fuel supply lines to the injector inlet. These connections must be tightened to precise specifications to prevent fuel leakage during testing cycles. Any air in the fuel supply system will compromise calibration accuracy, so technicians carefully purge air from all lines before beginning measurements.

Setting Baseline Parameters and Running Calibration Cycles

Manufacturer specifications provide target values for every measurable aspect of injector performance. These parameters include flow rates typically measured in cubic millimeters per stroke, injection pressure ranges, opening and closing response times measured in milliseconds, and spray cone angles. The test bench software stores these geometric specifications and compares them against actual spray patterns captured during testing.

Automated test sequences cycle the injector through multiple injection events at varying pressures and durations. The test bench might run 50 to 100 individual injection cycles during a complete calibration sequence. Each cycle generates data points that reveal performance consistency and identify deviations from specifications. High variation in successive injection events signals internal wear or contamination issues that may prevent successful calibration.

Adjusting Flow Rates and Spray Patterns

Flow rate adjustment begins with analyzing test data to identify specific performance deficiencies. If measured flow rates fall below specifications, technicians may install precision shims that modify nozzle spring tension. These thin metal spacers alter the pressure required to open the injector valve, increasing or decreasing fuel delivery as needed.

Spray pattern optimization requires addressing nozzle-related issues that distort fuel atomization. Distorted or uneven spray patterns typically indicate carbon buildup, erosion, or damage to the nozzle tip. When cleaning cannot restore proper spray geometry, complete nozzle replacement becomes necessary. Electronic calibration adjusts timing parameters through software modifications to the injector’s control characteristics.

Programming Injector Codes into the ECU

Once injectors have been calibrated mechanically, ECU programming ensures the engine management system recognizes each injector’s unique specifications. This electronic calibration phase connects the physical adjustments made on the test bench with the digital parameters stored in the engine control unit. Without proper code registration, even perfectly calibrated injectors will underperform because the ECU cannot apply the correct fuel delivery adjustments.

Decoding Manufacturer-Specific Identification Systems

Every diesel injector carries unique identification codes that contain essential manufacturing specifications. These codes appear as QR codes or alphanumeric sequences stamped directly on the injector body. The engine control unit uses this information to apply micro-adjustments to injection timing, duration, and pressure for each cylinder.

Different manufacturers employ distinct coding systems with varying formats. Bosch injectors typically use a 16-digit alphanumeric code, while Delphi systems may feature a 20-character sequence. Denso and Siemens each maintain their proprietary coding structures as well. An injector designed for a Bosch system cannot function properly with Delphi coding protocols—always verify that replacement injectors match the original equipment manufacturer specifications.

Step-by-Step Software Operation for Code Entry

Professional diagnostic platforms provide user-friendly interfaces for injector code input. The general procedure involves connecting the injector coding tool to the ECM through the vehicle’s diagnostic port, inputting the vehicle identification number and engine configuration details, navigating to the injector coding function within the software menu structure, selecting each cylinder position and entering the corresponding injector calibration code, and confirming data entry accuracy before finalizing the programming sequence.

Accurate cylinder position matching is critical during code entry. Recording which injector came from which cylinder during removal prevents mismatched installations. The ECU applies calibration adjustments based on cylinder position, so incorrect positioning causes performance imbalances.

Confirming Successful Data Registration

After completing the injector code input process, verification procedures confirm that the ECU has properly stored all calibration information. Most diagnostic tools offer a read-back function that displays stored injector codes. Compare these values against the physical codes on each injector and your installation records. All codes should match exactly with no discrepancies.

Perform a final system scan to ensure no diagnostic trouble codes remain active. The ECU should show all injector positions programmed and ready for operation. Clear any residual fault codes from previous diagnostic sessions to establish a clean baseline for post-installation testing.

Reinstallation and Post-Calibration Testing

The reinstallation phase represents the critical bridge between bench calibration and real-world engine performance. Even perfectly calibrated injectors will fail to deliver expected results if installation procedures compromise sealing, torque, or fuel delivery. Successful injector installation transforms calibration data into measurable improvements in fuel efficiency, power output, and emissions control.

Proper Injector Reinstallation Procedures

Injector installation begins with thorough preparation of the cylinder head injector bores. These cavities accumulate carbon deposits, old sealant residue, and combustion byproducts that prevent proper seating. Use a bore cleaning brush designed for your specific engine model to remove all contamination.

The sealing components represent a critical non-reusable element. Replace all copper washers, heat shields, and O-rings with new components that meet OEM specifications. Used seals have undergone thermal cycling and compression that permanently deforms their sealing surfaces. Apply a thin film of clean engine oil to O-rings to facilitate installation and prevent tearing.

Torque Specifications and Installation Sequences

Torque specifications vary significantly across manufacturers and engine models, typically ranging from 15 to 45 ft-lbs for hold-down bolts. Consult your engine’s service manual for exact values, as incorrect torque creates multiple performance problems. Under-torquing allows injector movement and compression leaks that reduce engine power. Over-torquing damages threads, cracks injector bodies, or deforms sealing surfaces.

Follow the prescribed multi-stage torque process: initial stage at 30-40% of final specification, intermediate stage at 60-70%, and final stage to full specification. Complete at least two full sequence cycles, then recheck all fasteners after initial engine start and warm-up cycle.

Fuel System Priming and Post-Installation Diagnostics

Fuel system priming removes air trapped during injector removal and installation. Air in fuel lines prevents proper injection timing and creates rough running conditions. Manual priming systems use a hand-operated pump, typically located on the fuel filter housing. Electronic fuel systems often feature automatic priming sequences requiring three to five cycles of 30 seconds each.

Monitor the initial start procedure carefully. The engine should start within normal cranking time for your specific model. Observe idle quality immediately after starting—a properly calibrated and installed fuel system produces smooth, consistent idle with minimal variation in engine speed. Run the cylinder contribution test to verify balanced performance, with properly calibrated injectors producing consistent speed drops within 50 RPM of each other.

Maintaining Calibration Accuracy Over Time

Diesel injection systems face constant challenges that gradually erode calibration precision over time. The moving components inside your injectors experience friction causing microscopic damage. Abrasion from lower-quality fuel accelerates wear throughout the system. Corrosion from water, oxygen, acids, and salts weakens pump components through chemical reactions that compromise structural integrity.

These natural degradation processes make calibration maintenance an ongoing responsibility rather than a one-time fix. Understanding how to protect your investment ensures optimal engine performance for years to come.

Establishing Appropriate Service Schedules

Your calibration schedule should reflect the actual demands placed on your engine. Highway trucks operating under normal conditions typically require recalibration every 150,000 to 200,000 miles. Severe-duty applications including construction equipment, marine engines, and off-road machinery should undergo calibration checks every 50,000 operating hours or annually, whichever comes first.

Several warning signs indicate you should shorten service intervals regardless of mileage: declining fuel economy of 10% or more from baseline, hard starting or rough idling, and black smoke during acceleration. Proactive recalibration prevents the cascade of problems that develop when injectors operate outside specifications.

Protecting Calibration Through Fuel System Care

The relationship between fuel quality and calibration longevity cannot be overstated. Contaminants in diesel fuel accelerate injector wear exponentially compared to clean fuel. Primary fuel filters require replacement every 10,000 to 15,000 miles under normal operating conditions; secondary filters should be changed every 20,000 to 30,000 miles.

Your fuel must meet ASTM D975 diesel fuel specifications to ensure adequate lubricity and cleanliness. This standard covers seven grades of diesel fuel oils and specifies requirements for cetane number, sulfur content, flash point, and cold flow properties. Water separators need servicing whenever accumulated water reaches the sensor level or at every oil change interval. Fuel additives enhance lubricity in modern ultra-low sulfur diesel, which naturally has reduced lubricating properties.

Implementing Systematic Performance Tracking

Performance monitoring creates an early warning system that detects calibration drift before it causes operational problems. Regular fuel economy tracking establishes baseline consumption rates that reveal degradation trends. Periodic diagnostic scans should check fuel trim values and injector balance rates every 25,000 miles or quarterly for commercial operations.

Emissions testing provides objective evidence of combustion quality. Rising nitrogen oxide levels suggest advanced injection timing caused by calibration drift, while increased particulate matter indicates incomplete combustion from improper spray patterns. The combination of appropriate service intervals, rigorous fuel system maintenance, and consistent performance monitoring transforms calibration from a reactive repair into a planned maintenance event.

Frequently Asked Questions

How often should diesel injectors be recalibrated?

Highway trucks operating under normal conditions typically require recalibration every 150,000 to 200,000 miles. Severe-duty applications including construction equipment, off-road machinery, and marine engines need calibration checks every 50,000 operating hours or annually, whichever comes first. However, if you notice declining fuel economy exceeding 10%, hard starting, rough idling, or black smoke during acceleration, have your injectors tested regardless of mileage. These symptoms indicate calibration drift that should be addressed before more serious damage occurs.

Can I drive my truck if the injector calibration codes are incorrect in the ECU?

While the engine may run with incorrect or missing calibration codes, doing so risks poor fuel economy, rough operation, and potential long-term damage. The ECU uses these codes to compensate for manufacturing tolerances between individual injectors—typically variations of 2-10% in flow rates. Without proper coding, the ECU cannot optimize fuel delivery for each cylinder, leading to uneven combustion, increased emissions, and accelerated wear. The truck may also fail emissions inspections. Have the codes verified and corrected as soon as possible after injector service.

What causes injector calibration to drift over time?

Several factors contribute to calibration drift. Carbon deposits accumulate on nozzle tips and alter spray patterns. Internal components experience friction-related wear that changes flow characteristics. Fuel contaminants including water, dirt, and microbial growth cause abrasion and corrosion. Temperature cycling and pressure extremes gradually affect material dimensions. Poor fuel quality accelerates all these degradation mechanisms. Regular maintenance including filter replacements, fuel treatment, and using ASTM D975-compliant diesel helps extend the interval between recalibrations.

How much does professional injector calibration cost?

Professional calibration typically costs $50-$150 per injector for the test bench work, plus labor for removal and reinstallation (typically 1-2 hours per injector depending on engine accessibility). A complete set of six injectors might run $500-$1,200 total including diagnostics, calibration, new seals, and ECU programming. This cost should be weighed against fuel savings of 5-12% and prevention of major repairs—a turbocharger failure from improper combustion can cost $3,000-$8,000, while complete engine overhauls exceed $25,000 for commercial diesel applications.

What’s the difference between injector calibration and injector cleaning?

Cleaning removes carbon deposits and contamination from injector nozzles and internal passages, restoring fuel flow. Calibration goes further by measuring actual performance against manufacturer specifications and making precise adjustments to flow rates, spray patterns, and timing. Cleaning may help a moderately dirty injector, but it cannot correct worn internal components, eroded nozzle tips, or damaged seals. Professional calibration includes cleaning as part of the process, along with testing that determines whether an injector can be restored or requires replacement.

Maximizing Return on Your Calibration Investment

Diesel injector calibration stands as a critical component of modern engine management that directly determines fuel efficiency, power delivery, and emissions compliance. The procedures outlined in this guide demonstrate that successful calibration requires precision equipment, systematic methodology, and careful attention to both mechanical and electronic aspects of the fuel delivery system.

For fleet managers running Class 8 trucks, the investment in proper calibration training and equipment delivers measurable returns through reduced fuel consumption, extended engine life, and fewer roadside breakdowns. Shops that master these techniques gain competitive advantages in an increasingly technical marketplace. As common rail pressures continue climbing toward 40,000 PSI in next-generation systems and EPA emissions requirements tighten further with the 2027 standards, calibration expertise becomes not just valuable but essential.

The fundamentals covered in this guide provide the foundation for maintaining peak engine performance across all diesel platforms. Whether you’re troubleshooting a single problematic injector or implementing a fleet-wide preventive maintenance program, proper calibration procedures protect your operational investment while maximizing equipment uptime.
