Low Pressure Fuel System Diagnosis: Complete Guide [2025]

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: December 2025

📖 Estimated reading time: 22 minutes

Replacing a fuel pump can become an expensive mistake when it’s not the actual cause of delivery problems. Effective low pressure fuel system diagnosis requires a methodical approach that tests three critical parameters—delivery volume, electrical integrity, and operating specifications—before condemning any component. Many technicians jump to conclusions without proper fuel system troubleshooting, leading to unnecessary parts replacement and frustrated customers.

Safety remains paramount during all testing procedures, as releasing combustible liquids under operating conditions creates fire and injury risks. Modern commercial vehicles operate with integrated fuel delivery networks where multiple components work together. Whether you’re working with returnless or return-style designs on Class 6-8 trucks, understanding how each element functions within the complete assembly is essential for accurate diagnosis.

This guide covers comprehensive testing methods including volume analysis, electrical checks, and component inspection techniques that prevent misdiagnosis on diesel and gasoline powered commercial vehicles.

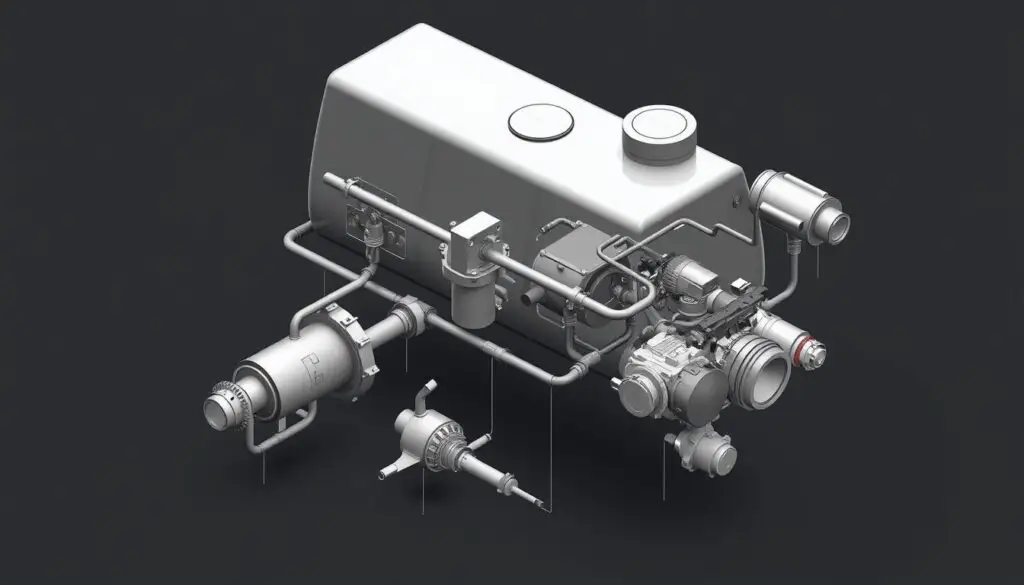

Understanding Low Pressure Fuel System Components

Every commercial vehicle’s fuel system contains several critical components, each serving a specific function in the fuel delivery pathway from tank to engine. Recognizing how these fuel system components interact provides the diagnostic foundation needed to identify failures quickly and accurately. The low pressure system operates at relatively modest pressures compared to high-pressure injection systems, typically ranging from 10 to 60 PSI depending on vehicle specifications.

A thorough understanding of component construction and function allows technicians to develop systematic testing approaches. Each part within the fuel delivery network represents a potential failure point that can cause performance issues or complete engine shutdown.

Storage Reservoir and Level Sensing

The fuel tank serves as the primary storage reservoir, with design varying significantly based on vehicle type and packaging constraints. Modern tanks utilize either stamped steel construction or high-density polyethylene polymer materials, each offering distinct advantages in terms of corrosion resistance and manufacturing flexibility. Internal baffling systems prevent fuel surge during acceleration, braking, and cornering that could otherwise starve the fuel pump of adequate supply.

The fuel sender unit mounts inside the tank and provides real-time fuel level information to the instrument cluster. This component operates through a variable resistor mechanism connected to a float arm that rises and falls with fuel level changes. Common sender failures include worn resistor tracks, corroded electrical connections, and damaged float mechanisms that provide inaccurate readings.

Advanced fuel tank designs incorporate multiple features to control evaporative emissions and maintain proper tank pressurization. Tank contamination issues develop when water, dirt, or microbial growth accumulates at the lowest point, potentially restricting fuel flow or damaging downstream components.

Supply and Return Pathways

Fuel lines route fuel from the storage tank forward to the engine compartment, with fuel line connections representing critical junction points throughout the system. Return-style fuel systems utilize separate supply and return lines, allowing excess fuel to flow back to the tank for cooling and pressure regulation. Returnless designs simplify routing by using a single supply line with pressure regulation occurring at the tank or pump module.

Connection types vary by manufacturer and application, with each design presenting unique service considerations. Quick-disconnect fittings provide tool-free removal using spring-loaded release mechanisms, commonly found on domestic vehicles and requiring careful inspection of internal O-ring seals. Threaded connections offer robust sealing through metal-to-metal contact or fiber washers, typically used at fuel filter housings. Dry-break connectors prevent fuel spillage during disconnection by automatically sealing both sides—commonly used in diesel applications but potentially dead-heading the fuel pump when improperly disconnected.

Line routing considerations include protection from heat sources, prevention of chafing against chassis components, and proper support to prevent vibration-induced failures. Fuel lines must maintain their integrity across temperature extremes ranging from sub-zero winter conditions to underhood heat approaching 200°F.

Filtration Components and Ratings

The fuel filtration system employs a two-stage approach to remove contaminants before they reach sensitive engine components. Fuel filter location varies by vehicle design, with some manufacturers positioning filters inside the tank while others mount them along the chassis or in the engine compartment. Understanding filtration hierarchy helps technicians diagnose restriction-related performance problems systematically.

The initial filtration stage uses an in-tank strainer, often called a sock filter, which attaches directly to the fuel pump inlet. This coarse filter typically provides 100-150 micron filtration to capture larger particles and debris. Primary fuel filters provide the secondary filtration stage, removing particles down to 10-30 microns depending on application requirements.

Diesel engines require more stringent filtration due to tighter injection system tolerances, often incorporating water separators within the filter housing. The Technology & Maintenance Council (TMC) Recommended Practice RP 339B provides detailed guidelines for maintaining fuel/water separators in commercial vehicle applications. Filter restriction develops gradually as contaminants accumulate, reducing flow capacity and starving the engine of adequate fuel supply under high-demand conditions.

Electric Pump Construction and Operation

The fuel pump assembly represents the heart of the low pressure delivery system, utilizing an electric motor to generate the flow and pressure needed for proper engine operation. Modern in-tank pump designs submerge the entire assembly in fuel, which provides continuous cooling for the motor and lubrication for the impeller bearings. This submersion requirement makes low fuel levels particularly problematic, as inadequate coverage causes pump overheating and premature failure.

Pump construction incorporates several integrated components within a single replaceable module. Turbine pumps create pressure through centrifugal force as fuel passes through multiple blade stages, while gerotor pumps use positive displacement through meshing rotor elements. Many fuel pump assemblies include an integrated pressure regulator that maintains system pressure within specification by returning excess fuel to the tank.

Fuel pump longevity depends heavily on proper cooling and contamination control. Running the tank consistently low on fuel, contaminated fuel supplies, or restricted filters all contribute to shortened pump service life through overheating and excessive mechanical wear.

Common Fuel System Problem Symptoms

Recognizing the warning signs of fuel delivery problems enables faster diagnosis and prevents extensive engine damage from prolonged fuel starvation. When the low pressure fuel system fails to deliver adequate fuel volume or pressure, vehicles exhibit specific performance issues that provide valuable diagnostic clues. These fuel system symptoms often appear gradually as components deteriorate, though sudden failures can occur without warning.

Technicians must understand how each symptom relates to specific system failures. Some issues point directly to fuel pump degradation, while others indicate restrictions in filters or lines. Electrical problems within the pump circuit create intermittent symptoms that differ from mechanical component failures.

Engine Starting Difficulties

Hard starting problems represent one of the most common indicators of low fuel pressure. The engine requires specific fuel pressure during cranking to atomize fuel properly and achieve ignition. When pressure falls below specifications, extended cranking becomes necessary before the engine fires.

A failed check valve within the fuel pump assembly causes particularly frustrating hard starting issues. This valve maintains residual pressure in the fuel lines after engine shutdown. When it fails, fuel drains back to the tank, requiring extended cranking to rebuild system pressure before starting occurs.

Cold weather amplifies starting difficulties related to fuel pressure. Lower temperatures increase fuel viscosity and reduce pump efficiency. Hot restart problems indicate different issues—heat soak conditions can cause vapor lock in fuel lines or reduce pump motor performance.

Hesitation and Stumbling During Acceleration

Engine hesitation during acceleration reveals the fuel system’s inability to meet dynamic flow demands. Static fuel pressure may appear adequate at idle, but the pump cannot deliver sufficient volume when the engine requires increased fuel flow. This creates momentary fuel starvation that drivers experience as stumbling or flat spots.

Fuel-related hesitation differs from ignition-related issues by its specific characteristics. Fuel-related engine hesitation occurs under load and improves at steady throttle, while ignition problems typically cause missing regardless of load conditions. Restricted fuel filters commonly produce acceleration hesitation—the filter provides adequate flow at idle and cruise but cannot pass sufficient volume during high-demand situations.

Engine Stalling at Idle or Under Load

Engine stalling issues reveal marginal fuel delivery that barely meets minimum requirements. The fuel system provides just enough pressure and volume to maintain idle operation. Any additional demand causes pressure to drop below the threshold needed for stable combustion.

Load-related stalling occurs when accessories engage or during uphill driving. Intermittent stalling patterns often indicate electrical problems rather than mechanical pump failure—a failing fuel pump relay creates unpredictable power interruptions to the pump motor.

Modern vehicles with onboard diagnostics provide additional symptom identification through trouble codes. Code P0087 indicates fuel rail pressure too low, directly confirming inadequate fuel delivery. Heavy-duty diesel applications use different code structures—SPN 94 FMI 1 reports fuel delivery pressure below minimum specifications, while SPN 3471 FMI 1 indicates low system pressure affecting fuel pressure control.

Essential Diagnostic Tools and Equipment

Proper diagnostic equipment transforms guesswork into precise, data-driven fuel system troubleshooting. Accurate testing requires specialized tools designed specifically for measuring fuel pressure, analyzing electrical circuits, and ensuring technician safety. Without the right diagnostic tools and safety equipment, even experienced mechanics struggle to pinpoint problems effectively.

Professional-grade equipment delivers consistent, reliable results that electronic estimates cannot match. The investment in quality tools pays dividends through faster diagnosis times and reduced comebacks.

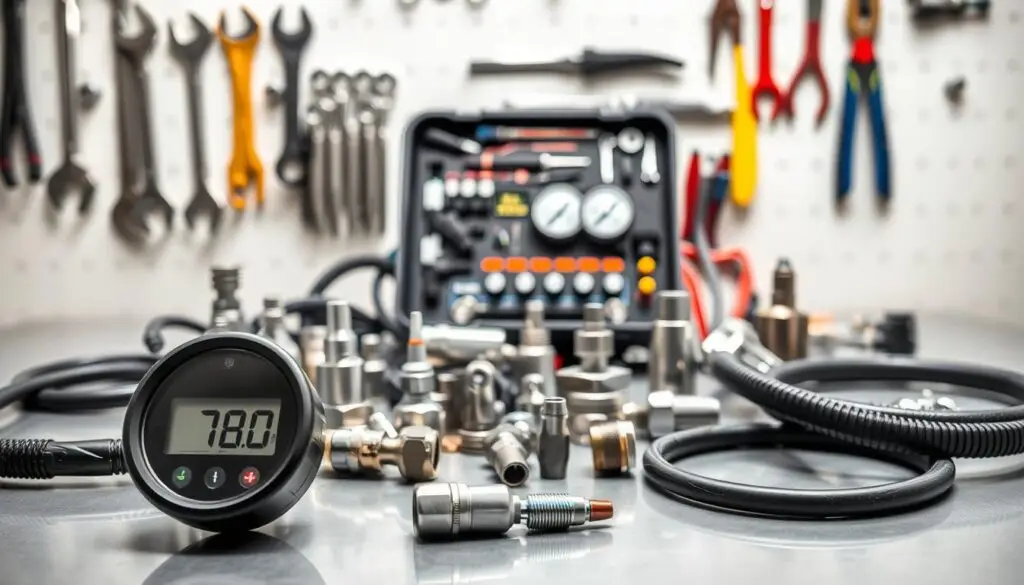

Fuel Pressure Gauge and Test Kit

A mechanical fuel pressure gauge remains the gold standard for accurate measurement in low pressure fuel systems. Electronic scan tool readings often lack the precision needed for definitive diagnosis, particularly when pressure values fall within borderline specifications. The pressure range of your gauge must match your testing application—gasoline systems typically require gauges rated from 0 to 100 PSI, while diesel low-pressure systems need 0 to 150 PSI capacity.

A complete fuel testing kit includes test couplers and adapters for various fuel line connections, shutoff valves to control fuel flow during testing procedures, clear vinyl or rubber tubing for routing fuel safely during volume tests, and graduated containers for measuring fuel flow rates accurately. Glass containers outperform plastic alternatives when collecting fuel samples—fuel naturally corrodes plastic over time and can cause fogging that makes measurement markings difficult to read.

Multimeter and Electrical Testing Tools

Digital multimeters form the backbone of electrical system diagnosis for fuel pumps and sensors. Your multimeter must measure DC voltage with at least a 0 to 20-volt range to test battery voltage, relay outputs, and sensor signals. Resistance and continuity testing functions identify broken wires, corroded connections, and failed sensors.

Amperage measurement capability (minimum 0 to 20 amps) enables fuel pump current draw analysis, which detects mechanical binding or excessive wear. Specialized breakout harnesses allow non-invasive testing of electrical circuits, providing test points that eliminate the need for piercing wires—wire damage from improper testing creates future reliability problems.

Scan Tools and Diagnostic Software

OBD-II scan tools provide access to the vehicle’s onboard diagnostic system and stored trouble codes. Live data streaming shows real-time sensor readings including fuel pressure sensor values, fuel trim percentages, and pump activation status. Monitoring these parameters during test drives reveals intermittent problems that static testing misses.

Despite their sophistication, scan tools have significant limitations for fuel system diagnosis. Electronic pressure readings displayed on scanners may not provide sufficient accuracy for definitive diagnosis. Mechanical fuel pressure gauges deliver more reliable measurements when absolute precision matters most.

Fuel Pressure Testing Procedures

Testing fuel pressure establishes the foundation for identifying fuel system failures and ensuring optimal engine performance. These diagnostic procedures measure the delivery capabilities of your fuel system under various operating conditions. Each test reveals specific information about pump function, regulator operation, and system integrity.

Successful diagnosis requires following systematic testing protocols in the correct sequence. Start with basic static testing before progressing to dynamic evaluations. This methodical approach isolates individual component failures and prevents misdiagnosis.

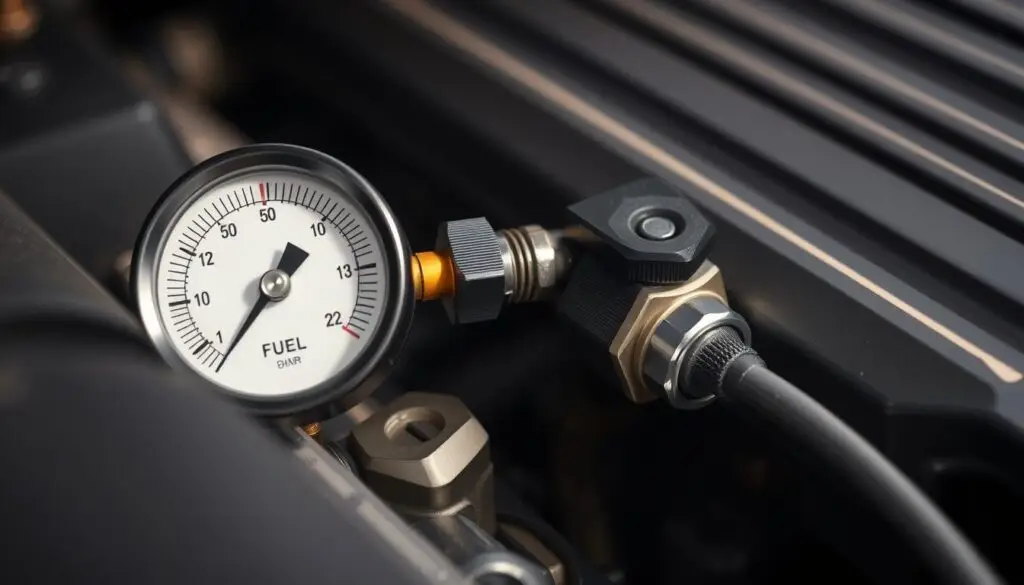

Static Fuel Pressure Test

The static pressure test measures fuel system pressure with the key on and engine off. This baseline measurement reveals fuel pump capability before engine demands affect the system. Begin by relieving existing fuel system pressure to prevent fuel spray during gauge installation. Locate the test port on your vehicle—typically a Schrader valve on the fuel rail or a dedicated test port on the fuel filter housing.

Turn the ignition key to the “on” position without starting the engine. The electric fuel pump will activate for approximately 10 to 20 seconds before the engine control module shuts it off. Most fuel systems should reach specification within three to five seconds.

Compare readings to manufacturer fuel pressure specifications for accurate diagnosis. Gasoline return-style systems typically operate at 30-60 PSI depending on application. Gasoline returnless systems usually run 40-70 PSI with tighter tolerances. Diesel low-pressure systems generally operate at 80-100 PSI for supply pump operation.

Running Pressure Test

The running fuel pressure test evaluates system performance under actual operating conditions. Start the engine and allow it to idle while monitoring the gauge. Pressure should remain stable and consistent at idle speed. Gradually increase engine RPM to 2,500-3,000 revolutions per minute.

Return-style systems may show a slight pressure increase of 5-10 PSI at higher RPM. Returnless systems typically maintain constant pressure regardless of engine speed. Watch for pressure fluctuations that indicate problems—erratic needle movement suggests a failing fuel pump with worn internal components.

Pressure Drop Test

The pressure drop test identifies leaks within the fuel system that waste pressure between starting cycles. Build static pressure using the key-on procedure, then turn the ignition off immediately and monitor how quickly pressure bleeds down from the fuel rail.

Most manufacturers specify that pressure should remain above half of the initial reading for at least five to ten minutes. Rapid pressure loss points to specific component failures—leaking fuel injectors allow pressurized fuel to drain into the intake manifold, while a failed fuel pump check valve permits fuel to flow backward into the tank.

Dead Head Pressure Test

The dead head pressure test measures maximum fuel pump output capability by eliminating pressure regulator influence. This procedure isolates pump performance from other system variables. Block the fuel return line by disconnecting the return fitting at the fuel filter or fuel rail—many systems use dry-break connectors that seal automatically when separated.

Build pressure using the key-on method while monitoring the gauge closely. Compare dead head pressure readings to specifications, which typically range 15-30 PSI higher than normal operating pressure. Low dead head pressure confirms inadequate pump output requiring replacement. Normal dead head pressure with low running pressure indicates regulator or return line problems rather than pump failure.

Fuel Flow and Volume Testing

While pressure testing confirms the fuel system can build adequate force, volume testing reveals whether sufficient fuel actually reaches the engine. A fuel pump may generate acceptable pressure readings yet fail to deliver the required fuel quantity. This situation occurs when restrictions limit flow without significantly reducing pressure.

The fuel volume test measures actual fuel delivery over a specific time period. This diagnostic procedure identifies problems that pressure testing alone cannot detect. Combining both methods provides complete insight into fuel system performance.

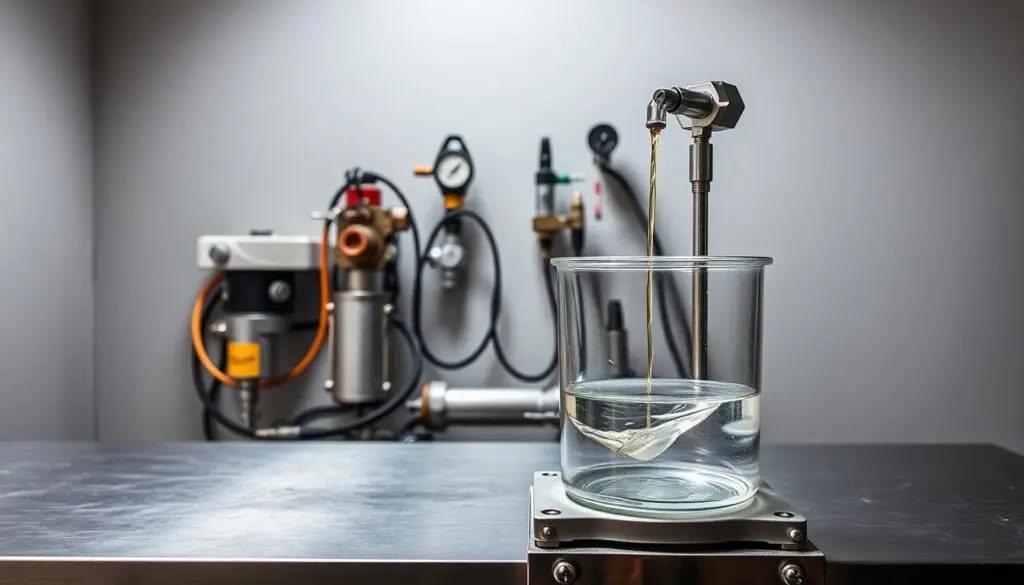

Setting Up the Flow Test

Begin by connecting a clear fuel-resistant hose from the fuel pressure gauge test port to your collection container. Position the container on a stable, level surface below the test connection point. Prepare your timing device before starting the fuel pump—a digital stopwatch provides the precision required for accurate fuel delivery rate calculations.

Ensure adequate ventilation in your work area before beginning flow testing procedures. Fuel vapors accumulate quickly during volume collection. Start the engine or activate the fuel pump using a scan tool to begin fuel delivery.

Calculating Flow Rate Results

Record the exact volume collected and the precise time duration of your test. Standard test periods range from 5 seconds to 30 seconds depending on system type. A typical calculation converts collected volume into flow rate per minute or per hour.

Gasoline engines typically require 0.5 to 1.0 liters delivered within 30 seconds for adequate performance, translating to 1 to 2 gallons per minute under normal operating conditions. High-performance applications demand greater fuel delivery rates—turbocharged or supercharged engines may require 1.5 to 2.5 liters per 30 seconds.

Identifying Restrictions and Blockages

Low volume output combined with normal pressure indicates a restriction somewhere in the fuel delivery path. The system builds adequate pressure but cannot move sufficient fuel quantity. A restricted fuel pickup strainer inside the tank commonly causes this symptom—the fine mesh becomes clogged with sediment and debris over time.

Plugged fuel filters produce identical symptoms during diagnostic testing. Kinked or collapsed fuel lines create flow restrictions without obvious external signs—rubber hoses deteriorate internally, with inner layers separating and blocking passages. When both pressure and volume test below specifications simultaneously, suspect fuel pump failure.

Electrical System Testing for Fuel Pumps

Electrical diagnostics separate true pump failures from power supply problems, saving time and preventing unnecessary component replacement. Most fuel delivery issues stem from electrical faults rather than mechanical pump wear. A systematic approach to fuel pump electrical testing identifies the root cause quickly and accurately.

The electrical circuit delivers power to the fuel pump through multiple components. Each connection point represents a potential failure location. Testing each element methodically ensures no fault goes undetected.

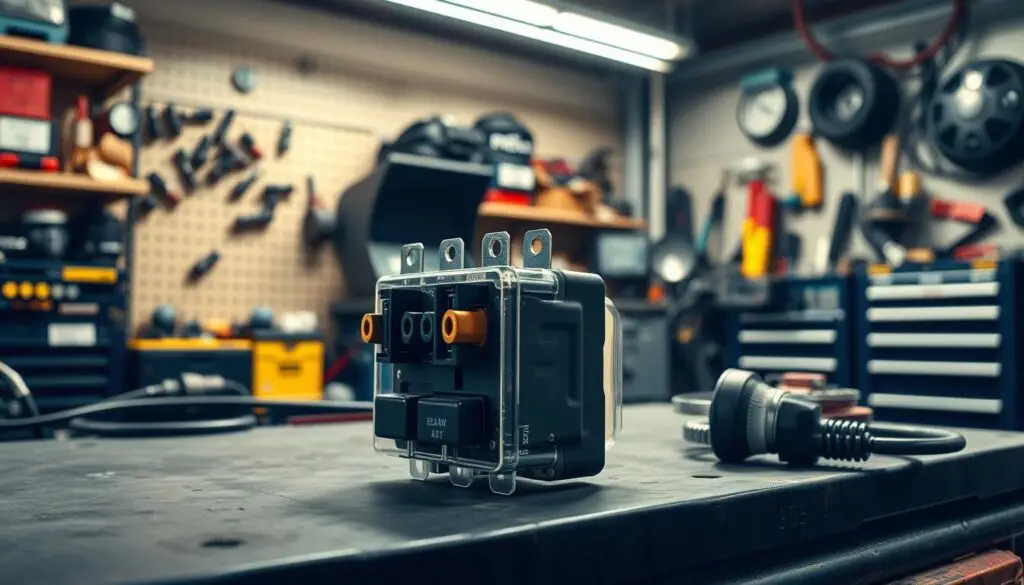

Testing Fuel Pump Relay and Fuses

The relay acts as an electrical switch that controls high-current flow to the fuel pump, protecting the ignition switch from excessive current loads. When the relay fails, the pump receives no power despite a functioning fuel pump circuit. A working relay produces an audible click when energized during key-on.

Remove the relay and identify the terminal configuration. Standard automotive relays use pins 85 and 86 for the coil circuit, with pins 87 and 30 handling the high-current contacts that power the pump. Test the relay coil resistance using a multimeter set to ohms—a functional relay shows 60 to 120 ohms of resistance. Infinite resistance means an open coil requiring relay replacement.

The fuel pump fuse protects the circuit from overcurrent damage. A blown fuse indicates a short circuit or excessive current draw. Use a test light or multimeter to verify power on both sides of the fuse—both sides should show battery voltage when the circuit energizes.

Voltage Drop Testing at the Pump

The voltage drop test measures power loss through wiring and connections under load. Excessive voltage drop reduces pump speed and fuel delivery capacity. This test identifies high-resistance connections that pressure testing cannot detect.

Connect a multimeter to the fuel pump connector with the pump energized. Measure voltage between the power terminal and ground. Gasoline systems require minimum 12 volts at the pump connector. Diesel systems like MaxxForce engines specify 9 volts minimum for proper operation.

Acceptable voltage drop specifications: power side circuit maximum 0.5 volts drop, ground side circuit maximum 0.2 volts drop, total system drop not more than 0.7 volts combined, connector voltage within 0.5V of battery voltage. Higher voltage drops indicate corroded connections, damaged wiring, or undersized conductors.

Fuel Pump Current Draw Analysis

The current draw test reveals the pump’s electrical consumption during operation. Normal current indicates healthy mechanical condition, while abnormal amperage points to specific failure modes. Connect an ammeter in series with the fuel pump power wire, or use an inductive amp clamp around the power conductor.

Typical gasoline fuel pumps draw 4 to 8 amps during normal operation. High current draw indicates mechanical problems inside the pump assembly—worn bearings create friction that increases electrical consumption. Low current draw suggests poor electrical connections reducing available voltage or a weak pump motor that has lost magnetic strength.

Wiring and Ground Circuit Verification

The fuel pump wiring harness carries high current through harsh environments. Heat, vibration, and chemical exposure degrade insulation over time. Inspect the entire wiring harness from the relay to the pump connector, looking for chafed insulation where wires contact metal edges and melted insulation near exhaust components.

The ground circuit requires special attention—high-resistance grounds reduce effective voltage at the pump. Measure resistance between the pump ground terminal and battery negative terminal. A proper ground connection shows less than 0.1 ohm resistance. Higher readings indicate corrosion at ground attachment points requiring cleaning and retesting.

Fuel Line and Filter Inspection Methods

Systematic inspection of fuel lines and filters reveals hidden problems that often masquerade as fuel pump failures, saving technicians time and customers money. These components endure constant exposure to fuel, pressure cycles, temperature extremes, and environmental contaminants throughout their service life. Proper fuel filter inspection and line assessment identifies restrictions and damage before they cause complete system failure.

Visual Inspection for Leaks and Damage

Begin the visual examination at the fuel tank area and work methodically toward the engine compartment. Look for fuel stains, wetness, or corrosion that indicates current or past fuel line leaks. Quick-disconnect fittings must seat properly with the locking mechanism fully engaged. Threaded connections should show no signs of seeping.

Examine rubber fuel lines for cracks, particularly where hoses bend or near clamp locations where stress concentrates. Steel fuel lines commonly show corrosion in northern climates where road salt accelerates deterioration. Document any fuel line damage from road debris or previous improper repairs.

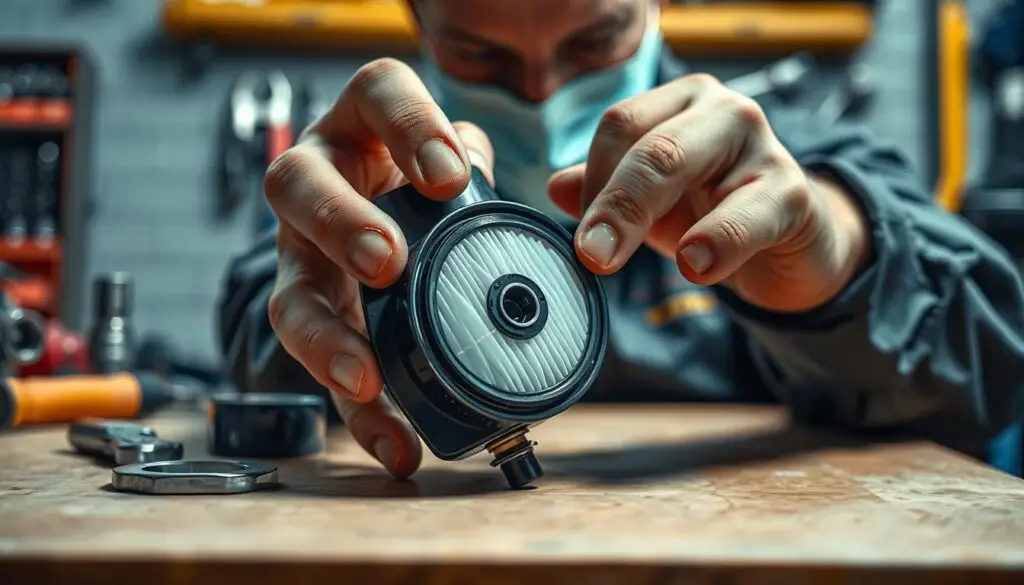

Testing for Restricted Fuel Filters

A restricted fuel filter prevents adequate fuel flow even when the pump operates correctly. The pressure differential test provides objective measurement of filter restriction—connect pressure gauges to test ports on both sides of the filter element during system operation. A pressure difference exceeding 5-10 PSI typically indicates significant filter restriction requiring replacement.

Manufacturers specify filter replacement schedules based on mileage and operating conditions. Typical replacement intervals vary from 30,000 miles for older vehicles to 50,000-80,000 miles for modern vehicles. Vehicles operating in dusty environments collect more particulate matter requiring more frequent fuel filter inspection and replacement.

Vapor Lock and Heat-Related Issues

Excessive heat in the fuel system causes fuel vaporization before reaching the engine, creating vapor bubbles that interrupt fuel flow and starve the engine. Hot restart problems indicate potential vapor lock conditions—the engine runs normally when cool but refuses to start after heat soak following highway driving.

Check for proper heat shielding between fuel lines and exhaust components. Missing or damaged shields expose fuel lines to radiant heat. Verify adequate distance between fuel lines and heat sources throughout the routing path. Return-style fuel systems provide some vapor lock resistance by continuously circulating cool fuel from the tank.

Fuel Tank and Sender Diagnosis

Beyond the fuel pump itself, the tank and sender assembly represent critical diagnostic checkpoints that demand systematic evaluation. Problems originating in the fuel tank can create symptoms that mirror pump failures or fuel delivery restrictions. A complete tank diagnosis includes contamination assessment, sender circuit testing, and venting system verification.

Inspecting the Fuel Tank for Contamination

Fuel contamination represents a common yet frequently overlooked cause of fuel system problems. Drawing a sample from the test port or directly from the tank provides the first step in contamination assessment. Use a clear glass container to collect at least four ounces of fuel for visual examination.

Water contamination appears as distinct droplets or a separate layer at the bottom of the sample container. Even small amounts of water can cause corrosion and promote microbial growth in diesel systems. Particulate matter indicates internal tank deterioration or external contamination—rust particles from corroded steel tanks appear as reddish-brown flakes, while black rubber fragments suggest deteriorating fuel hoses or pump components.

Clean fuel should appear clear to pale yellow in gasoline applications. Cloudy, darkened, or discolored fuel indicates degradation or contamination. A borescope inserted through the fuel pump or sender opening allows direct visual inspection of the tank interior, revealing rust accumulation, sediment layers, or physical damage.

Testing Fuel Level Sender Accuracy

The fuel level sender uses a float-actuated variable resistor that changes electrical resistance as fuel level changes. Access the sender connector by removing the fuel tank access panel or dropping the tank as necessary. Measure resistance between the signal terminal and ground while manually moving the float through its complete range.

Record readings at empty, quarter-full, half-full, three-quarters-full, and full positions. The resistance should change smoothly and progressively without sudden jumps or dead spots. Erratic readings, sudden resistance jumps, or values outside specifications indicate sender failure requiring replacement.

Identifying Tank Venting Issues

The fuel tank venting system prevents vacuum formation as fuel is consumed and accommodates thermal expansion. Restricted vents force the pump to work against increasing vacuum that reduces fuel delivery and may cause tank deformation. Test for venting problems by observing whether removing the fuel cap after experiencing fuel delivery issues immediately improves performance—a noticeable hissing sound when opening the cap indicates vacuum buildup.

Inspect vent lines running from the tank to the evaporative emission canister for kinking, crushing, or blockage. Verify proper evaporative emission system operation by checking the charcoal canister for saturation, purge valve function during engine operation, and vent line routing preventing liquid fuel from reaching the canister.

Safety Protocols for Fuel System Testing

The volatile nature of automotive fuels makes safety the primary consideration before any diagnostic testing begins. Gasoline and diesel fuels present multiple hazards including flammability, toxicity, and environmental contamination risks. Establishing comprehensive fuel system safety protocols protects technicians, facilities, and the surrounding environment.

OSHA regulations under 29 CFR 1926.152 establish requirements for handling flammable and combustible liquids in workplace environments. Only approved containers and portable tanks shall be used for storage and handling of flammable liquids, with approved safety cans or DOT-approved containers required for quantities of 5 gallons or less.

Fire Prevention and Ventilation

Fire prevention during fuel system testing requires eliminating all potential ignition sources from the work area. Gasoline vapors can ignite from sources that seem harmless, including static electricity discharge, hot exhaust components, and non-explosion-proof electric tools. Disconnect the negative battery terminal before starting any fuel system diagnostic procedures.

Adequate ventilation prevents dangerous fuel vapor accumulation. Fuel vapors are heavier than air and accumulate in low areas where ignition sources exist. The lower explosive limit for gasoline vapors is approximately 1.4% in air—a concentration easily achieved in poorly ventilated spaces. Never perform fuel system testing in pits, basements, or low-lying areas where fuel vapors naturally collect.

Fuel Containment and Disposal

Use containers specifically approved and clearly labeled for gasoline or diesel fuel storage. Fill fuel containers to no more than 95% of capacity to allow for thermal expansion. Never dispose of fuel by dumping it into sewers, storm drains, on the ground, or into regular trash containers—improper fuel disposal creates severe environmental contamination and violates federal and state regulations. All removed fuel must be disposed of through licensed hazardous waste disposal services.

Place drip pans under all connection points where fuel may leak during testing. Keep absorbent materials immediately available to contain any spills that occur. Clean up fuel spills immediately using appropriate absorbent materials designed for petroleum products.

Required Personal Protective Equipment

Safety glasses rated to ANSI Z87.1 standards with side shields are mandatory for all fuel system work—fuel contact with eyes can cause severe chemical burns requiring immediate medical treatment. Fuel-resistant nitrile gloves prevent skin contact with gasoline and diesel fuels, as these chemicals absorb through skin and cause health problems with repeated contact. Never use latex gloves for fuel system work, as they degrade rapidly on fuel contact.

Position a fully charged Class B fire extinguisher within immediate reach before beginning any fuel system work. Class B extinguishers are specifically rated for flammable liquid fires. Never use water to extinguish gasoline fires—water is denser than gasoline and will sink below burning fuel, spreading the fire rather than extinguishing it.

Federal fuel tank regulations under 49 CFR 393.67 establish construction and safety standards for liquid fuel tanks on commercial vehicles, including requirements for venting systems, structural integrity, and proper certification markings that technicians should verify during inspections.

Frequently Asked Questions

What’s the most common cause of fuel pump failure in commercial vehicles?

The most common cause of fuel pump failure in commercial vehicles is running the tank consistently at low fuel levels. The fuel pump relies on submersion in fuel for cooling and lubrication of the motor and impeller bearings. When fuel levels drop below the pump assembly, the motor overheats and accelerates wear on internal components. Fleet maintenance managers should train drivers to maintain at least quarter-tank minimum fuel levels. Contaminated fuel from poor-quality fuel sources is the second most common cause, introducing particles that damage impeller mechanisms and clog inlet strainers.

How do you tell the difference between a bad fuel pump and a clogged fuel filter?

A clogged fuel filter typically allows normal pressure at idle and low-demand conditions but causes pressure to drop and symptoms to appear under acceleration or high load. A failing fuel pump usually shows low pressure readings at all operating conditions, including static testing with the engine off. The definitive test involves bypassing the filter temporarily—if symptoms disappear with the filter bypassed, the filter is restricted. If symptoms persist with the filter bypassed, the pump itself is likely failing. Always perform volume testing in addition to pressure testing, as a pump can generate acceptable pressure but fail to deliver adequate volume when a filter is partially restricted.

Why does my truck start fine when cold but struggle after running?

Hot restart problems typically indicate vapor lock, heat-related pump degradation, or failing check valves. During hot soak conditions, heat from the engine and exhaust transfers to fuel lines and the pump assembly, causing fuel to vaporize before reaching the injection system. Check for missing heat shields between fuel lines and exhaust components. If the check valve inside the pump assembly is failing, fuel pressure bleeds back to the tank during shutdown, and the heated pump struggles to rebuild pressure when restarting. A pressure drop test performed immediately after the vehicle reaches operating temperature helps differentiate between these causes.

What fuel pressure reading indicates a failing pump?

A pump is considered failing when static pressure reads more than 10% below manufacturer specifications, when running pressure drops more than 15 PSI during acceleration, or when dead head pressure falls below the specified threshold (typically 15-30 PSI above normal operating pressure). However, pressure alone doesn’t tell the complete story—always perform volume testing as well. A pump generating 55 PSI when specifications call for 60 PSI may still be serviceable if volume output meets requirements. Conversely, a pump achieving specification pressure but delivering inadequate volume requires replacement regardless of the pressure reading.

How often should fuel filters be replaced on diesel engines?

Diesel fuel filters typically require replacement every 10,000 to 15,000 miles under normal operating conditions, though this varies by manufacturer specification and operating environment. Vehicles operating in dusty conditions, using fuel from questionable sources, or running in extreme temperatures may require more frequent replacement. The TMC Recommended Practice RP 367A provides detailed guidelines for diagnosing filter-related complaints in commercial vehicles. Fleet managers should establish filter replacement schedules based on fuel quality monitoring and symptoms rather than relying solely on mileage intervals.

Achieving Accurate Fuel System Diagnosis

Accurate low pressure fuel system diagnosis requires a methodical approach that tests pressure, volume, and electrical integrity before condemning any component. Replacing a fuel pump based solely on symptoms or pressure readings alone often results in costly misdiagnosis—the extra five minutes for complete testing protects both technician reputation and customer budget.

Many symptoms attributed to pump failure actually stem from restricted filters, contaminated fuel, or electrical supply problems. Following systematic diagnostic best practices prevents unnecessary component replacement and eliminates recurring issues that damage customer trust. Effective fuel system repair depends on verifying all three fundamental parameters receive equal attention during diagnosis.

The specialized tools and safety equipment detailed throughout this guide represent worthwhile investments that enable accurate diagnosis and prevent comebacks. Safety must remain paramount when working with pressurized fuel systems—fire and injury risks demand constant attention to proper procedures and protective equipment. Always reference manufacturer-specific diagnostic procedures and pressure specifications for the vehicle being diagnosed, as fuel system designs vary significantly across manufacturers and model years. Commercial vehicle inspection requirements under 49 CFR Part 396 require that fuel systems be properly maintained and documented as part of vehicle safety compliance.
