Air in Diesel Fuel System: Causes and Repair Solutions

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: December 2024

📖 Estimated reading time: 31 minutes

Air in a diesel fuel system disrupts combustion, causes hard starting, rough idling, and power loss—often costing fleets $400 to $700 per day in unplanned downtime. Unlike gasoline engines that push fuel under positive pressure, diesel systems create suction that pulls air through any weak point in the fuel pathway. Even a pinhole leak invisible to the naked eye can introduce enough air to strand a truck or sideline expensive equipment.

This comprehensive guide covers everything diesel technicians and fleet managers need to know about fuel system air infiltration. You’ll discover how negative pressure systems create vulnerability, recognize warning signs before breakdowns occur, and master diagnostic methods that pinpoint leak sources. Whether you’re troubleshooting a single unit or developing preventive maintenance protocols for an entire fleet, understanding air intrusion protects your investment and maximizes equipment uptime.

Understanding How Air Enters Diesel Fuel Systems

Understanding the vulnerability of diesel fuel systems requires examining the pressure dynamics that govern fuel movement from tank to injector. The diesel fuel delivery system operates on principles that make it inherently susceptible to air infiltration. Unlike other automotive systems, even the smallest breach can compromise the entire fuel supply.

The way fuel moves through a diesel engine creates unique challenges. Every component must maintain perfect integrity to prevent air from disrupting the process. This vulnerability stems from fundamental design characteristics that distinguish diesel engines from their gasoline counterparts.

Creating Suction: Negative Pressure Fundamentals

The negative pressure fuel system functions by creating suction rather than pushing fuel forward. A lift pump draws fuel from the tank through lines and filters toward the injection components. This pulling action generates a vacuum effect throughout the entire fuel pathway.

When suction moves fuel through the system, any crack or loose connection becomes an entry point. Air gets pulled inward through these breaches because the pressure inside the lines is lower than atmospheric pressure outside. The system essentially breathes in air through its weakest points.

This suction-based operation means problems worsen over time. A tiny crack that begins pulling in microscopic air bubbles can eventually allow larger quantities of air to enter. The negative pressure amplifies even minor defects into significant fuel delivery problems that affect combustion efficiency.

The lift pump maintains this vacuum from the tank all the way to the high-pressure injection system. Multiple components along this pathway must seal perfectly. Fuel filters, connection points, and pump seals all operate under constant suction that tests their integrity with every engine revolution.

Pressure Differences Between Diesel and Gasoline Systems

The diesel versus gasoline fuel system comparison reveals critical design distinctions. Gasoline systems use electric pumps that create positive pressure, pushing fuel through lines at 40 to 60 PSI. This pressurized environment forces fuel outward through any leak rather than pulling air inward—making leaks visible and easier to detect.

Diesel systems operate differently at the low-pressure side. The lift pump creates only 5 to 15 PSI of suction before fuel reaches the high-pressure pump. This lower pressure on the supply side makes diesel fuel delivery systems significantly more vulnerable to air intrusion than their gasoline counterparts.

When a gasoline fuel line develops a crack, fuel sprays outward and creates visible evidence. The diesel versus gasoline fuel system difference means diesel leaks remain hidden. Air enters silently without producing telltale fuel stains or odors that would alert technicians to a problem.

This fundamental pressure distinction explains why diesel owners and fleet managers face unique diagnostic challenges. Traditional leak detection methods that work for gasoline systems prove ineffective on diesel equipment. The absence of visible fuel makes identifying air entry points frustratingly difficult without specialized testing procedures.

How Air Disrupts Combustion and Causes Power Loss

Air combustion problems begin when bubbles enter the fuel stream. Diesel engines depend on precise fuel metering to achieve compression ignition. The injection system must deliver exact quantities of fuel at specific moments in the combustion cycle—tolerances measured in thousandths of a second.

Air bubbles disrupt this precision by creating compressibility within the fuel. Diesel fuel is essentially incompressible, allowing injectors to control delivery with extreme accuracy. Air compresses easily, absorbing pressure that should be moving fuel and throwing off injection timing by milliseconds that matter.

The combustion chamber requires a consistent fuel spray pattern for efficient burning. When air mixes with diesel in the injection system, atomization suffers dramatically. Fuel droplets become irregular in size and distribution, leading to incomplete combustion that wastes fuel and produces harmful emissions.

Engine performance degrades as air content increases. Small amounts of air cause minor power fluctuations and rough running. Larger air pockets create complete fuel starvation, resulting in stalling or failure to start—problems that strand trucks at the worst possible times.

The combustion relationship becomes critical during high-load operation. When an engine demands maximum power for climbing grades or pulling heavy loads, the injection system must supply fuel continuously at high volume. Air pockets interrupt this flow, causing sudden power loss that can be dangerous during highway driving or when hauling equipment.

Recognizing Warning Signs of Air in Diesel Fuel Systems

Your diesel engine communicates problems through specific symptoms, and air in the fuel system produces warning signs you shouldn’t ignore. Learning to identify these symptoms early helps you prevent costly damage and keeps your vehicle running reliably. Each symptom provides valuable diagnostic information about where air might be entering and how severely it affects engine performance.

Air intrusion creates distinct patterns of engine behavior that differ from other mechanical problems. These symptoms often appear in combination rather than isolation. Understanding what causes each warning sign gives fleet managers and technicians the knowledge to make informed repair decisions before minor issues become major breakdowns.

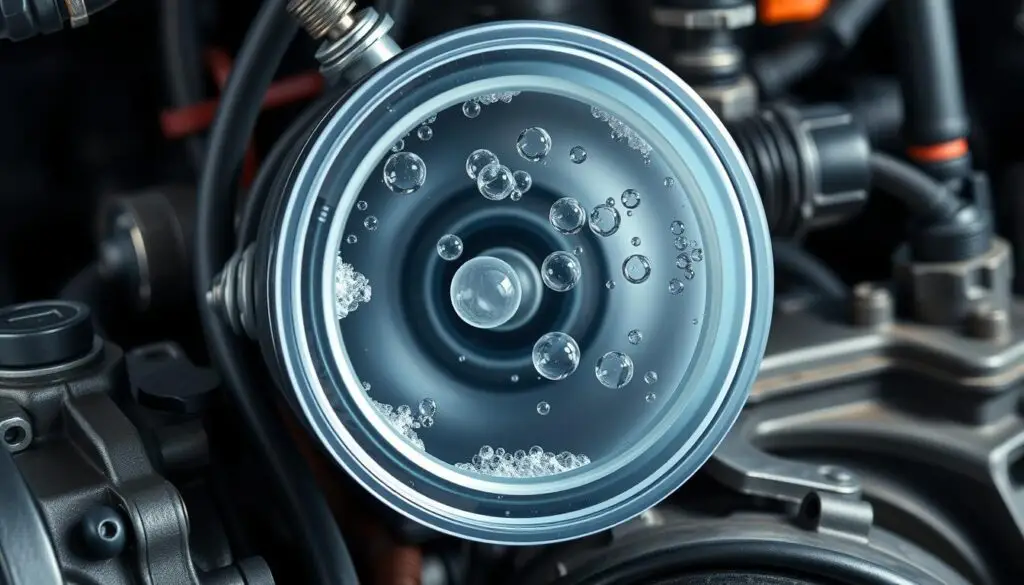

Hard Starting After Sitting Overnight

The most reliable indicator of air in the fuel system is difficulty starting after your vehicle sits for several hours. This happens because air naturally rises to high points in the fuel system when the engine stops running. These air pockets create barriers that prevent fuel from reaching the injection pump and injectors.

When you turn the key, the starter cranks normally but the engine struggles to fire. You might need to crank for 10 to 30 seconds before the engine finally starts. Once running, the engine may operate normally until it sits again—a pattern that distinguishes air intrusion from other starting problems.

Hard starting symptoms worsen in cold weather when fuel becomes thicker and air bubbles move through the system more slowly. Many drivers mistake this for glow plug problems or battery issues. However, if your engine starts fine when warm but struggles after sitting, air intrusion is the likely culprit requiring systematic diagnosis.

Rough Idling and Engine Misfires

A diesel rough idle occurs when intermittent air bubbles pass through the injection system. These bubbles cause inconsistent fuel delivery to individual cylinders. The result is uneven firing that creates noticeable engine vibration and irregular exhaust pulses.

You’ll feel the engine shake or shudder while idling at stoplights or during loading operations. The tachometer needle may bounce or fluctuate instead of holding steady. This happens because some cylinders receive adequate fuel while others get air-contaminated fuel that doesn’t burn properly.

A diesel engine misfire from air intrusion differs from spark plug misfires in gasoline engines. The misfire is usually random rather than cylinder-specific. It comes and goes as air bubbles move through the fuel system, creating an unpredictable pattern that makes diagnosis challenging without proper testing.

Sudden Loss of Power While Driving

Experiencing diesel power loss while accelerating or driving under load indicates larger air pockets reaching the injection system. Drivers describe this as the engine “falling on its face” or “hitting a wall” during acceleration. The vehicle suddenly loses momentum even though the accelerator pedal remains pressed.

This symptom becomes dangerous on highways or when merging into traffic with commercial vehicles. The power loss typically lasts a few seconds as the air pocket passes through the system. Normal power returns once liquid fuel flows again, but the cycle repeats unpredictably until the underlying leak is repaired.

White or Gray Exhaust Smoke

White or gray exhaust smoke signals incomplete combustion resulting from air-diluted fuel delivery. When air bubbles interrupt consistent fuel flow, cylinders receive insufficient fuel for complete burning. The smoke represents unburned or partially burned fuel particles exiting the exhaust system.

This smoke differs from black smoke, which indicates too much fuel entering combustion. It also differs from blue smoke caused by burning oil. The white or gray color specifically points to combustion problems related to inadequate fuel delivery rather than other mechanical issues.

Engine Stalling at Idle or Low Speed

Diesel stalling problems occur particularly at idle or low speeds when fuel demand is minimal. Even small air intrusions can completely interrupt the limited fuel flow needed to maintain idle speed. The engine dies unexpectedly at stoplights, in parking lots, or during slow-speed maneuvering.

Stalling happens because the injection system cannot compensate for air bubbles when operating at minimum fuel delivery rates. The engine requires a specific minimum fuel quantity to maintain combustion. When air displaces that fuel, the engine simply stops running without warning.

You can usually restart the engine immediately, but it may stall again within minutes. This frustrating cycle continues until you address the underlying air leak. Some vehicles stall repeatedly while others experience occasional stalling that gradually worsens over time as the air leak expands.

Common Fuel Line Problems That Cause Air Leaks

Between the fuel tank and engine, diesel fuel travels through an extensive network of lines where even microscopic failures can introduce performance-robbing air. The negative pressure created by the lift pump means that any weakness in fuel lines becomes an entry point for atmospheric air. Understanding where these failures typically occur allows you to target your inspection efforts and resolve diesel fuel line leaks before they cause serious performance issues.

Fuel lines face constant exposure to vibration, temperature extremes, chemical exposure, and physical stress. These conditions gradually degrade materials and connections throughout the fuel delivery system. Even a pinhole leak invisible to the naked eye can allow enough air to disrupt combustion and cause the symptoms discussed in previous sections.

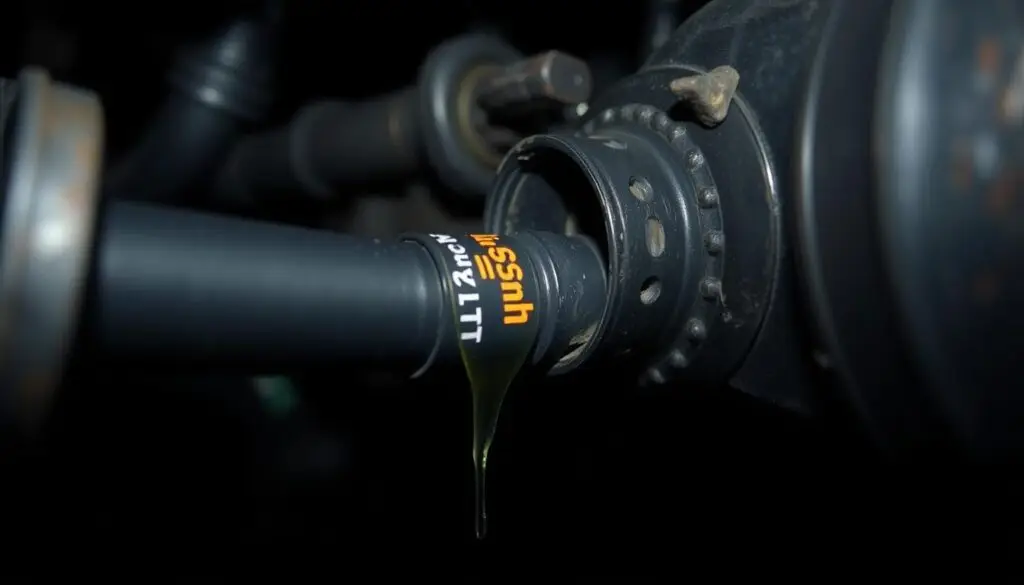

Cracked or Deteriorated Rubber Fuel Hoses

Rubber fuel hoses represent the most common source of air infiltration in diesel systems. These flexible sections connect rigid metal lines and accommodate engine movement during operation. Over time, exposure to diesel fuel, heat cycling, ozone, and ultraviolet light causes rubber compounds to lose their flexibility and structural integrity.

Fuel hose deterioration typically begins on the surface as fine cracks that gradually penetrate deeper into the hose wall. The most dangerous aspect of this degradation is that cracks often form on the underside of hoses where they remain hidden during casual inspection. By the time surface cracking becomes visible on top, the hose has usually already developed air leaks on the bottom.

Several factors accelerate rubber deterioration on commercial equipment. High engine bay temperatures that exceed the hose’s design specifications cause premature aging. Contact with oil or coolant chemically attacks rubber compounds. Ozone exposure from electrical components breaks down elastomers. Flexing stress points where hoses bend repeatedly during engine movement concentrate wear.

Inspection requires systematic examination of every inch of rubber fuel line. Run your fingers along the entire length, feeling for surface irregularities, soft spots, or hardened sections. Any hose showing surface cracking, swelling, or hardness should be replaced immediately, even if no active leak is apparent.

Loose or Corroded Fuel Line Fittings

Connection points between fuel lines create natural weak spots where air can enter the system. Fuel line fittings must maintain perfect metal-to-metal contact or seal compression to prevent leaks. Even slight loosening or surface corrosion can compromise this seal and allow air infiltration.

Diesel fuel systems use several types of fittings, each with specific failure modes. Compression fittings rely on a ferrule that compresses against the tubing and fitting body. Vibration gradually loosens these connections over thousands of miles of operation. Flare fittings depend on precisely machined cone surfaces that mate together—any corrosion or damage to these surfaces prevents proper sealing.

Threaded connections face particular challenges in harsh environments. Road salt and moisture create corrosion that degrades the metal surfaces. This corrosion prevents the threads from tightening properly and creates microscopic channels where air can bypass the connection.

Failed Quick-Connect Fuel Line Couplers

Modern diesel vehicles increasingly use quick-connect couplers for fuel line connections. These plastic or composite fittings provide convenient assembly but introduce failure points that didn’t exist in traditional metal fittings. The internal mechanism includes o-rings, locking tabs, and sealing surfaces that can fail while the exterior appears properly connected.

Quick-connect couplers fail through several mechanisms. The internal o-rings degrade from fuel exposure and temperature cycling, losing their sealing capability. Locking tabs become brittle and break, allowing the connection to separate slightly. The plastic housing itself can crack from impact or stress, creating air pathways that bypass the internal seals completely.

The deceptive nature of quick-connect failures makes them particularly problematic. The coupler may appear fully engaged and locked, yet air infiltrates through the compromised internal seals. This creates intermittent air entry that worsens as negative pressure increases during acceleration or under load.

Damaged Fuel Lines from Road Debris or Corrosion

Physical fuel line damage occurs frequently but often remains undetected until significant air infiltration problems develop. Metal fuel lines running underneath the vehicle face constant bombardment from road debris, while environmental factors like road salt accelerate corrosion. Both mechanisms create openings where air enters the fuel system.

Impact damage from rocks, debris, or road hazards creates dents, kinks, or punctures in metal fuel lines. Even minor dents can crack the protective coating on steel lines, exposing bare metal to corrosive elements. Abrasion damage occurs where fuel lines contact chassis components or mounting brackets, gradually wearing through the line wall over thousands of miles.

Corrosion represents an equally serious threat, particularly in cold climate regions where road salt exposure is constant during winter months. Diesel line corrosion typically begins on the exterior surface where protective coatings have been compromised. The corrosion gradually penetrates inward, eventually creating pinholes that allow air entry long before the line ruptures completely.

Fuel Filter and Housing Air Leak Issues

Diesel fuel filter problems account for a significant percentage of air infiltration issues in modern engines. The filter assembly consists of multiple components that must seal perfectly together. Any breakdown in these sealing surfaces allows air to enter the fuel stream during the suction phase created by the lift pump.

The complexity of filter housing designs creates numerous potential failure points. Most housings include the filter element with internal seals, a removable cap or cover with gaskets, and drain ports for water removal. Each connection point represents a possible source of fuel filter housing leaks that introduce unwanted air.

Improperly Installed Filter Seals

Installation errors during routine maintenance cause many air entry problems. Technicians who rush through filter changes often fail to properly prepare sealing surfaces. This oversight creates immediate air leaks that degrade engine performance despite the new filter element.

The fuel filter seal requires specific installation procedures to function correctly. Dry rubber seals can twist or roll during installation rather than seating properly in their grooves. Applying a thin film of clean diesel fuel to seal surfaces ensures smooth installation and proper seating—a step many technicians skip under time pressure.

Reusing old seals represents another common mistake during fuel filter installation. Seals that have been compressed take a permanent set and lose their ability to create an airtight barrier. Always replace all seals and gaskets when servicing the filter assembly, even if they appear intact. The cost of new seals is negligible compared to diagnosing air-related performance problems.

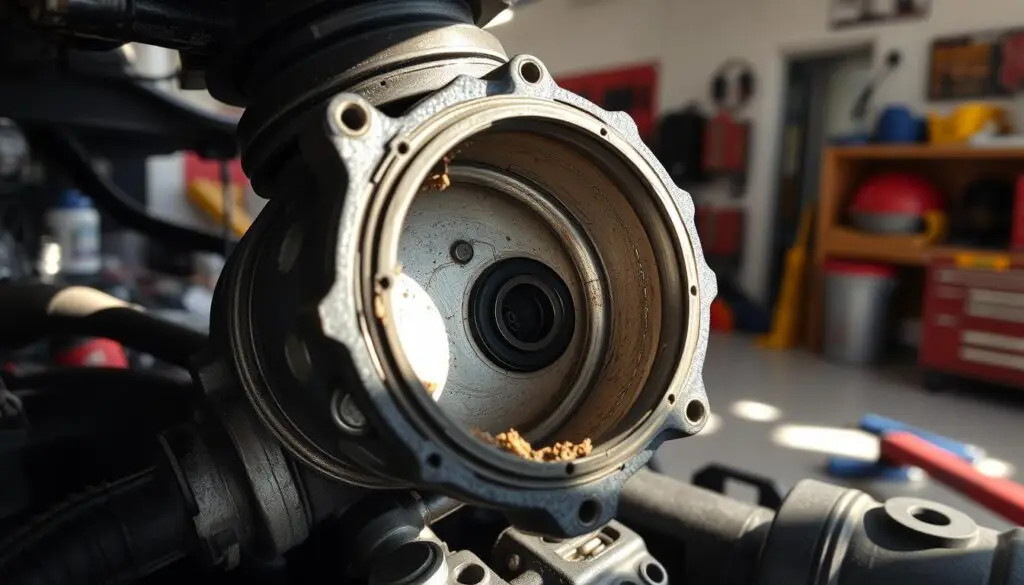

Cracked Fuel Filter Housings

Physical damage to filter housings develops from various sources over time. Plastic housings exposed to temperature extremes become brittle and develop stress cracks. These hairline fractures allow air to enter while remaining difficult to detect during visual inspections.

Over-tightening during previous service appointments causes internal stress in housing threads. This excessive force creates micro-cracks that propagate over time. Metal housings can crack around mounting bosses, while plastic types fail at thin-walled sections near thread engagement areas.

Failed Water Separator Drain Valves

The water separator drain valve sits at the lowest point of many filter assemblies. This critical component allows water removal but creates a potential air entry point. Internal valve seals deteriorate from exposure to fuel additives and temperature cycling common in commercial operations.

A water separator leak often goes undetected because the valve location makes visual inspection difficult. The valve may weep small amounts of fuel or allow air entry without producing visible drips. Testing requires applying vacuum to the system while monitoring the valve for leaks—a step often overlooked during routine maintenance.

Fuel Pump and Injector Air Entry Points

Fuel pumps and injectors contain multiple sealing surfaces that deteriorate over time, creating pathways for unwanted air to compromise system integrity. These components operate under extreme pressure variations and constant mechanical stress. Unlike external fuel lines that you can visually inspect, pump and injector failures often develop internally where detection becomes significantly more challenging.

The complexity of modern diesel fuel delivery systems creates numerous potential failure points within the pumping and injection components themselves. Each seal, diaphragm, and connection represents a possible air entry location. Understanding these vulnerability areas helps you identify problems before they cause complete system failure.

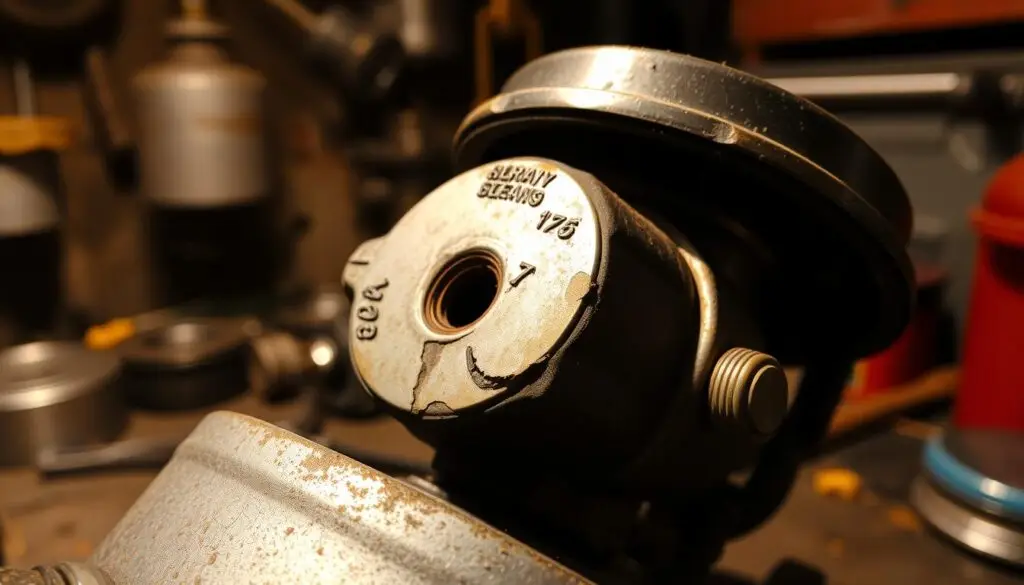

Worn Lift Pump Diaphragms and Seals

The lift pump serves as the heart of diesel fuel delivery, moving fuel from the tank to the injection system. These pumps use either mechanical diaphragms or electric assemblies with internal sealing components. Diesel lift pump problems often originate from these critical internal parts wearing down over time under constant cycling.

Mechanical lift pumps feature rubber diaphragms that flex thousands of times daily, pushing fuel through the system. Constant movement combined with exposure to diesel fuel and contaminants causes material degradation. Eventually, microscopic cracks form in the diaphragm surface, allowing air to enter during the suction stroke.

Electric lift pumps contain shaft seals and internal gaskets that prevent air infiltration while maintaining fuel pressure. These seals face similar deterioration challenges from chemical exposure and mechanical wear. When fuel pump seal failure occurs, the pump continues operating but draws air along with fuel—a condition that often produces intermittent symptoms.

Leaking Injector Return Lines

Modern diesel injectors receive substantially more fuel than they actually inject into cylinders. The excess fuel flows back to the tank through dedicated return line systems. These return lines operate under varying pressure conditions that expose weaknesses in connections and seals.

An injector return line leak creates a unique problem because air can travel backward into the injection system. Return lines connect multiple injectors in series before routing back to the fuel tank. A leak at any connection point allows air entry that affects all downstream injectors in the fuel circuit.

The return line system typically uses compression fittings, banjo bolts, or push-to-connect couplers at each injector. These connections experience vibration, temperature cycling, and exposure to road contaminants. Over time, fittings loosen or seals harden, creating gaps that permit air infiltration during pressure fluctuations.

Faulty High-Pressure Fuel Pump Seals

High-pressure fuel pumps in common rail and unit injector systems generate pressures exceeding 25,000 psi. These pumps contain shaft seals, housing seals, and internal sealing elements that must contain fuel at these extreme pressures according to SAE J1939 diagnostic protocols. The sealing challenge becomes exponentially more difficult as pressure increases.

A high-pressure pump leak might not immediately result in loss of injection pressure. The pump can maintain sufficient pressure for engine operation while still allowing air to enter through compromised seals. This situation creates diagnostic difficulty because the engine runs but exhibits intermittent performance problems that frustrate troubleshooting efforts.

Degraded Injector O-Rings and Seals

Fuel injectors seal against the cylinder head or injection pump using precision o-rings and metal sealing washers. These diesel injector seals must withstand extreme conditions including combustion heat, fuel pressure variations, and constant vibration. The combination of thermal cycling and mechanical stress causes inevitable seal degradation.

Injector o-rings typically use specialized rubber compounds designed for diesel fuel compatibility and high-temperature resistance. Despite advanced materials, these o-rings undergo chemical changes from heat exposure. The rubber hardens and loses elasticity, eventually allowing air to bypass the seal and enter fuel passages.

Copper crush washers or metal sealing rings provide additional sealing at injector bases. These components deform slightly during installation to create gas-tight seals. Once removed and reinstalled, they rarely seal as effectively. Reusing old sealing washers represents a common cause of air entry after injector service—always replace these components during any injector work.

Proven Methods to Diagnose Diesel Fuel System Air Leaks

Finding air entry points in your diesel fuel system is a critical diagnostic challenge that separates temporary fixes from permanent solutions. Successful air leak detection requires applying multiple testing methods because air can enter through several locations simultaneously. A systematic approach ensures you identify every leak source before starting repairs.

The diagnostic process should always progress from simple visual checks to more advanced testing procedures. This methodical strategy saves time and helps you understand which components need immediate attention. Professional mechanics combine several techniques to achieve accurate diesel fuel system diagnosis results.

Visual Inspection Techniques for Fuel System Components

Your first diagnostic step involves a thorough visual examination of all accessible fuel system parts with the engine running. Look for fuel weeping around fittings, connections, and seals where liquid diesel appears as small droplets or wet spots. These visible signs often indicate the exact location where air enters during the suction cycle.

Check transparent components like fuel filter housings with sight glasses for visible air bubbles. Many diesel systems include these viewing windows specifically for monitoring fuel quality and detecting air presence. Watch for continuous bubble streams or intermittent air pockets that signal seal failures.

Examine all rubber fuel lines for surface cracks, especially on the suction side between the tank and lift pump. Run your fingers along the hoses to feel for soft spots or brittleness. Pay special attention to areas where lines bend or contact other components, as these wear points frequently develop microscopic cracks.

The Clear Fuel Line Test for Air Bubbles

Installing a section of transparent fuel line temporarily allows direct observation of air moving through your system. This simple yet effective air leak detection method reveals whether air enters constantly or only under specific conditions. Purchase a length of clear vinyl or rubber fuel line that matches your original line diameter.

Replace a section of the fuel supply line between the tank and filter with the clear line. Start the engine and observe the fuel flow carefully. Small, occasional bubbles might indicate normal air release from fuel, but continuous bubble streams or large air pockets confirm a leak upstream of your test section.

Move the clear line section to different locations in your fuel system to narrow down the leak source. The pattern and size of bubbles provide valuable clues about the severity and type of leak. Intermittent bubbles that appear only during acceleration suggest seals that fail under changing pressure conditions.

Applying Vacuum Testing to Isolate Leak Sources

A hand-operated vacuum pump provides the most reliable method for fuel system testing on the suction side. This technique isolates specific sections by applying negative pressure while monitoring for pressure decay. Rapid pressure loss indicates a leak in the tested segment.

To vacuum test fuel system components properly, disconnect the fuel line at strategic points and cap one end. Attach the vacuum pump to the other end and draw 10-15 inches of mercury vacuum. A leak-free section maintains this vacuum for at least five minutes without significant pressure drop.

Test each section systematically from the tank forward: tank pickup tube and primary fuel line to the filter, fuel filter housing and mounting seals, lines from filter to lift pump or injection pump, and pump inlet connections and mounting gaskets. Record which sections fail to hold vacuum to guide parts ordering before beginning repairs.

Professional Smoke Testing for Hidden Leaks

Specialized smoke machines represent the most advanced approach to diesel fuel system diagnosis for locating microscopic leaks. Professional shops use these devices to introduce visible smoke into the fuel system under slight pressure. Even hairline cracks become visible as smoke emerges from failure points that other methods miss.

The smoke testing process involves sealing the fuel system and introducing non-toxic smoke through a controlled entry point. Technicians then observe all components, connections, and housings for smoke leakage. This method finds leaks that other techniques miss, including internal housing cracks and seal failures hidden beneath components.

Complete Fuel System Bleeding Procedures

After fixing air leaks in your diesel fuel system, thorough bleeding procedures ensure complete air removal and restore reliable engine operation. The bleeding diesel fuel system process eliminates trapped air pockets that prevent proper fuel delivery to the engine. Without complete bleeding, your diesel will continue to exhibit starting problems, rough idling, and power loss even after repairing the actual leak.

Successful diesel fuel system priming requires following a specific sequence from the fuel tank forward to the injectors. This methodical approach pushes air out through designated bleed points while filling each component with clean fuel. The time invested in proper bleeding saves hours of troubleshooting frustrating performance issues later.

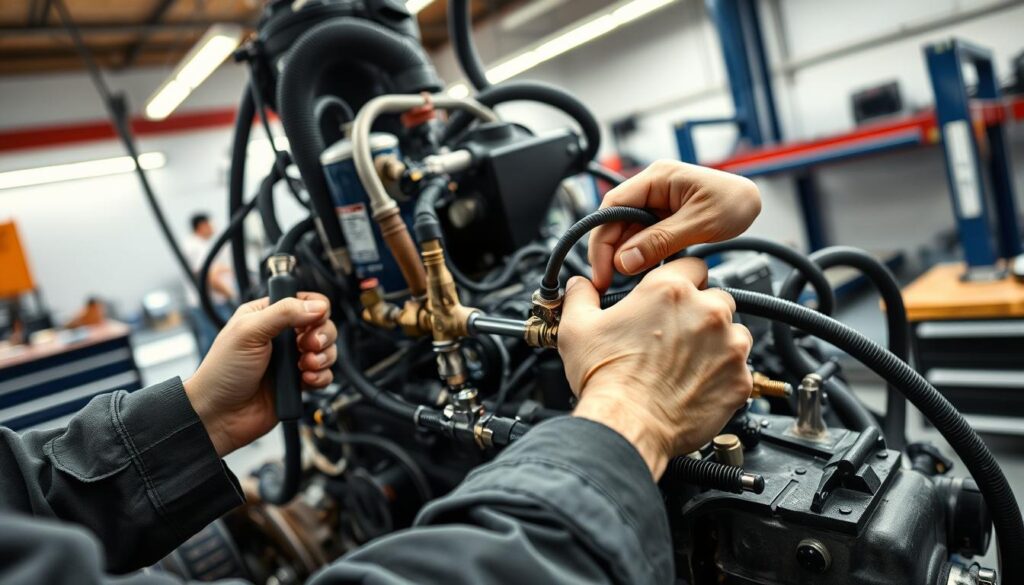

Manual Bleeding with the Hand Primer Pump

The hand primer pump provides manual pressure to push fuel through the system during bleeding. This pump typically mounts on or near the fuel filter housing and features a rubber bulb or plunger mechanism. Locate this pump on your engine before proceeding with diesel fuel system priming.

Begin bleeding at the point closest to the fuel tank and work forward toward the engine. Open the first bleed screw counterclockwise about one full turn. Operate the primer pump with steady strokes while watching fuel flow from the open bleed point. Continue pumping until fuel flows in a solid stream without air bubbles.

Close each bleed screw before moving to the next bleeding point. Tighten the screw snugly but avoid over-tightening, which can damage brass or plastic bleed valves. Most bleed screws require only 5 to 10 foot-pounds of torque. Some fuel systems require 50 to 100 pumps of the primer to completely remove air, especially when bleeding a system that has run completely dry.

Cracking Injector Lines to Remove Trapped Air

Injector line bleeding removes air from the final section of the fuel system where high pressure pushes fuel into the cylinders. This procedure requires extreme caution because high-pressure fuel can penetrate skin and cause serious injury requiring immediate medical attention.

Loosen the fuel line connection at each injector about one-half turn using the correct wrench size. Do not remove the connections completely—just crack them open enough to allow fuel to escape. Have a helper crank the engine in short bursts of 10 to 15 seconds while you observe each connection.

Fuel will begin spurting from the loosened connections as the high-pressure pump builds pressure. Watch for air bubbles in the escaping fuel spray. Tighten each connection immediately when fuel sprays without air bubbles. Work systematically from cylinder one through the firing order, bleeding each injector line individually.

Electronic Bleeding Procedures for Common Rail Systems

Modern common rail diesel engines often include electronic bleeding functions that simplify the air removal process. These systems use the engine control module to operate fuel system components in specific sequences designed to purge trapped air automatically according to Cummins QuickServe and similar OEM service procedures.

Access electronic bleeding functions through a professional diagnostic scan tool connected to the vehicle’s OBD-II port. Navigate to the fuel system service functions menu and select the bleeding or priming routine. The scan tool communicates with the engine control module to activate the automated sequence.

Some manufacturers provide alternative activation methods without scan tools. These procedures typically involve specific combinations of key cycles and accelerator pedal movements that trigger bleeding mode. Consult your service manual for the exact sequence, as the process varies significantly between manufacturers.

Permanent Repair Solutions for Air Leak Problems

Addressing air leaks in your diesel fuel system requires permanent repair solutions that target the root cause rather than masking symptoms. Temporary fixes like duct tape or generic sealants might provide short-term relief, but they inevitably fail under the demanding conditions of diesel fuel delivery systems. Professional-grade fuel system repair involves using correct parts, following proper installation procedures, and ensuring every connection meets manufacturer specifications.

The difference between temporary patches and permanent solutions becomes apparent in system reliability and longevity. Quality repairs eliminate recurring problems and restore your diesel engine to optimal performance. Fleet managers who invest in proper repairs see the payback in reduced downtime and lower total maintenance costs.

Replacing Fuel Lines and Upgrading Materials

Diesel fuel line replacement stands as one of the most effective permanent solutions for eliminating air entry points. Original rubber fuel lines deteriorate over time due to fuel exposure, heat cycles, and environmental factors. When replacement becomes necessary, upgrading to superior materials provides enhanced durability and leak resistance.

Braided stainless steel fuel lines offer exceptional resistance to heat, abrasion, and chemical degradation. These lines maintain their integrity even in harsh engine compartment conditions. Reinforced synthetic lines designed specifically for diesel applications provide another excellent upgrade option with flexibility and durability advantages.

Proper installation technique matters as much as material selection. Route new fuel lines away from heat sources like exhaust manifolds and turbochargers. Secure lines with appropriate mounting brackets to prevent vibration-induced wear. Use proper support clamps every 12-18 inches to minimize vibration stress. Avoid sharp bends that restrict fuel flow or create stress concentration points.

Repairing or Replacing Fuel Filter Housings

Fuel filter housing repair requires careful assessment to determine whether component replacement or complete housing replacement provides the best solution. Minor leaks around seals often respond well to gasket and o-ring replacement. However, cracked housings or damaged threads demand complete unit replacement.

Quality replacement housings must meet or exceed original equipment specifications. Aftermarket housings from reputable manufacturers like Fleetguard or Donaldson ensure proper fit and function. When performing fuel filter housing repair, replace all sealing components regardless of their apparent condition. New o-rings, gaskets, and drain valve seals cost little compared to repeated repairs.

Rebuilding or Replacing the Lift Pump

The lift pump decision involves choosing between rebuilding with quality seal kits or complete lift pump replacement. Pump rebuild kits containing new diaphragms, seals, and gaskets work well for pumps with sound housings and functional check valves. However, pumps with worn housings, damaged mounting surfaces, or inconsistent performance benefit from complete replacement.

Upgraded aftermarket lift pumps offer performance advantages over original equipment. High-flow lift pumps from manufacturers like AirDog, FASS, or Raptor provide improved fuel delivery volume and pressure consistency. These systems often include integrated water separation and filtration capabilities that protect downstream components.

Preventive Maintenance Strategies to Avoid Future Air Problems

A proactive maintenance strategy protects diesel fuel systems from air intrusion and prevents costly breakdowns. Implementing comprehensive preventive maintenance practices addresses potential problems before they develop into serious issues. This approach saves time, money, and frustration while ensuring reliable vehicle performance throughout the fleet.

The foundation of effective diesel fuel system maintenance lies in systematic attention to critical components and operating conditions. Each maintenance task serves a specific purpose in preventing air leaks and maintaining system integrity. Understanding these connections helps diesel owners and fleet managers prioritize their maintenance efforts for maximum return on investment.

Establishing a Fuel Filter Change Schedule

Creating a reliable fuel filter change schedule forms the cornerstone of preventing air-related problems in diesel engines. Manufacturers provide baseline recommendations, but real-world conditions often demand more frequent service intervals. Operating environments with high dust, frequent short trips, or lower-quality fuel require accelerated filter replacement.

Most diesel engines benefit from fuel filter changes every 10,000 to 15,000 miles under normal conditions. However, vehicles operating in harsh environments should consider intervals as short as 5,000 miles. Construction equipment, farm machinery, and vehicles in dusty regions fall into this category requiring closer attention.

Proper filter change procedures prevent introducing air during maintenance. Always prime the new filter with clean diesel fuel before installation per 49 CFR Part 396 inspection requirements for commercial vehicles. This simple step eliminates the large air pocket that would otherwise enter the system. Follow the complete bleeding procedure after every filter change to ensure no air remains trapped.

Regular Inspection of Fuel System Components

Systematic fuel system inspection catches developing problems before they allow air intrusion. A thorough visual examination should occur every oil change or at least quarterly. This preventive approach identifies wear patterns, damage, and potential failure points.

Focus your inspection efforts on all visible fuel lines from tank to engine for surface cracking, abrasion, or swelling. Check fuel line connections and fittings for signs of seepage, corrosion, or looseness. Examine filter housings for cracks, damage, or fuel staining around seals. Assess lift pump condition including external leaks, unusual noise, or reduced pressure. Inspect fuel tank cap and vent system for proper sealing and clear vent passages.

Document inspection findings with photos and notes. This creates a baseline for comparison during future inspections. Small changes over time often indicate developing problems that warrant closer monitoring or preventive replacement. Professional inspections provide additional value through specialized diagnostic equipment that detects issues invisible to visual examination.

Using Fuel Additives and Quality Diesel Fuel

Quality diesel fuel from reputable sources contains fewer contaminants and maintains better stability throughout storage and use. Major-brand fuel stations typically provide consistent quality with appropriate additives already blended. This base quality prevents many problems that contribute to air intrusion and fuel system degradation.

Supplemental diesel fuel additives provide multiple benefits that directly prevent air-related issues. Premium additives address root causes of fuel system degradation that eventually lead to air leaks. Improved lubricity protects injection system components from excessive wear that creates leak pathways. Detergent packages keep injectors and fuel passages clean, preventing deposits that affect sealing surfaces.

Diesel fuel must meet ASTM D975 specifications, which establish minimum cetane number, lubricity, and other quality parameters for reliable engine operation. Cold-weather additives deserve special attention in northern climates. Fuel gelling and wax precipitation can damage filters and create air pockets that compound starting problems.

Frequently Asked Questions

What causes air to get into a diesel fuel system?

Air enters diesel fuel systems primarily through the negative pressure created by the lift pump. Unlike gasoline systems that push fuel under positive pressure, diesel systems pull fuel from the tank through suction. This suction draws air inward through any weakness in the system—cracked rubber hoses, loose fittings, worn lift pump seals, damaged filter housing gaskets, or compromised injector return lines. Even pinhole-sized openings can introduce enough air to cause performance problems because the system actively pulls air through any available pathway.

How do I know if there is air in my diesel fuel system?

The most common symptom is hard starting after the vehicle sits for several hours or overnight. Other indicators include rough idling with engine vibration, sudden power loss during acceleration or under load, white or gray exhaust smoke, and unexpected stalling at idle or low speeds. If your engine starts normally when warm but struggles after sitting, and you notice the tachometer fluctuating at idle, air intrusion is the likely cause. These symptoms often appear in combination rather than isolation.

Can I drive with air in my diesel fuel lines?

While you may be able to operate the vehicle short-term, driving with air in the fuel system is not recommended. Air causes incomplete combustion that wastes fuel, produces excess emissions, and stresses injection components. More importantly, air contamination can cause sudden power loss during highway driving or under load—creating dangerous situations. The condition typically worsens over time as air pockets grow larger. Address the underlying leak promptly to prevent costly injection pump damage and avoid roadside breakdowns.

How long does it take to bleed air from a diesel fuel system?

Proper bleeding typically takes 15 to 45 minutes depending on system complexity and how much air has accumulated. Simple systems with easily accessible bleed points may require only 50-100 pumps of the hand primer and basic injector line bleeding. Modern common rail systems with electronic bleeding functions may complete automatically in 5-10 minutes through diagnostic scan tool activation. Systems that have run completely dry require more extensive bleeding at each point from tank to injectors.

Why does my diesel keep getting air in the fuel system?

Recurring air problems indicate an unresolved leak that continues drawing air into the system. Common culprits include deteriorated rubber fuel hoses with hidden cracks on the underside, worn lift pump diaphragms or seals, failed quick-connect couplers with compromised internal o-rings, and fuel filter housing gaskets that weren’t properly seated during the last filter change. Systematic vacuum testing of each fuel system section identifies the leak source. Simply bleeding the system without finding and repairing the actual leak ensures the problem will return.

Eliminating Air Intrusion for Reliable Diesel Performance

Air infiltration in diesel fuel systems represents a predictable challenge that demands proper understanding and prompt action. The negative pressure environment in these systems creates multiple opportunities for air entry through worn hoses, loose fittings, failed seals, and damaged components. Recognizing the symptoms early prevents minor issues from escalating into major breakdowns that sideline equipment when you need it most.

Effective diesel fuel system air solutions start with systematic diagnosis. Visual inspections, vacuum testing, and professional smoke testing identify hidden leak points throughout the system. Each entry point must be addressed to achieve complete resolution. Proper bleeding procedures form essential skills for every diesel technician—routine filter changes and repairs inevitably introduce air that requires thorough removal.

Investing in quality repairs delivers lasting fuel system reliability. Upgraded fuel lines, properly sealed filter housings, and rebuilt lift pumps eliminate recurring air problems. Regular inspection schedules and quality fuel protect your investment. Following manufacturer service intervals and environmental protection practices keeps seals and components in optimal condition, ensuring your diesel engines deliver the reliable performance your operation depends on.
