Diesel Engine Sensor Diagnostics: Testing and Replacement Guide

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: December 2025

Diesel engine sensor diagnostics form the foundation of effective troubleshooting for modern commercial vehicles. When a fleet truck pulls into your shop with erratic performance or warning lights illuminated, the electronic control systems and monitoring devices often hold the answers. These precision components manage critical functions including fuel injection timing, air-fuel ratios, turbocharger boost levels, and emissions compliance.

Without properly functioning sensors, your diesel engine cannot operate at peak efficiency. Failed monitoring devices cause immediate consequences: reduced fuel economy, loss of power, excessive exhaust smoke, and illuminated check engine lights. Electrical problems frequently stem from damaged wiring, corroded connectors, or malfunctioning engine control modules.

This guide walks fleet managers, diesel technicians, and owner-operators through identification, testing, and replacement procedures for critical monitoring components. Proper diagnostics prevent costly repairs, reduce vehicle downtime, and extend powerplant service life.

Understanding Diesel Engine Sensors and Electronic Control Systems

Sensors serve as the communication bridge between a diesel engine’s mechanical components and its electronic control unit (ECU). These precision devices continuously gather data about engine operating conditions and transmit this information to the ECU, which acts as the engine’s brain. Modern onboard diagnostic systems depend entirely on sensor data to monitor emissions-related components and detect potential faults.

The ECU uses sensor readings to make thousands of adjustments every minute. Parameters monitored include air intake volume, fuel pressure, exhaust gas composition, coolant temperature, and crankshaft position. This constant stream of information optimizes fuel injection timing, adjusts boost pressure, and manages exhaust gas recirculation valve operation.

The evolution from mechanical to electronic diesel engines represents a fundamental shift in how these powerplants operate. Earlier systems relied on purely mechanical fuel injection and timing mechanisms. Today’s engines achieve better cold-start performance, reduced smoke emissions, and enhanced diagnostic capabilities through sophisticated sensor networks that communicate via protocols like SAE J1939.

When sensors fail or provide inaccurate readings, consequences extend throughout the entire engine system. The ECU may trigger limp mode, reduce power output, or cause excessive fuel consumption. Prompt diagnosis becomes essential to maintain reliability and prevent cascading problems.

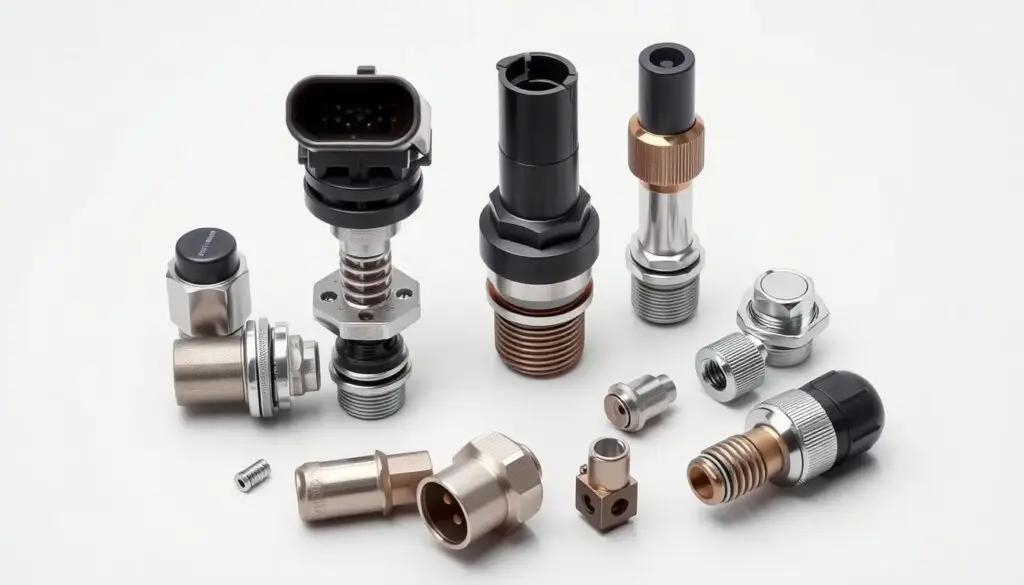

Common Types of Sensors in Modern Diesel Engines

A typical diesel engine contains multiple sensor types, each designed to measure specific operational parameters. Understanding each sensor’s function helps technicians diagnose problems quickly and accurately.

Air Intake and Pressure Measurement

The MAF sensor measures both the volume and density of air entering the engine, allowing the ECU to calculate precise fuel delivery for optimal combustion. Most MAF sensors use a heated wire or film element that cools as air passes over it. When this sensor fails, the engine experiences rough idling or hesitation during acceleration.

The MAP sensor tracks pressure changes inside the intake manifold to determine engine load. This becomes especially important in turbocharged diesel applications where boost pressure affects fuel delivery calculations. Unlike temperature sensors that measure heat, the MAP sensor uses a piezoelectric element that generates voltage based on pressure changes.

Emissions Monitoring Components

Oxygen sensors monitor exhaust gas composition to ensure proper fuel-air mixture. Modern diesel engines also incorporate NOx sensors that work with selective catalytic reduction systems to reduce nitrogen oxide emissions. These sensors provide critical feedback for meeting EPA environmental standards.

Exhaust gas temperature sensors protect turbochargers and diesel particulate filters from thermal damage. These sensors use thermistor technology that changes resistance based on temperature, alerting the ECU when components approach dangerous heat levels.

Position and Timing Sensors

Crankshaft and camshaft position sensors provide essential timing information to the ECU. These sensors enable precise fuel injection timing and verify proper engine synchronization. Most use magnetic or Hall-effect technology to detect rotating teeth or tabs on the crankshaft pulley or camshaft gear.

Without accurate position sensor data, the engine cannot determine which cylinder requires fuel injection. Position sensor failures often cause hard starting, rough running, or complete no-start conditions.

Recognizing Symptoms of Sensor Failure

Faulty sensors rarely fail silently—they produce distinct warning signs that every diesel operator should recognize. Learning to identify sensor failure symptoms early helps address problems before they escalate into costly repairs.

Performance Degradation Indicators

When sensors malfunction, your engine struggles to maintain proper operation. Power loss during acceleration becomes noticeable, especially when merging onto highways or climbing hills. The engine may hesitate or stumble when you press the accelerator pedal. Rough idling represents another clear indicator—excessive vibration at stoplights or unusual sounds at idle often stem from incorrect air-fuel ratios caused by failed MAF or MAP sensors.

Crankshaft position sensor failures create timing problems that prevent the engine from reaching normal operating speeds. You might experience difficulty starting, or the engine may cut out unexpectedly while driving.

Fuel Economy and Emissions Issues

Sensor malfunctions directly impact combustion efficiency, leading to fuel economy issues noticeable at the pump. Typical miles per gallon can drop by 10-30% when sensors provide incorrect data to the engine control unit.

Excessive diesel smoke indicates specific sensor failures. Black smoke signals overfueling from air intake sensor problems. White smoke suggests unburned fuel due to temperature sensor issues. Blue smoke points to oil consumption potentially related to turbo boost sensor malfunctions.

Dashboard Warning Indicators

Modern diesel engines illuminate the check engine light when sensors report abnormal readings. This dashboard warning indicates the system has stored diagnostic trouble codes that identify specific problems. Other warning indicators include the glow plug light staying on longer than normal or the DPF regeneration light appearing frequently. Your vehicle may enter limp mode, restricting power to protect the engine from damage.

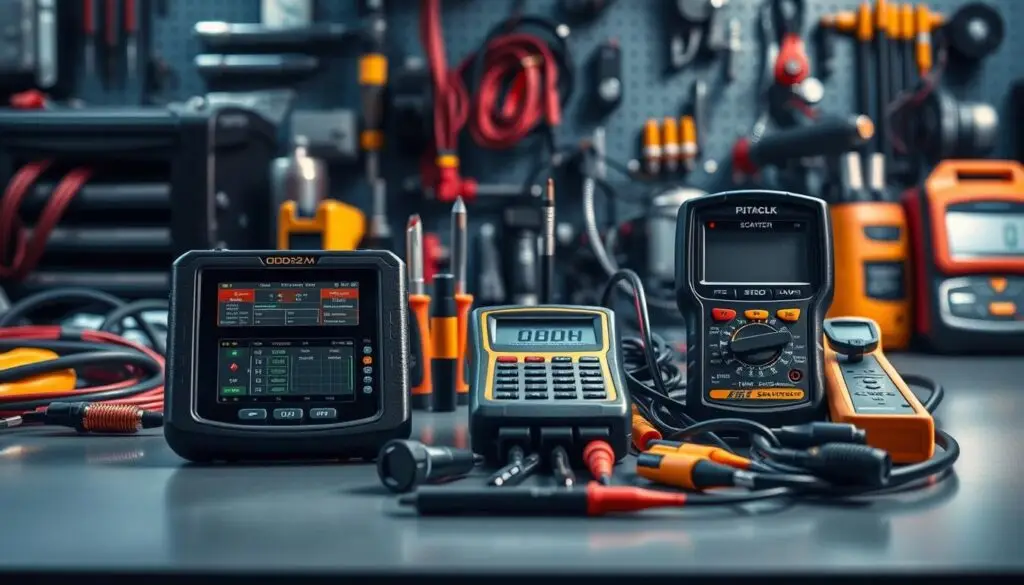

Essential Diagnostic Tools and Safety Procedures

The foundation of effective diesel engine sensor diagnostics starts with quality diagnostic equipment and a commitment to workplace safety. Without proper tools and safety knowledge, even experienced mechanics may struggle to pinpoint sensor failures or risk injury during testing procedures.

Scan Tools and Code Readers

An OBD scanner serves as the primary tool for diagnosing modern diesel engine problems by connecting to the vehicle’s on-board diagnostic system. These devices communicate with the ECU through the data link connector to retrieve diagnostic trouble codes and monitor real-time engine data. Basic code readers provide entry-level functionality for retrieving and clearing fault codes but offer limited capabilities for in-depth testing.

Professional-grade scan tools deliver advanced features including live data streaming showing sensor readings in real-time, bi-directional controls for activating components during testing, freeze frame data capturing engine conditions when faults occur, sensor graphing capabilities for visualizing performance patterns, and manufacturer-specific functions for brands like Cummins, Duramax, and Power Stroke.

Multimeters and Oscilloscopes

A digital multimeter serves as an essential instrument for testing sensor circuits. This versatile tool measures voltage, resistance, and current flow to verify proper operation of electrical components. Technicians use multimeters to check power supply voltage to sensors, ground circuit continuity, signal output values, and wire resistance indicating connection problems.

An oscilloscope provides waveform analysis for dynamic sensors that produce changing signals. This advanced tool displays voltage patterns over time, making it ideal for testing crankshaft position sensors, camshaft sensors, and mass airflow sensors. The visual representation helps identify signal irregularities that multimeters cannot detect.

Safety Protocols

Proper safety procedures protect technicians from electrical shock, burns, and mechanical injuries during diagnostic work. Always disconnect the battery negative terminal before working on electrical systems to prevent short circuits. Essential practices include wearing appropriate personal protective equipment, ensuring proper ventilation when running engines indoors, using jack stands rather than relying solely on hydraulic jacks, and following lockout-tagout procedures for commercial fleet applications as required by OSHA regulations.

Reading and Interpreting Diagnostic Trouble Codes

Diagnostic trouble codes serve as your diesel engine’s direct communication channel, providing precise information about sensor performance and system health. Dashboard warning lights provide valuable diagnostic information that helps pinpoint issues related to sensor codes, turbocharger function, fuel delivery, or emissions systems.

The standardized OBD codes follow a specific structure where codes beginning with “P” indicate powertrain issues. Sensor-related fault codes typically fall into the P01xx through P03xx ranges. For example, P0100-P0199 codes relate to fuel and air metering sensors including MAF and MAP sensors. Common diesel sensor codes include P0101 for MAF sensor range issues, P0235 for turbocharger boost sensor circuit problems, and P0335 for crankshaft position sensor circuit faults.

Understanding Code Types

Understanding the difference between code types is essential for effective DTC interpretation. Current codes represent active faults present right now, while pending codes indicate intermittent issues detected but not yet confirmed. Permanent codes identify emissions-related faults that require specific drive cycles to clear completely.

Remember that a code alone does not always mean the sensor itself is faulty. Wiring issues, connector corrosion, or ECM problems can generate the same sensor codes. Research manufacturer-specific code definitions, as some codes have different meanings across different diesel engine brands. Proper error code reading requires using live data parameters alongside stored codes to verify sensor failures.

Testing Air Intake and Pressure Sensors

Air intake sensors monitor critical combustion parameters that directly affect diesel engine efficiency and power output. Accurate diagnostics prevent performance issues caused by restricted airflow from clogged intercoolers or carbon buildup in the intake manifold.

MAF Sensor Testing Procedures

Begin MAF sensor testing with a thorough visual inspection for dirt accumulation, oil contamination from over-oiled air filters, or physical damage to the sensing element. These contaminants interfere with accurate airflow measurements and trigger performance problems.

Use a scan tool to monitor sensor readings in grams per second at idle and under acceleration. Light-duty diesels typically show 2-7 g/s at idle and 15-25 g/s at 2000 RPM. Readings outside these ranges indicate sensor failure or airflow restrictions. Multimeter testing verifies electrical circuit integrity for hot-wire and hot-film sensors. Check the 5-volt reference signal from the ECM, verify ground circuits, and measure output voltage ranging from 0.5 to 4.5 volts depending on airflow volume.

MAP Sensor Signal Verification

MAP sensor testing procedures become particularly important in turbocharged diesel applications where accurate pressure readings control boost levels. Start by verifying the sensor’s 5-volt reference supply and checking for proper ground connections.

Measure output signal voltage with the engine off, which should read approximately atmospheric pressure around 4.5 volts at sea level. At idle, expect readings between 1-2 volts. Under boost conditions, voltage increases proportionally with turbo pressure. Use a hand vacuum pump to simulate different pressure conditions and verify the sensor’s response curve.

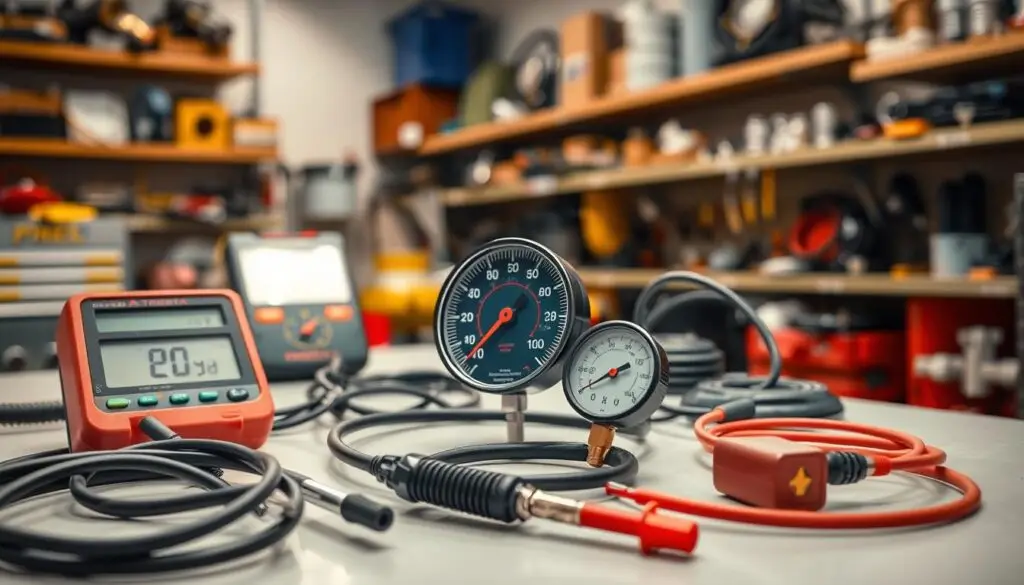

Diesel Engine Sensor Diagnostics for Temperature and Pressure

Testing temperature and pressure sensors requires systematic procedures to verify their accuracy and identify potential failures before they affect engine performance. Understanding how to properly diagnose each sensor type helps pinpoint problems quickly and avoid unnecessary part replacement.

Coolant Temperature Sensor Testing

The coolant temperature sensor monitors engine operating temperature and directly influences cold-start fuel enrichment, glow plug timing, and cooling fan activation. This sensor typically shows 2,000-3,000 ohms of resistance at 70°F and drops to 200-300 ohms at 210°F as the engine warms up.

To test the sensor, disconnect the electrical connector and use a digital multimeter set to measure resistance. Compare readings against the manufacturer’s resistance-temperature curve for your specific engine model. Any significant deviation from specifications indicates sensor failure. For comprehensive testing, remove the sensor and immerse it in a container of water heated to various temperatures while monitoring resistance changes.

Fuel Pressure Sensor Verification

The fuel pressure sensor plays a critical role in common rail diesel systems, which operate at pressures ranging from 5,000 to 30,000+ PSI depending on load conditions. Sensor failures can cause hard starting, power loss, excessive smoke, and poor fuel economy.

Verify sensor accuracy by connecting a mechanical fuel pressure gauge to the test port on the fuel rail. Start the engine and compare the gauge reading to your scan tool data or sensor output voltage. Any discrepancy greater than 500 PSI indicates sensor drift requiring calibration or replacement. During cranking, expect to see approximately 5,000-8,000 PSI. At idle, pressure typically settles around 6,000-10,000 PSI, then increases significantly during acceleration.

Testing Position and Emissions Sensors

Position sensors and emissions monitoring systems are critical components requiring precise diagnostic procedures. These sensors provide essential data to the engine control unit for proper timing and environmental compliance.

Crankshaft and Camshaft Position Sensor Testing

Two main sensor types exist: magnetic reluctance sensors and Hall-effect sensors. Each requires different testing approaches. Magnetic reluctance sensors generate their own AC voltage signal as metal teeth pass by the sensor tip. Set your digital multimeter to AC voltage mode while cranking the engine. Typical outputs range from 0.5 to 10 volts AC depending on cranking speed.

Check the internal coil resistance, which should measure between 200 and 900 ohms. Verify the air gap between the sensor tip and reluctor wheel stays within 0.020 to 0.050 inches. Excessive gaps cause weak signals and intermittent operation failures. Hall-effect sensors require external power and produce square-wave digital signals. Verify the power supply reads 5 volts or 12 volts, check ground circuits for continuity, and observe signal output using a scan tool.

Oxygen and NOx Sensor Testing

Modern diesel engines use specialized sensors to meet strict emissions standards. Oxygen sensor testing involves checking heater circuit operation first, as sensors must reach 600 to 900 degrees Fahrenheit to function properly. Use a current clamp or voltage drop test to verify heater performance.

NOx sensors monitor nitrogen oxide levels in selective catalytic reduction systems, measuring exhaust content before and after the SCR catalyst to verify DEF injection effectiveness. Failed NOx sensor components trigger warning lights and may force the engine into reduced power mode. EPA regulations can prevent vehicle operation when emissions sensors malfunction.

Sensor Replacement Best Practices

Proper sensor replacement involves more than simply swapping parts—it requires methodical preparation, precise installation techniques, and post-installation calibration. Taking shortcuts during this process can lead to continued performance issues, damage to components, or premature failure of the new sensor.

Preparation and Parts Selection

Gathering the right tools before starting saves time and prevents frustration. You will need appropriate sockets, wrenches, a torque wrench, dielectric grease, and thread sealant where required. Before beginning any replacement work, inspect all electrical connections for corrosion, looseness, or broken wires. Many sensor issues stem from wiring problems rather than sensor failure itself.

The choice between OEM sensors and aftermarket sensors significantly impacts repair success. Original equipment manufacturer parts guarantee exact fit and specifications. Quality aftermarket sensors from reputable manufacturers like Bosch, Delphi, or Denso provide reliable performance at lower cost. Avoid cheap no-name sensors that may have incorrect calibration or poor temperature tolerance.

Installation and Calibration

Different sensor locations require specific removal approaches to prevent damage. For sensors in exhaust systems, remove them from a warm engine rather than hot or cold to prevent thread seizure. Use specialized oxygen sensor sockets with cutouts for wiring when working with exhaust components. Apply anti-seize compound to sensor threads while keeping it away from the sensing element. Use proper torque specifications to prevent thread damage or sensor body cracking.

Sensor calibration often becomes necessary after installation to ensure proper communication with the engine control module. Some sensors require relearn procedures such as throttle position relearns or injector quantity adjustments. Failure to complete calibration may result in poor performance or stored fault codes even though the new sensor functions correctly.

Post-Replacement Verification and Preventive Maintenance

Successful sensor replacement requires systematic post-replacement testing that validates the entire repair process. Proper verification confirms the new component functions correctly and the original problem is resolved.

Clearing Codes and Confirming Operation

Never clear codes until you confirm all repairs are complete and electrical connections are secure. Use your scan tool’s erase codes function rather than disconnecting the battery. Battery disconnection causes loss of adaptive memory, radio presets, and security codes. After clearing codes, cycle the ignition off and back on, then check immediately for code return.

Monitor live data streams to verify new sensors function within normal parameters. Check readings at idle, during throttle changes, and under varying load conditions. Each sensor type has specific verification criteria. MAF sensors should show steady increasing values with throttle application. Coolant temperature sensors must display gradual warming from cold start to operating temperature.

Preventive Maintenance Strategies

A well-planned maintenance schedule protects sensors from premature failure and keeps your diesel engine running efficiently. Maintenance schedules should include sensor inspections during regular service intervals. Most sensors benefit from visual checks every 5,000 to 10,000 miles or annually.

Contamination represents the leading cause of premature sensor failure. Oil contamination on MAF sensors from over-oiled air filters causes false readings. Carbon buildup on oxygen sensors reduces sensitivity and response time. Use properly oiled air filters, maintain cooling system integrity, address oil consumption issues promptly, apply dielectric grease to electrical connectors, and use quality diesel fuel from reputable suppliers.

Fleet operations subject to 49 CFR Part 396 maintenance requirements should document all sensor inspections and repairs as part of systematic inspection programs. This documentation supports compliance with FMCSA vehicle maintenance regulations and provides valuable records for tracking recurring issues.

Frequently Asked Questions

What are the most common symptoms of failing diesel engine sensors?

The most common symptoms include loss of power during acceleration, rough idling, poor fuel economy, excessive exhaust smoke in black, white, or blue colors, illuminated check engine lights, hard starting conditions, and engine stalling. Many modern diesel engines enter reduced power mode when critical sensors fail. If you experience these symptoms, retrieve diagnostic trouble codes promptly to identify which sensor system is malfunctioning.

Can I use a basic OBD-II code reader for diesel engine sensor diagnostics?

A basic OBD-II code reader will retrieve stored diagnostic trouble codes from diesel engines manufactured after 1996, but its capabilities are limited. Basic readers cannot provide live data streaming, bi-directional controls, or manufacturer-specific functions that professional technicians rely on for comprehensive diagnostics. For thorough diesel sensor testing, you need an advanced scan tool that displays live sensor values in real-time, graphs data parameters, shows freeze frame information, and provides enhanced capabilities for brands like Cummins, Duramax, or Power Stroke.

Should I buy OEM sensors or are aftermarket sensors reliable for diesel engines?

Quality aftermarket sensors from reputable manufacturers like Bosch, Delphi, and Denso can provide reliable performance comparable to OEM parts, often at 30-50% lower cost. These established manufacturers actually supply many OEM sensors to vehicle makers. However, avoid cheap no-name sensors from unknown sources, as they may have incorrect calibration, poor temperature tolerance, or premature failure rates. For emissions-related sensors like oxygen and NOx sensors, using quality parts is especially important since failures can trigger reduced engine power modes.

How do I know if a sensor is bad or if it’s just a wiring problem?

Distinguishing between sensor failure and wiring issues requires systematic testing with a digital multimeter. Start by checking the sensor’s power supply and ground circuits. If power and ground are correct, measure the sensor’s output signal and compare it to specifications. Visually inspect connectors for corrosion, bent pins, or moisture intrusion, and perform a wiggle test by moving wiring harnesses while monitoring live data to reproduce intermittent faults. If the sensor shows correct resistance or voltage output when tested off the vehicle but codes return when reconnected, the problem likely exists in the wiring harness, connector, or ECM input circuit.

Why does my check engine light come back on after clearing the codes?

When codes return immediately or shortly after clearing, the underlying problem has not been resolved. The ECM continuously monitors sensor circuits and sets a code whenever it detects values outside normal parameters. Common reasons include overlooked wiring or connector problems, wrong sensor replaced, defective new sensor, required calibration procedures not performed, additional related problems in the system, or ECM issues. Before replacing another sensor, retrieve the code again and perform comprehensive testing including checking wiring, connectors, and related components.

Mastering Diesel Engine Sensor Diagnostics

Catching diesel engine problems early makes the difference between a quick fix and expensive downtime. Proper diesel engine sensor diagnostics protects your investment and keeps your equipment running at peak performance. This guide covered the complete process from identifying failure symptoms to testing procedures and replacement best practices.

Quality diagnostic tools pay for themselves quickly through improved accuracy and reduced diagnostic time. A reliable scan tool, digital multimeter, and manufacturer service information speed up troubleshooting and eliminate guesswork. Preventive care stops small issues from becoming major repairs. Regular inspections, clean air intake systems, and quality fuel protect sensitive sensors and extend component life significantly.

When replacement becomes necessary, choose OEM or quality equivalent parts, follow proper installation procedures, and verify operation through thorough testing. Apply the systematic methods from this guide with patience—a methodical approach beats random parts replacement every time.
