7 Common Cummins ISX Problems: Complete Repair Guide

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: December 2025

The seven most common Cummins ISX problems—turbocharger failures, EGR valve malfunctions, DPF clogging, camshaft wear, fuel injector failures, cooling system leaks, and excessive oil consumption—account for approximately 80% of major ISX repairs across the heavy-duty diesel industry. Turbocharger failures alone represent the highest frequency warranty claim, with replacements costing $2,500-4,000. Fleet operators who recognize early warning signs and follow manufacturer-recommended maintenance intervals report 40-50% lower total cost of ownership compared to reactive maintenance approaches.

The ISX powers thousands of Peterbilt, Kenworth, and Freightliner trucks hauling freight across North America. This 15-liter diesel workhorse delivers 400-600 horsepower and can run up to one million miles with proper care. However, specific failure modes appear more frequently than others, and understanding each issue’s symptoms, causes, and repair costs helps fleet managers and owner-operators make informed maintenance decisions that protect their bottom line.

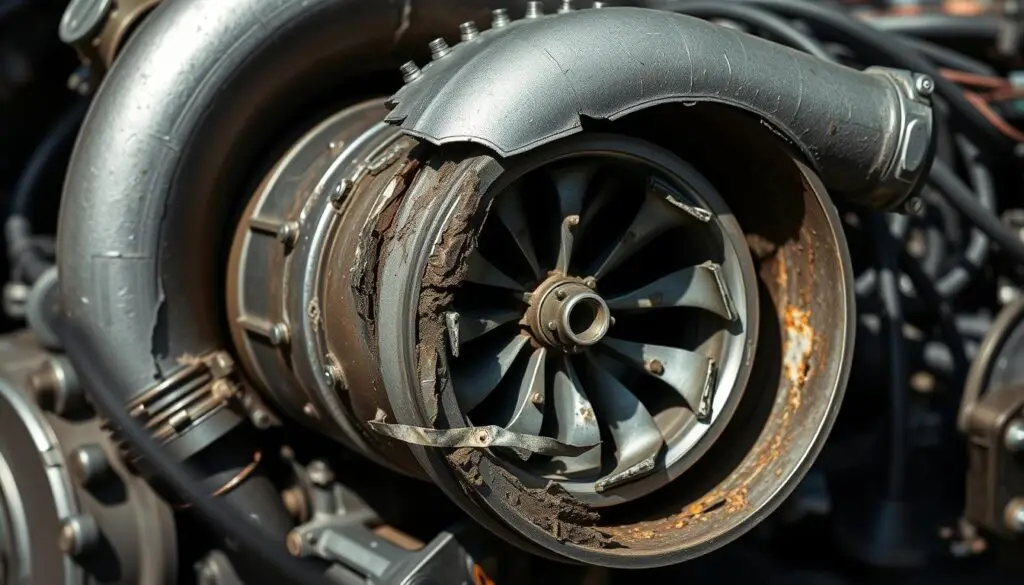

Cummins ISX Turbocharger Failures: The Most Common Problem

Variable Geometry Turbocharger (VGT) failures cause more Cummins ISX problems than any other component. Carbon deposits, soot accumulation, and rust build up inside the turbo housing over time, causing the movable vanes to stick and creating a cascade of performance issues that quickly worsen without intervention.

Industry data from Vehicle Service Pros indicates turbocharger failures represent one of the most frequent warranty claims for heavy-duty diesel engines. Most failures trace back to inadequate lubrication or contaminated oil rather than manufacturing defects—making this a preventable issue in most cases.

Recognizing ISX Turbocharger Warning Signs

Experienced technicians know that turbo problems announce themselves well before catastrophic failure. Excessive oil consumption often appears first, with affected engines burning one quart every 200 miles or less. Operators notice black or blue exhaust smoke during acceleration, particularly when climbing grades or pulling heavy loads.

The engine develops turbo lag at low RPMs and produces whistling or whining sounds under load that change pitch with engine speed. Boost pressure readings consistently fall below 30 PSI during operation—a clear diagnostic indicator when checked with proper gauges. Power delivery feels inconsistent, especially noticeable during grade climbing or when pulling near maximum gross weight.

Turbocharger Repair Costs and Prevention Strategies

Minor turbo issues respond to professional cleaning services costing $300-500. This involves removing the turbo assembly, cleaning the variable geometry mechanism, and verifying proper vane movement before reinstallation. Technicians use specialized solvents and ultrasonic cleaning to remove carbon deposits without damaging precision surfaces.

Severe damage—cracked housings, worn bearings, or damaged compressor wheels—requires complete replacement at $2,500-4,000 including labor. Remanufactured units offer cost savings of 30-40% compared to new assemblies while providing reliable service when sourced from reputable suppliers. New turbochargers typically include warranty coverage that remanufactured units may not match.

Prevention starts with quality oil changes every 15,000 miles using Cummins-approved 15W-40 diesel oil. Synthetic oils provide enhanced high-temperature protection but must meet Cummins CES 20086 specifications. Monthly air filter inspections catch restrictions before they cause turbo damage—a restricted filter forces the compressor to work harder, accelerating wear.

Allowing the engine to idle for 30-60 seconds before shutdown prevents oil coking in the hot bearing housing. This cool-down period is especially important after extended high-load operation like grade climbing or heavy towing. Installing turbo timers provides automatic idle periods when drivers forget this critical step.

EGR Valve Malfunctions Create Significant Power Loss

Exhaust Gas Recirculation valve failures rank second among common ISX reliability concerns. Internal leaks develop over time, allowing coolant to mix with exhaust gases and creating white residue around the valve assembly as the problem progresses.

The EGR system recirculates exhaust back into combustion chambers to reduce nitrogen oxide emissions. This process exposes components to extreme temperatures exceeding 1,200 degrees Fahrenheit and corrosive gases that accelerate wear beyond what most engine components experience.

Industry research from DieselNet shows that EGR technology reduces nitrogen oxide formation inside the cylinder significantly compared to pre-emissions diesel engines. However, this environmental benefit comes with increased maintenance requirements that fleet managers must factor into total cost of ownership calculations.

Symptoms of ISX EGR System Failure

Operators experience significant power loss when climbing grades—often the first complaint that brings trucks into the shop. Dense black smoke appears during hard acceleration, indicating incomplete combustion from improper exhaust gas recirculation rates.

Coolant levels drop without visible external leaks, a telltale sign of internal EGR cooler failure that allows coolant into the exhaust stream. Check engine codes between P0401 and P0409 illuminate the dashboard, requiring diagnostic equipment to identify the specific failure mode. Fuel economy decreases by 15-20% as the system struggles to maintain proper combustion efficiency.

EGR Repair Options and Costs

Early intervention through professional EGR cleaning costs $200-400 and can restore proper function when deposits are the primary issue. Complete EGR valve replacement runs $800-1,500 depending on regional labor rates and whether the cooler also requires replacement.

Some operators consider EGR delete systems, though these modifications remain illegal for on-road use under federal emissions regulations and void emissions warranties. Fleet managers operating in states with stringent emissions testing face additional compliance risks with modified systems.

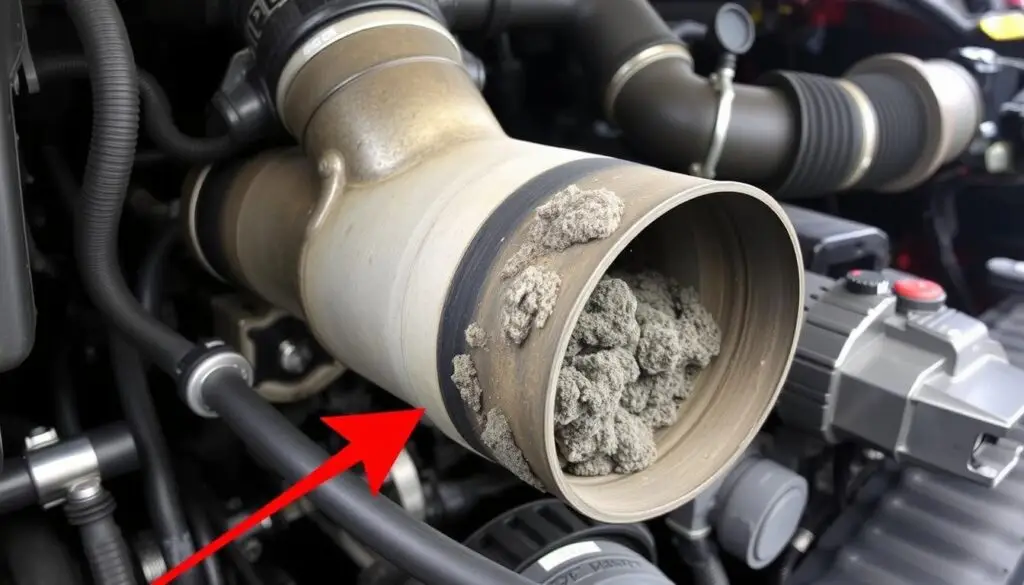

DPF Clogging Reduces ISX Performance and Economy

Diesel Particulate Filter issues plague ISX engines operating in stop-and-go conditions or making frequent short trips. When soot accumulation exceeds regeneration capacity, performance drops dramatically and fuel economy suffers—sometimes by 10% or more.

The Environmental Protection Agency mandated DPF systems on all 2007 and newer heavy-duty diesel engines under the Heavy-Duty Engine and Vehicle Rule. These aftertreatment devices capture over 90% of particulate matter emissions but require proper maintenance protocols to function effectively throughout their service life.

Industry research from DieselNet shows that poorly maintained DPF systems can increase fuel consumption by 4.5-7% due to increased backpressure and more frequent regeneration cycles. Additional backpressure from ash accumulation reduces engine power output and overall efficiency, creating a compounding effect on operating costs.

Preventing ISX DPF Problems

Effective prevention includes driving at highway speeds for 30+ minutes weekly, which allows the DPF to reach temperatures necessary for passive regeneration. Applications involving primarily city driving or short trips require more aggressive management—consider scheduling longer highway runs specifically to maintain DPF health.

Use ultra-low sulfur diesel from reputable suppliers, as fuel quality directly impacts soot characteristics and regeneration efficiency. Off-spec fuel or contaminated tanks cause harder soot deposits that resist normal regeneration temperatures. Install auxiliary fuel filtration for operations in areas with inconsistent fuel quality.

Never shut down the engine during active regeneration, which typically takes 20-40 minutes to complete. Dashboard indicators alert drivers when regeneration is active—educate operators about the importance of completing these cycles. Interrupting regeneration leaves partially burned soot in the filter, creating harder deposits that require professional cleaning to remove.

Monitor backpressure readings monthly to catch restrictions early using portable gauges or telematics data. Establishing baseline readings for each truck allows detection of gradual increases that indicate developing problems. Schedule professional DPF cleaning every 150,000-200,000 miles as preventive maintenance, or sooner if backpressure trends indicate excessive ash accumulation.

Ash accumulation—from normal oil consumption and fuel additives—cannot be removed through regeneration and eventually requires professional cleaning. Even with perfect soot management, ash buildup eventually restricts flow enough to impact performance. Tracking regeneration frequency helps identify when ash loading becomes problematic—increasing regeneration frequency often indicates ash accumulation reducing effective filter capacity.

Camshaft and Rocker Arm Damage Escalates Quickly

Faulty rocker arms create expensive repair scenarios that catch many operators off guard. Without adequate oil flow, rocker arms hammer directly against cam lobes, flattening the hardened surface and destroying precise valve timing specifications critical to engine performance.

This failure mode typically appears between 400,000 and 600,000 miles on engines lacking strict oil change adherence. Once damage starts, it progresses rapidly—often within a few thousand miles—making early detection critical for cost control. What begins as a minor oil flow restriction becomes a major engine overhaul if ignored.

Recognizing ISX Camshaft Problems

Metallic ticking or knocking sounds emerge from the valve cover area, distinct from normal injector noise. Experienced technicians can often identify camshaft wear by sound alone, though diagnostic confirmation remains essential. Compression testing reveals progressive loss in one or more cylinders as valve timing deteriorates.

Oil analysis shows metal particles or excessive debris—the most reliable early warning indicator available to fleet maintenance programs. The engine misfires or runs rough at idle, and power output drops under load. Valve lash measurements exceed factory specifications by 0.010 inches or more, indicating significant wear requiring immediate attention.

Camshaft Repair Costs

Early rocker arm replacement costs $1,500-2,500 when caught before cam lobe damage occurs. Complete camshaft replacement runs $4,000-6,000 including related components and labor. Oil analysis programs that sample at every oil change provide the best protection against this failure mode, typically identifying problems 20,000-30,000 miles before audible symptoms appear.

ISX Fuel Injector Failures From Extreme Pressure

ISX fuel injectors operate at extreme pressures approaching 35,000 PSI—among the highest in the heavy-duty diesel industry. Constant cycling eventually wears out these precision components, and contaminated fuel accelerates failure rates significantly, particularly in regions with questionable fuel quality.

Modern common-rail systems demand exceptional precision. Microscopic wear in injector nozzles disrupts spray patterns and combustion efficiency, leading to performance degradation and increased emissions output. Unlike older mechanical injectors, today’s electronically controlled units require specialized equipment for diagnosis and replacement.

Fuel System Warning Signs

Warning signs include rough idle or noticeable engine miss that may come and go initially. White smoke appears at cold startup, indicating fuel reaching the cylinder without proper atomization. Fuel economy drops below 5 MPG on highway routes that previously delivered 6+ MPG.

Hard starting occurs when the engine reaches operating temperature—counterintuitive to operators expecting cold-start issues. Fuel odor contaminates crankcase oil during routine checks, indicating blow-by past worn injector seals. Balance rates exceed ±4 on individual cylinders during diagnostic testing, requiring scan tool access to identify affected injectors.

Injector Replacement Costs and Diagnostic Approach

Individual injector replacement costs $400-600 per unit including labor. A complete set runs $2,400-3,600 depending on labor rates and whether additional fuel system components require service. Many shops recommend replacing injectors in pairs or complete sets to ensure balanced performance across all cylinders.

Diagnostic testing should include injector balance rate analysis using factory-level scan tools. Balance rates indicate how much the engine management system adjusts individual injector pulse widths to maintain even cylinder contribution. Rates exceeding ±4 indicate problematic injectors requiring attention. Return flow testing identifies internal leakage that reduces injection pressure and causes performance issues.

Quality fuel filters changed every 15,000 miles protect this expensive system from contamination damage. Consider installing auxiliary fuel filtration for operations in areas with questionable fuel quality. Water separators require daily draining during humid conditions, and fuel tank contamination from condensation during seasonal temperature swings causes more injector problems than most operators realize.

Cooling System Leaks: A Leading Cause of ISX Engine Failures

The ISX cooling system develops leaks at predictable locations as mileage accumulates. Head gaskets, EGR coolers, and radiators fail most frequently, often leaving operators stranded when coolant loss goes unnoticed during pre-trip inspections.

According to Fleet Maintenance magazine, cooling system failures account for 40-50% of major engine problems in heavy-duty diesels. Most failures occur between 300,000 and 500,000 miles when components reach the end of their service life—a critical window for proactive inspection and replacement.

Common ISX Cooling System Leak Locations and Repair Costs

EGR cooler repairs run $1,200-1,800 and often reveal themselves through unexplained coolant loss or white exhaust. Internal cooler failures allow coolant into the exhaust stream, eventually damaging downstream components including the DPF if not addressed promptly. External cooler leaks typically present as puddles or wet spots near the cooler assembly.

Head gasket replacement costs $3,000-4,500, typically identified through compression testing or coolant pressurization tests that reveal external bubbling. Combustion gases entering the cooling system cause coolant pH changes detectable through regular testing. Catching head gasket problems early—before significant coolant contamination occurs—prevents the more expensive scenario of engine damage from overheating.

Radiator replacement ranges from $800-1,500 depending on whether aluminum or copper-brass construction is specified. Aluminum radiators offer weight savings but require more careful handling during service. Tank and header leaks on aluminum units often require complete replacement, while copper-brass units can sometimes be repaired economically.

Water pump service runs $400-700, with bearing wear often announced by coolant weepage from the weep hole well before catastrophic failure. The weep hole provides early warning—any coolant staining around this area indicates bearing seal degradation requiring attention. Thermostat housing repairs cost $200-400, with housings frequently cracking due to thermal cycling stress, particularly on engines operating in extreme temperature environments.

Coolant Maintenance Best Practices

Coolant testing every 60,000 miles identifies chemical imbalances before component damage occurs. Test strips provide quick field assessment, while laboratory analysis offers comprehensive data on additive depletion, contamination levels, and remaining protection capability.

Use only Cummins-approved coolants and additives, and maintain concentration levels between 40-60% for optimal freeze and corrosion protection. Extended Life Coolant (ELC) formulations provide longer service intervals but still require periodic testing to verify protection levels. Never mix coolant types without complete system flush—incompatible formulations can form deposits that block cooling passages and reduce heat transfer efficiency.

Excessive Oil Consumption Signals Internal Engine Wear

Oil consumption affects many high-mileage ISX engines operating beyond 500,000 miles. Normal consumption ranges around one gallon per 1,000 miles—any significantly higher rate indicates developing mechanical issues requiring attention before they progress to major failures.

Multiple factors contribute to excessive consumption in high-mileage ISX engines. Worn piston rings allow oil past compression rings into combustion chambers. Turbocharger seal failures pump oil into the intake system, often appearing as blue exhaust smoke. Valve guide wear creates passages into combustion chambers, particularly noticeable during deceleration.

Crankcase ventilation malfunctions increase internal pressure, forcing oil past seals designed for normal operating conditions. Damaged cylinder wall glazing from improper break-in procedures accelerates wear patterns throughout the engine, though this issue typically appears earlier in engine life.

Addressing High ISX Oil Consumption

Turbo seal replacement resolves many consumption issues at $2,500-4,000. In-frame overhauls run $15,000-20,000 but extend engine life by 300,000+ miles when performed at appropriate intervals—typically when consumption exceeds two gallons per 1,000 miles or compression readings fall below specifications.

Monitor consumption through regular checks between service intervals, as sudden increases signal immediate mechanical problems requiring diagnosis. Document consumption rates to establish baselines for your specific operating conditions—engines running mountainous routes typically consume more than flatland operations.

Preventive Maintenance Reduces ISX Repair Frequency

Following manufacturer-recommended service intervals prevents most major failures before they occur. Fleet operators who implement proactive maintenance programs report 40-50% lower total cost of ownership compared to reactive approaches that address problems only after breakdown.

Industry research from Fleet Management Weekly shows that preventive maintenance is the most popular strategy for addressing downtime among maintenance professionals. Proactive programs reduce unscheduled downtime significantly while extending component life across heavy-duty fleets.

Documentation protects resale value and helps diagnose recurring issues. Successful owner-operators maintain detailed service logs tracking every fluid change, filter replacement, and repair throughout engine lifespan. Electronic maintenance tracking systems make this process easier while providing data for identifying patterns across multiple vehicles.

Oil analysis programs represent one of the most cost-effective preventive measures available. For approximately $25-35 per sample, laboratory analysis identifies developing problems—metal wear, coolant contamination, fuel dilution, soot loading—thousands of miles before symptoms become apparent. Fleet managers who sample at every oil change catch problems early enough to schedule repairs conveniently rather than dealing with roadside breakdowns.

Establishing baseline data for each engine allows comparison over time. Normal wear rates vary by application—engines running mountainous routes experience different patterns than flatland operations. What matters most is detecting changes from established baselines that indicate developing problems requiring attention.

When Professional ISX Diagnostics Become Necessary

Complex engine issues require professional diagnosis with specialized equipment. Modern ISX engines contain hundreds of sensors and sophisticated control systems demanding factory-level scan tools for accurate troubleshooting—consumer-grade code readers provide limited insight into actual problems.

Contact a certified Cummins service center when multiple warning lights illuminate simultaneously or when the engine enters derate mode. Seek professional help when the engine refuses to start after basic troubleshooting attempts, or when unusual mechanical noises develop suddenly without obvious cause.

Performance drops exceeding 20% without obvious cause warrant diagnostic evaluation, as do oil pressure readings falling below 20 PSI at normal idle. Cross-contamination between coolant and oil—identified by milky appearance or sweet smell—indicates severe internal damage needing expert evaluation before continued operation causes additional damage.

Value of Professional Diagnostic Equipment

Professional diagnostic equipment reads fault codes accurately and identifies intermittent problems that escape basic troubleshooting. Factory-level scan tools access all engine control modules and provide freeze frame data showing conditions when faults occurred—critical information for diagnosing problems that don’t present during shop testing.

Experienced technicians often identify multiple related issues during a single diagnostic session, saving time and money over repeated repair attempts that address symptoms rather than root causes. For example, a rough idle might trace to injector problems, but proper diagnostics could reveal that fuel system pressure issues caused accelerated injector wear—fixing only the injectors guarantees repeated failure.

Investing $100-200 for comprehensive diagnostics prevents expensive misdiagnosis and unnecessary part replacement. The cost of proper diagnosis pales compared to replacing components that weren’t actually causing the problem—a scenario that happens more often than fleet managers want to admit. Building relationships with diagnostic-capable shops pays dividends when complex problems arise.

Remote diagnostic services increasingly supplement in-person diagnosis. Telematics systems can transmit fault code data to experts who analyze patterns across large fleet databases, identifying likely causes based on similar symptoms in thousands of other vehicles. This approach accelerates diagnosis while reducing shop time for common issues.

Frequently Asked Questions

What is the most common problem with Cummins ISX engines?

Variable Geometry Turbocharger (VGT) failures represent the most common Cummins ISX problem, accounting for more warranty claims than any other component. Carbon deposits, soot accumulation, and rust build up inside the turbo housing over time, causing the movable vanes to stick. Most turbo failures trace back to inadequate lubrication or contaminated oil rather than manufacturing defects. Professional cleaning costs $300-500 for minor issues, while complete replacement runs $2,500-4,000. Prevention through quality oil changes every 15,000 miles and monthly air filter inspections significantly reduces turbo failure rates.

How many miles can a Cummins ISX last with proper maintenance?

A properly maintained Cummins ISX engine can reliably deliver one million miles or more before requiring major overhaul. Achieving this longevity requires following manufacturer-recommended service intervals, using quality fluids meeting Cummins specifications, and addressing warning signs immediately rather than waiting for complete component failure. Fleet operators who implement comprehensive preventive maintenance programs report 40-50% lower total cost of ownership compared to reactive maintenance approaches. The key factors include consistent oil changes, regular oil analysis, proper coolant maintenance, and attention to air filtration quality.

How much does it cost to rebuild a Cummins ISX engine?

In-frame ISX rebuilds typically cost $15,000-20,000 including parts and labor, while complete out-of-frame overhauls can run $25,000-35,000 depending on component condition and regional labor rates. An in-frame rebuild addresses pistons, liners, bearings, and related components while leaving the block in the chassis. This extends engine life by 300,000+ miles when performed at appropriate intervals. The decision between rebuild and replacement depends on overall engine condition, truck value, and remaining service life requirements. Many fleet managers find rebuilding more cost-effective than new or remanufactured engine purchase.

What causes excessive oil consumption in ISX engines?

Excessive oil consumption in ISX engines—defined as more than one gallon per 1,000 miles—results from multiple potential causes. Worn piston rings allow oil into combustion chambers, turbocharger seal failures pump oil into the intake system, and valve guide wear creates oil passages into cylinders. Crankcase ventilation malfunctions increase internal pressure, forcing oil past seals. Normal consumption around one gallon per 1,000 miles is expected on high-mileage engines. Sudden increases warrant immediate diagnostic attention, while gradual increases typically indicate normal wear progression requiring planned intervention.

How often should DPF regeneration occur on an ISX engine?

Normal passive DPF regeneration occurs continuously during highway operation when exhaust temperatures exceed 600°F. Active regeneration cycles—where the engine management system raises temperatures to burn accumulated soot—should occur every 300-500 miles under typical operating conditions. More frequent regeneration indicates potential problems including excessive idle time, short trip operation, faulty sensors, or fuel system issues affecting combustion quality. Less frequent regeneration may indicate sensor problems preventing proper soot load detection. Monitoring regeneration frequency through telematics or driver observation helps identify developing issues before DPF clogging causes derate conditions.

Protecting Your ISX Investment Through Proactive Maintenance

Understanding common Cummins ISX problems helps fleet managers and owner-operators make informed maintenance decisions that protect their bottom line. The seven issues covered here—turbocharger failures, EGR malfunctions, DPF clogging, camshaft wear, fuel injector failures, cooling system leaks, and excessive oil consumption—account for approximately 80% of major ISX repairs across the trucking industry.

Regular preventive maintenance prevents most failures before they occur. Oil changes every 15,000 miles, quality filter replacements, proper coolant maintenance, and immediate attention to warning signs extend engine life significantly while reducing total operating costs. When problems arise, accurate professional diagnosis determines whether repairs cost $300 or $4,000.

ISX engines reliably deliver one million miles or more with proper care. Following recommended service schedules, monitoring performance changes carefully, and addressing problems early maximizes uptime while protecting the equipment investment that keeps freight moving across North America.
