Tandem Axle Alignment: Complete Diagnostic and Repair Guide

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: February 2026

📖 Estimated reading time: 31 minutes

Proper tandem axle alignment can make the difference between a safe highway journey and a dangerous towing situation. When your trailer pulls to one side or exhibits unexpected swaying, these warning signs often point to tracking issues that demand immediate attention. Understanding how your trailer’s wheels work together is essential for every owner who values safety on the road.

Dealerships routinely perform alignment checks as standard practice because trailer tracking problems affect vehicles of all ages. Even brand-new installations require calibration to ensure optimal performance. Many owners discover their rigs need adjustment after noticing uneven tire wear or difficulty maintaining a straight path during highway travel.

The impact of proper calibration extends beyond towing safety. Correct wheel positioning improves fuel efficiency, reduces tire wear, and enhances overall towing stability. This maintenance consideration isn’t a one-time fix—it’s an ongoing responsibility that becomes especially critical after component replacement or when experiencing symptoms like pulling or swaying.

Understanding Tandem Axle Systems and Why Alignment Matters

Proper alignment in tandem axle systems directly determines whether your trailer operates at peak efficiency or becomes a costly liability. The alignment of your trailer’s axles affects everything from tire longevity to fuel consumption, making it a fundamental maintenance priority. Understanding how these systems work empowers operators to prevent problems before they escalate into expensive repairs or dangerous situations.

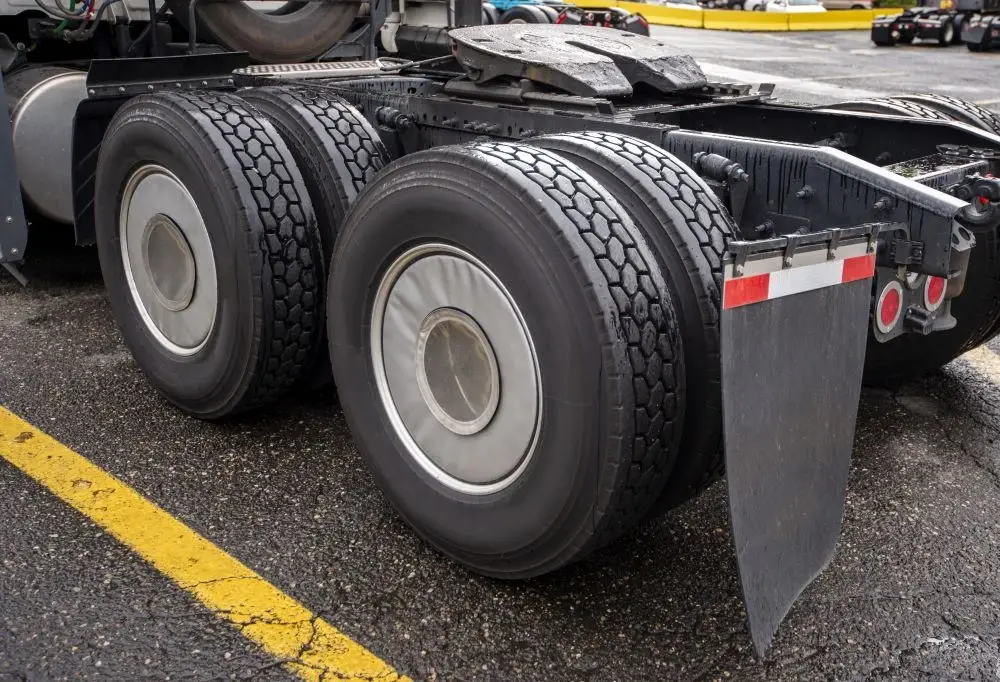

Two-Axle Design Fundamentals

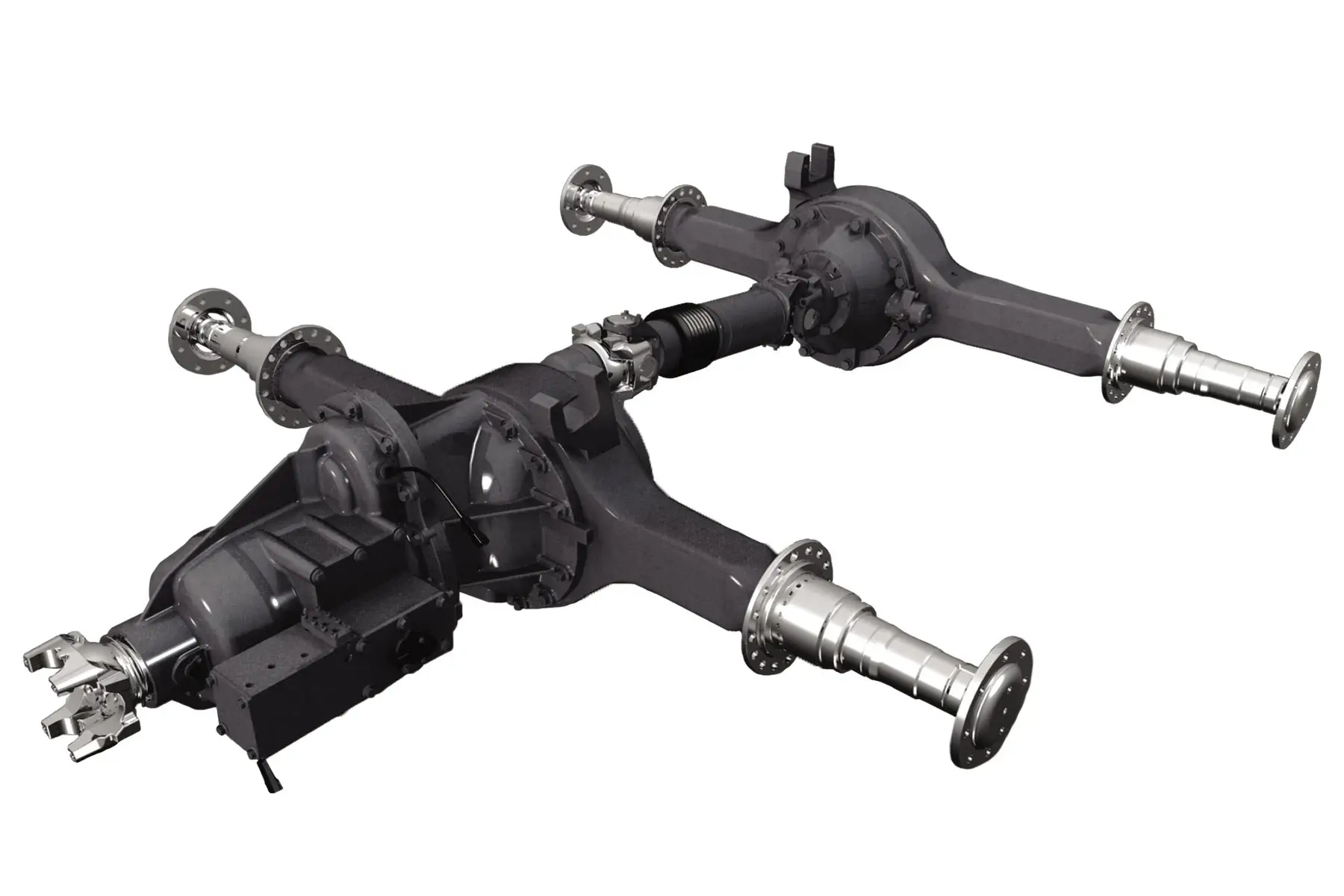

A tandem axle configuration consists of two axles mounted in close proximity on a trailer frame, typically positioned between 36 and 60 inches apart. This design distributes weight across eight tire contact points instead of four, effectively doubling the load capacity compared to single-axle alternatives. The configuration provides superior weight distribution that reduces stress on individual components while improving overall stability.

The spacing between axles follows specific engineering principles. Closer spacing improves maneuverability in tight spaces but may increase tire scrubbing during turns. Wider spacing enhances straight-line stability but requires more room for turning maneuvers. Most manufacturers select spacing based on the trailer’s intended application and typical load requirements.

Tandem axles support significantly heavier payloads than single-axle designs. Where a single axle might safely carry 3,500 to 7,000 pounds, tandem configurations routinely handle 10,000 to 15,000 pounds or more. This increased capacity makes them essential for commercial hauling, construction equipment transport, and recreational vehicles designed for extended travel.

Alignment’s Critical Role in Performance

Proper alignment ensures that all four wheels in a tandem axle configuration track along parallel paths when the trailer moves forward. This parallel tracking eliminates lateral scrubbing forces that would otherwise drag tires sideways across the pavement. When wheels track correctly, each tire rolls freely in its intended direction without fighting against the others.

The relationship between alignment and the suspension system determines how effectively the trailer responds to road conditions. Correctly aligned axles allow suspension components to function as designed, absorbing impacts and maintaining consistent tire contact with the road surface. Misalignment disrupts this relationship, causing suspension parts to work against each other.

Alignment becomes especially apparent during braking and cornering. Proper alignment ensures braking forces distribute evenly across all tires, maximizing stopping power and preventing the trailer from pulling to one side. During turns, aligned axles help the trailer follow the towing vehicle’s path predictably, reducing the risk of trailer sway or jackknifing.

Economic and Safety Consequences

Tire wear patterns provide the most visible evidence of alignment problems. Misaligned axles cause tires to scrub laterally as they roll, generating friction that accelerates wear on specific portions of the tread. Alignment issues can reduce tire life by 30 to 50 percent, transforming a $200 tire that should last 50,000 miles into one that fails at 25,000 miles or less.

Fuel efficiency suffers when axles fall out of alignment. Misaligned wheels create additional rolling resistance that forces the towing vehicle’s engine to work harder, consuming more fuel to maintain the same speed. This increased resistance can reduce fuel economy by 5 to 10 percent, adding hundreds of dollars annually to operating costs for commercial operators. According to ATRI’s Operational Costs of Trucking report, fuel remains the second-largest expense for carriers, making any efficiency loss a significant financial concern.

Maintaining proper alignment as part of regular maintenance reduces unnecessary strain on the towing vehicle’s transmission, brakes, and drivetrain components. Over time, misalignment-related stress accelerates wear on the towing vehicle itself, extending the economic impact beyond the trailer.

The economic case for maintaining proper alignment becomes clear when calculating the total cost of neglect. A commercial trailer operator running 50,000 miles annually might spend an additional $800 on premature tire replacement, $400 on excess fuel consumption, and face increased liability exposure from handling problems. These costs far exceed the $150-300 typically required for professional alignment service.

Common Signs Your Trailer Has Tandem Axle Alignment Issues

Your trailer communicates alignment problems through specific symptoms that demand immediate attention before they escalate into safety hazards. Recognizing these signs early protects you from dangerous highway situations and prevents costly component damage. Professional fleet managers conduct regular symptom checks as part of their maintenance protocols, and individual owners should adopt the same vigilant approach.

Uneven or Accelerated Tire Wear Patterns

Tire wear patterns tell a detailed story about your trailer’s alignment condition. Uneven tire wear manifests in specific, recognizable patterns that indicate the type of misalignment present. Examining your tires regularly provides the earliest warning system for developing problems.

Check for excessive wear on either the inside or outside edges of the tire tread. When tread depth differs by more than 2/32 inch between the inner and outer edges, alignment problems exist. This edge wear typically indicates camber or toe issues that cause one side of the tire to bear disproportionate weight.

Feathering represents another critical indicator. Run your hand across the tire tread from multiple directions. If the tread feels smooth in one direction but rough or sharp-edged in the other, feathering has developed. This pattern results from tires scrubbing sideways across the pavement rather than rolling straight. Cupping or scalloping creates a wave-like pattern around the tire’s circumference, often indicating suspension problems combined with alignment issues.

Dog Tracking and Lateral Movement

A dog tracking trailer travels at an angle relative to the towing vehicle rather than following directly behind in a straight line. This distinctive symptom gets its name from the way dogs sometimes walk with their rear quarters offset from their front. The visual effect becomes obvious when you observe the trailer in your mirrors or have another vehicle follow you.

To identify dog tracking, watch the trailer’s position relative to your tow vehicle during straight-line highway travel. The trailer should track directly behind, with its centerline aligned with the tow vehicle’s path. When dog tracking occurs, one side of the trailer appears closer to the centerline than the other, creating an angled appearance.

This lateral movement indicates that one or both axles sit at an incorrect angle to the trailer’s centerline. The axles may be parallel to each other but positioned at a skewed angle to the frame, or they may have different angles entirely. Regardless of the cause, dog tracking creates dangerous handling characteristics and accelerates tire wear exponentially. Every mile traveled at an angle scrubs rubber off your tires and stresses suspension components beyond their design limits.

Handling Problems and Instability

Handling problems manifest as difficulty maintaining predictable, controlled travel. Your trailer should track smoothly behind your vehicle, requiring minimal steering correction and responding predictably to road conditions. When alignment issues exist, handling characteristics deteriorate noticeably.

Excessive sway represents the most common and dangerous handling symptom. The trailer oscillates from side to side, sometimes building into increasingly violent movements that challenge your ability to maintain control. While wind and improper loading cause some sway, persistent swaying in calm conditions points directly to alignment or suspension problems.

Difficulty maintaining straight-line travel requires constant steering corrections. You’ll notice yourself making continuous small adjustments rather than simply holding the steering wheel steady. Crosswind sensitivity also amplifies when alignment issues exist—properly aligned trailers handle moderate crosswinds with minimal disturbance, but misaligned units react dramatically to even light gusts.

Unusual Noises and Vibrations

Tire scrubbing creates a distinctive dragging or scuffing sound as misaligned tires slide sideways across the pavement. This noise often accompanies feathering wear patterns and intensifies during turns or lane changes. Vibrations transmitted through the trailer frame indicate wheels rotating out of true or tires developing flat spots from excessive wear.

Rhythmic thumping signals advanced tire wear resulting from prolonged misalignment. Each rotation of the affected wheel produces an audible thump as the worn section contacts the pavement. Squealing during turns suggests binding or scrubbing, while clicking or popping sounds from the suspension area point to loose or damaged components that affect alignment. These noises typically occur when weight shifts during acceleration, braking, or cornering.

Root Causes of Tandem Axle Tracking Problems

Tracking problems in tandem axle systems stem from multiple sources, and recognizing these causes helps owners address issues before they escalate. While symptoms like uneven tire wear are easy to spot, identifying the underlying problem requires understanding what forces and failures create misalignment. The root causes range from gradual component deterioration to sudden traumatic damage, each leaving distinct signatures that point to specific corrective actions.

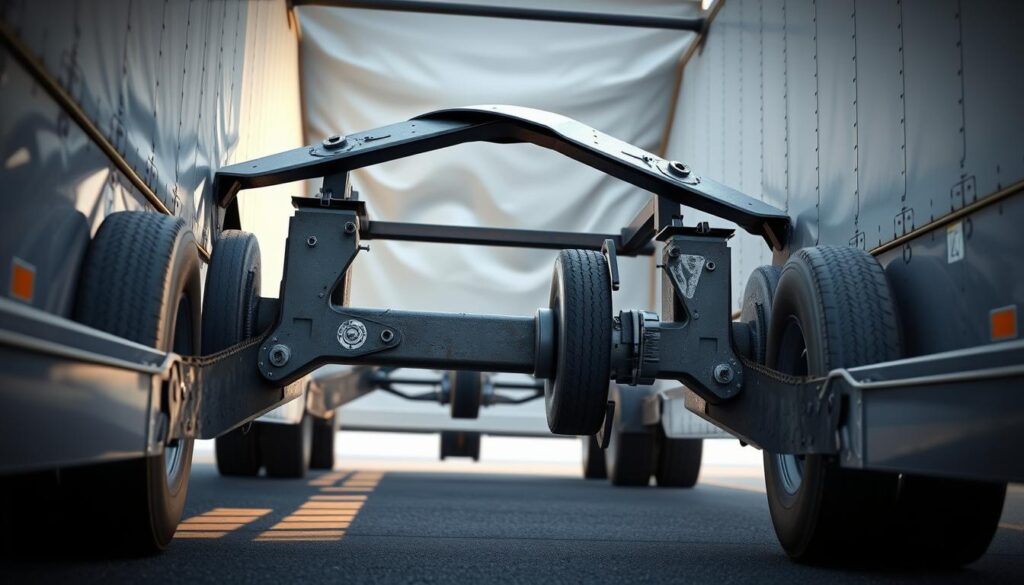

Structural Compromise and Frame Integrity

The trailer frame serves as the foundation for all alignment measurements, and any distortion in this critical structure creates persistent tracking problems. Frame damage typically results from chronic overloading that exceeds the frame’s design capacity, causing gradual deformation over thousands of miles. Even minor twisting—as little as one-quarter inch—can translate into significant wheel position errors.

Frame damage often occurs in specific vulnerable areas. The cross members connecting the main rails experience concentrated stress during loading and unloading. Weld joints near spring mounts bear tremendous force and may crack or separate over time. Visual inspection from multiple angles reveals these structural issues—sight down the length of the frame rails to detect twisting, check for gaps at weld joints, and measure diagonal distances between corner reference points.

Component Deterioration in Suspension Systems

Suspension components wear progressively through normal use, and this deterioration directly impacts axle position and alignment. Leaf springs lose their arch over time due to repeated flexing under load. This sagging allows axles to shift rearward or laterally from their intended positions. Heavy-duty applications accelerate wear rates, and corrosive environments attack metal components.

Key suspension components that affect alignment include leaf spring assemblies that flatten and lose load-carrying capacity, spring eye bushings that develop excessive play, shackles and hangers that wear at pivot points, equalizers that fail to maintain proper axle spacing, and U-bolt hardware that loosens and permits axle migration. Most suspension components have defined service life expectations—leaf springs typically last 200,000 to 300,000 miles under normal conditions, while bushings may require replacement every 100,000 miles depending on application severity.

Manufacturing and Installation Mistakes

Trailers sometimes leave the factory or repair shop with alignment problems built in from day one. Improper spring mount positioning during manufacturing establishes incorrect axle locations that violate the design geometry. Common installation mistakes include using wrong-sized components, substituting available parts rather than ordering correct replacements, and improperly torquing U-bolts.

Spring mounts welded in wrong positions represent a particularly troublesome category. Correcting these mistakes requires cutting off the incorrectly placed mounts and rewelding them in proper locations—labor-intensive work demanding precision measuring equipment and skilled fabrication. Documentation helps identify installation-related problems: compare actual measurements against manufacturer specifications to detect discrepancies.

Collision and Impact-Related Damage

Sudden traumatic events cause immediate alignment problems that differ from gradual wear patterns. Running over large potholes at highway speeds transfers tremendous shock loads through wheels and axles. Striking curbs during backing maneuvers bends axle tubes or spindles. The challenge with impact damage lies in its hidden nature—bent axles may not show obvious visual deformation but measure out of specification when checked with precision instruments.

Post-incident inspections should be mandatory after any event that could compromise alignment. Document the incident and conduct thorough measurements even if no obvious damage appears. Insurance claims often cover accident-related alignment damage, and proper documentation supports adequate repairs rather than temporary patches.

Stay Ahead of Trailer Maintenance Issues

Get practical maintenance guides, diagnostic tips, and regulatory updates delivered to your inbox. Written for working technicians and fleet managers.

Email

Email *

Submit

How Tandem Axle Alignment Works

Tandem axle alignment operates on several fundamental principles that govern how trailers track down the road. These principles ensure wheels maintain proper contact with the pavement while minimizing tire wear and maximizing fuel efficiency. The mechanics behind proper alignment involve precise geometric relationships between axles, frames, and the trailer’s centerline.

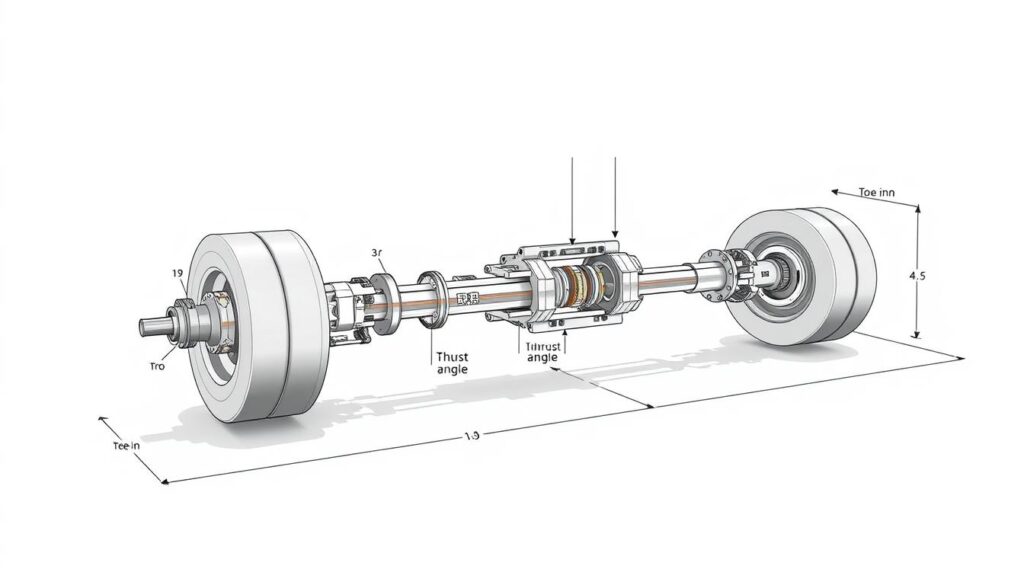

Thrust Angle and Axle Relationship

The thrust angle represents the direction both rear axles point relative to the trailer’s geometric centerline. This measurement serves as the primary indicator of alignment quality. An ideal thrust angle reads exactly zero degrees, meaning both axles sit perfectly perpendicular to the centerline. Industry standards require thrust angle to remain within 0.25 degrees for proper tracking performance.

When thrust angle deviates from zero, the trailer develops dog tracking behavior. Even minor thrust angle problems create noticeable tracking issues—a deviation of just 0.5 degrees can cause the trailer to track several inches off-center at highway speeds, increasing tire scrubbing and reducing fuel economy by 3-5%.

Parallel Alignment Requirements

Both axles must maintain parallel alignment to each other within extremely tight tolerances. The standard specification requires axles to remain parallel within 1/16 inch when measured from corresponding points on each axle. This precision ensures both axles work together rather than fighting each other, eliminating tire scrubbing between the two axles, distributing weight evenly across all tire positions, reducing rolling resistance, and extending tire life through even wear patterns.

Centerline Tracking and Toe Specifications

Properly aligned tandem axles create a single virtual tracking line that follows the trailer’s geometric centerline. When all components align correctly, the trailer tracks with minimal resistance—the front tow vehicle pulls straight, the trailer frame remains centered, and both axles push in the same direction. At 65 mph, a trailer with proper centerline alignment requires significantly less corrective steering input, and drivers report improved stability and reduced fatigue on long hauls.

Unlike automotive wheels that feature adjustable toe settings, trailer wheels typically operate at zero toe. Tracking specifications control wheel direction entirely through axle positioning rather than individual wheel adjustment. Standard specifications require wheels to point straight ahead within 1/8 inch per foot of axle width. For a typical 8-foot wide axle assembly, this translates to a maximum deviation of 1 inch from true parallel.

Types of Alignment Problems in Tandem Axles

When tandem axles develop tracking problems, the underlying causes typically fall into one of three main categories. Each type produces distinct symptoms and requires specific diagnostic methods. Understanding these categories helps trailer owners and technicians pinpoint the exact issue and implement targeted repairs rather than guessing at solutions.

Angular Deviation and Skew Conditions

Axle skew occurs when one or both axles are not perpendicular to the trailer’s centerline. This creates an angular deviation that forms a trapezoidal pattern when viewed from above, rather than the rectangular configuration that properly aligned axles should create. A shifted spring mount, damaged frame, or loosened U-bolts typically cause this problem.

Measuring axle skew requires establishing reference points from the trailer centerline to corresponding points on each axle. Industry standards specify that axle skew should not exceed 1/8 inch difference between measurements taken at opposite ends of the same axle. The wear pattern from skew appears as diagonal scuffing across the tire tread, with severity increasing proportionally with the degree of angular misalignment.

Parallel Offset Between Axle Positions

Axle offset represents a different condition where both axles remain individually perpendicular to the centerline but are not parallel to each other. One axle positions at a different lateral offset than its companion, creating a situation where they track separate paths down the road. This misalignment occurs when spring positioning differs between axles, frame width varies along its length, or suspension components have unequal dimensions.

Identifying offset requires measuring from the centerline to equivalent points on both axles—measurements should match within 1/16 inch. Tire wear from offset issues appears as feathering or cupping patterns, and drivers often notice the trailer feeling loose or unstable during lane changes.

Single Wheel Component Failures

Individual wheel misalignment differs from axle positioning problems because the axle itself occupies the correct location while specific wheels angle incorrectly. Bent spindles, damaged hubs, or worn bearings cause individual wheels to lean inward or outward independent of axle position. Visual inspection reveals these problems more easily than other alignment issues—standing behind the trailer and observing the wheels shows any abnormal angles.

Each misalignment category requires different diagnostic tools and repair procedures. Axle skew and offset problems involve repositioning components through spring mount or U-bolt adjustments. Individual wheel issues demand component replacement rather than positional changes. Understanding these distinctions prevents wasted time applying the wrong solution.

Diagnostic Procedures for Identifying Misalignment

Proper diagnostic procedures form the foundation for correcting any trailer alignment issue effectively. Without accurate assessment, adjustments become guesswork that rarely solve the underlying problem. A systematic approach combines visual observation with precise measurements to identify the exact nature and severity of misalignment.

Visual Inspection Techniques

The first step in any alignment inspection involves careful visual assessment from multiple angles. Park the trailer on level ground and chock the wheels securely before beginning your examination. Stand directly behind the trailer and look forward along its length—the wheels should appear perpendicular to the ground with no visible lean.

Get underneath the trailer and place a straight edge against the bottom of the axle tube. Look for an upward bow indicating positive camber, which is normal for most loaded trailers. If the axle appears straight or shows a downward bow, the axle and suspension system may need repair or replacement. Examine the gaps between tires and fenders on both sides—uneven spacing indicates one axle sits offset from the centerline.

Measurement Methods and Reference Points

Accurate measurement transforms visual observations into quantifiable data. Establishing the trailer’s geometric centerline serves as the foundation for all measurements. This reference line runs from the center of the coupler to the midpoint of the rear frame. Mark the centerline at several points along the trailer length, then measure perpendicular distances to corresponding points on each axle tube at both ends.

String Line Alignment Checks

String line alignment provides the most accurate assessment method available without professional equipment. Set up two parallel strings running the full length of the trailer, positioned approximately 6 inches outside the frame rails at the same height as the axle tubes. Tension the strings until taut without sagging—a properly tensioned line deflects no more than 1/8 inch over a 20-foot span.

Measure from each string to the corresponding end of each axle tube at multiple points. If the front of an axle measures closer to the string than the rear, the axle is skewed. If both measurements on one side differ from the other side by the same amount, the axle is offset but parallel.

Professional Alignment Equipment

Advanced alignment diagnostic tools offer speed and precision beyond manual methods. Professional alignment shops use laser alignment systems that project reference lines with extreme accuracy, eliminating human measurement error. Electronic measuring devices attach to wheel hubs and communicate with computer systems to calculate alignment angles within thousandths of an inch. As outlined in TMC’s recommended practices, professional equipment becomes necessary when dealing with complex alignment problems or when specifications demand extreme precision.

Essential Tools and Equipment for Alignment Work

Investing in accurate measurement equipment makes the difference between guesswork and professional-grade alignment results. Quality matters more than quantity when building your toolkit. Each tool serves a specific purpose in the measurement and adjustment process.

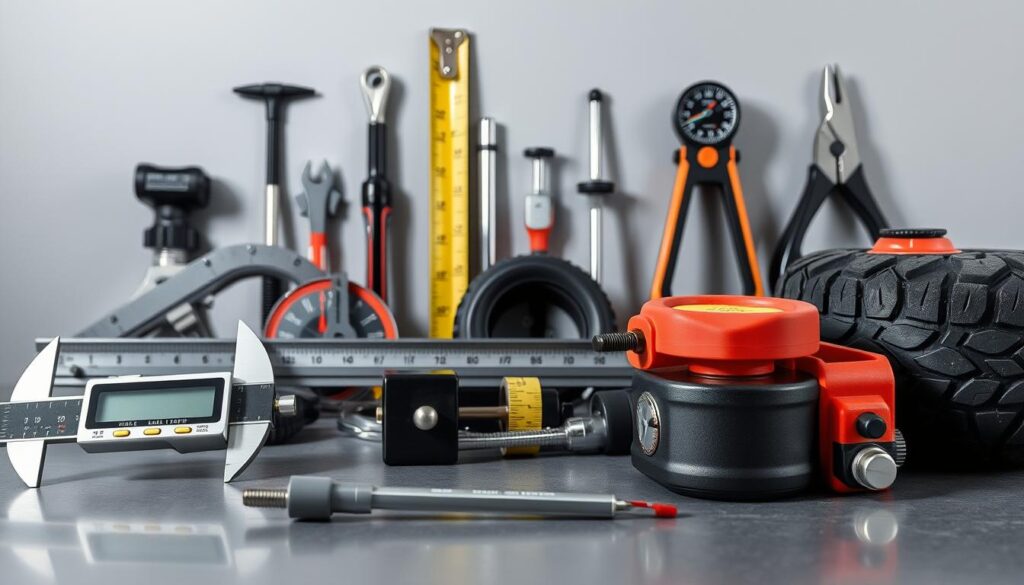

Basic Measurement and Precision Tools

A quality 25-foot tape measure with clear markings forms the foundation. Carpenter’s squares provide perpendicular references—a framing square with a 24-inch blade works well for checking frame components. A 48-inch box level ensures your trailer sits on flat ground during measurement. A straight edge spanning 6 to 8 feet allows you to check axle tube straightness, while digital calipers accurate to 0.01 inches provide precise measurements for critical dimensions like spring mount positions and U-bolt spacing.

String line materials form the backbone of traditional alignment checks. Braided nylon line offers minimal stretch characteristics compared to twisted cotton or polyester. You need approximately 50 feet of line for most tandem axle applications, along with weights or hooks to maintain tension.

Alignment Bars and Fixtures

Commercial alignment bars attach directly to wheel hubs and extend outward to create precise reference points, eliminating variables caused by tire sidewall irregularities or wheel runout. High-quality alignment bars cost between $200 and $800 depending on features. Frame-mounted fixtures clamp to the trailer frame and provide fixed reference points throughout the alignment process. Trammel bars measure diagonal distances to verify square frame geometry.

Safety Equipment

Alignment work requires safe vehicle support that remains stable during measurement and adjustment procedures. Jack stands rated for at least 6 tons provide adequate capacity for most trailer applications—always use stands in pairs, positioned on solid frame components, never on axles or suspension parts. Wheel chocks prevent unexpected trailer movement, and LED work lights providing at least 1,000 lumens illuminate the undercarriage for accurate measurements.

Step-by-Step Tandem Axle Alignment Adjustment Process

Successfully correcting trailer tracking problems demands a structured approach that balances technical accuracy with practical implementation. Real-world experience confirms that alignment work is standard practice even with new axle installation, making these procedures essential knowledge for trailer maintenance.

Preparation and Safety Setup

Begin by selecting an appropriate work location with a level, stable surface. Concrete or asphalt provides the firm foundation necessary for precise work. Position the trailer without the towing vehicle attached for unrestricted access. Engage the parking brake firmly and place wheel chocks on both sides of wheels remaining on the ground. Measure and record tire pressures before beginning—inflate all tires to manufacturer specifications, as improper inflation affects ride height and measurement accuracy.

Establishing a Baseline and Reference Line

Creating accurate geometric references forms the foundation of successful alignment work. Locate the trailer’s centerline using multiple reference points—the coupler centerline provides the forward reference, while frame rail measurements confirm lateral positioning. Mark the centerline at several points using chalk or removable markers, measuring equal distances from each frame rail to verify consistency. Any discrepancies indicate frame damage requiring correction before proceeding.

Establish string lines parallel to the centerline at precisely measured distances. These reference lines must remain at consistent height throughout their length. Tension the string lines firmly—a properly tensioned line deflects no more than 1/8 inch over a 20-foot span.

Measuring Current Alignment

Document the as-found condition through systematic measurements. Measure from the centerline reference to each end of both axles, recording distances to the nearest 1/16 inch. Take diagonal measurements between opposite corners of the axle assembly—equal diagonals indicate square relationships, while unequal measurements reveal angular misalignment. Most tandem axle configurations require parallel alignment within 1/8 inch across the entire axle width.

Making Adjustments

Spring mount adjustment represents the primary method for correcting alignment in most configurations. Begin by loosening mounting hardware while supporting the axle with jack stands. Make incremental movements of no more than 1/4 inch per adjustment cycle—large movements can overcorrect or stress components. Re-measure after each adjustment to track progress toward specification. Re-torque fasteners to manufacturer specifications using a calibrated torque wrench.

U-bolt adjustment provides fine-tuning capability after spring mount corrections. Remove U-bolts systematically, working on one axle at a time to maintain stability. Clean the spring perch and axle pad surfaces, then position the axle squarely before reinstalling. Tighten U-bolts following a specific torque sequence: begin at 50% specification on one side, move to the opposite side, then return to complete full torque. U-bolt specifications typically range from 90 to 120 ft-lbs depending on axle capacity. Per 49 CFR Part 396, motor carriers must systematically inspect and maintain all vehicles including proper fastener torque.

Verification and Testing

Re-measure alignment after completing all adjustments using the same reference points. All measurements should fall within tolerance—typically ±1/8 inch for parallel alignment. Verify diagonal distances are equal within 1/8 inch, confirming both axles track parallel to the frame centerline. Lower the trailer, bounce several times to settle suspension components, then re-check critical measurements.

Test the trailer under actual towing conditions on straight, level roads. Proper alignment eliminates dog tracking and produces stable, predictable handling. Monitor tire wear patterns over the next several hundred miles—proper alignment produces even wear across tire tread surfaces.

Solutions for Specific Tracking Problems

Different tracking issues demand different repair strategies, and understanding which solution applies to your specific problem saves time and prevents further damage. Applying the wrong correction method can waste effort and potentially worsen the situation.

Correcting Dog Tracking

Dog tracking occurs when your trailer travels at an angle behind the towing vehicle. The first step involves determining which axle or axles are causing the problem by measuring thrust angles relative to the centerline. To correct the misalignment, you’ll typically need to move one end of each axle in opposite directions—for example, if both axles angle to the right, move the rear of each axle to the left.

Make small incremental adjustments of one-eighth inch at a time, then re-measure before making additional changes. After completing adjustments, verify that dog tracking has been eliminated through both measurement and road testing.

Fixing Tire Scrubbing

Tire scrubbing manifests as excessive wear and squealing during turns, caused by axles that are not parallel to each other. Begin by identifying which axle is out of parallel—the one with more pronounced feathering or uneven wear is typically the culprit. Calculate the total deviation and split the correction between both axles to maintain the centerline relationship. Verify parallel alignment using trammel bar measurements taken diagonally across the axles—diagonal measurements should be equal when proper alignment is achieved.

Addressing Frame-Related Issues

Some tracking problems cannot be corrected through axle adjustments alone because the underlying frame is distorted. Use a straight edge or laser level to check for twists along frame rails and measure diagonally across the frame at multiple points. Minor frame issues may be correctable through heat straightening by experienced technicians. Installing additional cross members or gussets strengthens corrected areas and prevents recurrence.

Severe frame damage often cannot be adequately repaired. Frames with multiple bends, severe rust damage, or cracks in structural areas typically require replacement. If frame measurements indicate distortion beyond minor deviations, consult a professional fabricator who specializes in heavy equipment repair.

When to Replace Components

Axles bent beyond one-quarter inch over their length typically require replacement rather than adjustment. Suspension components too worn to maintain alignment—including springs with broken leaves, bushings with excessive play, and shackles with elongated holes—must be replaced before alignment attempts will hold. The cost-benefit analysis often favors replacement: a bent axle requiring three hours of failed alignment attempts costs more than installing a replacement that solves the problem permanently.

Preventive Maintenance for Maintaining Proper Alignment

Systematic preventive maintenance programs deliver substantial long-term savings by preserving alignment integrity and extending component life. Rather than waiting for tracking problems to develop, proactive maintenance identifies potential issues early and addresses them before they cause expensive tire wear or handling difficulties.

Inspection Intervals and Loading Practices

Monthly inspections should include visual checks of tire wear patterns and suspension components. Quarterly inspections require torque verification on critical fasteners including U-bolts and spring mount hardware. Annual comprehensive inspections should include full string line alignment checks or professional measurement. Trailers operating under heavy loads or on rough roads need more frequent attention.

Proper loading practices directly impact alignment longevity. Respect Gross Vehicle Weight Rating at all times—overloading represents one of the most common causes of tandem axle tracking problems. Balance loads side-to-side to prevent unequal suspension compression, maintain appropriate tongue weight (typically 10-15% of total trailer weight), and secure all cargo properly to prevent shifting during transit. The CVSA’s out-of-service criteria include specific tire condition requirements that alignment-related wear can trigger during roadside inspections.

Suspension Maintenance

Establish a lubrication schedule for all grease fittings—spring shackles, equalizers, and pivot points require greasing every 3,000 miles or quarterly. Inspect and replace worn components before complete failure, including spring bushings showing cracking or excessive movement, shackles with worn pins or elongated holes, equalizers with damaged pivots, and springs showing cracks or broken leaves. Re-torque all critical fasteners to manufacturer specifications during each inspection using a calibrated torque wrench.

Record Keeping

Maintaining detailed maintenance records provides invaluable information for tracking alignment health over time. Record baseline measurements when alignment is verified correct, then track changes during subsequent inspections. Document tire wear observations, component condition, and any adjustments made. These records support warranty claims, insurance documentation, safety audits, resale value, and cost analysis. The FMCSA’s driver vehicle inspection report requirements reinforce the importance of systematic documentation for commercial operations.

Safety Considerations and Industry Standards

Proper alignment maintenance operates within a complex regulatory environment where safety standards, weight limits, and compliance requirements converge. Federal and state regulations establish minimum performance criteria that trailers must meet to operate legally on public roads. While specific alignment measurements may not appear in statute books, the consequences of misalignment create violations that can result in citations, fines, or equipment placed out of service.

Federal Regulations and Compliance

Federal Motor Vehicle Safety Standards administered by NHTSA establish minimum performance requirements for braking, lighting, tires, and structural integrity. NHTSA’s tire safety standards address tire condition that alignment problems directly affect. Department of Transportation inspectors examine tread depth, irregular wear, and signs of excessive scrubbing during roadside checks—a trailer displaying severe feathering on multiple tires will likely face additional scrutiny.

The Federal Motor Carrier Safety Regulations Part 396 requires commercial carriers to systematically inspect, repair, and maintain all vehicles. This includes documentation requirements creating an audit trail of maintenance activities. Legal responsibilities extend beyond passing inspections—trailer owners must ensure their equipment does not create hazards for other road users.

Weight Distribution and Load Management

CVSA guidelines establish comprehensive weight distribution standards that directly impact alignment longevity and legal compliance. The Federal Bridge Formula calculates maximum weight based on axle group spacing. For tandem axles, typical spacing of 48 to 54 inches allows specific weight allocations that must be verified through certified scales.

Professional Certification and When to Seek Expertise

Distinguishing competent alignment professionals from general mechanics requires understanding industry certifications. Relevant credentials include ASE certification for trailer and towing equipment specialists, RVTAA certification through the RV Technician Association of America, manufacturer certifications from companies like Dexter Axle, and commercial vehicle inspector certifications. Situations requiring professional expertise include frame damage assessment, multiple failed alignment attempts, and verification of completed work on commercial equipment.

Cost Factors and When to Seek Professional Help

Deciding between DIY alignment and professional service requires careful evaluation of skills, equipment, and safety factors. The financial considerations extend beyond simple service fees to encompass tool investments, time commitments, and potential consequences of incorrect work.

DIY vs. Professional Service

Basic alignment verification and minor adjustments fall within the capability of mechanically competent owners with appropriate tools and workspace. DIY alignment typically requires 4-6 hours for careful, methodical work. Professional shops complete alignment in 1-2 hours using specialized equipment. Major repairs following accidents, axle replacement projects, and situations involving new axle supply from manufacturers like Dexter typically warrant professional installation.

Service Costs and Budget Planning

Basic alignment inspection and adjustment at professional shops typically ranges from $150 to $400. Frame straightening adds $500 to $1,500 depending on damage severity. Replacement axles cost $300 to $800 per axle, with installation and alignment labor adding $200 to $500. DIY tool investment ranges from $100 to $300.

Return on Investment

Proper alignment delivers measurable economic returns. Well-aligned tandem axles extend tire life by 30 to 50 percent—potential savings of $400 to $1,200 over a complete set of trailer tires. Fuel efficiency improvements of 1 to 3 percent represent $200 to $600 in annual savings for commercial operations covering 30,000 miles. Additional savings accrue from reduced maintenance costs on bearings, brakes, and suspension components.
