The Federal Motor Carrier Safety Administration requires all commercial vehicles weighing over 10,000 pounds to undergo a DOT inspection at least once annually. For flatbed operators and fleet managers, these comprehensive safety checks carry even greater scrutiny—open-deck configurations expose cargo securement systems, structural components, and tie-down anchor points to direct inspection that enclosed trailers don’t face. Failure to pass can result in immediate out-of-service orders, lost revenue from missed deliveries, and lasting damage to your Compliance, Safety, Accountability scores.
This DOT flatbed trailer inspection checklist provides a detailed compliance guide based on current FMCSA regulations under 49 CFR Part 396. Whether you’re preparing for an annual examination or a roadside enforcement encounter, you’ll find actionable protocols covering cargo securement, structural integrity, brake systems, and every other component inspectors evaluate. The information consolidates federal standards with industry best practices, giving you the tools to protect your drivers, maintain operations, and keep your flatbed trailers legally roadworthy.
Key Takeaways
- Annual inspections are mandatory: Every commercial vehicle over 10,000 pounds must complete DOT safety inspections at least every 12 months under 49 CFR 396.17, with records retained for 14 months.
- Flatbed trailers face unique scrutiny: Open-deck configurations expose cargo securement systems, anchor points, and structural components to direct inspection beyond what enclosed trailers encounter.
- Brakes are the top violation category: Improper brake adjustment exceeding pushrod travel limits remains the single most frequently cited infraction during roadside inspections nationwide.
- Out-of-service orders carry severe consequences: Failed inspections can ground your equipment immediately, resulting in emergency repair costs, missed delivery deadlines, and negative CSA score impacts.
- Preventive maintenance is the most cost-effective strategy: Systematic inspection programs at 30-45 day intervals catch developing problems before they result in roadside violations or equipment failures.
- Documentation is as critical as the inspection itself: Proper recordkeeping of annual reports, DVIRs, repair records, and inspector qualifications provides legal protection during audits and compliance reviews.
Understanding DOT Flatbed Trailer Inspection Requirements
Federal motor carrier safety standards define specific inspection requirements that every flatbed trailer operator must follow. These regulations protect drivers, cargo, and the public by ensuring all commercial vehicles meet minimum safety criteria. Compliance with these standards represents a legal obligation for all carriers operating in interstate commerce—not a recommendation.
The regulatory framework established by the FMCSA creates a comprehensive system for vehicle maintenance and inspection. Understanding these requirements helps fleet managers develop effective compliance programs that reduce violations, improve safety performance, and protect operating authority.
Federal Motor Carrier Safety Regulations Overview
FMCSA regulations codified in Title 49 of the Code of Federal Regulations, Part 396, establish the foundation for all commercial vehicle inspections. This part outlines mandatory standards for inspection, repair, and maintenance that apply to flatbed trailers and all commercial motor vehicles operating in interstate commerce.
Part 396 includes several critical subsections that carriers must understand. Section 396.17 covers general periodic inspection requirements. Section 396.21 addresses recordkeeping obligations for annual inspections. Appendix A to Part 396 contains the Minimum Periodic Inspection Standards that define exactly what components inspectors must examine—serving as the authoritative checklist for every annual inspection.
The regulations apply to all motor carriers operating commercial motor vehicles in interstate commerce, including both for-hire carriers and private fleets. State enforcement agencies have authority to conduct roadside inspections and verify compliance with federal standards at any time.
Inspection Frequency and Timing Requirements
According to 49 CFR 396.17 and 396.21, every commercial vehicle must undergo periodic inspection at least once every 12 months. Each segment of a combination vehicle—including the tractor and trailer—requires separate inspection. Operating beyond this timeframe constitutes a serious violation that can result in immediate out-of-service designation during roadside enforcement.
Between annual inspections, drivers must perform pre-trip inspections before operating the vehicle. At the conclusion of each day’s work, drivers complete Driver Vehicle Inspection Reports documenting any defects or deficiencies that affect safe operation. Carriers must retain inspection records for 14 months from the inspection date, allowing enforcement officials to verify compliance during audits and roadside checks.
| Inspection Type | Frequency | Record Retention | Responsible Party |
|---|---|---|---|
| Annual Periodic Inspection | Every 12 months maximum | 14 months from inspection date | Motor carrier and qualified inspector |
| Pre-Trip Inspection | Before each trip begins | Not required unless defects found | Driver |
| Driver Vehicle Inspection Report | End of each day’s work | 90 days minimum | Driver and motor carrier |
| Roadside Inspection | At enforcement discretion | 12 months from inspection date | Law enforcement official |
Who Can Perform DOT Inspections
Motor carriers must ensure that only a qualified inspector performs annual inspections. A qualified inspector must understand the inspection standards outlined in 49 CFR 396 Appendix A, demonstrate the ability to identify defective components accurately, and possess knowledge and proficiency in proper inspection methods, procedures, and tools.
Inspectors achieve qualified status through several pathways: completion of a state or federal training program in commercial motor vehicle safety inspections, earning a state or Canadian province qualifying certificate, or possessing a combination of training and experience totaling at least one year in commercial vehicle inspection. Motor carriers may utilize in-house inspectors or contract with third-party inspection facilities, but the carrier retains full responsibility for ensuring inspector qualifications and must maintain credential documentation on file for one year after the inspector ceases performing inspections.
Pre-Inspection Preparation and Documentation
Success in flatbed trailer inspections starts long before you walk around the vehicle. A systematic approach to preparation ensures that no critical component goes unnoticed and all inspection documentation meets federal standards. The FMCSA mandates that drivers review deficiencies noted in the last vehicle inspection report and sign to acknowledge that required repairs were completed before departure, creating an accountability chain that protects both carriers and drivers.
Essential Inspection Equipment
Having the right inspection tools makes the difference between a thorough evaluation and a superficial check. Core equipment includes a calibrated tire pressure gauge for accurate PSI readings, a tread depth gauge for measuring wear patterns, a high-powered flashlight for undercarriage examination, a pry bar for testing spring connections and suspension components, chalk for noting issues during walkaround, a measuring tape for pushrod travel and clearance measurements, and personal protective equipment including gloves and safety glasses.
Digital inspection platforms have modernized the documentation process, but traditional paper forms that comply with 49 CFR 396 requirements remain acceptable when completed properly and retained according to regulations.
Analyzing Historical Inspection Data
Previous inspection reports reveal patterns that single inspections might miss. Before starting any new evaluation, inspectors should thoroughly review the trailer’s maintenance history. This identifies recurring issues that may indicate systemic problems requiring deeper investigation, verifies that all documented defects received proper repairs with supporting documentation, and reveals weak points specific to individual trailers. A suspension component that fails repeatedly signals the need for replacement rather than continued repairs.
Documentation Standards
Inspection forms serve dual purposes as procedural guides and legal documents. Federal regulations require documentation to cover service brakes and parking brake systems, steering mechanism and coupling devices, lighting devices, reflectors, and electrical systems, tires, wheels, and rims, horn, windshield wipers, and rear-vision mirrors, and emergency equipment and safety devices.
Inspectors must understand the distinction between defects and deficiencies. A defect creates an immediate safety risk requiring out-of-service action. A deficiency needs correction but doesn’t prevent vehicle operation. Whether using standard DVIR formats, annual inspection documentation per Appendix A standards, or digital equivalents, inspectors must know which violations trigger CVSA out-of-service criteria.
Frame and Structural Integrity Inspection
Frame and structural integrity inspection represents the cornerstone of flatbed trailer safety, determining whether a trailer can safely carry commercial loads. The frame serves as the foundation that supports all other components and cargo weight. Without a sound structural base, even trailers with perfect brake systems and tires pose serious highway dangers. DOT regulations require thorough examination of every structural element during annual inspections.

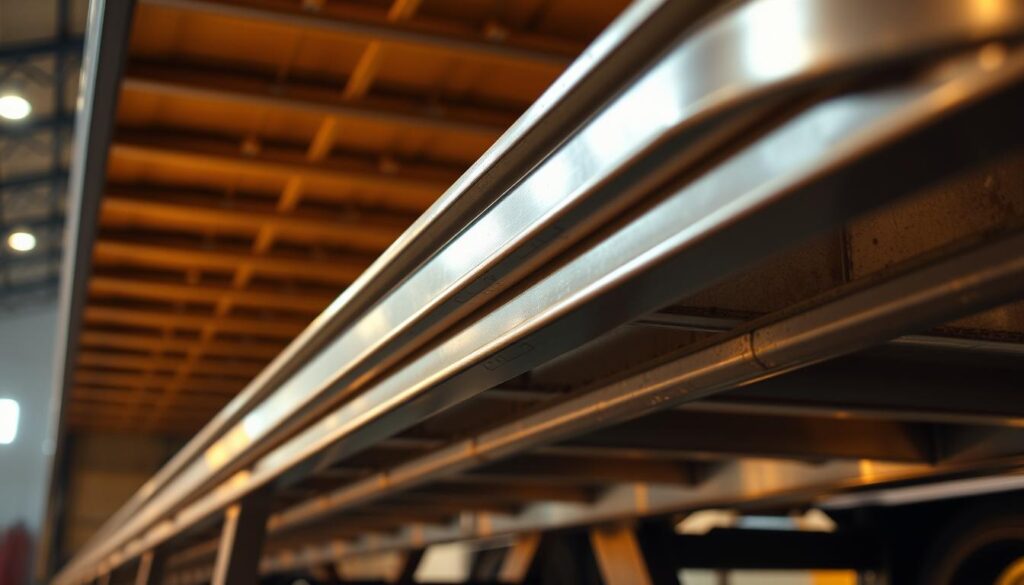

Main Frame Rails and Cross Members
The main frame rails bear primary structural loads during transportation operations. These longitudinal steel members extend the full length of the trailer and support all cargo weight. Inspectors must examine both frame rails completely from front to rear, checking for any deviations from original manufactured specifications.
Pay particular attention to stress concentration points where components attach to the rails. Kingpin mounting areas, suspension brackets, and crossmember connections experience the highest forces and often show the first signs of structural distress. Use adequate lighting and remove any dirt or debris that obscures the inspection surface.
Crossmembers provide essential lateral support and distribute loads across the frame structure. Verify that all crossmembers remain securely attached without signs of looseness or movement. Check spacing between crossmembers against manufacturer specifications, as improper spacing compromises structural performance.
Checking for Cracks, Bends, and Corrosion
Cracks in frame rails represent critical safety hazards that can lead to catastrophic failure. Even hairline cracks propagate under repeated loading cycles, eventually causing complete structural collapse. Inspect the entire length of both rails for any crack indications, particularly at welded joints and bolt holes.
Bends or deformation indicate impact damage or severe overloading incidents. Any deviation from straight geometry compromises the trailer’s ability to carry rated loads safely. Bent frame rails typically constitute an out-of-service condition requiring immediate repair. Corrosion progressively weakens steel components through material loss, with trailers exposed to road salt, chemical cargo, or coastal environments facing accelerated corrosion rates.
| Defect Type | Severity | Action Required | Service Status |
|---|---|---|---|
| Hairline crack under 1 inch | Moderate | Monitor and schedule repair | Conditional operation |
| Crack exceeding 1 inch | Critical | Immediate professional repair | Out-of-service |
| Visible frame bend or twist | Critical | Structural assessment required | Out-of-service |
| Corrosion with material loss | Severe | Measure remaining thickness | Conditional/OOS |
Weld Integrity and Structural Connections
Welded connections join critical structural components throughout the trailer frame. These joints must maintain complete fusion and continuous bead profiles to transfer loads effectively. Inspect welds at crossmember attachment points with particular scrutiny, looking for cracks radiating from weld toes, incomplete penetration, or gaps between joined members. Any weld defect that compromises structural integrity requires professional repair before returning to service.
Factory welds typically demonstrate consistent appearance and quality. Field repairs or modifications may show irregular bead patterns or incomplete coverage. Document any non-factory welds and verify they meet appropriate welding standards. For thorough weld evaluation, clean surfaces to remove paint, rust, and contaminants, examine weld profiles for uniform bead appearance, check for complete fusion along entire joint length, look for stress cracks at weld start and stop points, and apply dye penetrant testing when visual inspection reveals concerns.
Deck Surface Condition
The deck surface receives direct cargo contact and supports securement equipment attachment. Wood decks must show no holes, missing boards, or excessive wear that prevents proper cargo support. Steel decks require inspection for corrosion, holes, or damage that compromises surface integrity. Damaged deck surfaces fail to provide adequate support for tie-down anchor points, creating cargo securement hazards. Wood deck boards should remain securely fastened without excessive movement, while steel decks need evaluation for rust perforation, particularly in drainage areas.
⚠️ Safety Warning
Always chock trailer wheels before crawling underneath for frame, suspension, or undercarriage inspections. Use proper jack stands if lifting is required—never rely solely on hydraulic jacks. Wear appropriate PPE including safety glasses and gloves when inspecting weld surfaces, corroded components, or sharp-edged frame damage.
Suspension System Compliance Check
A flatbed trailer’s suspension system must withstand tremendous forces, making regular compliance checks essential for safe operation. This critical component supports loaded trailer weight while absorbing road shock and maintaining proper tire contact with the pavement. The condition of suspension components directly affects your trailer’s ability to pass DOT inspection, and failed parts create safety hazards that can lead to loss of control when hauling heavy cargo.

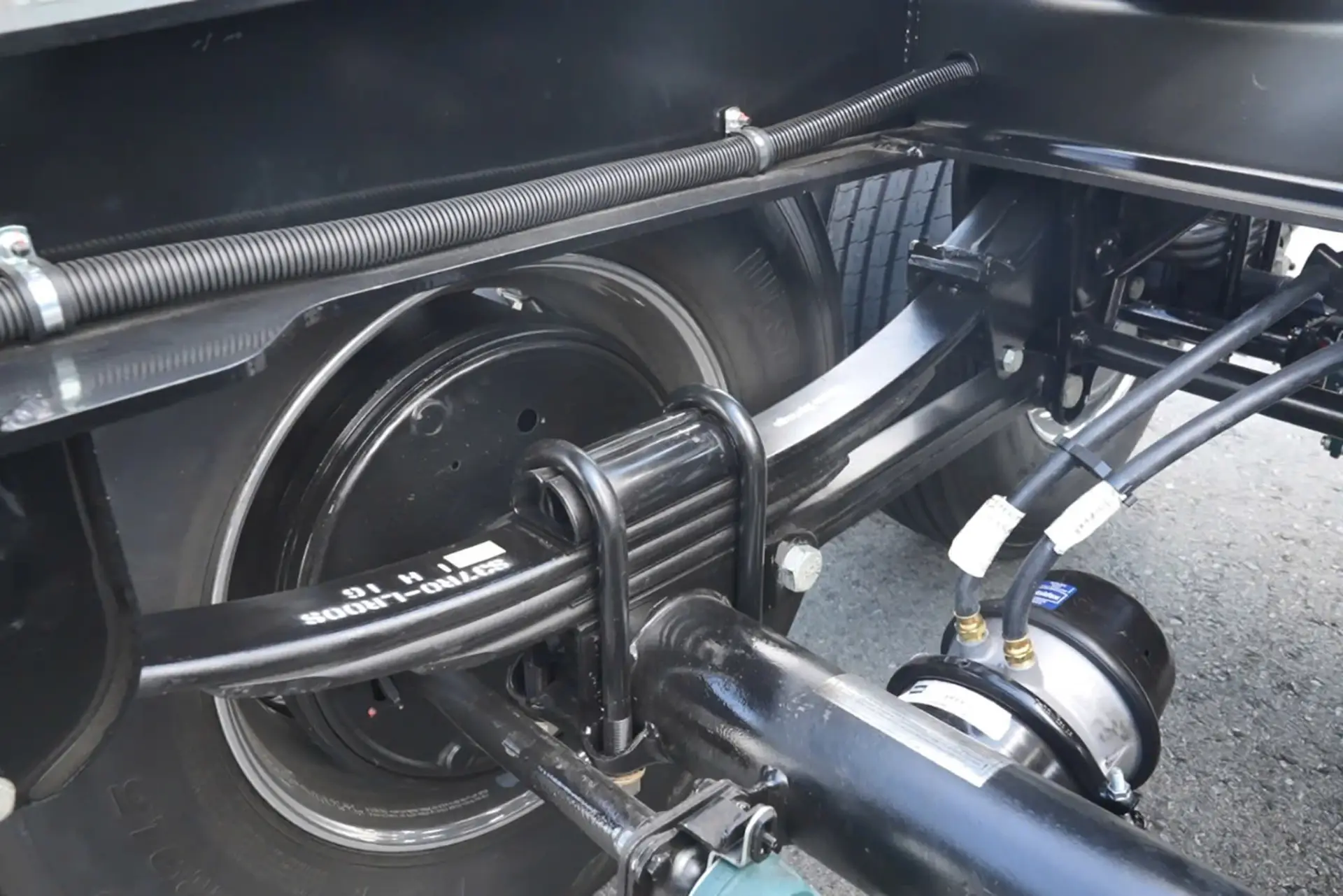

Leaf Spring and Air Suspension Systems
Leaf spring suspension remains common on many flatbed trailers due to its durability and load-carrying capacity. Inspect each spring assembly carefully for broken or cracked leaves—even a single broken leaf constitutes a DOT violation requiring immediate attention. Check for missing or damaged spring clips that hold the leaf pack together, and look for signs of improper spring alignment or metal-to-metal contact indicating worn parts.
Air suspension systems have become increasingly popular on modern flatbed trailers. Examine each air spring for visible leaks, cuts, or abrasions in the rubber material. Test height control valves to verify proper function, and inspect all air lines for security, checking connections for leaks using soapy water. Mounting brackets must remain securely attached to the frame—loose or damaged brackets compromise the entire system’s integrity.
Connection Hardware and Axle Position
Hangers and shackles connect the suspension to the trailer frame and absorb substantial operational forces. Look for cracks in hanger castings or fabricated steel sections, paying special attention to areas where hangers bolt to the frame rails. Verify that all fasteners are present and properly tightened. U-bolts secure the axle to the spring assembly and require proper torque specifications—loose U-bolts allow axle movement that can lead to catastrophic failure.
Axle alignment affects tire wear patterns, vehicle stability, and overall handling characteristics. Misaligned axles cause the trailer to “dog-track” or pull to one side during operation. Measure axle spacing to confirm it matches manufacturer specifications, examine axle seats for signs of shifting, and check for bent or twisted axles by observing tire alignment from behind the trailer. All tires should track in a straight line when the trailer is level.
Brake System Examination
A comprehensive brake inspection ensures your flatbed trailer meets federal safety standards and protects lives on the road. This examination represents the most critical component of DOT compliance because brake failure on a loaded trailer can result in catastrophic accidents. The brake system examination follows strict protocols established by the FMCSA, and each component must meet minimum standards or the trailer receives an out-of-service designation.

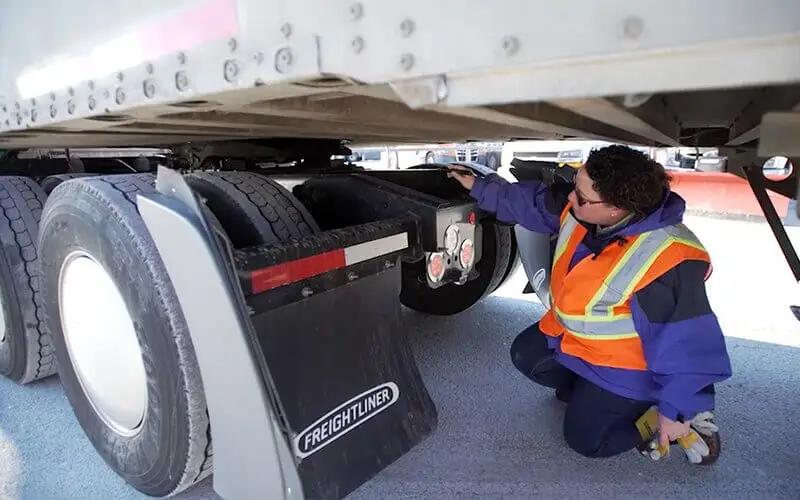

Brake Drums and Linings
Begin the brake inspection by examining brake drums for structural integrity and proper mounting. Drums must show no cracks, no out-of-round conditions, and adequate thickness without excessive wear. Any visible cracks or deep scoring patterns indicate immediate replacement needs.
Brake linings require precise measurement at the thinnest point to verify compliance. The federal standard mandates a minimum thickness of 1/4 inch for all brake linings. Measurements below this threshold trigger automatic out-of-service status until replacement occurs. Contamination from oil or grease on brake linings dramatically reduces friction and stopping power—check for fluid contamination and document any signs of leaking seals.
Air Brake System Testing
Build system pressure to 90-100 psi and apply the brakes while measuring pushrod travel at each brake chamber. Standard stroke chambers must not exceed 1.75 inches of travel, while long-stroke chambers have limits of either 2.0 or 2.5 inches depending on chamber size markings. Excessive stroke indicates serious problems with brake adjustment or worn components requiring immediate correction.
Conduct a static leak test by building pressure to maximum, shutting off the engine, and monitoring pressure drop. Leakage exceeding 4 psi per minute with brakes released indicates system leaks requiring repair. With brakes applied, the acceptable leakage rate increases to 6 psi per minute. Exceeding these thresholds means air is escaping somewhere in the system and compromising brake performance.
Slack Adjusters, Chambers, and Lines
Slack adjusters connect the brake chamber pushrod to the brake camshaft and require thorough examination. Both manual and automatic types must be properly secured with no cracks or visible damage. The angle between the pushrod and slack adjuster should measure approximately 90 degrees when brakes are applied—incorrect angles indicate adjustment problems or worn components. Brake chambers must be securely mounted to their brackets without play or movement.
Every section of brake lines and hoses throughout the system requires careful visual inspection for cuts, abrasion, bulges, or damage. Proper routing prevents contact with moving parts or road debris, and all connections at fittings need checking for tightness and leaks. For trailers manufactured after March 1998, verify the ABS malfunction lamp illuminates during the bulb check at key-on and extinguishes after the initial system check. ABS components including wheel speed sensors, modulators, and wiring harness must show no physical damage or corrosion.
Brake violations account for the highest percentage of out-of-service orders nationally
Source: Commercial Vehicle Safety Alliance annual inspection results
Wheels, Tires, and Hub Assembly Inspection
The connection between your flatbed trailer and the road depends entirely on the condition of wheels, tires, and hub assemblies. These components bear the full weight of your cargo while maintaining contact with the pavement at highway speeds. A thorough tire inspection protects against catastrophic failures that can lead to accidents, cargo damage, and costly out-of-service violations.
Tire Tread Depth and Condition
Federal regulations mandate a minimum tread depth of 2/32 inch for all trailer tires, verified in any two adjacent major grooves at multiple points around the tire’s circumference. Tire condition extends far beyond tread depth measurements—sidewalls must remain free from cuts or damage exposing internal ply or cord material, and any bulges or blisters indicate structural failure creating an immediate safety hazard.
Weather checking and cracking deserve careful examination. Surface cracks are common on aging tires, but cracks penetrating to the ply level represent a serious defect. Dual tire assemblies require special attention to spacing and debris, with adequate clearance between tires and no objects wedged in the gap. Mismatched tire sizes on the same axle create dangerous handling characteristics and must be corrected.
Wheel Fasteners and Rim Condition
All lug nuts must be present with none missing from any wheel position. A single missing lug nut increases stress on remaining fasteners and can trigger progressive failure. Look for evidence of looseness including rust streaks radiating from lug nuts, shiny wear marks on fastener faces, or any movement when tested with a wrench. Wheel rims must be free from cracks, particularly around stud holes and rim flanges where stress concentrates. Improper rim repairs such as welding create weak points that fail under stress and should never be accepted during inspection.
Hub Assemblies and Tire Inflation
Hub assemblies contain critical bearing components that enable smooth wheel rotation under heavy loads. Inspect hub seals for leaks—oil residue on the hub face, wheel components, or ground beneath the trailer indicates active leakage that leads to bearing damage. Excessive hub temperature suggests bearing wear, inadequate lubrication, or brake drag. Discolored hub components, melted grease, or burned odors indicate overheating that requires immediate investigation.
Tire inflation pressure directly affects performance, wear patterns, and load-carrying capacity. Always use a calibrated pressure gauge rather than relying on visual inspection or tire-mounted sensors alone. Compare measured tire pressure against manufacturer recommendations for the load being transported. Flatbed trailers frequently haul heavy cargo that requires maximum rated tire inflation—operating at reduced pressure when carrying heavy loads leads to premature failure. Verify that each tire’s load index number corresponds to maximum weight capacity at proper inflation, and calculate per-tire loads to confirm they fall within rated capacity.
Lighting and Electrical System Verification
A properly functioning trailer lighting and electrical system is the primary communication tool between your flatbed and other drivers on the road. During DOT inspections, every light component must operate correctly to pass compliance standards. Even one malfunctioning light can result in an out-of-service designation until repairs are completed.
Required Lights and Signal Functionality
Clearance lights define the extreme width and height dimensions of your flatbed trailer—amber at the front upper corners, red at the rear. Marker lights work alongside clearance lights to outline the trailer’s full length, with amber on the sides and red at the rear. Each unit must have intact lenses, functional bulbs, and proper mounting security, with visibility from 500 feet under normal atmospheric conditions.
Brake lights must illuminate brightly in red when the brake pedal is applied. Test both primary and auxiliary brake lamps for adequate brightness. Turn signals must flash at 60 to 120 cycles per minute in both left and right directions independently. Signals should illuminate amber at the front and sides, though red is acceptable at the rear. Watch for feedback problems where activating one signal causes other lights to flash incorrectly, indicating a grounding or wiring fault. Four-way hazard flashers must activate all turn signals simultaneously.
Reflectors, Conspicuity Tape, and Electrical Connections
Reflectors provide passive visibility when electrical lighting fails. Federal regulations mandate specific reflector placement with amber on the sides and red on the rear. Conspicuity tape, mandatory for trailers manufactured after December 1993, creates a highly visible outline of your trailer’s dimensions. The rear requires red and white alternating segments across the full width, while side tape must be white or silver at approximately 15 inches above ground level.
The seven-way electrical plug must seat securely with no damaged pins, corrosion, or loose connections. Wiring throughout the trailer must be properly secured and routed away from sharp edges, moving parts, and heat sources. Ground wire integrity deserves special attention—poor grounding causes multiple lighting problems including dim bulbs, intermittent operation, and cross-circuit feedback. License plate illumination must provide adequate white light, and the ABS malfunction indicator lamp on the left rear corner must complete its self-diagnostic cycle properly.
The HDJ Perspective
After 15 years in the diesel repair and fleet management industry, the pattern is clear: carriers who treat DOT inspections as a once-a-year event consistently face more roadside violations than those who integrate inspection protocols into daily operations. The most successful fleets we’ve covered don’t view compliance as a burden—they use it as a competitive advantage. A clean inspection history translates directly to better CSA scores, lower insurance premiums, and reduced downtime. The flatbed segment faces particular scrutiny because open-deck cargo securement failures pose immediate risks to other motorists. Investing in a systematic 30-45 day inspection cycle and proper driver training costs far less than a single out-of-service order on a loaded flatbed 500 miles from your terminal.
Cargo Securement Points and Equipment
Flatbed trailers rely on specialized cargo securement systems that demand thorough inspection protocols to prevent load shifts and transportation hazards. Unlike enclosed trailers, flatbed configurations expose loads to environmental forces and require robust tie-down anchor points, straps, chains, and protective equipment. DOT inspectors focus intensely on these components because cargo securement violations rank among the most frequently cited infractions during roadside inspections.
Every piece of securement equipment must meet federal standards outlined in 49 CFR 393, Subpart I. The regulations specify minimum working load limits, proper application techniques, and mandatory inspection requirements. Inspectors verify not only that equipment exists but that it functions correctly and is appropriate for the specific cargo being transported.
Anchor Points and Side Protection
Tie-down points serve as the foundation of any cargo securement system on flatbed trailers. These anchor locations typically include recessed D-rings, stake pockets, or integrated slots along rub rails. Each anchor point must withstand tremendous forces, making structural integrity critical for safe operations. Inspect every anchor point for visible cracks, deformation, or damage, and verify that mounting hardware attaches securely to the trailer frame without loose bolts or weakened connections.
Federal regulations require aggregate working load limits equal to at least 50% of cargo weight for loads secured by tie-downs going from anchor point over or around cargo to another anchor point. Rub rails running along trailer sides serve dual purposes of protecting cargo and providing additional attachment points. Inspect them for structural integrity without cracks or separation from the trailer deck, and check that all stake pockets are properly sized and undamaged.
Securement Devices and Chains
Winches must mount properly to the trailer with no signs of looseness or structural damage, and gear engagement and ratchet function must operate smoothly without slipping under load. Cargo straps demand particularly thorough inspection because UV degradation and edge wear compromise their strength over time. Examine straps for cuts penetrating the webbing, fading or brittleness from UV damage, and intact end fittings. Working load limit tags must be legible on every strap.
Chain inspection focuses on link integrity, checking for elongated or deformed links that indicate overloading. Excessive wear reducing chain cross-section compromises working load limits. Binders used to tension chains require functional operation with secure adjustment mechanisms. Edge protection becomes mandatory when chains or cargo straps contact cargo edges or corners that could cause cutting or abrasion.
Proper application matters as much as equipment condition. Inspectors confirm adequate quantity of tie-downs for cargo weight and type, correct routing without rubbing or interference, proper tensioning to eliminate cargo movement in all directions, and weight distribution that maintains vehicle stability and brake balance.
Free Professional Fleet Tools
Cost calculators, fault code lookup, maintenance planners, and more—built for owner-operators, fleet managers, and diesel techs. No signup required.
Critical Flatbed Trailer DOT Inspection Points
Beyond brakes, suspension, and tires, additional critical inspection points can determine your DOT compliance status. Inspectors routinely check these components during both annual inspections and roadside enforcement stops, and each must meet specific federal standards.
Landing Gear and Kingpin Assembly
Landing gear must operate smoothly through its full range of motion without binding or slippage. Inspect legs, mounting brackets, and crossmembers for cracks or structural damage. Crank handles should turn easily without unusual resistance or skipping teeth. Landing gear must be fully raised when the trailer is coupled to a tractor—ground contact while coupled creates dangerous stress that can lead to failure.
Kingpin inspection focuses on the critical connection point between trailer and tractor, typically measuring either 2 inches or 3.5 inches in diameter. Check for wear patterns on the kingpin surface, cracks or deformation in the shaft or mounting area, secure attachment to the upper coupler plate, and damage to the apron plate. The upper coupler plate must remain free of cracks and maintain proper attachment to the trailer frame.
Coupling Devices and Connections
The fifth wheel creates the vital link between tractor and trailer. Examine the fifth wheel casting and mounting brackets for cracks or structural weakness. Locking jaw engagement is the most critical aspect—jaws must close completely around the kingpin and lock in place, not simply rest against it. The release handle must be in the locked position and properly secured. Conduct a tug test with trailer brakes released to verify secure coupling.
Verify proper height adjustment so the trailer sits level or slightly nose-down when connected. Air and electrical connections between tractor and trailer require secure attachment. Glad hands must connect to the correct service and emergency air lines without leaks, and the electrical plug should seat fully into the receptacle with all pins making proper contact, as specified in the 49 CFR Part 393 coupling device requirements.
Mudflaps and Identification Markings
Mudflaps must be present behind all wheels or wheel assemblies, extending to within approximately 8 inches of the roadway surface and covering the full width of the tires they protect. Missing or inadequate mudflaps constitute one of the most common citations during roadside inspections, yet replacement represents a minor expense compared to violation penalties.
The USDOT number must appear prominently on both sides of the trailer with legible lettering at a minimum height of 2 inches, readable from 50 feet. The VIN plate must be present and readable. License plate requirements include current registration, proper mounting, and clear visibility. The annual inspection sticker must display the current inspection date and remain legible. States with equivalent inspection programs accept their own stickers when inspections meet or exceed federal standards.
Documentation and Record Keeping Requirements
Every flatbed trailer inspection generates paperwork that carriers must complete, organize, and retain according to strict federal timelines. Proper inspection documentation serves multiple purposes beyond regulatory compliance—it demonstrates systematic maintenance practices, provides legal protection during audits or accident investigations, and creates an auditable trail of vehicle condition over time.
Annual Reports and Record Retention
The annual inspection report must document the inspection date, trailer identification including unit number and VIN, and detailed findings for each component specified in 49 CFR 396 Appendix A. The inspector’s signature, credentials, and mechanic license number when applicable must appear on the completed form. Motor carrier information completes the requirements.
The periodic annual inspection report must be retained for 14 months from the inspection date. A copy, decal, or certification of the most recent inspection must travel with the vehicle at all times. DVIRs and corrective action certifications require three-month retention. Roadside inspection reports require 12-month retention. Maintenance records documenting repairs need retention for at least 12 months. Inspector qualification documentation must remain on file until one year after the inspector ceases performing inspections for the carrier.
Defect Tracking and Repair Verification
When a driver reports defects on a DVIR, the motor carrier must ensure repairs are completed before the vehicle is dispatched. Documentation must include the description of repairs performed, parts replaced, and the mechanic performing the work. The next driver must review and sign the previous DVIR before beginning their pre-trip inspection, creating a closed-loop system.
Roadside inspection reports require specific handling. The driver must deliver the report to the motor carrier within 24 hours of receipt. The carrier must review the report, correct all violations, and certify correction by signing and dating the report. The completed report with certification must be returned to the issuing agency within 15 days. Many carriers implement electronic documentation systems that automate retention schedules and provide instant access during roadside inspections or audits, as recommended by the TMC Recommended Practices for fleet maintenance management.
Common Violations and How to Avoid Them
Compliance failures follow predictable patterns that smart carriers learn to prevent. Understanding where flatbed trailers most frequently fail DOT inspections allows you to target maintenance efforts strategically. Regular safety checks serve as your first line of defense against roadside violations that can sideline your equipment and damage your safety scores.
Top Violation Categories
Brake system violations consistently top the list. Improper brake adjustment exceeding pushrod travel limits represents the single most frequent citation during roadside inspections. Brake components with visible cracks, contaminated brake linings, lining thickness below 1/4 inch, and air system leaks exceeding allowable limits all result in citations.
Lighting violations rank among the most preventable yet most frequently cited infractions. Burned-out stop lamps, turn signals, or marker lights account for thousands of citations annually. Tire violations including tread depth below 2/32 inch, sidewall damage, flat tires, and mismatched sizes on the same axle frequently result in out-of-service designations. Cargo securement violations—insufficient tie-downs, damaged equipment, and improper securement methods—represent a substantial portion of flatbed-specific citations.
Out-of-Service Criteria
The CVSA North American Standard Inspection Program identifies defects so serious that vehicles must be immediately removed from service. Brake system triggers include 20% or more of brakes defective or out of adjustment, pushrod travel exceeding limits by more than 1/2 inch, and brake lining below 1/4 inch. Air loss causing system pressure to drop below 60 psi indicates serious leaks preventing proper brake function.
| Violation Category | OOS Threshold | Prevention Strategy |
|---|---|---|
| Brake System | 20%+ defective or out of adjustment | Monthly adjustment checks and component inspection |
| Tire Condition | Tread below 2/32″, exposed cords, flat tires | Weekly tire pressure and visual condition checks |
| Lighting Systems | 50%+ required lamps inoperative | Pre-trip verification and immediate bulb replacement |
| Frame Structure | Cracks exceeding specified dimensions | Quarterly detailed frame inspection and cleaning |
| Cargo Securement | Cargo not secured per regulations | Driver training and quality securement equipment |
Implementing Preventive Maintenance
Preventive maintenance represents the most effective strategy for avoiding violations while extending equipment life and reducing total ownership costs. Many successful carriers inspect flatbed trailers every 30-45 days rather than waiting for the annual deadline. Thorough pre-trip and post-trip inspections catch developing problems before they result in roadside violations—drivers trained to identify potential issues serve as your first line of defense.
Address minor defects promptly before they deteriorate into major problems. Replacing worn brake linings during scheduled maintenance costs significantly less than emergency roadside repair or violation penalties. Maintain detailed maintenance records enabling trend analysis of recurring problems. Use quality replacement parts meeting or exceeding OEM specifications rather than bargain components that fail prematurely.
Train drivers in proper equipment operation and cargo securement techniques—many common violations result from improper use rather than equipment defects. Establish relationships with qualified maintenance facilities across your operating territory to enable prompt corrective action away from your home facility. Monitor tire pressure and condition systematically, verify all lighting components function before every trip, and maintain an inventory of high-quality securement equipment in serviceable condition.
Key Recommendation
Implement a 30-45 day inspection cycle for all flatbed trailers regardless of the 12-month annual requirement. Focus each cycle on the top violation categories—brakes, tires, lighting, and cargo securement equipment. This systematic approach costs far less than a single out-of-service order and keeps your CSA Safety Measurement System scores in favorable territory.
Frequently Asked Questions
What is checked during a DOT flatbed trailer inspection?
A DOT flatbed trailer inspection covers all components listed in 49 CFR 396 Appendix A. Inspectors examine the frame and structural integrity including main rails, crossmembers, welds, and deck condition. The suspension system, brake system including air brakes, slack adjusters, and chambers, wheels, tires, and hub assemblies all receive thorough evaluation. Every lighting and electrical component must function properly. For flatbed configurations specifically, inspectors pay close attention to cargo securement points, tie-down anchor integrity, rub rails, stake pockets, and all securement devices. Coupling devices, landing gear, mudflaps, and identification markings round out the comprehensive examination.
How often do flatbed trailers need DOT inspections?
Federal regulations under 49 CFR 396.17 require every commercial motor vehicle, including flatbed trailers, to undergo a periodic inspection at least once every 12 months. Each unit in a combination vehicle—tractor and trailer—requires separate inspection. Between annual inspections, drivers must perform pre-trip inspections before each trip and complete Driver Vehicle Inspection Reports at the end of each working day. The 12-month interval begins from the date of the previous inspection, and operating beyond this deadline can result in immediate out-of-service designation during roadside enforcement. Many fleet operators recommend inspecting flatbed trailers every 30-45 days to catch developing problems early.
Who is qualified to perform annual DOT inspections on flatbed trailers?
A qualified inspector must understand the inspection standards in 49 CFR 396 Appendix A and demonstrate the ability to identify defective components accurately. Qualification pathways include completing a state or federal training program in commercial vehicle safety inspections, earning a state or Canadian province qualifying certificate, or possessing at least one year of combined training and experience in commercial vehicle inspection. Motor carriers may use in-house inspectors or contract with third-party facilities, but the carrier retains responsibility for verifying qualifications and maintaining credential documentation on file.
What are the most common DOT violations on flatbed trailers?
Brake system violations consistently rank highest, particularly improper brake adjustment exceeding pushrod travel limits. Lighting violations including burned-out lamps, missing reflectors, and deteriorated conspicuity tape are among the most frequently cited and easily preventable. Tire violations such as tread depth below the 2/32 inch federal minimum and sidewall damage rank prominently. Flatbed-specific cargo securement violations—insufficient tie-downs, damaged straps or chains, and improper load securement methods—account for a substantial portion of citations. Missing or inadequate mudflaps round out the top categories.
How long must DOT inspection records be retained?
The annual periodic inspection report must be retained for 14 months from the inspection date, with a copy or certification traveling with the vehicle at all times. Driver Vehicle Inspection Reports require 3-month retention from the report date. Roadside inspection reports must be kept for 12 months from the inspection date. Maintenance and repair records documenting work performed require minimum 12-month retention from the service date. Inspector qualification documents must remain on file until one year after the inspector ceases performing inspections for that carrier. Many carriers implement longer retention periods for liability defense and insurance requirements.
What triggers an out-of-service order on a flatbed trailer?
The CVSA defines specific out-of-service criteria for critical defects. Brake system triggers include 20% or more of brakes defective or out of proper adjustment, pushrod travel exceeding maximum limits by more than 1/2 inch, brake lining below 1/4 inch thickness, or air loss dropping system pressure below 60 psi. Tire triggers include tread depth below 2/32 inch, exposed ply or cord material, flat tires, or tires rubbing against vehicle components. Lighting out-of-service typically applies when 50% or more of required lamps are inoperative. Frame cracks exceeding specified dimensions and cargo not secured as required by applicable regulations also warrant immediate out-of-service designation.
Protect Your Fleet With Systematic DOT Inspection Compliance
Conducting frequent safety checks protects your operation from violations during roadside inspections and catches potential issues before they become enforcement problems. Organized documentation—annual reports, DVIRs, repair records, and inspector qualifications—stands as your defense during audits and demonstrates your commitment to regulatory compliance. Using a comprehensive DOT flatbed trailer inspection checklist ensures nothing gets overlooked across every critical component from frame integrity to cargo securement systems.
Your inspection program should exceed minimum requirements. Schedule examinations more frequently than the 12-month mandate, train your team in proper techniques, and address defects immediately before they escalate into serious failures. Professional maintenance separates reliable carriers from those facing constant violations—invest in quality inspection programs that identify problems early, protect your drivers, and keep your flatbed trailers road-ready.
