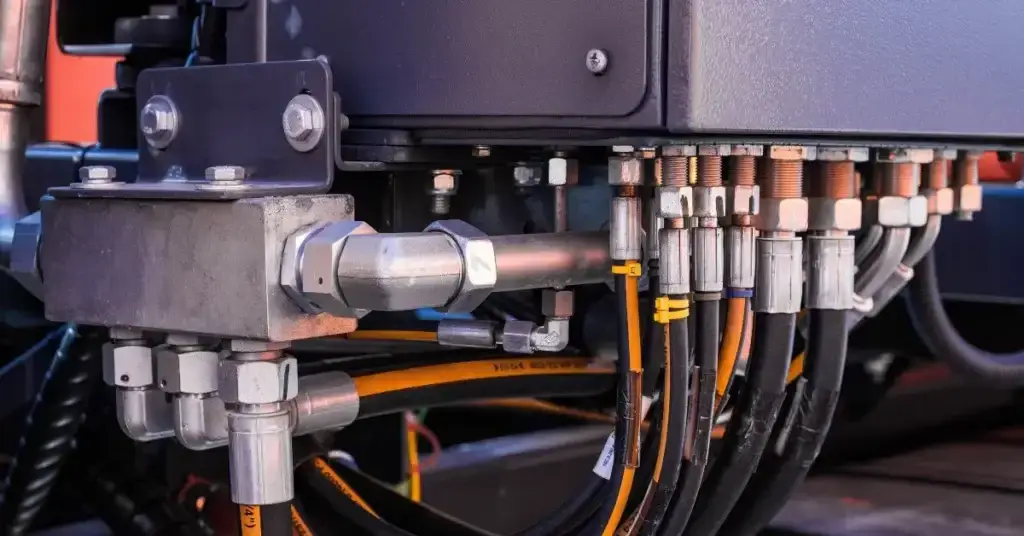

Heavy equipment hydraulic systems deliver the force that powers excavators, loaders, cranes, and dozers across construction sites, mines, and industrial facilities. These fluid-powered systems transform engine power into precise lifting, positioning, and movement capabilities that make modern heavy equipment productive. Without proper heavy equipment hydraulic maintenance, even the most robust machinery faces costly breakdowns, dangerous failures, and unplanned downtime that halts operations.
Contaminated fluid destroys precision components. Worn seals create dangerous leaks under extreme pressure. Power loss and control failures put operators at risk while stopping productive work. Smart fleet managers understand that systematic hydraulic system care delivers measurable returns through extended equipment lifespan, maximized uptime, and avoided emergency repairs that cost far more than routine service.
This guide covers everything maintenance teams need to implement effective hydraulic maintenance programs, from daily inspections and fluid management to pump servicing, safety protocols, and documentation practices that protect your equipment investment.
Key Takeaways
- Contamination causes 75-80% of failures: Fluid cleanliness to ISO 16/14/11 standards prevents most hydraulic component damage.
- Daily inspections prevent costly breakdowns: Systematic pre-operation checks catch problems before they escalate.
- Filter service is critical: Replace filters based on differential pressure readings and contamination analysis, not just hours.
- Proper fluid selection matters: Using manufacturer-specified viscosity grades and fluid types protects seals and components.
- Safety protocols are non-negotiable: Hydraulic injection injuries from high-pressure leaks require immediate emergency treatment.
- Documentation drives improvement: Tracking maintenance data reveals patterns that optimize service intervals and predict failures.
Understanding Hydraulic Systems in Heavy Equipment
Hydraulic power transfer allows seamless force transmission, reduced mechanical wear, and instantaneous power amplification within compact spaces. Pascal’s principle forms the theoretical foundation: pressure applied to confined fluid transmits equally in all directions throughout the container. When force applies to a small piston, the resulting pressure affects a larger piston with proportionally greater force output.
The system converts mechanical energy to fluid power and back through three stages. First, the pump transforms rotational engine power into fluid flow and pressure. Second, pressurized fluid travels through valves and hoses to reach actuators. Third, cylinders or motors convert fluid energy back into useful mechanical force.
Core Components and Functions
Hydraulic pumps serve as the heart of the system, converting mechanical energy from the engine into fluid pressure. Common pump types include gear pumps for simpler applications, piston pumps for high-pressure systems, and vane pumps offering smooth operation. Each type has distinct advantages for specific equipment applications.
Cylinders transform fluid pressure back into linear mechanical force, extending and retracting to move equipment attachments, lift loads, and position machinery. Double-acting cylinders apply force in both directions, while single-acting versions rely on external forces for return motion.
Supporting components include hydraulic motors converting fluid energy into rotational power, control valves directing flow throughout the system, reservoirs storing fluid and dissipating heat, accumulators maintaining pressure stability, and filters removing contamination to protect precision components.
Equipment Types Relying on Hydraulics
Excavators represent the most hydraulic-intensive construction equipment, using multiple cylinders to control boom, stick, bucket, and swing functions simultaneously. Bulldozers employ hydraulic cylinders for blade positioning while hydraulic motors drive tracks. Wheel loaders use hydraulics for bucket positioning and steering control.
Mobile cranes depend on hydraulic systems for boom extension, load lifting, and outrigger stabilization with millimeter-accuracy positioning. Backhoes, forklifts, dump trucks, motor graders, and specialized equipment including concrete pumps and aerial lifts all incorporate hydraulic components for primary operations.
Essential Tools for Hydraulic System Maintenance
Successful hydraulic system servicing depends on precise diagnostic instruments, contamination detection devices, and comprehensive safety gear. Without proper equipment, technicians cannot accurately assess system conditions or protect themselves from hazards inherent in high-pressure fluid systems.
Pressure Testing and Diagnostic Instruments
Pressure gauges provide real-time measurements of system operating pressures at various circuit points. These instruments require annual calibration to maintain accuracy within ±2% of full scale readings. Flow meters measure fluid volume moving through the system per unit time, helping identify restrictions, pump wear, and component inefficiencies.
Temperature sensors complement pressure readings by revealing thermal patterns indicating friction, contamination, or inadequate cooling. Advanced maintenance facilities employ electronic diagnostic scanners interfacing with equipment control systems to retrieve fault codes, monitor sensor data, and track performance trends.
| Instrument Type | Primary Function | Calibration Frequency |
|---|---|---|
| Hydraulic Pressure Gauge | Measures system pressure at test points | Annually (±2% accuracy) |
| Flow Meter | Quantifies fluid volume movement | Every 6 months (±1%) |
| Temperature Sensor | Monitors thermal conditions | Quarterly (±2°F) |
| Diagnostic Scanner | Retrieves fault codes and data | Software updates as released |
Fluid Analysis and Contamination Detection
Particle counters quantify contamination levels according to ISO 4406 cleanliness standards, classifying fluid based on particle size and concentration. According to industry analysis from Machine Design, up to 90% of all hydraulic system failures can be attributed to contaminated oil. Portable particle counters provide immediate on-site analysis, drawing fluid samples through optical sensors that count and size particles in real time.
Fluid sampling equipment includes specialized bottles, vacuum pumps, and sample ports preventing external contamination during collection. Test kits detect water contamination through chemical reactions and identify fluid degradation by measuring viscosity, acidity, and additive depletion.
75-80%
of hydraulic system failures trace back to contaminated fluid, per industry research
Required Safety Equipment
Personal protective equipment forms the first line of defense against hydraulic maintenance hazards. Safety glasses with side shields prevent fluid splashes during connection removal or filter changes. Face shields provide additional protection during high-pressure testing above 1,500 PSI.
Chemical-resistant gloves made from nitrile or neoprene protect hands from prolonged fluid exposure causing dermatitis. Protective clothing includes fluid-resistant coveralls preventing contamination of personal clothing. Long sleeves are mandatory near pressurized systems to protect against hydraulic fluid injection injuries.
Lockout-tagout devices prevent accidental system energization during maintenance, securing valve handles, electrical disconnects, and control switches. Each technician applies their own personal lock ensuring they control when equipment restarts.
Hydraulic Fluid Selection and Quality Management
Selecting the right hydraulic fluid and maintaining its quality determines the longevity and reliability of your entire hydraulic system. This critical component circulates through every pump, valve, cylinder, and hose. Poor fluid choices or contaminated oil create cascading problems compromising seals, damaging precision components, and reducing equipment productivity.
Selecting the Correct Fluid Grade
Viscosity grade represents the most critical specification, determining how easily fluid flows through system components at different temperatures. Manufacturers specify viscosity grades using ISO standards, typically ranging from ISO VG 32 to ISO VG 68 for most heavy equipment applications. Lower numbers indicate thinner fluids flowing easily in cold conditions; higher numbers represent thicker fluids maintaining protective film strength under heavy loads.
Three primary fluid types dominate the market: mineral-based hydraulic oils offering excellent lubrication and cost-effectiveness, synthetic hydraulic fluids providing superior temperature stability and extended service life, and biodegradable hydraulic fluids minimizing environmental impact near waterways.
Always consult equipment manufacturer specifications before selecting hydraulic fluid. OEMs like Caterpillar publish detailed machine fluids recommendations that account for pump design, operating pressures, seal materials, and expected temperature ranges. Using recommended fluid type and maintaining consistency with the same brand prevents compatibility issues from mixing different additive packages.
Testing Fluid Condition
Visual inspection provides the first line of defense. Contaminated fluid exhibits several visible indicators: cloudy or milky appearance suggesting water contamination, dark discoloration indicating oxidation or thermal breakdown, excessive foaming revealing air entrainment or additive depletion, and unusual odors signaling chemical degradation.
Laboratory fluid analysis provides precise contamination data beyond visual inspection capabilities. Professional testing identifies water content, particle counts, additive depletion, and viscosity changes. ISO 4406 cleanliness codes classify contamination using three numbers representing particle counts at different size ranges. A target cleanliness level of 15/13/10 represents acceptable conditions for most hydraulic systems.
Storage and Contamination Prevention
Contamination prevention begins before hydraulic oil enters equipment. Store fluid in clean, climate-controlled locations away from temperature extremes and moisture sources. Sealed containers prevent airborne contaminants from entering stored oil.
New fluid arrives from manufacturers with some contamination from production and packaging. Never assume new hydraulic fluid meets system cleanliness requirements. Filter new fluid before adding it to machines using portable filtration carts equipped with appropriate micron ratings.
Contamination enters systems through multiple pathways: worn seals allowing dirt ingestion during cylinder retraction, breather caps without filtration permitting airborne particles into reservoirs, and improper service procedures introducing contaminants during filter changes.
Daily Pre-Operation Inspection Procedures
Every shift begins with critical inspection procedures identifying hydraulic system issues before they cause operational downtime. Consistent inspection habits prevent minor issues from escalating into major system breakdowns while transforming equipment operators into the first line of defense against costly failures.
Systematic Visual Examination
A comprehensive visual inspection follows a methodical pattern covering all hydraulic components systematically. Develop a consistent inspection route examining pumps, motors, cylinders, hoses, fittings, and reservoirs in the same sequence each day. Start at the hydraulic reservoir and work outward through the entire system.
Warning signs requiring immediate attention include hose bulging or soft spots suggesting internal reinforcement failure, loose fittings identified by hand-checking connection tightness, accumulation of dirt on cylinder rods before retraction, damaged protective sleeves on hoses, and component discoloration indicating excessive heat buildup.
Checking Fluid Levels and Condition
Proper fluid level checks require positioning equipment on level ground with hydraulic cylinders fully retracted. Fluid should rest between minimum and maximum marks when the system reaches operating temperature. Low fluid levels cause pump cavitation damaging internal components through rapid bubble formation and collapse.
| Fluid Appearance | Contamination Type | Required Action |
|---|---|---|
| Milky or cloudy | Water contamination | Drain and replace immediately |
| Darkened or black | Oxidation or thermal degradation | Schedule fluid change, investigate heat sources |
| Visible particles | Metal debris or dirt | Filter inspection, possible system flush |
| Foamy or aerated | Air entrainment | Check reservoir level, breather function |
Identifying Leaks and Warning Signs
Effective leak detection combines active leak observation with evidence examination from previous seepage. Fresh leaks appear as wet spots, drips, or spray patterns on components. Evidence of previous leaks—dried residue, staining, oil accumulation in component recesses—indicates chronic seepage problems warranting investigation even when active leaking isn’t visible.
Address all identified leaks immediately rather than deferring repairs. Small leaks expand rapidly once seal integrity becomes compromised, and repair costs are minimal compared to replacing fluid, cleaning contamination, and repairing secondary damage from prolonged leakage.
Implementing a Preventive Maintenance Program
Proactive hydraulic maintenance scheduling separates high-performing fleets from those plagued by unexpected downtime. A structured preventive maintenance program transforms maintenance activities from urgent responses to planned interventions maximizing equipment reliability.
Weekly Service Tasks
Weekly inspections go beyond daily checks to identify emerging issues before they compromise system performance. Weekly service should include detailed visual inspections under varied operating conditions, filter condition assessments monitoring pressure differentials, hydraulic oil sampling establishing trending data, connection tightness verification, and documentation of fluid temperatures during operation.
Monthly Maintenance Requirements
Monthly maintenance represents comprehensive system evaluations assessing overall hydraulic performance. Conduct pressure tests across different system functions verifying pumps, valves, and cylinders operate within manufacturer specifications. Complete fluid analysis provides detailed contamination data including particle counts, water content, and additive depletion.
Replace filters according to manufacturer service intervals or earlier if condition monitoring indicates excessive contamination. Monthly intervals work for moderate-duty applications, while severe service may require more frequent replacement.
Quarterly and Annual Overhauls
Major maintenance activities address comprehensive system needs extending beyond routine tasks. Quarterly maintenance focuses on component-level inspections and replacements based on wear patterns. Remove and inspect high-wear components like pump cartridges, cylinder seals, and control valve spools.
Annual system overhauls include complete fluid replacement removing accumulated contaminants, system flushing eliminating varnish deposits and sludge, seal replacement in cylinders and rotary actuators, pump inspection and rebuild based on hour meters, and detailed performance documentation establishing baselines.
The HDJ Perspective
In practice, most fleets implementing condition-based maintenance rather than arbitrary time schedules achieve 20-30% better component life. The investment in fluid analysis and proper filtration equipment pays for itself within the first prevented pump failure. Shops that track their hydraulic maintenance data consistently find patterns revealing which equipment configurations, operating conditions, or service practices lead to problems—information that’s impossible to capture without systematic documentation.
Hydraulic Filter Service and System Flushing
Filter replacement and flushing procedures represent essential preventive maintenance tasks since contamination remains the primary cause of hydraulic system failures. Regular filter service combined with proper system flushing protects expensive components from premature wear.
Filter Types and Change Intervals
Hydraulic systems employ multiple filter types serving specific contamination control functions. Suction filters protect pumps from large particles in the reservoir, typically featuring coarse mesh elements capturing particles larger than 100 microns with inspection recommended every 500 operating hours.
Pressure filters install downstream from pumps protecting sensitive control valves and actuators from fine contamination, capturing particles as small as 3-10 microns with change intervals of 1,000-2,000 hours. Return line filters provide final contamination control before fluid re-enters the reservoir, removing wear particles generated during operation.
Free Professional Fleet Tools
Cost calculators, fault code lookup, maintenance planners, and more—built for owner-operators, fleet managers, and diesel techs. No signup required.

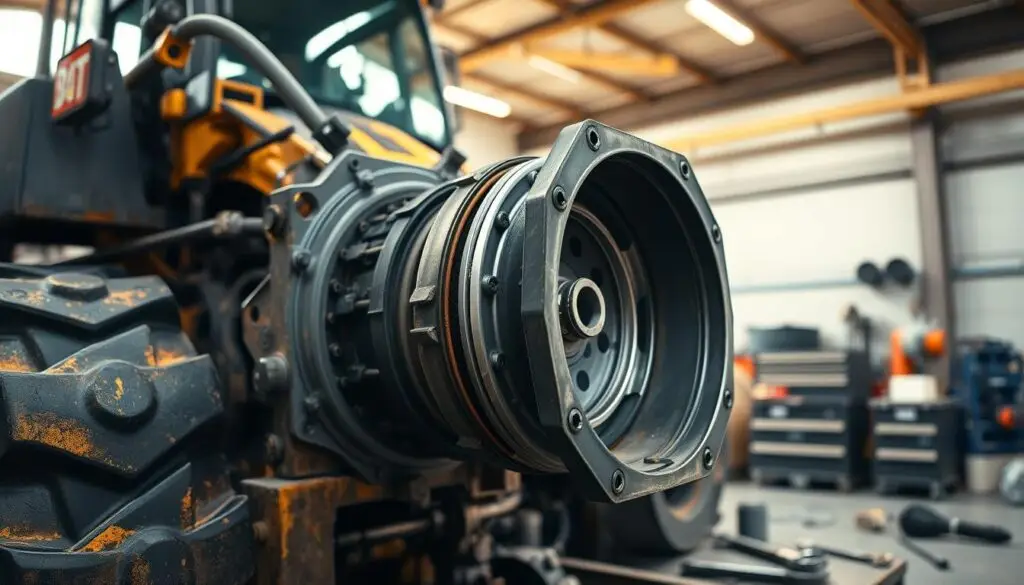

Step-by-Step Filter Replacement
Proper filter replacement requires systematic procedures preventing new contamination introduction during service. Begin with complete system shutdown, lockout-tagout engagement, and pressure release through cycling control functions or opening bleed valves. Verify zero pressure using calibrated gauges before proceeding.
Clean external filter housing thoroughly before opening to prevent dirt entering the system. Position drain pan beneath housing, remove bowl carefully, and extract used filter into sealed disposal container. Inspect bowl interior for accumulated sludge or metal particles indicating component wear.
Verify replacement filter matches manufacturer specifications. Pre-fill new filter element with clean hydraulic fluid preventing pump cavitation during startup. Install element according to directional flow arrows, replace all o-rings with new components, and tighten bowl to manufacturer torque specifications.
Complete System Flushing
Simply changing filters doesn’t thoroughly clean contaminated systems. System flushing removes embedded contamination from internal passages, component surfaces, and reservoir walls. This comprehensive cleaning becomes necessary before installing new major components or addressing persistent contamination issues.
Effective flushing requires proper velocities creating turbulent flow conditions dislodging embedded particles. Target flow velocities of 10-15 feet per second through system lines to mobilize contaminants without damaging components. Circulate heated flushing fluid (140-160°F) while monitoring contamination levels using particle counters until counts consistently meet target ISO cleanliness codes.
Servicing Hydraulic Pumps and Cylinders
Pumps and cylinders serve as primary actuating components transforming pressurized fluid into productive work. These critical elements experience significant stress during operation, making them vulnerable to wear requiring specialized maintenance approaches.
Monitoring Pump Performance
Establish baseline performance metrics when equipment is new or after pump replacement, documenting pressure output, flow rates, operating temperatures, and sound levels. Regular pressure verification using calibrated gauges identifies declining pump efficiency before complete failure. A 10% reduction in flow rate typically indicates significant internal wear requiring overhaul or replacement.
Temperature monitoring reveals internal wear and excessive friction within pump assemblies. Operating temperatures exceeding normal ranges by 20°F or more indicate potential problems. Unusual noises signal developing problems: whining suggests cavitation, knocking indicates loose components or bearing failure, and grinding points to contamination damage.
Cylinder Seal Inspection and Replacement
Visual inspection of cylinder rods provides first line defense against seal failures. Examine entire rod surface for corrosion, pitting, and scoring damaging seals through excessive friction. External fluid seepage around rod seals requires immediate attention, while reduced cylinder performance and position drift under load signal internal seal deterioration.
⚠️ Safety Warning
Always depressurize cylinders completely and engage lockout-tagout procedures before seal replacement. Residual pressure can cause violent component ejection during disassembly. Verify zero pressure at multiple test points before beginning work.
The seal replacement process requires careful attention to component orientation, torque specifications, and cleanliness. Mark cap and tube alignment before separation, clean seal grooves thoroughly, lubricate new seals with system fluid before installation, and follow recommended tightening sequences to distribute clamping forces evenly.
Cavitation and Aeration Prevention
Low fluid levels represent the leading cause of cavitation in hydraulic pumps. Insufficient fluid allows pumps to draw air, forming bubbles that collapse violently inside pumps and eroding metal surfaces. Restricted suction lines from undersized hoses, clogged inlet strainers, or excessive line length prevent adequate fluid flow creating vacuum conditions promoting cavitation.
Aeration introduces air through external sources rather than vapor formation. Loose suction line connections, damaged pump shaft seals, and low fluid levels allow atmospheric air entry creating foam in reservoirs. Preventive measures include maintaining proper fluid levels, sizing reservoirs appropriately for air separation, specifying adequate suction line diameters, and regularly inspecting suction components for air infiltration.
Critical Safety Protocols During Hydraulic Maintenance
Hydraulic maintenance presents unique hazards requiring comprehensive safety protocols to prevent severe injuries and fatalities. OSHA’s guidance on controlling hazardous energy specifically addresses hydraulic, pneumatic, and other stored energy sources that can cause harm during servicing and maintenance. These systems operate under pressures exceeding 3,000 PSI, creating risks demanding respect and careful attention. Every technician performing maintenance must be competent, well-trained, and fully aware of dangers involved.
Depressurization and Lockout-Tagout
Residual pressure can remain trapped in hydraulic systems even after equipment shutdown. The first step involves identifying all pressure sources including accumulators, cylinders, and line sections containing trapped fluid. Slowly release trapped pressure through appropriate relief valves, never rushing the process as rapid release can cause component failure or fluid spray.
Before opening any connections, verify zero pressure using pressure gauges at multiple test points. Implement complete lockout-tagout procedures per OSHA standard 29 CFR 1910.147 placing physical locks on energy isolation devices with identification tags. Each technician working on equipment must place their own personal lock ensuring they control restart timing.
Fluid Handling Safety
Hydraulic fluids pose multiple health and environmental hazards depending on chemical composition. Always wear appropriate PPE: chemical-resistant gloves protecting hands, safety glasses or face shields preventing eye contact, and long-sleeved protective clothing providing splash barriers.
If hydraulic fluid contacts skin, wash immediately with soap and water. Never use solvents or harsh cleaners driving contaminants deeper into tissue. Proper spill cleanup using absorbent materials designed for petroleum products prevents environmental contamination and slip hazards.
Critical Safety Rule
Never use your hands to check for hydraulic leaks. High-pressure fluid streams from pinhole leaks can penetrate skin like hypodermic needles at pressures above 100 PSI. Use cardboard or paper to detect fluid spray from suspected leak points.
Understanding Hydraulic Injection Injuries
Hydraulic injection injuries occur when high-pressure fluid penetrates skin and underlying tissues, often through nearly invisible pinhole leaks. According to UK Health and Safety Executive guidance on hydraulic injection, the small entry wound makes these injuries appear minor, but they are true medical emergencies requiring immediate treatment.
Pressures above 100 PSI can break the skin barrier, and most hydraulic systems operate at pressures 10-30 times higher. Injected fluid spreads through tissue planes causing extensive internal damage not immediately apparent. Medical research published in NIH’s PMC indicates amputation rates between 16% and 48% for these injuries, with delays in treatment significantly worsening outcomes. If injection injury occurs, seek emergency medical treatment immediately regardless of wound appearance.
Inform emergency personnel the injury involves pressurized hydraulic fluid injection and provide safety data sheets for the specific fluid. Early surgical intervention is often necessary to remove contaminated tissue. Delays significantly worsen outcomes and increase amputation likelihood.
Maintenance Documentation and Record Management
Documentation transforms routine maintenance from reactive tasks into strategic asset management. Comprehensive records enable operators to identify patterns, predict failures, and make informed decisions about equipment lifecycle management while demonstrating equipment care that increases resale value.
Critical Information for Service Logs
Every maintenance entry should document: date and time with start and completion timestamps, equipment identification including make, model, serial number, operating hours at service time, specific tasks performed with detailed descriptions, components replaced with part numbers and quantities, fluid added or changed with type and volume, test results including pressure readings and temperature data, abnormalities observed, technician identification, and next scheduled service date.
Tracking Component Service Life
Component tracking establishes predictable replacement schedules preventing unexpected failures. Priority components for lifecycle monitoring include hydraulic filters with installation dates, hoses noting manufacture dates and replacement history, seals in cylinders and pumps, pump assemblies with performance metrics, and control valves with response characteristics.
Tracking enables predictive replacement before failure occurs and identifies components with abnormally short service lives. Premature failures often indicate system problems—contamination, excessive pressure, or improper installation—rather than component quality issues.
Digital Maintenance Management
Computerized maintenance management systems automate documentation providing capabilities impossible with paper records: automated service reminders based on calendar dates or hours, parts inventory tracking with reorder notifications, mobile access for field technicians enabling real-time data entry, performance analytics and trend reports, and digital work order generation with task checklists.
Digital systems eliminate lost record risk, enable simultaneous access from multiple locations, and reduce documentation time by 40-60% compared to manual methods. Trend analysis capabilities identify patterns across entire equipment fleets that would be invisible in paper records.
Frequently Asked Questions
How often should hydraulic fluid be changed in heavy equipment?
Hydraulic fluid change intervals depend on operating conditions, equipment type, and fluid analysis results. Most manufacturers recommend fluid replacement every 2,000-4,000 operating hours under normal conditions. Severe duty applications with high temperatures, dusty environments, or continuous operation may require changes every 1,000-2,000 hours. The most reliable approach is implementing regular fluid analysis testing quarterly, which reveals contamination levels, additive depletion, and viscosity changes determining actual change timing rather than arbitrary schedules.
What causes most hydraulic system failures?
Fluid contamination causes approximately 75-80% of all hydraulic system failures. Contaminants include particulate matter like dirt and metal particles, water intrusion, and air entrainment. These contaminants damage precision components, accelerate wear on pumps and valves, degrade seals, and compromise system efficiency. Prevention requires proper filtration, clean fluid handling procedures, sealed reservoir maintenance, and regular fluid analysis detecting contamination before it causes component damage.
What are signs of a failing hydraulic pump?
Warning signs include unusual whining or grinding noises during operation, elevated fluid temperatures beyond normal 120-140°F range, slow or erratic cylinder movement, reduced lifting capacity, and visible fluid foaming in the reservoir. Whining specifically indicates cavitation from air in the system or restricted suction flow. Any symptoms warrant immediate inspection to prevent catastrophic failure and secondary damage to other components.
How do you check hydraulic fluid condition?
Visual inspection provides initial assessment: clean fluid maintains consistent color and transparency, milky appearance indicates water contamination, dark discoloration suggests oxidation, and excessive foaming reveals air entrainment. Professional laboratory fluid analysis measures particle counts per ISO 4406 standards, water content, viscosity changes, and additive depletion for accurate condition assessment. Portable particle counters provide on-site contamination data.
What safety precautions are essential for hydraulic maintenance?
Essential precautions include complete system depressurization before disconnecting components, proper lockout-tagout procedures preventing accidental energization, and PPE including safety glasses, chemical-resistant gloves, and face shields for high-pressure work. Never use hands to check for leaks since high-pressure fluid can cause hydraulic injection injuries requiring emergency treatment. Maintain spill containment materials and emergency eyewash stations accessible near work areas.
Protect Your Equipment Investment Through Systematic Care
Heavy equipment hydraulic maintenance represents a critical investment delivering measurable returns in operational performance and cost control. The systematic approach presented in this guide—from daily inspections through comprehensive service programs and accurate documentation—works as a unified system protecting equipment value while maximizing productive uptime.
Organizations committing to these protocols achieve superior equipment reliability compared to those treating hydraulic service as optional. The benefits extend beyond avoiding breakdowns to include reduced repair expenses, minimized production interruptions, and enhanced workplace safety. Implementing these professional maintenance standards positions your operation for sustained competitive advantage through reliable equipment and predictable maintenance costs.
