When your commercial vehicle experiences mysterious electrical system failures, the culprit often hides in plain sight. Poor ground connections rank among the most common yet overlooked causes of downtime in fleet operations—affecting everything from basic lighting to sophisticated engine control modules. These failures create cascading issues that challenge even experienced technicians, and understanding how to identify, diagnose, and repair them is essential for minimizing costly downtime.

A bad ground connection occurs when the return path for electrical current develops excessive resistance, typically through corrosion, oxidation, or loose hardware. The challenge affects vehicles across all mileage ranges, from brand-new units with just 30 miles on the odometer to veteran workhorses exceeding 250,000 miles. This guide equips fleet managers, diesel technicians, and owner-operators with practical knowledge for systematic diagnostics, proper repairs, and preventive strategies that keep your trucks running efficiently.

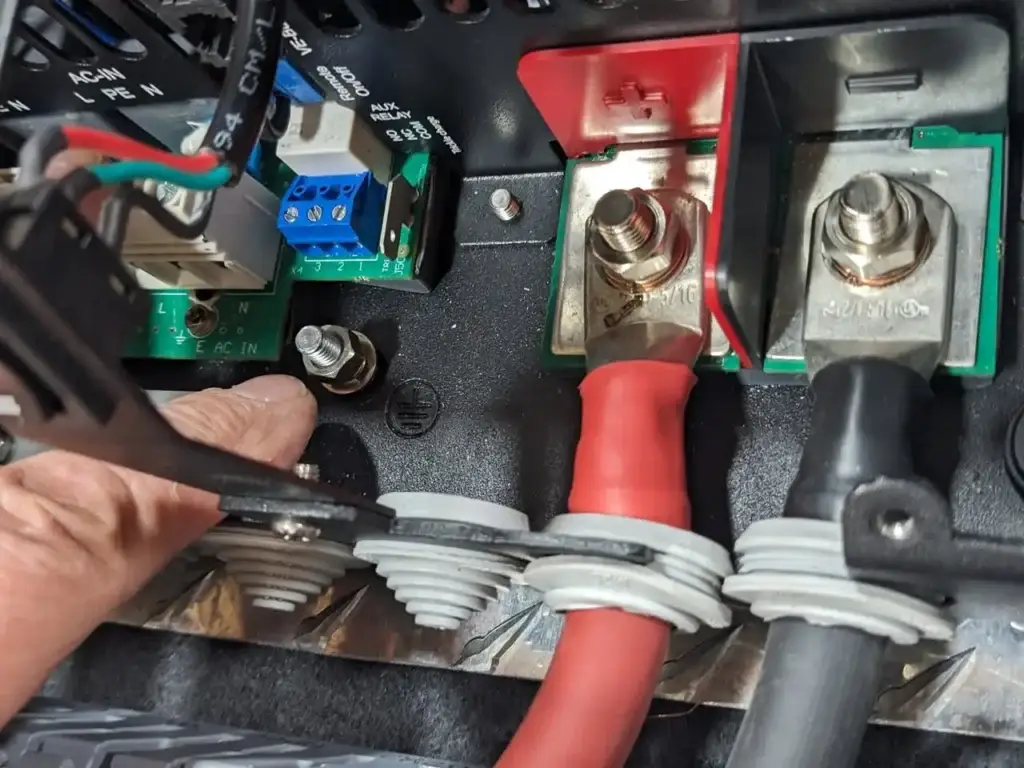

Understanding Ground Systems in Heavy-Duty Trucks

Ground connections serve as the silent backbone of electrical functionality in commercial vehicles, handling substantial electrical loads while maintaining reliable operation across millions of miles. The chassis ground network provides the essential return pathway that completes every electrical circuit—without proper grounding, even the most advanced truck electrical systems fail to operate correctly.

The ground path must maintain low electrical resistance to prevent voltage drops. When resistance increases due to corrosion or loose connections, components receive insufficient voltage, leading to dim lights, slow starter engagement, and erratic sensor readings. Modern diesel engines use sensitive electronic control units that require precise voltage signals, and even small fluctuations cause the ECU to misinterpret sensor data affecting injector timing, turbocharger boost control, and DPF regeneration cycles.

How Chassis Ground Networks Operate

Heavy-duty trucks employ distributed grounding architecture with multiple ground points throughout the vehicle. The chassis ground network connects various electrical systems to the frame, engine block, transmission housing, and cab structure. Each major system requires dedicated ground points to manage current flow effectively—the starter motor draws several hundred amperes during cranking, while lighting circuits, control modules, and accessories add additional load.

The engine block serves as a primary grounding location for engine-mounted components, with heavy ground straps connecting the block to the frame. Additional straps link the transmission, cab mounts, and other isolated metal structures back to the main chassis ground. Ground straps use braided cable construction that maintains electrical continuity while accommodating mechanical movement between connected components during vehicle operation.

12-Volt vs. 24-Volt System Considerations

Commercial truck grounding systems differ significantly from passenger vehicle designs. Many heavy-duty trucks operate on 24-volt electrical systems using two 12-volt batteries in series, requiring different grounding considerations. Wire gauge specifications also differ substantially—commercial trucks use larger diameter cables to handle higher amperage loads that would overwhelm pickup truck wiring.

Recognizing Ground Connection Problems

When ground connections fail in heavy-duty trucks, they produce a recognizable pattern of electrical malfunctions that don’t follow typical diagnostic logic. The symptoms frequently change based on operating conditions like temperature, vibration levels, and moisture exposure—a truck may operate perfectly on a cold morning but develop multiple electrical issues after hours of highway driving.

Intermittent Electrical Component Failures

Intermittent failures represent the most frustrating category of ground-related problems. Components work correctly one moment and fail completely the next, making diagnosis extremely difficult. These failures occur when marginal ground connections temporarily lose conductivity—vibration from rough roads breaks contact at corroded connection points, causing instant system failure that disappears when the vehicle stops moving.

Temperature changes dramatically affect ground connection quality. Metal expansion and contraction at connection points can either improve or worsen contact resistance, meaning a ground that works perfectly in cold weather may fail when engine heat causes differential expansion between dissimilar metals.

Starting System and Lighting Issues

Starter cranking problems frequently stem from inadequate ground connections rather than starter motor failure. The starter requires several hundred amperes during cranking, and even small amounts of resistance cause dramatic performance reduction. Symptoms include very slow cranking with a labored sound, or the starter solenoid simply clicking without any cranking action.

Lighting problems provide the most visible evidence of ground issues. Headlights that appear noticeably dimmer than normal indicate excessive resistance in the ground path, especially when multiple lights operate simultaneously. Turn signals may flash at incorrect rates, fail to illuminate on one side, or display extremely dim output. A peculiar symptom occurs when lights glow dimly even with switches in the off position—this happens because current finds alternate return paths through poor ground connections.

ECM and Sensor Malfunction Codes

Modern truck electronics depend completely on clean ground references for accurate operation. When ground quality degrades, sensor readings become unreliable and false diagnostic codes appear. Sensor error codes generated by ground problems often point to multiple unrelated components—a technician might see fault codes for the intake air temperature sensor, fuel pressure sensor, and throttle position sensor simultaneously, suggesting a common ground problem rather than three separate component failures.

The frustration intensifies when replaced components don’t resolve the problem. Technicians may install new sensors only to see identical fault codes return immediately. This cycle continues until someone recognizes the ground connection as the root cause.

Root Causes of Ground Connection Failures

Understanding what causes ground connections to fail requires examining the harsh operating environment that heavy-duty trucks endure daily. These vehicles face constant environmental exposure to chemicals, moisture, and temperature extremes while simultaneously experiencing mechanical stress from vibration and movement.

Corrosion and Water Infiltration

Road salt and moisture create the most common and destructive form of ground connection deterioration. When water contacts metal surfaces in the presence of oxygen, an electrochemical reaction forms oxidation on copper, steel, and aluminum components. This process accelerates dramatically when road salt is present, as it increases electrical conductivity and speeds up the corrosion reaction.

The visible signs include light green deposits on copper connections and white powdery residue on aluminum surfaces. These formations create an insulating layer that significantly increases electrical resistance. Water infiltration through breaks in wire insulation, damaged connector seals, or improperly installed grommets spreads corrosion throughout the entire wiring network—a single compromised seal can eventually cause ground problems at multiple locations far from the original water entry point.

Vibration and Heat Damage

Diesel engines produce constant vibration during operation, and heavy-duty trucks experience additional shock loads from road irregularities and cargo movement. These mechanical forces gradually loosen bolted ground connections over time, creating intermittent contact between metal surfaces. The vibration also causes wire insulation damage through repeated flexing and stress concentration at grommets and sharp bends.

Thermal stress represents a significant but often overlooked cause of deterioration. Exhaust system components can reach temperatures exceeding 1000°F, and nearby wiring harnesses experience elevated temperatures that degrade insulation materials. Electrical overload creates heat from within the wire itself—when a ground connection develops increased resistance, the restriction to current flow generates heat that accelerates oxidation and can eventually melt wire insulation.

Improper Installation Practices

Many ground problems originate from incorrect installation, particularly when aftermarket equipment is added. Common mistakes include connecting grounds to painted or corroded surfaces, using undersized ground wires, and failing to properly prepare mounting surfaces. Torque specifications play a critical role—over-tightening crushes connector housings or deforms contact surfaces, while under-tightening leaves connections loose and susceptible to vibration damage.

Master Ground Connection Diagnostics

Stay ahead of electrical failures with expert maintenance insights delivered to your inbox. Get practical diagnostic tips, preventive strategies, and industry updates that keep your fleet running.

Email

Email *

Submit

Critical Ground Points in Heavy-Duty Trucks

Every heavy-duty truck features several essential ground connection points that form the foundation of its entire electrical system. Technicians must understand that resistance values exceeding 0.3 ohms between any two ground points will cause operational problems. High resistance between the truck cab and frame, or between the frame and engine, represents the most common grounding failure pattern.

Engine-to-Frame Connections

The engine ground connections represent the highest-amperage ground path in the entire vehicle electrical system. These connections use heavy-gauge braided cables or formed copper straps to link the engine block directly to the chassis frame, handling several hundred amperes during starter motor operation. Most manufacturers install these ground strap locations on both sides of the engine block, with connections to dedicated mounting bosses cast into the block.

Battery and Cab Ground Paths

The battery ground cable creates the primary return path for all electrical current in the vehicle. This cable must connect the negative battery terminal to a clean, bare metal surface on the chassis frame using properly sized conductors. For 24-volt systems with two batteries in series, the negative terminal of the second battery provides the chassis ground connection.

Modern heavy-duty trucks mount the cab on rubber isolators that reduce noise and vibration but effectively interrupt the ground path between cab and frame. Instrument panels, lighting systems, and control modules mounted in the cab require dedicated ground straps to function properly. Resistance measurements between the cab structure and chassis frame should not exceed 0.3 ohms.

Comprehensive Diagnostic Procedures

Following systematic diagnostic testing procedures helps pinpoint the exact location of ground failures. Technicians must combine hands-on visual examination with precise electrical measurements, using the truck’s wiring schematic to identify wire circuit numbers, connector locations, pin assignments, and wire colors that guide the investigation.

Visual Inspection Techniques

Every successful diagnosis starts with thorough visual examination of all ground connection points. Inspect all accessible ground locations including engine block straps, frame mounting points, battery terminals, and body ground connections. Look for loose hardware, damaged cables, or signs of overheating. Pay special attention to connections near heat sources or exposed to road spray.

Corrosion appears differently depending on the metal type—copper connections develop a distinctive light green patina while aluminum surfaces show white powdery deposits. Dark discoloration around terminals suggests overheating from excessive resistance. Examine wire insulation for cracks, brittleness, or damage from abrasion, and look for evidence of water intrusion such as moisture inside connector housings.

Voltage Drop Testing

The voltage drop measurement technique evaluates ground paths while current flows through the circuit. Set a digital multimeter to DC voltage mode with a range of 2 volts or less. Connect the positive lead to the battery negative terminal and the negative lead to the suspected ground point. Activate the circuit to create electrical load during testing.

A properly functioning ground connection should show less than 0.2 volts difference between the battery negative and chassis ground. Test specific ground paths systematically including battery-to-engine, engine-to-frame, and cab-to-frame connections. Higher readings indicate excessive resistance caused by corrosion, loose connections, or damaged cables. Readings above 0.5 volts represent significant problems requiring immediate attention.

Resistance Measurements

Resistance measurements work best when circuits are de-energized and disconnected from power sources. Switch the multimeter to ohms mode and select the lowest resistance range. Ground resistance check values should read less than 0.3 ohms for acceptable connections—resistance above this threshold indicates problematic connections that will cause electrical malfunctions. Compare measurements from multiple ground paths to identify which specific connections need repair.

Effective Repair and Restoration Solutions

Restoring compromised ground connections requires systematic procedures and attention to detail. Proper ground connection repair involves more than simply tightening loose bolts—technicians must address underlying corrosion, ensure optimal metal-to-metal contact, and apply protective measures that prevent future deterioration.

Surface Preparation and Cleaning

Effective surface preparation forms the foundation of reliable electrical connections. Even thin oxidation layers create significant resistance that interferes with current flow. Both the terminal end and mounting surface must be cleaned to bare metal for proper conductivity. Wire brushes remove heavy corrosion and rust buildup—use brass or stainless steel brushes to avoid leaving ferrous particles that accelerate future corrosion.

Sandpaper or abrasive pads handle stubborn oxidation that wire brushes cannot remove. Start with 80-grit for heavy corrosion, then finish with 120-grit for smoother surfaces. Chemical cleaners work effectively on hard-to-reach areas—spray electrical contact cleaner dissolves oxidation and removes contaminants, but allow complete evaporation before reassembly.

Ground Strap Replacement

Ground strap replacement becomes necessary when cables show physical damage or excessive corrosion. Match or exceed the original equipment gauge rating to maintain proper current-carrying capacity. Braided ground straps handle vibration better than solid cables and work well for engine-to-frame connections where constant vibration occurs. Solid cables carry higher current loads in stationary applications like battery negative connections.

Proper terminal installation prevents future failures. Crimp terminals require appropriate tools that create gas-tight connections. Route replacement grounds away from heat sources and potential chafe points, and secure cables with appropriate clips at regular intervals.

Torque Specifications and Protection

Torque specifications ensure optimal connection without damage. Under-torquing leaves connections loose and prone to vibration loosening, while over-torquing strips threads or crushes terminals. Common specifications include: M6 bolts at 7-9 ft-lbs, M8 bolts at 15-18 ft-lbs, M10 bolts at 25-30 ft-lbs, and M12 bolts at 40-50 ft-lbs. Use calibrated torque wrenches and apply torque in a single smooth motion.

Protective coatings extend service life significantly. Dielectric grease applied to clean connection surfaces before assembly excludes moisture and prevents corrosion without interfering with electrical conductivity. Anti-seize compound on bolt threads prevents corrosion and galling while ensuring accurate torque readings. Apply protective treatments immediately after cleaning and before final assembly.

System-Wide Effects of Poor Grounds

Modern heavy-duty trucks contain separate ECUs for the engine, transmission, anti-lock braking system, vehicle control, instrument cluster, lighting control module, body builder systems, and supplemental restraints. Two different data links exist in most trucks: the J1939 control link and the J1587/1708 information link. When ground connections deteriorate, the effects cascade through multiple systems simultaneously.

Engine and Transmission Performance

The Engine Control Module represents one of the most sensitive systems to ground problems. Poor grounds cause the ECM to receive distorted signals from critical sensors, leading to improper fuel delivery, timing adjustments, injector misfires, and inconsistent turbocharger boost control. DPF regeneration issues frequently stem from poor grounds rather than actual exhaust system problems—unstable electrical connections prevent proper regeneration cycles.

Electronic transmission control modules require stable voltage and ground references to manage complex shifting strategies. Poor grounds distort input signals, causing erratic shifting patterns, harsh shifts, refusal to shift to higher gears, or unexpected downshifts. The transmission may enter limp mode as a protective measure when the TCM detects inconsistent sensor signals.

Safety Systems and Communication Networks

Anti-lock braking systems demonstrate extreme sensitivity to ground connection quality because they process wheel speed sensor signals measured in millivolts. Poor grounds introduce electrical noise that corrupts these signals, causing false readings, warning lights during normal driving, and erratic ABS activation. The ABS module may completely disable anti-lock function when it detects unreliable sensor signals.

The J1939 data bus serves as the primary communication backbone for engine, transmission, ABS, and other critical systems. This Controller Area Network uses differential signaling that depends on precise voltage levels—ground problems introduce electrical noise that corrupts data transmission. Communication failures manifest as missing data on the instrument cluster, inability to retrieve diagnostic codes with scan tools, and intermittent loss of functionality across multiple systems.

Preventive Maintenance Strategies

Implementing routine ground connection maintenance prevents unexpected breakdowns and minimizes repair costs over the vehicle’s operational life. Proactive maintenance costs significantly less than emergency repairs, and scheduled inspections identify developing issues during planned downtime rather than during critical delivery schedules.

Establishing Inspection Intervals

Creating a ground inspection schedule tailored to operational conditions ensures comprehensive coverage of all critical connection points. Trucks operating in harsh environments require more frequent inspections than vehicles in moderate climates. Winter operations with road salt exposure demand monthly ground system checks during salt season, while coastal operations facing accelerated corrosion from salt air benefit from inspection every 5,000 miles or quarterly.

Standard inspection intervals work well for over-the-road operations in temperate climates. Major ground points should receive attention during routine oil changes, typically every 15,000 to 25,000 miles. Immediate inspection becomes necessary after water crossings, flood exposure, or any time a vehicle experiences unusual electrical behavior.

Protective Compounds and Best Practices

Proper application of protective compounds forms a barrier against moisture and corrosion. Dielectric grease applied to connector pins before assembly prevents water intrusion while maintaining electrical conductivity. Anti-seize compound on bolt threads prevents corrosion and ensures future disassembly without thread damage. Silicone-based grease maintains rubber seal flexibility—connector seals dry out and crack over time, especially in high-temperature environments.

Following 49 CFR Part 396 requirements for systematic vehicle inspection, repair, and maintenance provides the regulatory foundation for ground connection programs. OEM specifications exist for sound engineering reasons—ground locations, wire gauges, and torque values reflect extensive testing and design validation. When adding aftermarket equipment, verify that existing ground infrastructure can handle additional loads without voltage drop issues.

Documentation and Training

Maintaining accurate records of ground connection inspections and repairs supports fleet reliability programs. Document the date, mileage, technician, and findings for each inspection. Record resistance measurements at key ground points to track degradation trends over time. This data helps identify vehicles or routes that experience accelerated ground deterioration and enables proactive replacement before failures occur.

Technician training on proper ground diagnostic techniques pays dividends through faster troubleshooting and reduced parts costs. Many electrical problems attributed to failed components actually stem from ground issues—technicians who understand voltage drop testing and systematic ground evaluation identify root causes more quickly. The CVSA out-of-service criteria for electrical systems establishes minimum safety standards that well-maintained ground systems easily meet. Fleets operating under FMCSA hours-of-service regulations cannot afford unplanned electrical failures that strand drivers and delay deliveries.

Frequently Asked Questions

What are the most common symptoms of ground connection problems in heavy-duty trucks?

The most recognizable symptoms include intermittent electrical failures where systems work unpredictably, dim or flickering lights that may glow faintly even when switched off, slow cranking or clicking sounds during starting attempts, and multiple diagnostic trouble codes appearing simultaneously for unrelated sensors. You might also notice lights dimming significantly when attempting to start the engine, warning lights illuminating without corresponding faults, or electrical problems that seem to migrate from one area of the truck to another. These patterns typically indicate chassis ground network degradation rather than individual component failures.

How do I perform a proper voltage drop test on ground connections?

Set a digital multimeter to DC voltage mode with a range of 2 volts or less. Connect the positive lead to the battery negative terminal and the negative lead to the ground point you’re testing. Activate the circuit to create electrical load—turn on lights, crank the starter, or operate the component. Read the voltage while the system operates under load. Acceptable voltage drop is under 0.2 volts for most circuits. Test systematically through battery-to-engine, engine-to-frame, and cab-to-frame connections. Readings above 0.5 volts indicate significant problems requiring immediate correction, while readings between 0.2 and 0.5 volts warrant monitoring and preventive maintenance.

Why does my truck show false diagnostic codes when the actual problem is a ground issue?

Modern truck electronics use ground as their voltage reference point for all sensor measurements. When ground connections develop resistance from corrosion or looseness, voltage instability causes sensors to send incorrect readings to the ECM. A temperature sensor might report impossibly high or low readings, or a pressure sensor might show values that don’t correspond to actual operating conditions. The ECM interprets these abnormal signals as component failures and stores diagnostic trouble codes. The pattern of multiple unrelated sensor codes appearing simultaneously—such as intake air temperature, fuel pressure, and throttle position sensors all failing at once—strongly suggests a common ground problem affecting signal quality rather than three separate component failures.

Can poor grounds cause ABS system malfunctions?

Yes, anti-lock braking systems are extremely sensitive to ground connection quality because wheel speed sensors generate small AC signals measured in millivolts. The ABS module compares these signals from all wheels to detect potential lock-up conditions. Poor grounds introduce electrical noise that corrupts these signals, causing false readings. Common symptoms include ABS warning lights illuminating during normal driving, inability to complete self-diagnostic tests during startup, and erratic ABS activation when braking on smooth surfaces. The ABS module may completely disable anti-lock function when it detects unreliable sensor signals, leaving conventional braking functional but eliminating the safety advantage of anti-lock protection during emergency stops or slippery conditions.

How often should I inspect ground connections on my heavy-duty truck?

Inspection frequency depends on operating conditions. For standard highway operations, inspect major ground points during routine oil changes every 15,000-25,000 miles, with comprehensive ground system inspection during annual DOT inspections. Trucks in harsh environments require more frequent attention: winter operations with road salt exposure warrant monthly inspection during salt season; coastal operations with salt air exposure need inspection every 5,000 miles or quarterly; off-road and construction applications with high vibration should be checked every 5,000-10,000 miles. Immediate inspection is required after water crossing, flood exposure, or when electrical symptoms appear. Critical ground points that are easily accessible should be incorporated into pre-trip checks for mission-critical applications.

Keep Your Fleet Running with Proper Ground Maintenance

Ground connection problems create significant challenges for operations that depend on trucking for transportation and logistics. Beyond productivity losses, these issues bring safety concerns, increased maintenance costs, and supply chain disruptions. The relationship between truck electrical maintenance and fleet reliability cannot be overstated—ground connections affect every electrical system in your vehicle, from basic lighting to complex engine controls and communication networks.

Preventive electrical care offers the most cost-effective approach. Routine inspection, cleaning, and testing of ground points prevent unexpected failures that disrupt operations at the worst possible times. When electrical problems arise, starting with ground connections often reveals the root cause faster than chasing individual symptoms across different systems. A well-maintained grounding system creates measurable differences in performance, efficiency, and vehicle longevity that compound over time. If your trucks experience unexplained electrical behavior, don’t overlook the simple solution—check ground connections before pursuing more complex diagnostic paths.
