Diesel diagnostic equipment is what separates a shop that diagnoses a modern commercial engine in minutes from one that guesses at parts for hours. The category spans OEM-level scan tools, bi-directional testers, aftertreatment instruments, oscilloscopes, and Engine Control Module (ECM) programming hardware. Each piece unlocks a different layer of the truck's electronic systems.
Heavy Duty Journal tracks which tools actually pay for themselves, in what order to buy them, and how much shops of different sizes should expect to invest. As of September 2026, that buying calculus has shifted again — protocol coverage, aftertreatment diagnostics, and software subscriptions now matter more than raw hardware specs alone.
Key Takeaways
- ✓Protocol coverage decides what you can service. SAE J1939 handles 2010-and-newer trucks; J1708 still lives under a large share of pre-2010 equipment still on the road — a tool that only speaks one protocol turns away work the other still needs.
- ✓OEM tools and generic scanners solve different problems, not the same problem at different price points. A multi-brand scanner reads codes across every badge on the lot; only Cummins Insite, Detroit DDDL, or CAT ET unlock injector coding, forced regeneration, and full ECM flashing for that brand specifically.
- ✓Most diagnostic tools pay for themselves inside two to three years of normal use. Even a single OEM scan tool used a few times a week typically returns its cost through faster diagnosis and higher-margin repair capability before the software subscription renews twice.
In This Guide
- What Diesel Diagnostic Equipment Your Shop Actually Needs
- OEM-Level Scan Tools: Cummins, Detroit, and Caterpillar
- Bi-Directional Testing and Live Data
- Matching Protocol Coverage to Your Fleet
- Emissions and Aftertreatment Diagnostics
- ECM Programming and Calibration
- Oscilloscopes and Electrical Diagnostics
- Mechanical Verification: Compression and Leak-Down
- Diagnostic Software Subscriptions
- Building Your Diagnostic Investment Plan
- Frequently Asked Questions
What Diesel Diagnostic Equipment Your Shop Actually Needs
Diesel diagnostic equipment falls into four functional layers: a scan tool platform for reading and commanding the ECM, protocol-matched hardware for connecting to it, aftertreatment-specific instruments for Diesel Particulate Filter (DPF) and Diesel Exhaust Fluid (DEF) systems, and mechanical testing tools for confirming what the electronics can't measure directly.
A scan tool platform, in practice, means a communication adapter — the physical box that plugs into the diagnostic port — paired with software running on a connected laptop or tablet. The two are usually sold together but function as separate purchase decisions, since the adapter often outlasts several software subscription cycles.
According to Heavy Duty Journal's ongoing coverage of shop equipment investment, the single most common mistake independent shops make is buying breadth before depth — a second multi-brand scanner that covers everything shallowly, before they've exploited the OEM-level tool for the brand that already fills most of their bays.
Modern diesel engines rely on electronic systems controlling fuel injection timing, exhaust gas recirculation, and aftertreatment dosing, with the ECM tracking hundreds of parameters at once. A shop diagnosing those systems through mechanical inspection alone is guessing — and every hour spent guessing is an hour a well-equipped competitor spends closing the job.
Federal emissions rules add a compliance dimension on top of the repair itself. Shops performing emissions-related work must verify that the systems they touch still function correctly before the truck goes back on the road, which means having equipment capable of reading manufacturer-specific codes and confirming the repair meets the emissions standards codified under 40 CFR Part 86.
Safety is the fourth reason this equipment matters, beyond speed and compliance. Guessing at an electrical fault or probing a high-pressure fuel system without accurate data puts a technician at real risk — diesel fuel systems and aftertreatment circuits run at pressures and temperatures that reward caution and punish shortcuts.

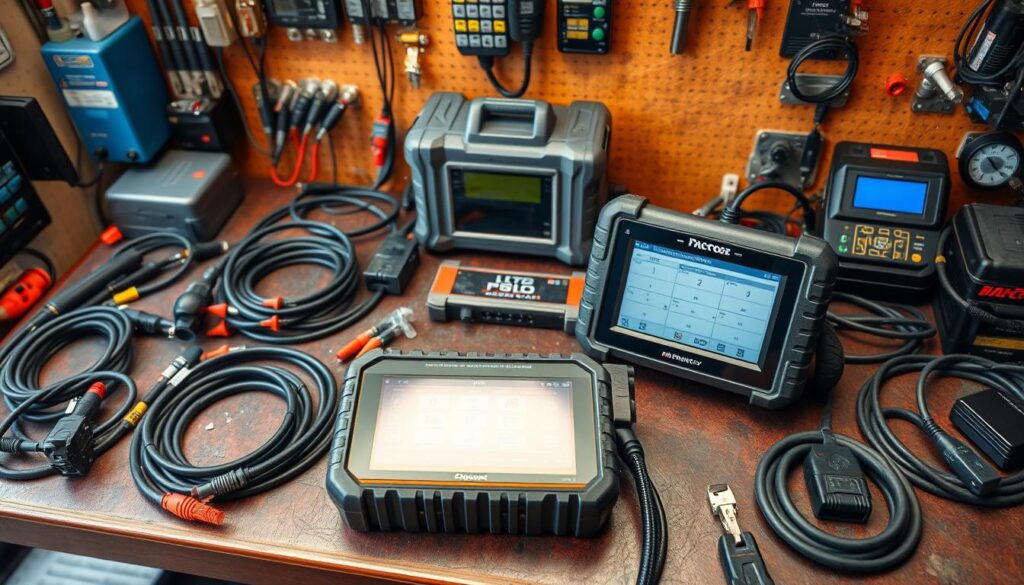

OEM-Level Scan Tools: Cummins, Detroit, and Caterpillar
OEM-level scan tools give a shop the same dealer-grade access to a specific engine brand that the manufacturer's own service centers use — ECM flashing, injector coding, and forced aftertreatment regeneration that a generic scanner simply cannot reach. Each of the three major diesel engine builders maintains its own platform.
| Platform | Unlocks | Typical Annual Software |
|---|---|---|
| Cummins Insite (with the INLINE 7 adapter) | ECM programming, injector coding, forced DPF regeneration | Roughly $800–$1,200 (as of September 2026, industry estimate) |
| Detroit Diesel Diagnostic Link (DDDL) | Factory calibration downloads, active component testing | Roughly $900–$1,600 (as of September 2026, industry estimate) |
| CAT Electronic Technician (ET) | Injector trim programming, flash updates, historical trend logging | Roughly $1,200–$2,000 (as of September 2026, industry estimate) |
These figures are approximate industry ranges reported by shops, not vendor-quoted list prices — subscription tiers vary by number of simultaneous users and the specific engine families covered. Shops that regularly service a given brand typically recover the investment within a year through repairs a generic scanner simply cannot perform.

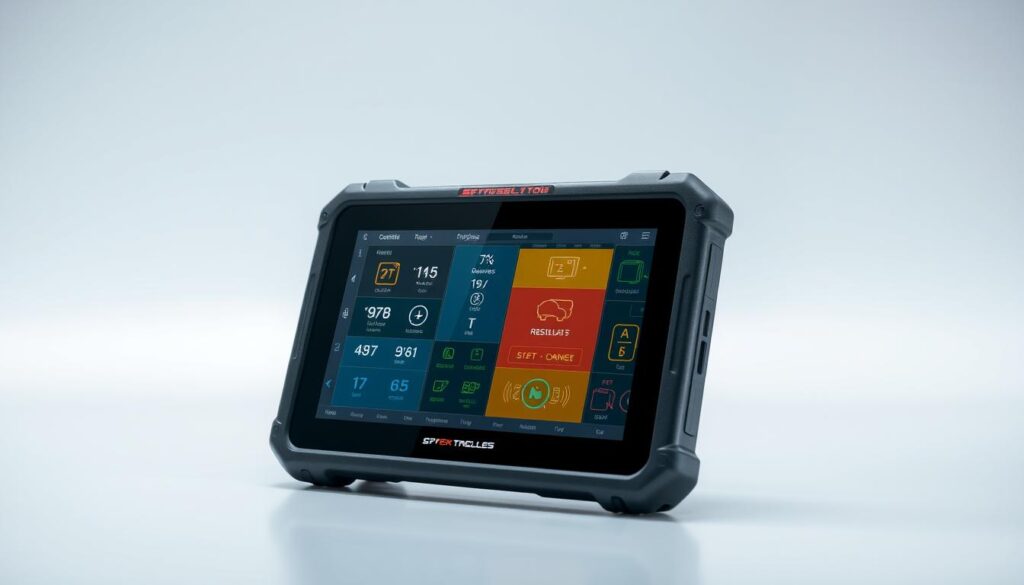

Bi-Directional Testing and Live Data
Bi-directional testing lets a technician command a component — cycle a solenoid, actuate an Exhaust Gas Recirculation (EGR) valve, run a cooling fan — and watch how it actually responds, instead of only reading a fault code that says something is wrong somewhere in the circuit.
When a commanded component fails to respond, the technician immediately knows whether the fault sits in the part, the wiring, or the control module — cutting out the trial-and-error part-swapping that turns a 20-minute diagnosis into a half-day comeback.
Live data streaming complements bi-directional control by tracking dozens of parameters simultaneously under real operating conditions — idle, load, and everything between — and recording intermittent problems that never set a stored fault code but still show up as a drivability complaint on the road.
Bi-directional testing also verifies a repair after the fact. Once a component is replaced, running it through its full commanded range confirms proper installation before the truck leaves the bay — a five-minute check that prevents the far more expensive comeback of a customer returning with the same complaint days later.
Keep Your Fleet Running at Full Capacity
Get HDJ's maintenance guides, compliance updates, and fleet management strategies delivered weekly — built for working diesel professionals.
Matching Protocol Coverage to Your Fleet
Heavy-duty diagnostic protocols determine whether a scan tool can talk to a given truck at all — the two a shop will encounter are the legacy SAE J1708 standard and the current SAE J1939 data link standard, which governs communication on most trucks built since roughly 2010.
| Protocol Feature | J1708 (Legacy) | J1939 (Current) |
|---|---|---|
| Communication speed | 9,600 bits per second | 250,000 bits per second |
| Primary vehicle years | Pre-2010 commercial vehicles | 2010 and newer diesel trucks |
| Network architecture | Single-wire link | Two-wire CAN (Controller Area Network) bus |
A shop equipped only with J1939-capable tools cannot properly service a fleet still running pre-2010 equipment, and a tool limited to J1708 misses the bi-directional depth newer trucks need. Mixed fleets need both. If a specific fault code is the immediate concern, HDJ's guide to reading and fixing common diagnostic trouble codes walks through the process once the scan tool is already connected.
Emissions and Aftertreatment Diagnostics
Aftertreatment diagnostics cover the DPF, DEF, and Selective Catalytic Reduction (SCR) systems that keep a modern diesel engine within federal emissions limits — and they now account for a large share of the diagnostic work coming through a typical bay.
Measuring pressure drop across the DPF is the most reliable indicator of filter loading. A clean filter reads roughly 1–3 in. H₂O; a reading above 5–6 in. H₂O signals loading that needs attention, and anything past 8–10 in. H₂O points to a severely plugged filter needing service now, not at the next scheduled interval.
DEF quality testing matters just as much. Proper DEF holds roughly 32.5% urea in deionized water, and concentrations outside a 31.8–33.2% range trigger SCR system warnings and cut NOx conversion efficiency — a problem that's cheap to test for and expensive to ignore, since contaminated DEF can damage the SCR catalyst itself.
For the electronic side of aftertreatment troubleshooting — sensor signal checks, wiring diagnostics, and the emissions-related fault codes those systems generate — HDJ's emission system diagnostics guide covers the DPF, EGR, and SCR troubleshooting sequence in more depth than fits here.
Editorial Insight
The HDJ Perspective
Shops that buy a second scan tool before mastering the one they already own are solving the wrong problem. Heavy Duty Journal has repeatedly seen independent shops sink five figures into a new OEM platform while the tool already in the toolbox covers most of what rolls through the bay — the faster payback almost always comes from a software subscription renewal and a few hours of training on features the shop already owns, not another box on the shelf.

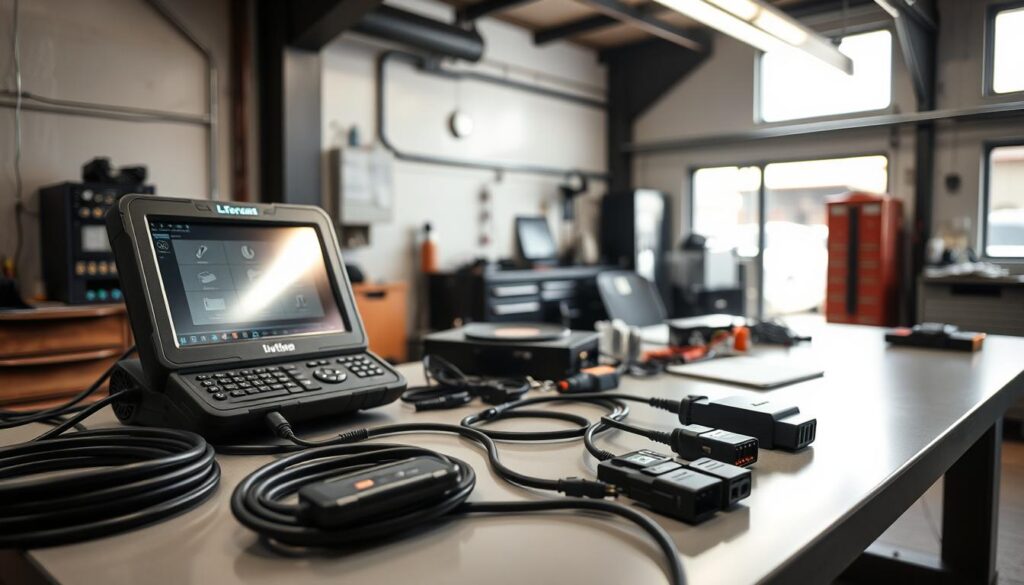

ECM Programming and Calibration
ECM programming and calibration is what separates a full-service diesel facility from a basic repair shop — flashing new software, adjusting parameters, and programming a replacement module all require this capability, and none of it works without stable shop infrastructure behind it.
Emissions calibration updates are the most common reason a truck needs reflashing, since EPA recall notices regularly require manufacturers to update engine software that drifts outside emissions standards over time. Performance updates and security patches for telematics-connected ECMs follow close behind. On-board diagnostic requirements for newer engines — including which fault data the ECM must make available to a generic scan tool — are spelled out in 40 CFR Part 1036's diagnostic controls section, which is worth a technician's read before assuming a given parameter simply isn't accessible.
⚠️ Safety Warning
A voltage drop during ECM flashing can corrupt the calibration file and disable the module permanently. Keep battery voltage above 13V for the entire flash using a dedicated battery maintainer — and make sure the shop wiring feeding that maintainer meets OSHA's general industry electrical safety standards, since an overloaded circuit is just as capable of interrupting a flash as a weak battery.
A replacement ECM arrives blank and needs to be programmed with vehicle identification data, security codes, and the correct calibration file before it will run the engine. After any flash, read back the installed software version, clear all codes, and road-test the truck — skipping that verification step is how a completed flash turns into a comeback.
Oscilloscopes and Electrical Diagnostics
An oscilloscope turns an invisible electrical signal into a visible waveform — showing amplitude, frequency, and timing relationships between signals that a multimeter simply cannot display, which matters on a truck with hundreds of sensors and control circuits communicating over a shared network.
Common applications include crankshaft and camshaft position sensor testing, fuel injector command-signal verification, and alternator ripple testing that catches a failing diode before the alternator quits entirely on the road. A four-channel scope lets a technician compare position sensors and injector signals side by side to isolate timing-related misfires.
The Technology & Maintenance Council's Recommended Practices library includes a dedicated practice for electrical diagnostics incorporating lab scopes — worth reading before standardizing shop procedure around a specific scope model. For sensor-level testing and replacement procedures once a scope has flagged the problem, see HDJ's sensor diagnostics and replacement guide.
Mechanical Verification: Compression and Leak-Down
Electronic diagnostics can't confirm piston ring wear, valve sealing, or head gasket integrity — that still requires mechanical testing. A diesel-rated compression gauge needs to read at least 600 psi, since diesel engines run compression pressures between 350 and 600 psi, well above what a gasoline-engine tester is built for.
A healthy diesel engine typically reads above 350 psi, but the variation between cylinders often matters more than the absolute number. Under 10% variation reads as excellent condition; past 15% points to a real problem worth chasing with a leak-down test, which pressurizes the cylinder and identifies whether a valve, ring, or head gasket is the source of the leak.
Diagnostic Software Subscriptions
Subscription-based repair information — wiring diagrams, technical service bulletins, and guided diagnostic routines layered on top of raw fault codes — has largely replaced the printed manuals and one-time software purchases shops relied on a decade ago.
Platforms like Mitchell 1 ProDemand integrate trouble-code data with repair procedures and component specifications in one interface, and some now include a feature that surfaces how other shops resolved a similar problem — a genuine time-saver when a fault pattern doesn't match the textbook description.
Remote diagnostics round out the subscription model. A technician can review live data or run a preliminary diagnosis before a truck ever reaches the shop, which shortens downtime for the fleet and lets a shop start planning parts and labor before the vehicle is even on the lift.
Building Your Diagnostic Investment Plan
The right diagnostic investment plan scales with shop size: small shops need broad multi-brand coverage first, medium shops need redundancy so more than one technician can work at once, and large shops need complete OEM suites with site-licensed software.
| Shop Size | Priority Tools | Typical Initial Investment |
|---|---|---|
| Small (1–3 techs) | Multi-brand scan tool, diesel-rated multimeter, compression tester | Roughly $15,000–$35,000 (industry estimate) |
| Medium (4–8 techs) | OEM-specific tools, bi-directional scanners, an oscilloscope | Roughly $50,000–$100,000 (industry estimate) |
| Large (9+ techs) | Complete OEM suites, aftertreatment testing, site-licensed software | Roughly $125,000–$250,000+ (industry estimate) |
Key Recommendation
Work out Return on Investment (ROI) before buying, not after. If a $12,000 scan tool saves 30 minutes per vehicle and the shop diagnoses 15 vehicles a week at $150 an hour, that's roughly $5,850 a year in time savings alone — payback in well under two years before counting the higher labor rate the added capability justifies.
Time major purchases around manufacturer promotions and end-of-year sales where possible, and prioritize tool durability over sticker price — a warrantied, reliable tool that lasts years beats a cheaper one that needs replacing twice in that span. Many shops also finance larger purchases and deduct the full cost in the same tax year under Section 179 of the tax code, though the deduction limits change annually and are worth confirming with an accountant before committing to a specific purchase.
For the diagnostic workflow itself once the equipment is on the bench, HDJ's complete guide to diesel engine diagnostics covers the step-by-step process end to end, from initial code retrieval through the mechanical verification steps this guide's tools support.
Diagnostic capability now determines which repairs a shop can take on and which get turned away to a better-equipped competitor. The shops that invest deliberately — matching protocol coverage, OEM depth, and aftertreatment testing to the trucks that actually roll through their bays — are the ones still standing when the next round of emissions standards makes the gap wider. For more buying guides like this one as diesel diagnostic equipment continues to evolve, check back at heavydutyjournal.com.
Frequently Asked Questions
What's the difference between a generic scan tool and an OEM tool like Cummins Insite?
A generic scanner reads fault codes across brands but can't flash the ECM or code injectors. OEM tools like Cummins Insite, Detroit DDDL, and CAT ET unlock that dealer-level access — programming, calibration, and forced regeneration — for one brand specifically.
Do I need both J1939 and J1708 protocol support?
Yes, if the fleet mixes vehicle ages. J1939 covers 2010-and-newer trucks; J1708 still covers a meaningful share of what's running from before that. A tool limited to just one protocol turns away work the other still needs — see the protocol comparison table above for the full breakdown.
How much should a small independent shop budget for diagnostic equipment?
Industry estimates put a small shop's initial investment at roughly $15,000–$35,000, covering a multi-brand scan tool, a diesel-rated multimeter, and a compression tester as the starting toolkit. See the shop-size investment table above for the medium- and large-shop ranges and priority tools at each tier.
What DPF pressure reading means the filter needs service?
A clean filter reads roughly 1–3 in. H₂O. A reading above 5–6 in. H₂O signals loading worth addressing soon, and anything past 8–10 in. H₂O means the filter is severely plugged and needs service immediately, not at the next scheduled maintenance interval.
Why does ECM programming require stable voltage?
A voltage drop partway through a flash can corrupt the calibration file and disable the module permanently, sometimes requiring dealer-level recovery. Michael Nielsen and HDJ's editorial team recommend a dedicated battery maintainer keeping voltage above 13V throughout, rather than relying on the vehicle's own charging system.
