Coolant Leak Diagnosis: Class 8 Truck Guide

Coolant leak diagnosis in Class 8 trucks demands systematic procedures that separate professional technicians from parts replacers. With cooling system failures costing fleets between $448 and $760 per day in lost revenue, accurate first-time diagnosis becomes a financial imperative. This guide delivers the complete framework for identifying and resolving leaks in heavy-duty commercial vehicles.

Professional technicians understand that finding coolant system issues requires more than replacing parts. It demands proven troubleshooting methods, proper diagnostic equipment, and thorough understanding of heavy-duty thermal management systems. From visual inspection techniques to pressure testing protocols and advanced diagnostic technologies, each method helps technicians work faster while reducing comebacks.

Heavy-duty trucks travel hundreds of thousands of miles across challenging terrain. With proper preventive maintenance and trained drivers who spot warning signs early, fleets avoid expensive repair bills. The difference between a minor fix and catastrophic engine damage often comes down to catching problems before they escalate.

Last Updated: December 2025

Understanding Class 8 Cooling System Architecture

Modern Class 8 cooling systems integrate multiple heat exchangers and circulation pathways to manage thermal loads exceeding 500,000 BTUs per hour during peak operation. These sophisticated networks differ substantially from light-duty vehicle systems in both complexity and operational demands. Technicians must grasp the fundamental architecture of heavy-duty diesel engine cooling before attempting leak diagnostics.

Heavy-Duty Thermal Management Components

Class 8 trucks employ an interconnected network of cooling system components that work simultaneously to dissipate heat from multiple sources. The primary radiator handles engine coolant, while auxiliary heat exchangers manage charge air, transmission fluid, hydraulic oil, and exhaust gas recirculation. Each component operates within a pressurized system typically ranging from 15 to 20 PSI at operating temperature.

The water pump serves as the heart of circulation, pushing coolant through complex pathways at flow rates exceeding 200 gallons per minute in some applications. Modern electronically-controlled thermostats maintain precise temperature ranges between 180°F and 205°F, optimizing combustion efficiency while preventing overcooling during light-load conditions.

Critical components in heavy-duty applications include the radiator core with capacities ranging from 1,200 to 2,000 square inches of cooling surface. The charge air cooler reduces intake air temperatures by 200°F or more to increase power density. EGR coolers manage exhaust gas temperatures for emissions compliance in post-2007 engines, while separate oil coolers handle engine oil, transmission, and hydraulic systems.

Financial Impact of Undetected Coolant Issues

Undiagnosed cooling system failures generate costs that multiply rapidly across operational and maintenance categories. A single truck experiencing coolant-related downtime costs fleet operators between $448 and $760 per day in lost revenue, not including actual repair expenses. When multiple units develop similar issues, these losses compound exponentially.

The progression from minor leak to catastrophic failure follows a predictable but accelerating timeline. Small external leaks losing one quart per week may seem manageable initially. However, as coolant levels drop, localized hot spots develop within the engine block and cylinder heads. Head gasket failures requiring $3,500 to $6,000 in repairs and 16-24 hours of downtime often result from ignored early warning signs.

Coolant Formulations and Leak Detection Implications

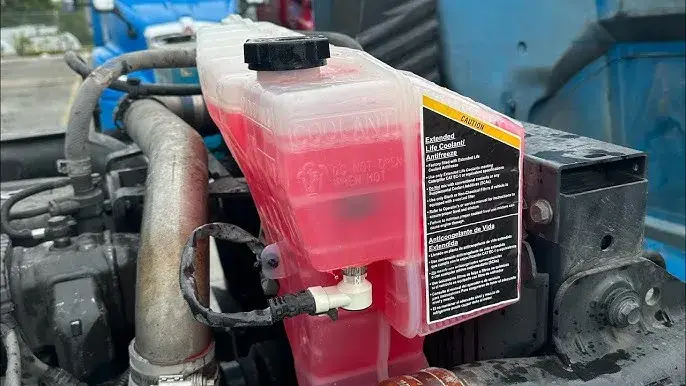

Class 8 operators utilize three primary coolant types, each with distinct chemical compositions affecting leak detection methods and system compatibility. Conventional green coolants use inorganic additive technology with silicate and phosphate corrosion inhibitors, requiring replacement every two years or 100,000 miles. When leaked, these coolants leave bright green stains that fluoresce intensely under UV light.

Extended life coolants employ organic acid technology providing five-year or 500,000-mile service intervals. These formulations typically appear red, orange, or pink and contain no silicates or phosphates. Hybrid formulations combine aspects of both technologies, appearing in various colors including gold, amber, or purple depending on manufacturer specifications.

Safety Protocols for Coolant Leak Diagnosis

Safety protocols form the foundation of effective diagnostic work, requiring comprehensive preparation before any hands-on inspection begins. Class 8 truck cooling systems operate under higher pressures and contain more coolant than light-duty vehicles, creating greater hazard potential. Establishing proper shop safety procedures protects technicians from chemical burns, thermal injuries, and toxic substance exposure while ensuring accurate diagnostic results.

Personal Protective Equipment Requirements

Proper protective equipment creates the first line of defense against cooling system hazards. OSHA PPE requirements for coolant work go beyond basic shop wear due to the toxic nature of antifreeze compounds. Every technician must understand that ethylene glycol-based coolants are poisonous and can be absorbed directly through the skin.

Minimum acceptable protection includes chemical-resistant nitrile or neoprene gloves rated for glycol exposure. Safety glasses with side shields protect eyes from pressurized coolant spray that can reach considerable distances. Face shields are required during pressure testing procedures when coolant may spray under force. Steel-toed boots with slip-resistant soles guard against heavy component drops and slippery coolant spills.

Cooling System Depressurization Procedures

Class 8 cooling systems typically operate at 15-20 PSI, significantly higher than automotive applications. This elevated pressure creates serious burn hazards if released improperly. The engine must cool adequately before any diagnostic work begins, with a minimum cool-down period of 30-45 minutes after engine shutdown.

Proper depressurization requires verifying the engine has been off for the required time, then visually confirming no steam is escaping from any cooling system components. Place several layers of shop towels over the radiator cap or surge tank cap, then slowly turn counterclockwise to the first stop position. Allow any residual pressure to escape completely before pressing down and continuing to remove the cap. Never attempt to loosen hose clamps, drain plugs, or fitting connections until pressure release sounds cease.

Environmental and Regulatory Compliance

Coolant containment systems must be positioned before beginning any leak diagnosis. The EPA regulates coolant disposal under the Resource Conservation and Recovery Act, prohibiting discharge into storm drains or soil. Collect all spilled or drained coolant in approved containers for proper recycling or disposal.

Ventilation becomes critical when running engines indoors for diagnostic purposes. Exhaust extraction systems must be connected and operating before engine start-up. When multiple technicians work on the same vehicle, implement lockout/tagout procedures to prevent accidental engine starting or system pressurization while someone performs diagnostic work.

Visual Inspection Techniques for Coolant Leaks

Detecting coolant leaks begins with systematic visual inspection methods that reveal telltale signs often invisible to hurried examinations. A thorough visual assessment provides the foundation for accurate cooling system diagnostics in Class 8 trucks. Technicians who master these techniques can identify leak sources faster and reduce diagnostic time significantly.

Recognizing Coolant Residue Patterns

Coolant residue patterns tell the story of where leaks originate and how severe they’ve become. Fresh coolant leaves distinct traces that differ significantly from older, dried deposits. The color of residue indicates the coolant type—green, orange, pink, or red—which helps identify the specific formulation in use.

White crystalline deposits frequently appear around leak points after coolant evaporates. These crusty formations build up over time and create visible rings or streaks. Splash patterns indicate pressurized leaks that spray coolant during operation, spreading wider with directional streaks pointing away from the source. Direct drip patterns create concentrated staining directly below the leak point with minimal spread.

UV Dye Testing Procedures

UV dye testing provides one of the most effective methods for locating elusive coolant leaks. This technique works exceptionally well for small seepage points that don’t leave visible residue under normal lighting. The fluorescent dye circulates through the cooling system and escapes at leak points, creating bright traces visible under ultraviolet light.

Adding the correct dye concentration ensures optimal detection without contaminating the coolant. Most Class 8 applications require approximately one ounce of dye per gallon of system capacity. Run the engine for 15 to 20 minutes at operating temperature, allowing dye to travel through hoses, heat exchangers, and small passages. Using a high-quality UV flashlight in a darkened environment makes even tiny seepage points stand out dramatically against dark engine components.

Steam and Vapor Indicator Analysis

Steam and vapor patterns provide immediate visual confirmation of cooling system problems. White steam billowing from the engine compartment signals coolant burning in combustion chambers. This classic head gasket failure indicator often comes with a sweet odor characteristic of ethylene glycol.

Pressurized spray patterns create fine mist that dissipates quickly but leaves wet spots on nearby components. Subtle vapor wisps rising from engine surfaces indicate small external leaks where hot coolant contacts metal parts. These wispy formations appear intermittently and may only show up after extended operation, particularly around thermostat housings, water pump weep holes, and front cover seals.

Pressure Testing the Cooling System

When visual inspections fail to reveal the source of coolant loss, pressure testing becomes the technician’s most reliable diagnostic tool. This procedure simulates operating conditions without running the engine, allowing safe and thorough examination of the entire cooling system. Pressure testing ranks among the most effective leak detection methods available for Class 8 trucks.

Equipment Selection for Heavy-Duty Applications

Selecting appropriate pressure testing equipment determines the accuracy and effectiveness of diagnostic efforts. Class 8 cooling systems demand testers capable of handling minimum pressure capacities of 20-25 PSI, though most testing occurs at lower pressures. The equipment must include comprehensive adapter assortments to accommodate various radiator neck configurations and surge tank designs across different truck manufacturers.

Professional-grade testers feature precision gauges calibrated in 1 PSI increments with clear numerical markings. Air-operated units connect to shop air supplies and pressurize systems quickly with minimal physical effort. Hand-pump models provide greater portability and eliminate dependence on compressed air availability, making them ideal for roadside diagnostics.

Executing the Pressure Test

Begin by ensuring the cooling system has cooled completely and all pressure has dissipated. Remove the radiator cap carefully and inspect the sealing surface for corrosion, cracks, or debris. Install the appropriate pressure tester adapter onto the radiator neck or surge tank opening, verifying the adapter seats properly with a complete seal around the entire perimeter.

Slowly pressurize the system to the specified test pressure, typically 15 PSI or according to manufacturer specifications. Rapid pressurization can damage weakened components and create safety hazards. Once target pressure is reached, observe the gauge for pressure drops while systematically inspecting all cooling system components including the radiator core, water pump weep hole, thermostat housing, all hose connections, heater core lines, and oil cooler connections.

Interpreting Test Results

Acceptable system performance shows less than 2 PSI pressure loss over 15 minutes. Rapid pressure loss signals major leaks requiring immediate visual inspection of external components. Slow, steady pressure drops suggest minor seepage or internal leaks that may not produce external evidence.

Radiator Cap Verification

Radiator cap testing represents a distinct but equally important diagnostic procedure. Faulty pressure caps cause system overheating even when no actual leaks exist. Use a dedicated radiator cap tester to verify the pressure relief valve opens at the correct specification, typically between 13-16 PSI for most Class 8 systems.

The relief valve should open within 1 PSI of the cap’s rated pressure. Caps that open prematurely allow system pressure to drop, reducing boiling point and causing overheating. Test the vacuum valve function by creating negative pressure in the cap tester, as the vacuum valve prevents radiator and hose collapse during cooldown. Replace any cap that fails either pressure or vacuum testing.

Diagnosing External Engine Coolant Leaks

Heavy-duty diesel engines feature numerous external points where coolant can escape, each presenting distinct diagnostic challenges. Understanding specific failure patterns and inspection techniques for vulnerable areas enables faster, more accurate troubleshooting. External engine coolant leaks often develop gradually before becoming severe enough to affect performance or trigger warning lights.

Water Pump Seal and Weep Hole Assessment

The water pump represents one of the most common sources of coolant loss in Class 8 applications. These pumps circulate thousands of gallons of coolant daily under significant pressure and temperature extremes. Most water pumps include a weep hole designed specifically as an early warning system, sitting between the coolant seal and bearing assembly.

Look for coolant residue, staining, or active dripping from the weep hole area. Fresh coolant discharge indicates active seal failure requiring immediate replacement. Dried residue patterns suggest intermittent seepage that may worsen under operating temperature and pressure. Belt-driven units often show bearing noise before seal failure becomes evident, while gear-driven pumps typically fail more suddenly without gradual progression.

Thermostat Housing and Front Cover Inspection

Thermostat housings create multiple potential leak paths. Housing mounting surfaces, gasket interfaces, and bolt torque specifications all contribute to sealing integrity. Thermostat housing leaks often develop at the interface between aluminum housings and cast iron engine blocks due to differential thermal expansion.

Inspect housing mounting surfaces for coolant trails, staining, or crystallized residue. Aluminum housings are particularly vulnerable to thermal stress cracking around bolt holes and coolant passages. Always follow manufacturer torque specifications per 49 CFR Part 396 maintenance requirements using a calibrated torque wrench during reassembly.

Front covers and timing covers seal critical engine areas where multiple components intersect. Clean these areas thoroughly before inspection, as accumulated dirt, oil, and road grime can obscure coolant seepage patterns. Gasket failure at cover interfaces typically results from improper installation techniques, insufficient sealant application, or contaminated mating surfaces.

Oil Cooler and Charge Air Cooler Failures

Oil coolers and charge air coolers use coolant to regulate temperatures of other fluids and gases. These heat exchangers develop both external housing leaks and internal failures allowing coolant cross-contamination. External housing leaks appear as coolant seepage from cooler end caps, mounting flanges, or brazed joints.

Internal coolant-to-oil leaks produce distinctive symptoms. Milky, coffee-colored engine oil indicates coolant contamination, while oil contamination in coolant creates rainbow-like sheens on coolant surfaces. Check the oil dipstick and valve cover interior for creamy residue suggesting emulsified oil and coolant mixture.

Charge air cooler internal leaks allow coolant to enter the intake air stream, where it vaporizes and creates white exhaust smoke. This symptom resembles head gasket failure but originates from the aftercooler instead. Performance degradation, reduced boost pressure, and poor throttle response all indicate potential charge air cooler compromise.

Identifying Radiator and Heat Exchanger Failures

Class 8 trucks contain multiple heat exchangers working together to maintain optimal operating temperatures across various systems. Each component plays a distinct role in thermal management, from cooling engine coolant to managing transmission temperatures. When heat exchanger failures occur, technicians must apply systematic diagnostic methods to pinpoint the exact source.

Radiator Core Leak Detection

The radiator core represents the primary heat rejection component in heavy-duty cooling systems. Radiator problems often manifest as visible coolant trails on core faces, corrosion patterns around tube connections, or physical damage from road debris impact. Examine both front and rear core surfaces under adequate lighting.

Pinhole leaks in tubes typically appear as small staining patterns radiating outward from the failure point. Tank-to-core separation creates larger leaks along the crimped seam where the tank meets the core assembly. Pressure testing with the radiator removed and submerged in water or sprayed with soapy solution reveals even minor leaks at 15-18 PSI.

Transmission and Hydraulic Cooler Diagnosis

Transmission coolers integrate into radiator end tanks or mount separately as standalone heat exchangers. Coolant contaminated with transmission fluid displays pink or red discoloration, while transmission fluid mixed with coolant appears milky. Visual inspection of the transmission fluid dipstick reveals contamination immediately.

Isolation testing determines whether leaks originate from transmission cooler or other cooling system components. Disconnect transmission cooler lines and cap openings, then pressure test the cooling system separately. If pressure holds, the transmission cooler contains the leak. Vehicles with hydraulic systems like dump bodies or refuse packers require similar diagnostic approaches for hydraulic oil coolers.

Hose, Clamp, and Connection Assessment

Between the radiator and engine block lies a complex network of hoses and connections that can fail in multiple ways. These components endure constant thermal cycling, pressure fluctuations, and vibration that accelerate deterioration. Coolant hoses and their connection points represent a significant source of leaks in heavy-duty applications.

Radiator Hose Inspection Procedures

The primary radiator hoses carry the highest coolant flow volumes in the system. Surface appearance alone doesn’t reveal full component condition. Perform squeeze testing along the entire hose length to identify soft spots or abnormal hardening. Healthy coolant hoses maintain consistent firmness throughout, while soft areas suggest internal deterioration.

Electrochemical degradation presents a hidden danger in modern cooling systems. This condition causes internal hose deterioration without external symptoms, breaking down the hose from inside and creating particles that damage water pumps and thermostats. Inspect connection points where hose failures most commonly occur due to constant flexing. Most manufacturers recommend preventive hose replacement every four to five years regardless of appearance.

Quick-Connect Fitting Evaluation

Quick-connect fittings have become increasingly common in modern Class 8 cooling systems. These push-to-connect fittings offer installation convenience but introduce specific failure modes. The fitting design uses internal O-rings to create seals when the hose locks into the fitting body, with O-ring degradation representing the most common failure.

Identify quick-connect fitting locations throughout the cooling system. Check for visible indicators including coolant residue or staining around the fitting body, corrosion on the metal collar, hose movement at the connection, and cracks in plastic fitting bodies. Test fitting security by attempting to pull the hose from the fitting after depressurizing the system. A properly engaged quick-connect resists removal without releasing the locking mechanism.

Internal Coolant Leaks: Head Gasket and EGR Cooler Diagnosis

When coolant disappears without visible external leaks, the problem has likely moved inside the engine. Internal coolant leaks present the most complex diagnostic challenges technicians face with Class 8 trucks. These failures allow coolant to enter combustion chambers or oil passages, creating expensive repair scenarios that demand systematic testing approaches.

Recognizing Head Gasket Failure Symptoms

Head gasket failures produce distinctive warning signs that experienced technicians learn to recognize immediately. White exhaust smoke streaming from the tailpipe indicates coolant burning inside combustion chambers. This smoke appears thick and sweet-smelling, unlike the black smoke of fuel-related issues.

Coolant consumption without external leaks points directly toward internal problems. Excessive crankcase pressure develops when combustion gases escape past failed head gaskets. Remove the oil fill cap while the engine idles—if pressure forcefully blows out, suspect gasket failure. The coolant reservoir may bubble vigorously during operation as cylinder pressure enters the cooling system.

Diesel engines face unique head gasket challenges due to high compression ratios between 15:1 and 20:1 creating extreme cylinder pressures exceeding 2,000 PSI. Overheating events cause immediate thermal stress damage, while previous repair work with improper torque sequences contributes to premature failures.

EGR Cooler Testing Protocols

The EGR system represents a high-failure component in modern emissions-controlled diesel engines. EGR cooler leaks allow coolant to enter exhaust gas recirculation passages, creating symptoms that mimic head gasket problems. Test EGR coolers separately from the main cooling system using specialized pressure testing equipment.

Disconnect EGR cooler lines and install blocking plates on the engine side. Apply 15-20 PSI pressure to the cooler while monitoring for pressure drops. Visual inspection of the EGR valve and intake manifold reveals coolant residue if cooler leaks exist. Thermal cycling creates the harsh environment that destroys EGR coolers, with exhaust gases exceeding 1,200°F flowing through passages surrounded by 200°F coolant.

Combustion Gas Detection Methods

Combustion gas testing provides definitive confirmation of internal coolant leaks. This testing detects exhaust gases contaminating the cooling system, proving that combustion chamber contents escape into coolant passages. Chemical test kits draw coolant vapor from the radiator neck into a test chamber containing indicator fluid that changes from blue to yellow when combustion gases are present.

Electronic combustion gas analyzers provide more precise measurements, quantifying hydrocarbon levels in parts per million within the cooling system. Readings above 50 ppm indicate contamination from combustion sources. Proper sampling procedures ensure accurate results—warm the engine to operating temperature, remove the radiator cap, and hold the test chamber above the coolant surface to sample rising vapors.

Oil Contamination Analysis

Coolant entering the crankcase creates immediate lubrication system damage. Oil contamination appears as milky, tan-colored substance on the dipstick and oil fill cap. Fresh contamination appears light tan or coffee-colored, while severe contamination creates thick, mayonnaise-like residue.

Proper oil sampling reveals contamination levels before visual changes occur. Draw oil samples from the dipstick tube using a vacuum pump and send samples to oil analysis laboratories for coolant concentration testing. Repair procedures must include complete oil system flushing after fixing the leak source, as coolant destroys bearing surfaces by removing protective oil film from metal components.

Advanced Diagnostic Tools and Technologies

Technology-driven diagnostic methods complement traditional inspection techniques for faster, more accurate leak detection. Modern diagnostic technology equips technicians with capabilities that reveal problems invisible to conventional visual inspection alone. These advanced tools reduce diagnostic time while increasing accuracy.

Thermal Imaging for Temperature Analysis

Thermal imaging cameras revolutionize coolant leak detection by visualizing temperature patterns across the entire cooling system. These infrared devices display heat signatures that reveal where coolant escapes, creating distinctive cold spots against warmer surrounding components. Active coolant leaks appear as cooler areas because evaporating coolant absorbs heat from surrounding surfaces.

This technology proves particularly valuable for intermittent leaks occurring only under specific operating conditions. Running the engine while monitoring with thermal imaging reveals problems that disappear when the system cools. The real-time visualization capability allows technicians to observe leak behavior during temperature cycling.

Borescope and Electronic Diagnostic Systems

Borescope inspection provides visual access to internal cooling passages without requiring major component disassembly. These flexible camera systems navigate through small openings, allowing technicians to examine EGR cooler internals, coolant galleries, and hidden passages. High-resolution video feed reveals corrosion, deposits, or structural damage causing leaks.

Electronic diagnostics through software platforms provide comprehensive cooling system analysis through real-time data monitoring. These systems track coolant temperature sensors, pressure readings, and engine parameters indicating cooling system problems before visible leaks develop. Predictive maintenance capabilities analyze trends in vehicle data streams over time, enabling scheduled repairs before roadside breakdowns occur.

Documenting Findings and Creating Repair Estimates

Creating comprehensive repair estimates requires more than identifying coolant leaks—it demands systematic documentation and clear communication strategies. Professional technicians understand that thorough documentation protects against liability while building trust with fleet managers. Quality documentation creates a knowledge base that helps diagnose similar problems more efficiently.

Professional Documentation Best Practices

Digital tools have transformed how technicians capture and share diagnostic findings. Modern shop management software allows real-time documentation that fleet managers can access remotely, speeding up repair authorization processes. High-quality photographs serve as the foundation of effective repair documentation, showing leak locations, fluid residue patterns, and component conditions.

Video documentation provides even greater value for active leaks or system behavior under pressure testing. Comprehensive documentation should include specific measurements and test results rather than vague observations. Recording actual pressure test readings, exact coolant loss quantities, and precise temperatures creates objective records supporting repair estimates and potential FMCSA Part 396 compliance documentation.

Prioritizing Multiple Leak Sources

Diagnostics frequently reveal several leak sources simultaneously, creating decision points about repair sequencing. Professional technicians categorize leaks by severity levels—critical, major, and minor—based on coolant loss rates and potential for secondary damage. Critical leaks causing rapid fluid loss or risking engine overheating demand immediate attention regardless of repair costs.

Cost-effectiveness analysis considers whether addressing multiple issues during a single repair visit saves money compared to separate service appointments. When diagnostics reveal both a leaking water pump and deteriorating radiator hoses, replacing both components together eliminates duplicate labor charges and additional downtime.

Frequently Asked Questions

How much does coolant leak-related downtime cost fleet operators?

Coolant leak-related downtime costs fleet operators between $448 and $760 per day on average. This expense includes lost revenue from the vehicle being out of service, driver wages during downtime, and potential penalties for missed deliveries. These figures underscore why accurate first-time coolant leak diagnosis is economically critical, as extended diagnostic periods multiply daily costs substantially.

What personal protective equipment is required when diagnosing coolant leaks?

Essential PPE includes chemical-resistant nitrile or neoprene gloves since ethylene glycol-based coolant is toxic and absorbs through skin, safety glasses with side shields protecting against pressurized coolant spray, and face shields during pressure testing procedures. OSHA requires employers to provide appropriate PPE and ensure workers use it properly when handling hazardous materials including antifreeze compounds.

What is the proper procedure for depressurizing a Class 8 cooling system?

Proper depressurization requires waiting a minimum of 30-45 minutes after engine shutdown. Verify the engine has cooled, then place shop towels over the radiator cap or surge tank cap. Slowly turn the cap counterclockwise to the first stop position, allowing residual pressure to escape completely before fully removing. Never attempt to loosen hose clamps or connections until pressure release sounds cease entirely.

What does the pressure test reveal about cooling system integrity?

Acceptable system performance shows less than 2 PSI pressure loss over 15 minutes when held at 15 PSI test pressure. Rapid pressure loss signals major leaks requiring immediate visual inspection. Slow, steady pressure drops suggest minor seepage or internal leaks requiring combustion gas testing for confirmation. Stable pressure readings confirm system integrity, though some leaks only manifest at full operating temperature.

How can I identify whether coolant is leaking internally versus externally?

External leaks leave visible puddles, stains, or residue patterns on engine components. Internal leaks produce different symptoms including white exhaust smoke from coolant burning in combustion chambers, milky oil indicating coolant-to-crankcase crossover, bubbling coolant reservoirs from combustion pressure, and unexplained coolant consumption. Combustion gas testing definitively confirms internal leaks by detecting exhaust gases in the cooling system.

What are the warning signs of EGR cooler failure in heavy-duty diesels?

EGR cooler failures present with excessive white smoke beyond normal diesel haze, unexplained coolant loss without external leaks, rough idle quality, and increased crankcase pressure. Symptoms often mimic head gasket failure. Test EGR coolers separately by disconnecting cooler lines, installing blocking plates, and pressurizing only the cooler to 15-20 PSI while monitoring for pressure decay indicating internal tube failure.

Mastering Coolant Leak Diagnosis for Fleet Success

Effective coolant leak diagnosis requires a systematic approach combining fundamental inspection skills with advanced diagnostic technologies. Every diagnostic decision carries financial weight, with downtime costing fleets $448-$760 daily. Technicians who master these diagnostic best practices become critical partners in fleet management, directly impacting operational efficiency and asset longevity.

The investment in proper diagnostic procedures pays dividends through reduced diagnostic time, fewer comebacks, and prevented catastrophic failures. Starting with thorough visual inspection, progressing through pressure testing, and utilizing thermal imaging or borescope technology when appropriate creates a reliable diagnostic process. Clear documentation and communication complete the diagnostic process, helping fleet managers make informed repair decisions that maximize uptime and extend vehicle life.
