Modern commercial trucks, buses, and construction equipment rely on a standardized communication language that allows their electronic systems to talk to each other. The SAE J1939 standard serves as this universal language, enabling heavy-duty vehicle communication between dozens of electronic control units throughout a vehicle. Think of it as the translator that lets your engine computer share data with the transmission, brakes, and dashboard systems.

This communication standard evolved from earlier technologies like J1708 and J1587. The industry needed something faster and more capable as vehicles became more complex. Built on top of the CAN bus physical layer, it quickly became the preferred choice across the entire commercial vehicle sector.

For fleet technicians, understanding this system is no longer optional. Diagnostic excellence depends on knowing how electronic control units exchange critical information like vehicle speed, torque commands, and oil temperature. Mastering these fundamentals separates competent mechanics from expert diagnosticians who can efficiently troubleshoot today’s sophisticated machinery.

1. What Is J1939 and Why Fleet Technicians Need It

Fleet technicians who master J1939 gain immediate access to comprehensive heavy-duty vehicle diagnostics across multiple equipment types. This standardized protocol eliminates the confusion of proprietary systems and creates a universal language for vehicle electronics. Every modern commercial vehicle relies on this protocol to coordinate its complex electronic operations.

The protocol reduces wiring complexity significantly. Traditional vehicle designs required separate wire connections between each component. J1939 needs only two wires to connect all electronic modules throughout the entire vehicle network.

Communication Backbone for Vehicle Electronics

J1939 orchestrates interactions between dozens of electronic control modules simultaneously. These modules manage engine performance, transmission shifting, brake systems, emissions controls, and driver information displays. Commercial vehicle communication depends on this protocol to synchronize all electronic vehicle systems in real time.

The protocol handles priority-based messaging that ensures critical safety information always reaches its destination first. Engine shutdown commands and brake warnings take precedence over routine status updates. This intelligent message prioritization protects vehicle operators and equipment.

Equipment Categories Using This Standard

J1939 applications extend far beyond highway trucks. The protocol serves diverse industries and equipment types:

• Long-haul trucks and regional delivery vehicles
• Transit buses and motor coaches
• Construction equipment including excavators and bulldozers
• Agricultural machinery such as combines and tractors
• Military tactical vehicles and support equipment
• Recreational vehicles and specialty conversions
• Marine propulsion systems and navigation equipment

This versatility means technicians can work across multiple sectors rather than specializing in a single vehicle category. The same diagnostic principles apply whether servicing a city bus or a farm tractor.

Practical Advantages for Maintenance Operations

J1939 proficiency delivers measurable improvements in shop efficiency. Technicians complete diagnostics faster through standardized fault codes that identify problems immediately. The fleet maintenance protocol enables live data monitoring for intermittent issues that traditional methods miss.

Diagnostic equipment costs decrease through standardization. One scan tool works across all J1939-compatible vehicles regardless of manufacturer. This eliminates the expense of maintaining separate diagnostic systems for each equipment brand.

The protocol enables predictive maintenance by monitoring system health continuously. Technicians identify developing problems before they cause breakdowns. This capability reduces vehicle downtime and prevents expensive roadside failures.

Communication with technical support teams becomes more effective. J1939 provides precise fault descriptions that help manufacturers diagnose complex problems remotely. Technicians spend less time on trial-and-error repairs and more time implementing targeted solutions.

2. Understanding the CAN Bus Foundation

Every J1939 message travels across a physical infrastructure called the CAN bus, a robust communication system developed specifically for automotive applications. This foundation enables reliable vehicle network communication even in the harsh electrical environments typical of heavy-duty equipment. Fleet technicians who understand how CAN bus protocol works gain critical insight into diagnosing network-related problems and interpreting diagnostic data accurately.

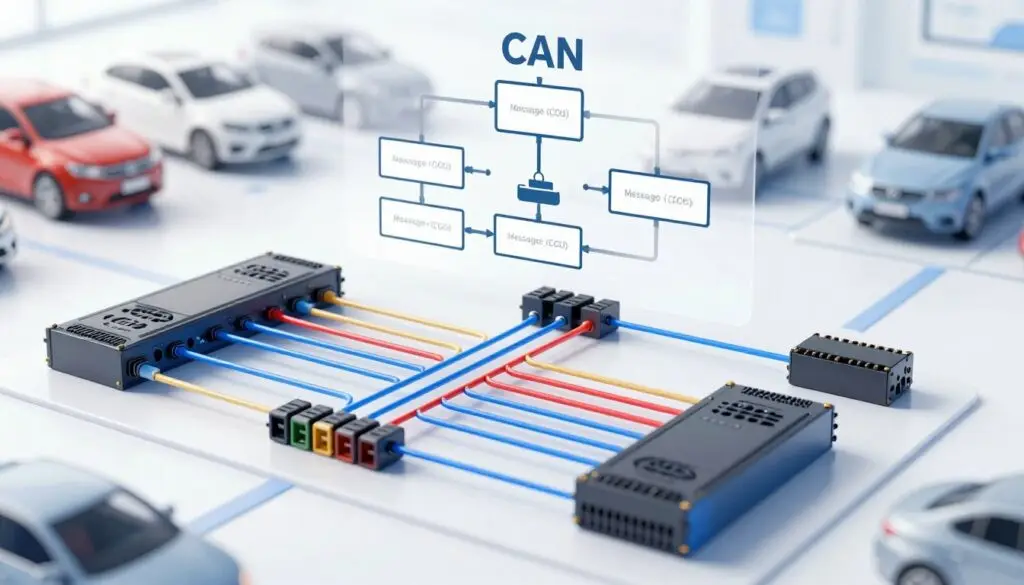

The Building Blocks of Vehicle Network Communication

The Controller Area Network was developed by Bosch in the 1980s to solve a growing problem in automotive design. As vehicles added more electronic systems, traditional point-to-point wiring became impossibly complex and heavy.

CAN provides the physical layer and data link layer according to the OSI model framework. The physical layer defines the actual wiring, electrical signaling, and connector standards. The data link layer handles basic message framing and error detection.

This two-layer approach uses twisted-pair wiring with differential signaling. This design delivers exceptional noise immunity in electrically harsh environments where alternators, starter motors, and other high-current devices create significant electrical interference.

How Multiple Electronic Control Units Share Information

The genius of CAN lies in its multi-node systems architecture. Unlike traditional networks requiring a central controller, CAN allows dozens of electronic control units to communicate on a shared two-wire bus simultaneously.

Each ECU can broadcast messages without asking permission. When two ECUs attempt to transmit at the same time, a priority-based arbitration system determines which message proceeds. Higher-priority messages always win access to the bus without any data loss or retransmission delays.

This approach ensures critical safety messages reach their destination even during periods of heavy network traffic. Fleet technicians benefit because diagnostic tools can monitor all bus communication without disrupting normal vehicle operations.

Building J1939 on the CAN Foundation

While CAN bus protocol defines how messages travel across wires, it doesn’t specify what those messages mean. This is where J1939 enters the picture as the interpretive framework.

J1939 uses the CAN 2.0B standard with 29-bit extended identifiers rather than the 11-bit identifiers in basic CAN. These additional bits allow the protocol to encode source addresses, destination addresses, priority levels, and parameter group identifiers within each message.

The protocol typically operates at 250 kilobaud, with recent implementations supporting 500 kilobaud for increased bandwidth. J1939 adds network management functions, standardized parameter definitions, and diagnostic protocols on top of the basic CAN infrastructure.

For fleet technicians, this layered relationship means CAN handles the reliable message delivery while J1939 provides the standardized language that makes cross-manufacturer communication possible.

Stay Current on Diesel Technology

Get practical diagnostics tips, regulatory updates, and fleet management insights delivered to your inbox.

Email

Email *

Submit

3. J1939 Protocol Basics

Understanding J1939 protocol basics starts with recognizing how this standard transformed heavy-duty vehicle communications through structured layers and comprehensive specifications. The SAE J1939 standard provides fleet technicians with a unified framework for diagnosing communication issues across different manufacturers and equipment types. This protocol architecture enables consistent data exchange between electronic control units regardless of the vehicle brand.

Mastering the fundamental structure helps technicians troubleshoot network problems more efficiently. The organized approach to protocol layers simplifies what could otherwise be an overwhelming amount of technical information.

SAE J1939 Standard Overview and Development

The SAE J1939 standard began development in 1985 when the Society of Automotive Engineers recognized the need for standardized heavy-duty vehicle communications. Initial implementation documents emerged in 1994 with the release of J1939-11, J1939-21, and J1939-31. These foundational specifications addressed physical connections, data transmission, and network management respectively.

The first comprehensive top-level document appeared in 2000, the same year CAN technology became formally integrated into the J1939 framework. Fleet operators began widespread adoption in 2001 as the standard replaced the older J1708/J1587 protocols. The 2013 Digital Annex release provided electronic access to parameter definitions, streamlining diagnostic software development.

Recent enhancements include J1939-17 and J1939-22 released between 2020 and 2021. These additions enable J1939 communication over CAN FD, supporting higher bandwidth requirements for advanced vehicle systems. SAE International maintains the standard as a living document with regular updates to address emerging technological needs.

Protocol Layers and Network Architecture

The J1939 protocol layers organize vehicle communications into six distinct specifications within the SAE J1939 Standards Collection. Each layer addresses specific technical requirements that work together to enable reliable data exchange.

• J1939/11 (Physical Layer) defines the electrical specifications including 250 kbaud transmission speed and twisted shielded pair wiring requirements
• J1939/21 (Data Link Layer) covers message framing, transport protocol functions, and how data packets move across the network
• J1939/31 (Network Layer) handles address claiming procedures that allow ECUs to identify themselves on the bus
• J1939/71 (Vehicle Application Layer) contains thousands of standardized parameters covering engine performance, transmission status, and vehicle operations
• J1939/73 (Application Layer – Diagnostics) specifically addresses diagnostic messages, fault codes, and trouble reporting mechanisms
• J1939/81 (Network Management) defines functions for controlling network behavior and managing communication priorities

This layered protocol architecture separates concerns so technicians can isolate problems to specific system levels. Physical wiring issues present differently than application layer parameter errors, making systematic diagnosis more straightforward.

Key Differences from J1708, OBD-II, and CAN 2.0

Fleet technicians transitioning from light-duty automotive work or older heavy-duty systems need to understand critical distinctions between communication protocols. The J1708 comparison reveals fundamental technological advances that changed diagnostic approaches. OBD-II differences highlight why heavy-duty diagnostics require specialized knowledge beyond consumer vehicle experience.

The older J1708 protocol operated at 9600 baud using RS485 electrical signaling, making it significantly slower than J1939’s 250 kbaud CAN-based communication. Sequential message transmission in J1708 created potential bottlenecks, while J1939’s priority-based arbitration ensures critical messages gain immediate bus access.

OBD-II protocols vary by manufacturer and concentrate primarily on emissions-related diagnostics for regulatory compliance. J1939 provides comprehensive coverage across all vehicle systems including braking, suspension, and body control functions. Raw CAN 2.0 offers only basic message structure without standardized parameter definitions, while J1939 includes extensive parameter specifications that enable cross-manufacturer compatibility.

These distinctions explain why J1939 became the dominant standard for commercial vehicles. Technicians must adapt their diagnostic strategies accordingly, recognizing that heavy-duty systems require different tools and interpretation methods than light-duty automotive applications.

4. J1939 Message Structure and Priority System

The architecture of J1939 messages relies on a carefully engineered 29-bit identifier system that packs critical routing information into a compact digital format. Understanding the J1939 message structure allows fleet technicians to decode network traffic, troubleshoot communication problems, and interpret diagnostic data with greater accuracy. Unlike simpler communication protocols that use basic addressing, J1939 implements a sophisticated message priority system that ensures safety-critical information always reaches its destination first.

Every message transmitted across a J1939 network uses the CAN 2.0B extended frame format. This architecture divides the 29-bit CAN identifier into three distinct fields that work together to route and prioritize data throughout the vehicle’s electronic systems.

Understanding the 29-Bit Identifier

The 29-bit identifier serves as the message’s complete addressing and priority system. Rather than functioning as a simple destination address, this identifier contains layered information that tells receiving modules what the message contains, where it came from, and how urgently it needs processing.

Fleet technicians working with diagnostic software or CAN bus analyzers will see this identifier displayed in hexadecimal format. Breaking down its structure reveals how J1939 achieves efficient network management without requiring a master controller.

Priority Field

The 3-bit priority field establishes message urgency on a scale from 0 to 7, where zero represents the highest priority. Critical safety systems like engine protection shutdown commands or brake requests typically use priority levels 0-2. These high-priority messages always gain bus access before routine data transmissions.

Lower priority messages such as fuel economy calculations or trip distance counters use priority levels 5-7. During periods of heavy network traffic, these messages may experience slight delays while higher-priority communications complete first. This message priority system operates automatically without requiring technician intervention.

Parameter Group Number Field

The 18-bit Parameter Group Number identifies what type of information the message contains. Think of the PGN as the message’s subject line—it tells receiving modules whether the data represents engine speed, transmission gear position, brake pressure, or one of thousands of other defined parameters.

Diagnostic tools decode the PGN to display human-readable parameter names. A technician viewing network traffic might see “Engine Speed” rather than the raw PGN value 61444, making diagnostics more intuitive and efficient.

Source Address Field

The 8-bit source address identifies which electronic control unit transmitted the message. This field supports up to 254 unique modules on a single network (addresses 0-253 are valid, with some addresses reserved for specific functions).

When diagnosing communication faults, the source address helps technicians trace messages back to specific components. If error messages show data coming from source address 0, for example, the technician knows to investigate the engine control module, which typically claims this address during network initialization.

Message Arbitration and Bus Access

J1939 networks use bus arbitration to determine which message transmits when multiple ECUs attempt to communicate simultaneously. This process relies on CAN’s non-destructive bitwise arbitration, which automatically prioritizes messages without data loss or retransmission delays.

When two modules start transmitting at the same moment, the arbitration mechanism compares their 29-bit CAN identifiers bit by bit. The message with the lower numerical identifier value (which corresponds to higher priority) wins bus access and continues transmitting. The losing message automatically waits and retries after the higher-priority communication completes.

This arbitration system means J1939 networks never require a master controller or complex traffic management schemes. The priority built into each message’s identifier creates a self-organizing communication system that adapts to varying network loads automatically.

Data Field Organization and Byte Order

J1939 messages carry up to 8 bytes of actual data following the identifier. The protocol organizes this data field using Intel byte order, also known as little-endian format, where multi-byte values transmit least significant byte first.

This byte ordering matters when technicians manually interpret raw CAN data or develop custom monitoring applications. For example, a 16-bit engine speed value of 1500 RPM (0x05DC in hexadecimal) would appear on the network as 0xDC followed by 0x05, with the low byte transmitted before the high byte.

Most diagnostic software handles this byte swapping automatically, presenting data in human-readable formats. However, understanding Intel byte order becomes essential when troubleshooting data interpretation errors or validating custom diagnostic scripts against actual network traffic.

5. Parameter Group Numbers (PGNs) Explained

Parameter Group Numbers transform complex CAN bus messages into actionable diagnostic information for fleet maintenance. These standardized identifiers create a universal framework that allows technicians to work across multiple equipment brands with consistent diagnostic procedures. Understanding how PGNs organize vehicle data is essential for effective troubleshooting and repair.

What Are PGNs and Why They Matter

Parameter Group Numbers serve as unique message identifiers within the J1939 standard. They allow diagnostic tools to recognize and decode vehicle data regardless of manufacturer. A single scan tool can interpret data from Caterpillar, Cummins, Detroit Diesel, and other brands because they all use the same PGN structure.

Each PGN represents a specific type of vehicle information, from engine speed to coolant temperature. This standardized vocabulary enables technicians to request specific data, interpret fault conditions, and perform calibrations using a common framework. Without PGNs, every manufacturer would require different diagnostic equipment and procedures.

PGN Structure Breakdown

The J1939 PGNs comprise an 18-bit subset of the 29-bit extended CAN identifier. This 18-bit field divides into four distinct components that determine message routing and interpretation. Understanding this structure helps technicians recognize how the protocol organizes thousands of different message types.

Multiple CAN messages with unique CAN identifiers can map to the same PGN and be interpreted identically. The Data Page bit effectively doubles the available PGN space by creating two separate pages of message definitions.

PDU Format and PDU Specific Fields

The PDU format value determines how the protocol interprets the PDU Specific field. When PDU Format is 240 or greater, the message is classified as PDU2 type. In PDU2 messages, the PDU Specific field contains a Group Extension that further defines the parameter content.

When PDU Format is below 240, the message is PDU1 type. For PDU1 messages, the PDU Specific field contains a Destination Address for point-to-point communication between specific control modules. This distinction fundamentally changes how messages are transmitted and received on the network.

Broadcast vs Peer-to-Peer Messages

Approximately 95% of J1939 messages are broadcast messages (PDU2 type). These transmissions go to all network nodes simultaneously, with each module deciding whether to use the data. Broadcast messages include most operational parameters like engine speed, vehicle speed, and sensor readings.

Peer-to-peer communication (PDU1 type) targets specific control modules for specialized functions. These messages include diagnostic requests, acknowledgments, and command messages between two specific ECUs. The Destination Address field ensures only the intended recipient processes the message.

Essential PGNs Every Fleet Technician Should Know

Certain PGNs appear repeatedly in diagnostic work across all heavy-duty vehicles. Familiarity with these common parameter groups accelerates troubleshooting and reduces diagnostic time. These PGNs provide the foundation for most routine maintenance and repair procedures.

• PGN 61444 – Electronic Engine Controller 1: Contains engine speed and torque data transmitted at high frequency for precise monitoring
• PGN 65265 – Cruise Control/Vehicle Speed: Provides wheel-based vehicle speed from transmission or ABS modules
• PGN 65262 – Engine Temperature 1: Reports coolant temperature and oil temperature for thermal management
• PGN 65263 – Engine Fluid Level/Pressure 1: Monitors oil pressure, fuel pressure, and related critical parameters
• PGN 65226 – Active Diagnostic Trouble Codes: Broadcasts currently active fault codes for immediate attention

The J1939 Digital Annex contains comprehensive technical details for all standard PGNs. PGNs from 00FF00 through 00FFFF are reserved for proprietary use by manufacturers for specialized equipment functions.

How to Decode PGN Data in Real Time

PGN decoding transforms raw hexadecimal data into meaningful physical values. Diagnostic software uses J1939 Digital Annex specifications or DBC files to perform this translation automatically. Understanding the manual process helps technicians verify diagnostic tool accuracy and troubleshoot communication issues.

The decoding process follows four critical steps. First, identify the PGN from the CAN identifier. Second, extract the relevant data bytes according to the PGN specification. Third, apply the specified byte order to arrange multi-byte values correctly. Fourth, use the scaling factor and offset to convert raw values into engineering units like RPM, PSI, or degrees Fahrenheit.

6. Suspect Parameter Numbers (SPNs) and Failure Mode Indicators

Every fault code your diagnostic tool displays contains two critical pieces of information: the Suspect Parameter Number identifying which component failed and the Failure Mode Identifier explaining how it failed. Together, these elements form the foundation of J1939 fault codes that guide your repair decisions. Mastering this two-part code structure transforms raw diagnostic data into actionable maintenance strategies.

The J1939 Digital Annex contains over 10,000 standardized SPNs covering every measurable vehicle parameter. Each code points to a specific signal that exceeded normal limits or stopped functioning entirely.

Understanding SPNs in Vehicle Diagnostics

Suspect Parameter Numbers serve as unique identifiers for individual data elements within Parameter Group Numbers. Each SPN represents a specific measurable parameter like engine coolant temperature, turbocharger boost pressure, or throttle position sensor voltage. These identifiers help technicians pinpoint exactly which system component triggered a diagnostic trouble code.

Every SPN contains precise technical attributes that define how to extract and interpret its data. The bit start position indicates where the parameter begins within the message payload. Bit length specifies how many bits the parameter occupies, while scale and offset values convert raw binary data into meaningful physical measurements.

Common examples include SPN 190 for Engine Speed, SPN 84 for Wheel-Based Vehicle Speed, and SPN 96 for Fuel Level. Special signal values provide additional diagnostic information. A data byte showing 0xFF (255) indicates the parameter data is not available, while 0xFE (254) signals an error condition in data transmission.

Failure Mode Identifier (FMI) Codes Explained

While SPN codes identify which parameter failed, FMI codes specify how that parameter failed. This companion value completes the diagnostic picture by categorizing the type of malfunction detected. The combination creates a precise diagnostic language that eliminates guesswork from troubleshooting procedures.

The J1939 standard defines 32 standardized FMI values ranging from 0 to 31. Each value corresponds to a specific failure mode that helps technicians understand the nature of the problem before opening a toolbox.

Common FMI Values and Their Meanings

Fleet technicians encounter certain FMI codes more frequently than others. Understanding these common values accelerates diagnosis and reduces vehicle downtime significantly.

Additional critical FMI values include FMI 5 for current below normal or open circuit conditions, FMI 6 for current above normal or grounded circuits, and FMI 7 for mechanical systems not responding properly. FMI 31 serves as a general indicator that a condition exists without specifying the exact failure mode.

Occurrence Count and Active vs Inactive Faults

J1939 diagnostic messages track fault history through occurrence counts that record how many times a specific fault appeared since the last code clearing. This historical data reveals whether problems are one-time events or recurring issues requiring deeper investigation.

Status indicators distinguish between currently active faults and inactive historical faults. Active faults demand immediate attention because the problem exists right now and may affect vehicle safety or performance. Inactive faults indicate previously detected conditions that cleared themselves or were repaired.

Occurrence counts above one for inactive faults suggest intermittent problems that may return. These patterns help technicians identify vibration-related connector failures, temperature-dependent sensor issues, or load-sensitive electrical problems that disappear under certain operating conditions.

Translating SPN-FMI Combinations into Actionable Repairs

Converting abstract codes into concrete repair strategies requires systematic methodology. When your scan tool displays SPN 94 FMI 1, you must decode both elements to develop an effective diagnostic plan.

First, look up the SPN number to identify the specific parameter. SPN 94 corresponds to fuel delivery pressure. Next, interpret the FMI value—FMI 1 indicates data valid but below normal operating range. Together, these elements point toward low fuel pressure conditions.

This combination directs your diagnostic strategy toward specific root causes. Low fuel delivery pressure typically results from restricted fuel filters, failing transfer pumps, or air intrusion in the fuel system. Your repair pathway now focuses on these three possibilities rather than exploring dozens of unrelated components.

Consider another example: SPN 110 FMI 3 identifies engine coolant temperature with voltage above normal or shorted high. This points to either a coolant temperature sensor with internal short circuitry or wiring damaged between the sensor and ECU. Your diagnostic steps become clear—test sensor resistance, check connector integrity, and verify wiring insulation.

The most efficient diagnostic approach follows this pattern for every fault code. Identify the parameter through the SPN, understand the failure mode through the FMI, then apply your technical knowledge of that system to narrow down probable causes. This structured methodology transforms diagnostic trouble codes from confusing numbers into precise repair roadmaps.

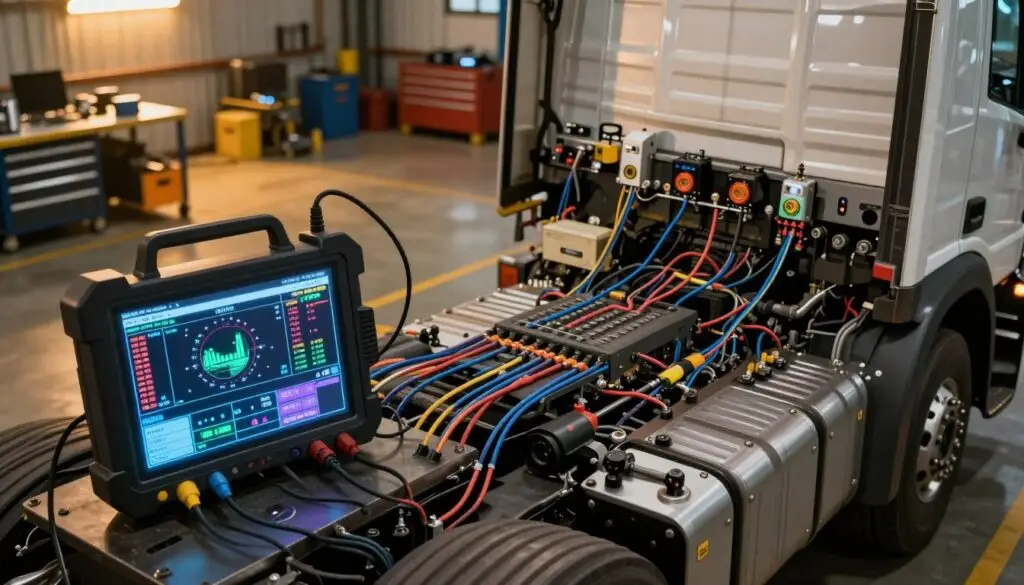

7. J1939 Network Architecture in Heavy-Duty Vehicles

The J1939 network architecture creates a communication backbone that connects every major system in heavy-duty vehicles. Modern trucks and buses contain dozens of specialized electronic control units that continuously exchange operational data. These systems work together through carefully designed vehicle wiring and communication protocols.

Understanding how these components interact helps technicians diagnose network-level problems quickly. Each module serves a specific function while depending on data from other controllers for coordinated operation.

Electronic Control Units (ECUs) on the J1939 Network

Electronic control units represent the intelligent nodes that make modern vehicles possible. Each ECU manages specific systems while sharing critical information across the network. Fleet technicians regularly interact with multiple controllers during diagnostic procedures.

The number of ECUs varies by vehicle specification and model year. A basic truck might have eight to twelve modules, while advanced specifications can contain more than twenty separate controllers.

Engine Control Module (ECM)

The ECM serves as the powertrain’s central controller. This module manages fuel injection timing and quantity for optimal performance and emissions compliance. It controls turbocharger boost levels and coordinates aftertreatment system regeneration.

The engine controller continuously broadcasts critical parameters including engine speed and torque output, coolant and oil temperature readings, fuel system pressure values, and emissions system status. Other modules depend on this data for proper operation. The ECM also enforces engine protection limits to prevent damage during abnormal operating conditions.

Transmission Control Module (TCM)

The TCM manages all aspects of transmission operation through constant ECU communication with the engine controller. It determines optimal shift points based on load, speed, and driver demand. The module controls torque converter lockup and coordinates torque reduction during gear changes.

This coordination prevents harsh shifts and drivetrain damage. The TCM receives driver throttle input and provides feedback on current gear selection, output shaft speed, and transmission temperature.

Antilock Braking System (ABS) and Other Controllers

The ABS module monitors wheel speeds and controls brake modulation during emergency stops. Modern stability control systems build on this foundation to prevent rollovers and loss of control. These safety-critical systems operate independently but share data with other controllers.

Additional specialized modules continue expanding in modern vehicles. Instrument clusters display information to drivers. Body controllers manage exterior lighting and accessories. Advanced driver assistance systems include collision mitigation and lane departure warnings. Telematics gateways connect vehicles to fleet management platforms.

Physical Network Topology and Wiring Standards

J1939 networks use a linear bus topology where all modules connect to a common backbone. The J1939/11 standard specifies twisted shielded pair wiring operating at 250 kilobaud. Newer implementations support 500 kilobaud for increased data capacity.

Each ECU connects through short stub connections to the main network backbone. Proper stub length matters significantly for signal integrity. Long stubs create signal reflections that corrupt data transmission and cause communication errors.

The twisted pair design reduces electromagnetic interference from engine components and electrical systems. Shielding provides additional protection in harsh vehicle environments.

Termination Resistors and Network Resistance Testing

Termination resistors play a critical role in J1939 network operation. The network backbone must have 120-ohm resistors installed at both ends. These components prevent signal reflections that would otherwise bounce back through the network.

Technicians can verify proper termination through simple resistance testing. Disconnect all modules from the network. Measure resistance between CAN High and CAN Low terminals. A properly terminated network reads approximately 60 ohms with both terminators present.

Incorrect termination causes various network problems. Missing resistors lead to intermittent communication failures. Extra terminators reduce overall resistance and weaken signals. Wrong-value resistors create similar issues that manifest as communication errors or complete network failure.

Understanding network topology and termination requirements enables systematic diagnosis. Technicians can distinguish between individual module failures and network-level problems affecting multiple systems.

8. Diagnostic Tools and Software for J1939

Modern heavy-duty vehicle diagnostics demand both capable hardware interfaces and intelligent software to translate J1939 data into actionable insights. Fleet technicians face numerous choices when investing in J1939 diagnostic tools, from manufacturer-specific platforms to versatile aftermarket solutions. The right equipment combination enables faster troubleshooting, more accurate repairs, and reduced vehicle downtime.

Effective diagnostics require hardware that physically connects to the vehicle’s J1939 network through the standardized diagnostic connector. The J1939-13 standard specifies a 9-pin Deutsch connector that provides standardized access to vehicle networks. This connector uses pin C for CAN high and pin D for CAN low signals, establishing the primary communication pathway. Some vehicles feature secondary J1939 networks accessible through pins F/G or H/J for specialized systems.

Understanding connector types helps prevent compatibility issues in the field. Type 1 connectors work only with matching Type 1 sockets, limiting flexibility. Type 2 green connectors introduced in 2013-14 offer backwards compatibility with Type 1 sockets while providing enhanced durability. This distinction matters when selecting diagnostic adapters for shops servicing diverse equipment ages.

OEM Diagnostic Software Platforms

Engine and vehicle manufacturers provide proprietary diagnostic applications offering the deepest access to their specific products. These platforms deliver comprehensive functionality that goes beyond basic fault code reading. OEM diagnostic software enables parameter programming, calibration updates, and advanced testing procedures unavailable through generic tools.

Investment in manufacturer-specific platforms makes sense for fleets concentrated on particular engine brands. The enhanced capabilities justify higher costs when working extensively with one manufacturer’s products.

Cummins INSITE

Cummins INSITE software stands as the industry-leading platform for diagnosing Cummins engines across all applications. This comprehensive system provides fault code reading and clearing with detailed fault descriptions and troubleshooting guidance. Technicians access extensive live data monitoring through customizable gauge displays showing dozens of parameters simultaneously.

Advanced features distinguish INSITE from basic scan tools. Cylinder cutout testing isolates individual cylinder performance issues. Injector response testing evaluates fuel system operation with precision. Datalog recording captures intermittent problems that occur during road testing, enabling later analysis of elusive faults.

The platform’s parameter programming and ECM calibration update capabilities make it essential for shops maintaining Cummins-powered equipment. According to Cummins service documentation, these functions allow technicians to configure engine operating parameters and install the latest software improvements directly.

Detroit Diesel Diagnostic Link (DDDL)

Detroit Diesel’s DDDL software delivers similar comprehensive functionality specifically designed for Detroit engines. The platform excels at fault diagnostics, parameter monitoring, and datalog analysis across Detroit’s product line. Per Detroit Diesel specifications, its particular strength lies in diagnosing integrated powertrain systems that combine engine, transmission, and emissions controls.

DDDL provides essential programming capabilities for Detroit electronic systems. Technicians perform software updates, configure parameters, and conduct specialized tests through this manufacturer-specific interface. The platform supports Detroit’s advanced emissions aftertreatment diagnostics with detailed regeneration monitoring and component testing.

Caterpillar Electronic Technician (Cat ET)

Cat ET serves as the required diagnostic tool for Caterpillar engines and machines across construction, mining, and on-highway applications. This platform offers fault diagnostics with manufacturer-specific trouble codes and repair procedures. Performance monitoring displays engine parameters, hydraulic system data, and machine operation metrics in real time.

Configuration capabilities within Caterpillar ET allow technicians to adjust machine settings and optimize performance for specific applications. The platform’s essential function includes performing software updates and calibrations on Cat electronic systems, ensuring equipment operates with the latest improvements and emissions compliance strategies.

Aftermarket Scan Tools and J1939 Adapters

Aftermarket solutions provide multi-manufacturer coverage for shops servicing diverse equipment brands. These J1939 scan tools offer cost-effective alternatives to maintaining multiple OEM platforms. Handheld scan tools deliver code reading, live data viewing, and basic diagnostics across multiple engine brands through a single device.

PC-based diagnostic systems combine J1939 adapters with software applications to provide extensive data logging and analysis capabilities. These systems excel at capturing network traffic for communication troubleshooting. Specialized J1939 network analyzers help diagnose complex communication issues by monitoring bus traffic, identifying misbehaving nodes, and verifying message timing.

The versatility of aftermarket tools supports efficient workflows in mixed-fleet operations. Technicians perform initial diagnostics across all equipment types before deploying OEM tools for brand-specific programming or calibration work.

Selecting the Right Diagnostic Equipment for Your Shop

Equipment selection depends on your fleet composition and diagnostic requirements. Shops supporting a single engine brand benefit from investing in OEM tools despite higher initial costs. The comprehensive functionality and manufacturer support justify the expense when working predominantly with one brand.

Multi-brand fleet operations require different strategies. Aftermarket fleet diagnostic equipment providing cross-platform coverage becomes essential for cost-effective daily diagnostics. Many successful shops maintain both OEM tools for deep diagnostics and calibration work alongside aftermarket tools for routine fault reading and basic diagnostics across multiple brands.

Several practical considerations influence equipment decisions beyond basic functionality. Software subscription costs accumulate over time and vary significantly between platforms. Update frequency affects access to the latest vehicle coverage and diagnostic capabilities. Laptop compatibility requirements may necessitate dedicated computers for certain OEM applications.

Training requirements and technical support availability impact how quickly technicians become proficient with new diagnostic platforms. Evaluate manufacturer training programs and support responsiveness before committing to expensive diagnostic systems. The Commercial Vehicle Safety Alliance maintains inspection standards that require accurate diagnostic capability for compliance verification.

The most effective diagnostic equipment strategy balances capability with cost. Identify your most common diagnostic scenarios and equipment brands, then invest in tools that address those specific needs. Adding specialized capabilities over time as your diagnostic requirements expand creates a practical, cost-effective approach to building comprehensive shop capabilities.

9. Common J1939 Troubleshooting Scenarios for Fleet Technicians

When J1939 networks fail, technicians need proven diagnostic strategies to identify root causes quickly and restore vehicle operation. J1939 troubleshooting typically involves three main problem categories: complete network failures with no communication, partial failures affecting specific modules, and intermittent issues that appear unpredictably. Understanding how to diagnose each scenario efficiently reduces vehicle downtime and prevents unnecessary parts replacement.

Successful network faults resolution requires combining diagnostic software analysis with physical network testing. Fleet technicians who master these complementary approaches can tackle even the most challenging communication errors systematically.

Diagnosing Communication Errors and Bus-Off Conditions

The bus-off condition represents a protective state where a CAN controller stops transmitting after detecting excessive communication errors. This typically occurs when a controller transmits data but receives no acknowledgment due to network disconnection, improper termination, or being the only active node.

Technicians should begin diagnosis by verifying connector engagement at the diagnostic port and checking for power and ground. Measuring network resistance confirms proper termination—approximately 60 ohms indicates correct dual termination. Network resistance testing must be performed with all modules disconnected to obtain accurate readings.

Diagnostic software provides critical insight by monitoring communication status and error counters. Rising error counts indicate deteriorating network health even before complete failures occur.

Identifying Failed or Misbehaving ECUs

Isolating problematic modules requires systematic ECU diagnosis techniques that distinguish between completely failed units and those transmitting corrupted data. Monitoring which ECUs respond to diagnostic requests reveals communication capability.

Request messages using PGN 59904 can poll specific data from ECUs for diagnostic purposes. Modules with abnormally high error counters often indicate hardware problems or software glitches affecting network performance.

Systematically disconnecting modules while monitoring network function identifies disruptive units. If network operation improves when a specific module is removed, that module becomes the prime suspect requiring further testing or replacement.

Resolving Intermittent Network Faults

Intermittent faults present particularly challenging diagnostic scenarios because problems appear only under specific conditions. Vehicle vibration, temperature extremes, and moisture exposure frequently trigger these elusive issues.

Wiggle-testing connectors and harnesses while monitoring live communication often reproduces intermittent problems. Dataloggers capture network traffic during failures that technicians cannot observe in real time. Checking for corrosion in Deutsch connector pins becomes critical in harsh operating environments.

Inspecting wiring for chafing or damage at movement points and harness tie-down locations reveals physical causes. Aftermarket equipment installations sometimes introduce improper termination or excessive stub lengths that create intermittent communication disruptions.

Troubleshooting Wiring, Connectors, and Termination Issues

Physical network problems represent the most common source of J1939 troubleshooting calls. Missing or damaged termination resistors cause signal reflections and communication errors throughout the network.

Wiring diagnosis should check for additional terminating resistors inadvertently added during repairs, resulting in too-low network resistance. Corroded or damaged pins in connectors create intermittent connections that appear and disappear with vehicle operation.

Damaged or improperly installed wiring including incorrect wire gauge or untwisted pairs compromises signal integrity. Excessive stub lengths from modules to the backbone create reflections that corrupt data transmission.

Systematic Diagnostic Approach for J1939 Problems

A logical troubleshooting workflow prevents wasted time and guides technicians efficiently to root causes. Begin by gathering information about symptoms including when problems occur and what functions are affected.

Use diagnostic software to identify which modules are not communicating, then measure network resistance to verify termination. Inspect physical connections at the diagnostic port and suspect modules for obvious damage or corrosion. The TMC Recommended Practices provide standardized diagnostic procedures for systematic troubleshooting.

Monitor live network traffic to identify communication patterns and errors that reveal problem sources. Isolate sections of the network or individual modules to narrow the problem systematically.

Verify repairs by confirming normal network resistance, successful communication with all modules, and clearing of previously stored network-related fault codes. This systematic diagnostics methodology transforms J1939 troubleshooting from guesswork into a predictable process that consistently delivers results.

Frequently Asked Questions

What is J1939 and what does it do?

J1939 is the standardized communication protocol used by electronic control units in heavy-duty vehicles including trucks, buses, and construction equipment. Built on CAN bus technology, it enables real-time data exchange between engine controllers, transmissions, brake systems, and diagnostic tools. The protocol uses standardized Parameter Group Numbers and Suspect Parameter Numbers that allow technicians to diagnose vehicles from any manufacturer using compatible scan tools. This standardization eliminates the need for brand-specific diagnostic equipment for basic troubleshooting.

How is J1939 different from OBD-II?

J1939 was designed specifically for commercial vehicles while OBD-II targets passenger cars. J1939 operates at 250 kbaud CAN speed with over 8,000 standardized parameters covering all vehicle systems. OBD-II uses variable communication speeds and focuses primarily on emissions-related diagnostics for regulatory compliance. J1939 provides comprehensive coverage of engine, transmission, brakes, body systems, and aftertreatment that heavy-duty vehicles require. The extended parameter set makes J1939 far more capable for fleet maintenance applications.

What diagnostic tools work with J1939?

Fleet technicians can use OEM-specific platforms like Cummins INSITE, Detroit Diesel Diagnostic Link, and Caterpillar Electronic Technician for comprehensive brand-specific diagnostics including programming and calibration. Aftermarket scan tools provide multi-brand coverage at lower cost for basic fault reading and live data monitoring. PC-based diagnostic systems with J1939 adapters offer advanced data logging and network analysis capabilities for complex troubleshooting scenarios. Most shops benefit from maintaining both OEM tools for deep diagnostics and aftermarket tools for cross-platform coverage.

What causes J1939 communication failures?

Common causes include missing or damaged termination resistors (network should measure approximately 60 ohms), corroded connector pins especially in harsh operating environments, wiring damage from chafing or vibration, and failed electronic control units. Improper repairs adding extra termination or excessive stub lengths from aftermarket equipment can also disrupt network communication and cause intermittent faults. Temperature extremes and moisture intrusion frequently trigger intermittent issues that are difficult to diagnose without systematic testing procedures.

What do SPN and FMI codes mean?

Suspect Parameter Numbers identify which vehicle parameter triggered a fault code, such as engine coolant temperature (SPN 110) or fuel pressure (SPN 94). Failure Mode Identifiers explain how that parameter failed, with standardized values ranging from 0 (above normal range) to 31 (condition exists). Together, these codes create precise diagnostic information that guides repair decisions. For example, SPN 110 FMI 3 indicates engine coolant temperature with voltage shorted high, pointing technicians toward sensor or wiring issues rather than actual overheating conditions.

How do I test J1939 network termination?

Disconnect all modules from the network backbone and measure resistance between CAN High and CAN Low terminals at the diagnostic connector. Properly terminated networks read approximately 60 ohms with both 120-ohm terminating resistors in parallel. Readings of 120 ohms indicate one missing terminator, while readings below 60 ohms suggest extra termination was added during repairs. This simple test should be the first diagnostic step for any communication-related complaint because improper termination causes the majority of network problems.

10. Building Your J1939 Expertise

J1939 mastery transforms capable technicians into diagnostic experts. This protocol follows the KISS philosophy while handling complex vehicle communication across multiple electronic control units. The multi-master architecture sets it apart from conventional systems, giving every ECU equal network access without hierarchical limitations.

Fleet technician skills in heavy-duty diagnostics directly correlate with protocol understanding. Technicians who interpret PGNs and SPNs confidently reduce diagnostic time and solve problems that confuse others relying only on guided procedures. This expertise works across equipment brands rather than limiting you to single manufacturers.

Professional development in J1939 requires hands-on application beyond reading guides. Practice decoding parameter groups during routine maintenance calls. Experiment with diagnostic software features to build familiarity with different manufacturer implementations. Network communication patterns reveal intermittent faults that simple code readers miss.

The protocol continues evolving with CAN FD implementations, but core principles remain constant. Your investment in understanding 29-bit identifiers, message arbitration, and parameter structures provides lasting career value. Heavy-duty diagnostics grow more sophisticated each year, making protocol knowledge essential rather than optional.

Certification programs from ASE and manufacturer training expand your capabilities. View protocol proficiency as an ongoing journey rather than a finished destination. Technicians who commit to continuous learning gain competitive advantages in diagnostic speed, repair quality, and career advancement opportunities throughout the commercial vehicle industry.
