Roadside trailer failures don’t happen by chance. Blown tires, seized bearings, and brake failures result from neglected equipment and skipped inspections. A comprehensive trailer maintenance checklist transforms these potential disasters into routine service tasks, protecting your investment and keeping your fleet legal and safe on the road.
For commercial fleets, the stakes extend beyond inconvenience. A single trailer breakdown can trigger $500-$1,000 per day in lost revenue, emergency repair premiums, and cargo delays. More critically, maintenance failures contribute directly to CSA scores that affect your carrier rating and insurance costs. FMCSA data shows that brake-related violations remain the leading cause of commercial vehicle out-of-service orders, accounting for over 25% of roadside inspection failures.
This guide provides fleet managers, diesel technicians, and owner-operators with a systematic approach to commercial trailer maintenance. From daily pre-trip inspections to annual overhauls, you’ll find actionable procedures that satisfy DOT requirements while maximizing equipment reliability. Whether you’re maintaining dry vans, reefers, flatbeds, or tankers, these protocols apply across your entire trailer fleet.
Key Takeaways
- DOT compliance is non-negotiable: Pre-trip inspections are legally mandated under 49 CFR 396.13, and annual inspections under 49 CFR 396.17 must be performed by qualified inspectors.
- Brake system failures lead out-of-service violations: Over 25% of roadside inspection failures involve brake defects—systematic PM prevents costly violations and CSA score impacts.
- Tire failures are predictable and preventable: Proper inflation, tread depth monitoring, and age-based replacement eliminate the majority of tire-related breakdowns.
- Documentation protects your operation: Proper maintenance records demonstrate due diligence and satisfy FMCSA audit requirements.
- Preventive maintenance delivers measurable ROI: Scheduled service costs significantly less than emergency repairs, tow charges, and downtime losses.
Understanding Commercial Trailer Maintenance Requirements
Every fleet operation must grasp the regulatory framework and practical requirements that govern commercial trailer maintenance. Federal Motor Carrier Safety Administration regulations establish minimum inspection and maintenance standards that apply to all trailers operating in interstate commerce. Understanding these requirements protects your fleet from violations while creating the foundation for equipment reliability.
Federal Maintenance Requirements Under 49 CFR
The Code of Federal Regulations establishes clear maintenance obligations for motor carriers. 49 CFR Part 396 requires systematic inspection, repair, and maintenance of all commercial motor vehicles, including trailers. Carriers must ensure that all parts and accessories are in safe and proper operating condition at all times.
Pre-trip and post-trip inspections fall under 49 CFR 396.13, which mandates that drivers complete vehicle inspection reports identifying any defects that could affect safe operation. Discovered defects must be repaired before the vehicle returns to service. The carrier must retain these inspection reports for at least three months.
Annual inspections under 49 CFR 396.17 require comprehensive examination by qualified inspectors. These inspections must cover 15 specific categories including brake systems, coupling devices, exhaust systems, frames, fuel systems, lighting, steering, suspension, tires, wheels, and windshield wipers. Documentation must be retained for 14 months following each inspection.
CSA Scoring and Maintenance Violations
The Compliance, Safety, Accountability program assigns points for maintenance-related violations that directly impact your carrier rating. Vehicle maintenance violations fall under the Vehicle Maintenance BASIC, where accumulated points can trigger FMCSA intervention and increased insurance premiums.
25.2%
of all vehicle out-of-service violations were brake-related during 2023 CVSA International Roadcheck — FMCSA roadside inspection data
Out-of-service violations carry the heaviest CSA weight. When a trailer is placed out of service, the violation points multiply significantly compared to standard defects. Understanding which defects constitute out-of-service conditions helps fleets prioritize maintenance activities that prevent the most damaging violations.
Cost-Benefit Reality of Preventive Maintenance
Scheduled maintenance delivers substantial financial returns compared to reactive repair strategies. A properly maintained trailer experiences 40-60% fewer unplanned repairs, reducing both direct repair costs and operational disruption. The numbers become even more compelling when you factor in cargo delays, driver detention, and customer service impacts.
Consider the comparison: A routine brake inspection and adjustment costs approximately $150-$250 at a shop, or takes a trained technician 30-45 minutes in your facility. Emergency brake failure on the road triggers towing costs of $300-$600, emergency repair premiums often double standard rates, and potential cargo damage claims. When you add lost revenue from the delayed load, a single avoided breakdown easily pays for an entire year of scheduled inspections.
The Complete Pre-Trip Trailer Inspection Checklist
Pre-trip inspections represent your first line of defense against equipment failures and DOT violations. A thorough walk-around takes 10-15 minutes but prevents the majority of roadside emergencies. This systematic approach ensures nothing gets missed while satisfying federal inspection requirements.
Exterior Walk-Around Sequence
Begin your inspection at the front of the trailer and work systematically around the entire unit. Start at the kingpin and fifth wheel connection point, checking for proper engagement and secure coupling. The release handle should be in the locked position with the locking jaws fully closed around the kingpin.
Move to the landing gear, verifying both legs are fully raised and crank handles are secure. Lower landing gear creates dragging hazards and damages the units. Check the landing gear pads for cracks or damage that could cause collapse when deployed.
Examine the trailer body for structural damage, proper door operation, and secure cargo containment. On refrigerated trailers, verify the reefer unit is operating and check fuel levels. Flatbed operators must inspect all tie-downs, chains, and load securement devices before departure.
Lighting System Verification
Commercial trailers require functional lighting systems that meet FMVSS 108 standards. Test all lighting with the truck’s electrical system connected. Walk around the trailer while an assistant activates each circuit: marker lights, brake lights, turn signals, and hazard flashers.
Common lighting failures include corroded ground connections that cause dim or flickering lights. Vibration loosens connections over time, making regular inspection essential. When replacing bulbs, consider upgrading to LED units that last significantly longer and consume less power. LED lights also illuminate faster than incandescent bulbs, providing an estimated 200 milliseconds additional reaction time for following drivers.

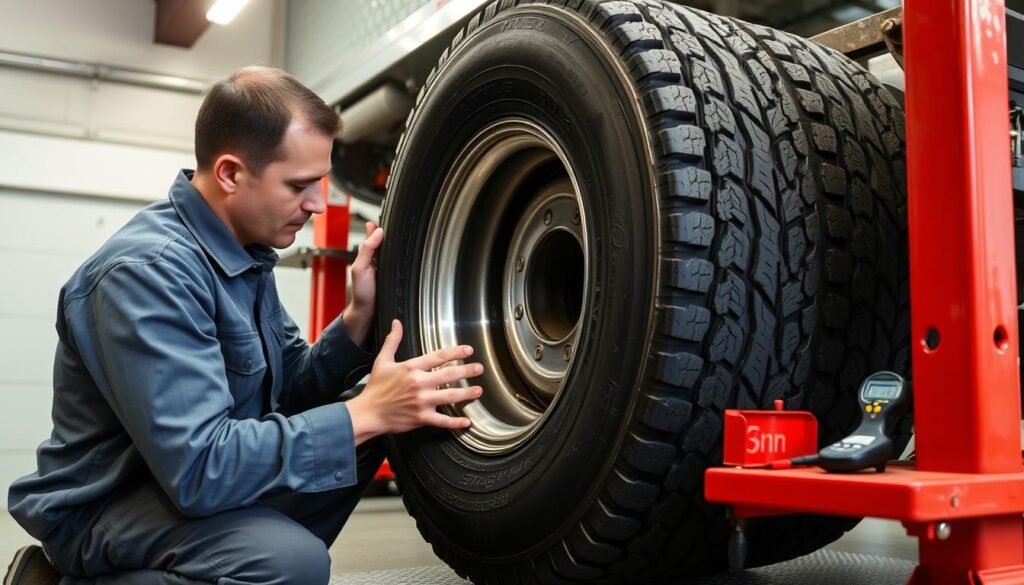

Tire and Wheel Inspection
Check every tire for visible damage, proper inflation, and adequate tread depth. Look for cuts, bulges, or embedded objects that could cause blowouts. Verify lug nuts are present and show no signs of loosening—witness marks on lug nuts help identify movement between inspections.
Federal regulations require minimum 2/32 inch tread depth on trailer tires. Use a tread depth gauge or the penny test: if you see the top of Lincoln’s head when inserted upside down into the tread groove, the tire needs replacement. Also check for uneven wear patterns that indicate alignment problems, suspension issues, or improper inflation.
Air Brake System Daily Checks
Air brake inspection begins with checking for audible air leaks while the system is pressurized. Walk around the trailer and listen at each brake chamber and air line connection. Any hissing sound indicates a leak requiring immediate attention.
Verify pushrod travel at each brake chamber by having someone apply the brakes while you observe. Excessive pushrod stroke beyond manufacturer specifications indicates worn components or improper adjustment. On most S-cam brakes, applied stroke should not exceed 2 inches for Type 30 chambers.
| Inspection Point | What to Check | Out-of-Service Criteria |
|---|---|---|
| Coupling Device | Kingpin, fifth wheel engagement, release handle position | Missing or ineffective locking mechanism |
| Brake System | Pushrod travel, air leaks, hoses, chambers | 20% or more brakes defective or inoperative |
| Tires | Tread depth, inflation, damage, bulges | Below 2/32″, exposed cord or belt material |
| Lighting | All required lights functional | Non-functional brake lights or turn signals |
| Frame | Cracks, damage, welds, crossmembers | Cracked frame member affecting safe operation |
Trailer Tire Maintenance and Management
Tires represent both a significant operating cost and a critical safety system. Proper tire management extends casing life, improves fuel efficiency, and prevents dangerous blowouts. Commercial trailer tires face unique challenges from irregular use patterns, extended parking periods, and varied load conditions.
Inflation Management Protocols
Underinflation causes more commercial tire failures than any other factor. An underinflated tire generates excessive heat from increased sidewall flexing, leading to structural damage and eventual failure. The Tire Industry Association estimates that tires running 20% below recommended pressure lose approximately 16% of their service life.
Check tire pressure when tires are cold—before operation or after sitting for at least three hours. Use a calibrated gauge and compare readings to the pressure specification on the tire sidewall. Most commercial trailer tires require 100-110 PSI, though exact specifications vary by tire size and load rating.
Establish a consistent inflation check schedule for your fleet. Many operations check trailer tires weekly when trailers return to the yard. Tire pressure monitoring systems provide real-time data that alerts drivers to pressure changes during operation, though manual verification remains essential for accurate readings.
Tread Wear Analysis and Rotation
Tread wear patterns reveal underlying issues with alignment, suspension, and inflation. Center wear indicates chronic overinflation, while edge wear on both shoulders suggests underinflation. Wear on one edge only points to alignment problems requiring correction.
Cupping or scalloped wear patterns indicate suspension issues, often worn shock absorbers or out-of-round drums. Address the root cause before installing replacement tires, or the new tires will develop the same wear patterns.
Trailer tire rotation follows different patterns than tractor tires due to fixed axle positions. For tandem axle trailers, rotate tires between axle positions to equalize wear. Side-to-side rotation within the same axle also helps even out wear patterns caused by road crown.
Age-Based Replacement Standards
Tire age matters regardless of remaining tread depth. Rubber compounds degrade from UV exposure, ozone, and heat cycling even when tires sit unused. Most tire manufacturers and fleet maintenance managers recommend replacing commercial trailer tires after 7-10 years from the date of manufacture, regardless of tread condition.
Find the tire’s age by checking the DOT code on the sidewall. The last four digits indicate the week and year of manufacture—for example, “2523” means the tire was manufactured in the 25th week of 2023. Inspect older tires more frequently for cracking, checking, and sidewall deterioration.
Air Brake System Service and Inspection
Air brake systems on commercial trailers demand rigorous maintenance attention due to their critical safety function. Unlike electric trailer brakes found on lighter equipment, air brakes provide the stopping power necessary for 80,000-pound gross combination weights. Understanding these systems allows fleets to maintain compliance while preventing the most common cause of out-of-service violations.
Foundation Brake Components
Commercial trailer brakes typically use S-cam drum brake configurations. Compressed air enters the brake chamber, extending the pushrod which rotates the slack adjuster and S-cam. The S-cam spreads the brake shoes against the drum, creating friction that slows the trailer.
Each component in this system requires regular inspection. Brake chambers should be checked for air leaks, cracked housings, and proper mounting. The pushrod must move freely without binding, and the clevis pin connections should show no excessive wear.
Slack adjusters control the distance between brake shoes and drums. Manual slack adjusters require periodic adjustment as shoes wear. Automatic slack adjusters, now standard on most equipment, maintain proper adjustment but still require verification. Even automatic adjusters can fail or fall out of adjustment due to contamination or internal wear.
⚠️ Safety Warning
Never work under a trailer supported only by landing gear. Air system failures or accidental release can cause the trailer to drop unexpectedly. Always use properly rated jack stands and chock wheels before performing brake service.
Brake Adjustment Verification
Proper brake adjustment ensures adequate stopping power while preventing premature wear. CVSA inspection criteria specify maximum pushrod travel limits—exceeding these limits constitutes an adjustment violation and potential out-of-service condition.
To check adjustment, build system air pressure to 90-100 PSI, then apply the service brakes. Measure pushrod travel at each brake chamber using a brake stroke indicator or measurement tool. Type 30 brake chambers should show no more than 2 inches of applied stroke for most applications.
When adjustment exceeds limits, determine whether the issue is the slack adjuster or worn brake linings. Automatic slack adjusters that won’t maintain adjustment typically need replacement rather than manual correction. Manually adjusting an automatic slack adjuster may temporarily fix the symptom while masking the underlying failure.
Brake Lining and Drum Inspection
Federal regulations require minimum brake lining thickness of 1/4 inch at the thinnest point for drum brakes. Inspect linings through the inspection holes in the brake backing plates or by pulling the drums during scheduled service.
Check drums for heat-related damage including heat checks, scoring, and blue discoloration indicating overheating. Measure drum diameter to verify drums haven’t worn beyond maximum allowable dimensions. Oversized drums reduce brake effectiveness and may cause brake fade under heavy use.
Brake component manufacturers publish specific inspection criteria and wear limits for their products. Following these specifications ensures compliance while maximizing component service life.
Air System Integrity
Air system leaks reduce braking capacity and cause compressor overwork. Check all air line connections, glad hands, and fittings for leaks during pressurized system checks. Apply soapy water to suspect connections—bubbles indicate leakage requiring repair.
Inspect air lines for chafing, cracks, and proper routing. Lines should be secured to prevent contact with moving components and heat sources. Replace damaged lines with properly rated tubing—never use automotive heater hose or other unapproved materials.
ABS systems on commercial trailers require functional wheel speed sensors and proper electrical connections. Check ABS warning lamps during system power-up—a lamp that stays illuminated indicates a system fault requiring diagnosis. Non-functional ABS constitutes a violation though typically not an out-of-service condition unless the underlying brake system is also defective.

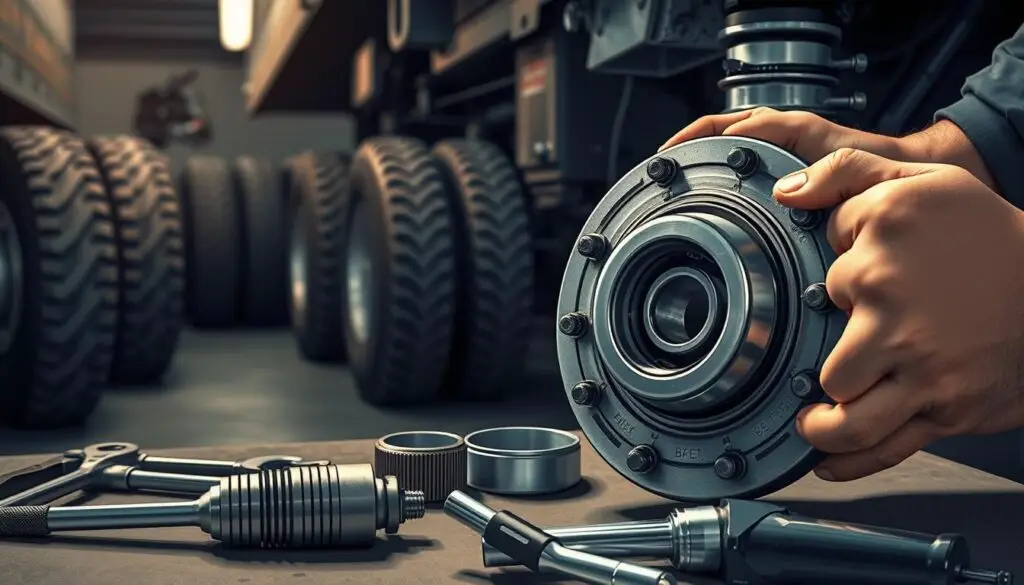

Wheel Bearing Service and Hub Maintenance
Wheel bearing failures can cause catastrophic wheel separation at highway speeds. These hidden components require periodic inspection and service despite their out-of-sight location inside wheel hubs. Proper bearing maintenance protocols prevent the most dangerous type of trailer equipment failure.
Bearing Inspection Without Disassembly
Several indicators suggest bearing problems before complete failure. After the trailer has been operating, carefully check hub temperature by touching the hub cap or bearing area. Excessive heat compared to other wheel positions indicates lubrication problems or bearing damage.
Grasp the tire at the top and bottom positions and rock it perpendicular to the ground. Significant movement indicates worn bearings or improper adjustment. Spin the wheel and listen for grinding, rumbling, or clicking sounds that suggest bearing deterioration.
Oil-lubricated hub systems allow visual inspection through sight glasses. Check for proper oil level and oil clarity. Milky or discolored oil indicates water contamination requiring immediate service. Metal particles visible in the oil suggest bearing damage already in progress.
Grease-Packed Bearing Repack Procedures
Traditional grease-packed bearings require periodic repack service. Most fleet maintenance programs schedule bearing repack annually or every 100,000 miles, though trailers operating in severe conditions may need more frequent service.
Complete repack requires removing the hub, cleaning all components with solvent, inspecting bearings and races for damage, packing new grease into the bearings, and reassembling with new seals. Inspect bearing rollers for pitting, spalling, or discoloration indicating heat damage. Replace damaged bearings and races as matched sets.
Use bearing grease that meets ASTM D4950 specifications for wheel bearing applications. The grease must withstand high temperatures, resist water washout, and maintain consistency under load. Never mix different grease types, as incompatible formulations can separate and fail.
Hub-Pilot vs. Stud-Pilot Wheel Systems
Understanding your wheel mounting system affects bearing service procedures. Hub-pilot systems, now standard on most commercial equipment, use a machined pilot on the hub face to center the wheel. Stud-pilot systems, more common on older equipment, center wheels on the mounting studs.
Hub-pilot systems require clean pilot surfaces for proper wheel centering. Clean the pilot surface and wheel center bore during bearing service. Contamination or damage to pilot surfaces causes wheel wobble that accelerates bearing wear.
Verify proper wheel nut torque after any bearing service. Hub-pilot wheels require specific torque sequences and values that differ from stud-pilot systems. Always follow the wheel manufacturer’s torque specifications and use calibrated torque equipment.
The HDJ Perspective
Wheel bearing failures remain one of the most dangerous and preventable trailer issues we see. The challenge for fleets is that bearings deteriorate invisibly until they approach failure. We recommend establishing hub temperature logging during routine yard checks—simply recording whether each hub feels normal, warm, or hot creates a baseline that makes anomalies obvious. Many fleets discover bearing problems this way weeks before catastrophic failure would have occurred.

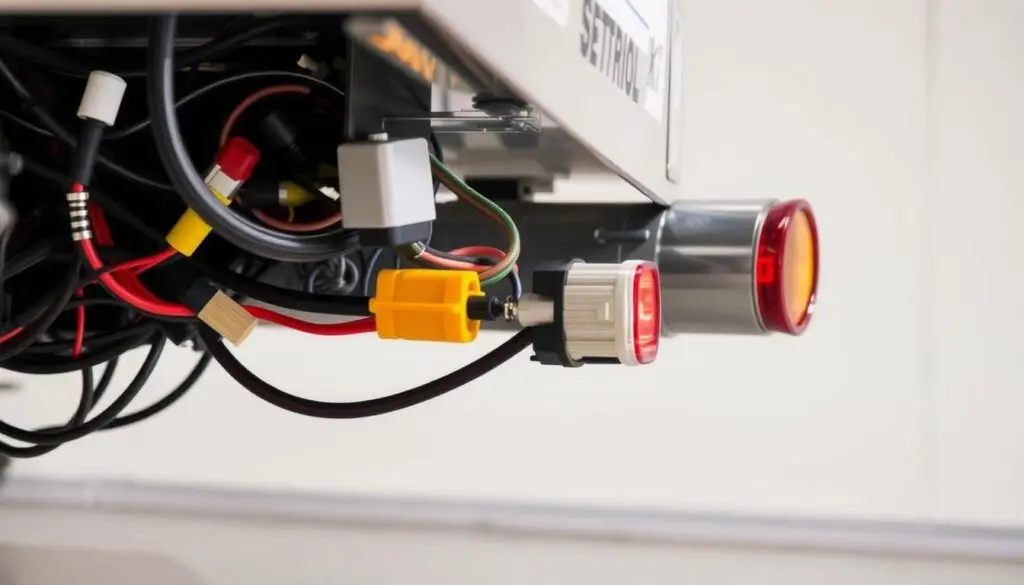

Electrical System and Lighting Maintenance
Trailer electrical systems communicate your presence and intentions to other drivers. Non-functional lights create safety hazards and trigger DOT violations that affect CSA scores. Systematic electrical maintenance prevents these issues while extending component service life.
Wiring Harness Inspection
Most trailer electrical failures originate from wiring problems rather than bulb failure. Inspect the entire wiring harness from the tractor connector back through the trailer. Look for frayed insulation, abraded areas from contact with frame or cargo, and loose connections at junction boxes.
Ground connections cause the majority of intermittent lighting problems. Verify ground wires attach to clean, unpainted surfaces on the trailer frame. Corrosion at ground points creates resistance that dims lights and causes erratic operation. Clean corroded connections and apply dielectric grease to prevent recurrence.
Secure wiring away from heat sources, moving components, and sharp edges. Use appropriate cable clamps at regular intervals to prevent vibration damage. Replace any wiring showing damage—splices should use heat-shrink tubing rather than electrical tape for weather resistance.
Connector Maintenance
The 7-way connector between tractor and trailer experiences constant exposure to road splash, salt, and contamination. Clean connector contacts regularly using contact cleaner or fine abrasive. Apply dielectric grease to pins before reconnecting to create a moisture barrier.
Inspect connector housings for cracks that allow moisture intrusion. Replace damaged connectors rather than attempting repair. When replacing connectors, verify proper wire routing to each pin—incorrect wiring creates confusing light behavior that other drivers may misinterpret.
ABS Electrical Systems
Anti-lock braking system electrical circuits require special attention. The dedicated power wire (typically blue) supplies ABS system power and must maintain integrity for proper system function. Check the ABS cable for damage where it routes between tractor and trailer.
ABS modulator valves mount on trailer axles where they’re exposed to road debris and moisture. Verify electrical connections at each modulator remain secure and corrosion-free. Damaged ABS wiring or connectors trigger system warning lamps and may cause full ABS deactivation.
LED Conversion Considerations
LED lighting offers significant advantages over incandescent bulbs including longer service life, reduced power consumption, and faster illumination. When converting trailers to LED, verify electrical compatibility and consider the following factors.
LED lights draw less current than incandescent bulbs. Some tractor flasher units require minimum current draw to operate correctly—ultra-low-draw LED lights may cause rapid flashing or non-operation of turn signals. LED-compatible flasher units solve this problem.
Ensure replacement LED units meet FMVSS 108 requirements for commercial vehicle lighting. Not all LED replacement lights meet federal standards for brightness, color, and visibility angles.
Free Professional Fleet Tools
Cost calculators, fault code lookup, maintenance planners, and more—built for owner-operators, fleet managers, and diesel techs. No signup required.
Fifth Wheel and Coupling System Maintenance
The fifth wheel and kingpin connection point transfers tremendous loads while allowing articulation between tractor and trailer. This coupling system requires regular inspection and maintenance to ensure secure attachment and prevent separation accidents.
Fifth Wheel Inspection Points
Fifth wheel coupling requires positive engagement between the trailer kingpin and the fifth wheel locking jaws. After coupling, verify the release handle is in the locked position and the locking jaws have fully closed around the kingpin. Perform the tug test: apply light trailer brake pressure while gently pulling forward to confirm secure coupling.
Inspect the fifth wheel plate surface for wear, cracks, and proper lubrication. The plate surface should show even wear patterns—uneven wear indicates mounting problems or improper trailer approach angle during coupling. Deep grooves or galling require professional evaluation.
Check locking jaw condition and operation. Jaws should close completely around the kingpin with no gaps. Worn or damaged jaws may allow inadvertent release. The release mechanism should operate smoothly and return to the locked position when released.
Kingpin Inspection
Trailer kingpins endure tremendous stress at the coupling point. Inspect the kingpin for visible wear, cracks, and dimensional specifications. Kingpin gauges verify proper diameter—worn kingpins may not properly engage fifth wheel locking jaws.
The upper coupler plate surrounding the kingpin transfers vertical loads to the tractor. Inspect for cracks around the kingpin mounting area and verify proper bolt torque on bolted kingpins. Welded kingpin installations should show no cracks at weld joints.
Lubrication Requirements
Fifth wheel plates require regular lubrication to allow smooth trailer articulation. Apply fifth wheel grease liberally to the plate surface, concentrating on the wear areas where the trailer skid plate makes contact.
Some fleets use automatic fifth wheel lubricators that apply grease during operation. These systems reduce manual lubrication frequency but still require periodic verification of proper operation and grease supply.
The Technology & Maintenance Council publishes recommended practices for fifth wheel inspection and maintenance that many fleets use as their baseline standards.
Frame, Suspension, and Structural Inspection
Trailer frames and suspension systems support cargo loads while absorbing road shock. These structural components deteriorate over time from fatigue, corrosion, and overloading. Systematic inspection identifies problems before they compromise structural integrity.
Frame Inspection Priorities
Concentrate frame inspection on high-stress areas where failures are most likely to develop. Prioritize the kingpin mounting area, crossmember welds, suspension mounting points, and areas around floor penetrations. These locations experience the highest stress concentrations during normal operation.
Look for cracks at weld joints and in the parent metal near welds. Hairline cracks may be difficult to see—clean suspected areas and use dye penetrant testing if cracks are suspected. Any visible cracking requires professional evaluation to determine appropriate repair.
Corrosion weakens frame members by reducing effective cross-section. Surface rust is primarily cosmetic, but deep pitting or perforation compromises structural capacity. Pay particular attention to areas where moisture accumulates and where road salt contacts frame surfaces.
Suspension System Components
Trailer suspension systems use either leaf springs or air ride configurations. Both require regular inspection to maintain proper ride characteristics and load distribution.
Leaf spring inspection includes checking for broken leaves, cracked center bolts, worn bushings, and proper alignment. Broken leaves reduce load capacity and cause uneven tire wear. Center bolts hold the spring pack together—check for looseness or cracks at the bolt head.
Air ride suspensions require functional air bags, height control valves, and proper ride height adjustment. Inspect air bags for cracks, holes, and proper inflation. Height control valves must maintain specified ride height—improper height causes handling problems and accelerates tire wear.
Landing Gear Maintenance
Landing gear supports the trailer when uncoupled from the tractor. These mechanical systems require periodic lubrication and inspection to ensure reliable operation.
Lubricate landing gear gears and screws according to manufacturer specifications. Most designs use grease fittings at the gear housing. Extend and retract the landing gear fully during lubrication to distribute grease throughout the mechanism.
Inspect leg assemblies for bending, cracking, and foot pad condition. Sand shoes or foot pads must be secure and in serviceable condition. Damaged pads may not support the trailer adequately, especially on soft surfaces.
Seasonal Maintenance and Storage Considerations
Seasonal variations affect trailer maintenance requirements. Temperature extremes, road salt exposure, and storage periods create specific challenges that systematic maintenance addresses.
Cold Weather Preparations
Cold temperatures affect tire pressure, air system components, and battery capacity. Tire pressure drops approximately 1 PSI for every 10°F temperature decrease—check and adjust inflation as temperatures change seasonally.
Air systems accumulate moisture that can freeze and block lines in cold weather. Verify air dryers function properly and drain moisture reservoirs regularly. Use appropriate air line antifreeze if operating in severe cold conditions.
Battery capacity decreases significantly in cold temperatures. Breakaway system batteries may not provide adequate power after cold storage. Test batteries before seasonal operation and replace marginal units.
Hot Weather Considerations
High temperatures accelerate tire wear and increase blowout risk, particularly on underinflated tires. Monitor tire pressure carefully during summer operation—pressure increases with temperature, and chronic underinflation combined with heat causes rapid casing failure.
Rubber components including door seals, brake hoses, and suspension bushings deteriorate faster in high UV exposure. Inspect these components more frequently during summer months and address deterioration promptly.
Refrigerated trailers face increased workloads during hot weather. Verify reefer unit operation and inspect door seals that must maintain box temperature against higher ambient conditions.
Extended Storage Protocols
Trailers sitting unused for extended periods require specific preparations to prevent deterioration. Block the trailer securely and consider raising it off the tires to prevent flat-spotting if storage exceeds several weeks.
Disconnect batteries or place them on maintenance chargers to prevent discharge. Cycling air system components occasionally prevents internal corrosion and seal dry-out. Cover openings to prevent pest intrusion and moisture accumulation.
Document the storage date and maintenance status. Before returning stored equipment to service, perform a complete pre-trip inspection and verify all systems function properly.

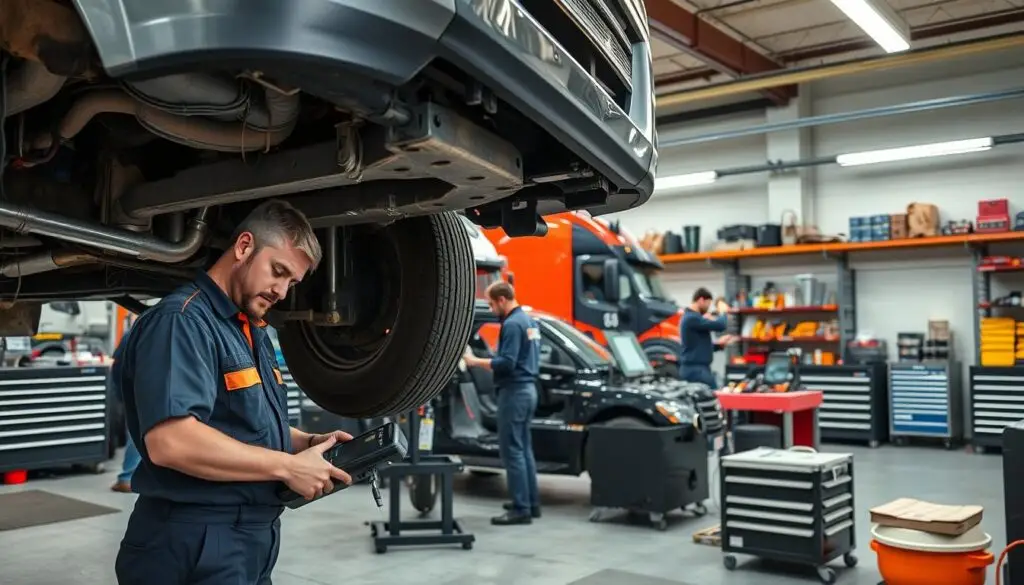

Building Your Fleet Maintenance Program
Effective trailer maintenance requires systematic programs rather than reactive responses. Establishing consistent inspection intervals, documentation practices, and repair protocols creates predictable equipment reliability while satisfying regulatory requirements.
Maintenance Interval Standards
Structure your maintenance program around defined intervals that match equipment usage and regulatory requirements. The following schedule serves most commercial fleets, though high-utilization operations may need to accelerate certain intervals.
| Interval | Service Tasks | Time Required |
|---|---|---|
| Daily (Pre/Post-Trip) | Walk-around inspection, lights, tires, coupling, brakes, air system | 10-15 minutes |
| Quarterly / 3,000 miles | Brake adjustment check, wheel nut torque, tire depth measurement, landing gear lubrication | 45-60 minutes |
| Semi-Annual / 50,000 miles | Brake wear measurement, suspension inspection, ABS system test, wiring inspection | 2-3 hours |
| Annual / 100,000 miles | Complete DOT inspection, bearing service, brake overhaul, frame inspection, fifth wheel service | 4-6 hours |
Documentation Requirements
Proper documentation satisfies 49 CFR 396.3 requirements while protecting your operation during audits and litigation. Every inspection and repair should generate records identifying the trailer, date, inspector, findings, and corrective actions.
Retain driver vehicle inspection reports for at least three months. Annual inspection documentation must remain accessible for 14 months following each inspection. Many fleets retain records longer than minimum requirements for liability protection and trend analysis.
Electronic maintenance management systems simplify documentation while enabling analysis of equipment performance trends. These systems can identify trailers requiring more frequent attention and predict upcoming service requirements based on mileage and time intervals.
Inspection Qualifications
Annual inspections under 49 CFR 396.17 must be performed by qualified inspectors meeting FMCSA standards. Qualified inspectors must have thorough knowledge of inspection procedures and demonstrate competence through training or experience. Many fleets use third-party inspection services or CVSA-certified inspectors to satisfy these requirements.
In-house technicians performing annual inspections should maintain documentation of their qualifications. Training records, certifications such as ASE certification, and demonstrated experience provide evidence of qualification.
Frequently Asked Questions
How often should commercial trailer maintenance be performed?
Commercial trailers require maintenance at multiple intervals: daily pre-trip and post-trip inspections as mandated by DOT, quarterly brake adjustments and wheel torque checks (every 3,000 miles), semi-annual comprehensive inspections including brake wear measurement and suspension checks, and annual thorough service including wheel bearing repack, complete brake overhaul, and DOT certification inspection. High-mileage fleets may need to accelerate these intervals based on operational intensity and equipment condition.
What trailer defects will put a commercial vehicle out of service?
CVSA out-of-service criteria include brake system defects such as inoperative brakes on 20% or more of required brakes, air leaks exceeding safe limits, and brake adjustment beyond allowable limits. Lighting violations including non-functional brake lights and turn signals trigger out-of-service orders. Tire defects like tread depth below 2/32 inch on steer tires or exposed cord or belt material result in immediate removal from service. Coupling device defects and structural frame cracks also constitute critical violations requiring correction before operation.
What is the difference between air brakes and electric trailer brakes?
Air brakes use compressed air to activate brake chambers that push S-cam mechanisms or wedge assemblies against brake drums, providing powerful stopping force for heavy loads. They require air pressure maintenance, regular slack adjuster checks, and proper air system care. Electric brakes use electrical current from the tow vehicle to activate electromagnets that engage brake shoes, common on lighter trailers under 10,000 pounds. Commercial semi-trailers almost exclusively use air brakes due to superior stopping power and DOT requirements for vehicles exceeding certain weight thresholds.
How do you check trailer brake adjustment?
For air brake systems, apply 90-100 PSI to the brake system and measure pushrod travel at each brake chamber. Most S-cam brakes should have pushrod stroke under 2 inches when applied, though specifications vary by chamber type. Adjustment beyond manufacturer specifications indicates worn components or improper adjustment requiring immediate service. Check automatic slack adjusters for proper operation by confirming they maintain correct adjustment after brake release. Manual slack adjusters require periodic adjustment using a standard wrench to rotate the adjustment bolt until proper pushrod travel is achieved.
What records must fleets maintain for trailer maintenance?
Under 49 CFR 396.3, motor carriers must maintain systematic inspection, repair, and maintenance records for each commercial trailer. Required documentation includes the identity of the vehicle, date of inspection, nature and due date of inspections performed, and record of repairs. Annual inspection records per 49 CFR 396.17 must be retained for 14 months following the inspection. Driver vehicle inspection reports must be retained for at least three months. Proper documentation protects fleets during FMCSA audits and demonstrates due diligence in maintaining equipment safety.
When should trailer wheel bearings be repacked?
Commercial trailer wheel bearings should be repacked annually or every 100,000 miles, whichever comes first. Trailers operating in severe conditions including high heat, frequent heavy loads, or exposure to water and road contaminants may require more frequent service at 50,000-75,000 mile intervals. Warning signs requiring immediate inspection include unusual hub temperatures after operation, grinding or rumbling noises during travel, and visible grease leakage from hub seals. Always replace seals during bearing service regardless of apparent condition to ensure proper contamination protection.
Implement Your Trailer Maintenance Program Today
Systematic trailer maintenance protects your fleet investment while ensuring regulatory compliance and operational reliability. The inspection protocols and service intervals outlined in this guide provide a proven framework that successful fleets use to minimize breakdowns, pass inspections, and control maintenance costs.
Start with consistent pre-trip inspections that catch problems before they cause failures. Build quarterly and annual service into your scheduling system so nothing falls through the cracks. Document everything—proper records protect you during audits and demonstrate the professionalism of your operation. The investment in systematic maintenance delivers returns through fewer roadside emergencies, better CSA scores, and equipment that performs reliably mile after mile.
