Drop Deck Trailer Hydraulic Maintenance: Complete Guide

By Michael Nielsen, Editor & Publisher | 15+ Years in Diesel Repair

Last Updated: January 2026

📖 Estimated reading time: 33 minutes

Drop deck trailer hydraulic maintenance determines whether your equipment generates revenue or sits idle waiting for repairs. These powerful systems convert mechanical energy into fluid power, enabling the precise lifting and positioning operations essential for loading oversized equipment. For fleet managers and operators, understanding hydraulic system care isn’t optional—it’s fundamental to safe, profitable operations.

Hydraulic systems enable drop deck trailers to lower sections of the platform to ground level, eliminating ramps and dramatically improving loading efficiency for construction equipment, industrial machinery, and specialized cargo. Without proper maintenance, even robust hydraulic systems face costly failures that create dangerous situations, damage equipment, and generate repair expenses that impact your bottom line.

This comprehensive guide provides proven procedures for trailer hydraulic repair and preventive maintenance. You’ll discover how to keep your heavy-duty hydraulics operating at peak performance while minimizing failures and maximizing operational uptime.

1. Understanding Drop Deck Trailer Hydraulic System Components

Understanding the fundamental components of a drop deck trailer hydraulic system is essential for effective maintenance and troubleshooting. The hydraulic system transforms mechanical power into controlled force that raises and lowers deck sections with precision. Each component serves a specific function, and knowing how these parts work together helps operators identify problems quickly.

The core system components include the hydraulic power unit, pumps, hydraulic cylinders, control valves, reservoir, hoses, and filters. These elements create a closed-loop system where pressurized fluid moves through carefully designed pathways. When one component fails, it affects the entire operation, making comprehensive knowledge critical for anyone responsible for trailer maintenance.

Hydraulic Pump and Power Unit

The hydraulic pump serves as the heart of the entire system, generating the flow needed to pressurize hydraulic fluid. This mechanical device converts rotational energy from the power source into hydraulic energy by moving fluid from the reservoir into the system. Without adequate pump performance, the trailer cannot generate sufficient force to lift heavy loads.

Two primary pump types dominate drop deck trailer applications. Gear pumps offer reliable performance at moderate pressures and are commonly found in standard trailers. Piston pumps deliver higher pressures and greater efficiency, making them ideal for heavy-duty applications demanding consistent performance under extreme conditions.

The hydraulic power unit supplies mechanical energy to drive the pump. Most drop deck trailers use either power take-off (PTO) systems connected to the truck transmission or standalone electric motor units. PTO-driven systems provide higher flow rates and are preferred for frequent operation, while electric units offer convenience for stationary use and require less installation complexity.

Pump capacity, measured in gallons per minute (GPM), must match cylinder requirements for optimal performance. A typical drop deck trailer pump operates between 8 and 15 GPM, depending on cylinder size and lift speed requirements. Proper pump selection ensures efficient operation while preventing overheating and premature component wear.

Cylinders and Actuators

Hydraulic cylinders convert pressurized fluid into the linear force necessary to raise and lower drop deck sections. These mechanical actuators consist of a cylinder barrel, piston, rod, and seals that work together to produce controlled motion. The cylinder bore diameter and stroke length determine the lifting capacity and range of movement available for each specific trailer configuration.

Drop deck trailers typically use single-acting cylinders that apply hydraulic force in only one direction. These cylinders push the deck upward when fluid enters the chamber, then rely on gravity and load weight to return the deck to its lowered position. This design reduces complexity and maintenance requirements while providing reliable performance for most hauling applications.

Double-acting cylinders provide hydraulic force in both directions, offering greater control during lowering operations. These actuators contain fluid ports on both sides of the piston, allowing pressurized fluid to control extension and retraction. This configuration is essential for trailers requiring precise positioning or that must lower against resistance rather than relying solely on gravity.

Cylinder capacity ratings indicate the maximum force output at a given pressure, typically measured in tons. Most drop deck trailer cylinders range from 15 to 40 tons, with larger capacities needed for heavy equipment hauling. Stroke length varies from 20 to 60 inches based on the trailer’s deck drop distance and operational requirements.

Valves and Control Mechanisms

Control valves regulate hydraulic fluid movement throughout the system, directing flow to specific cylinders and controlling operation speed. These precision components determine when fluid enters or exits the cylinders, enabling operators to raise, lower, or hold the deck in position. Valve quality directly impacts system responsiveness and operational safety.

Directional control valves serve as the primary interface between the operator and the hydraulic system. Most drop deck trailers use simple lever-operated valves with raise, lower, and neutral positions. When the operator moves the lever, internal spools shift to redirect fluid flow, sending pressurized fluid to the cylinder or allowing it to return to the reservoir.

Pressure relief valves protect the system from dangerous over-pressurization that could damage components or cause hydraulic line failure. These safety devices automatically open when system pressure exceeds the preset limit, diverting excess fluid back to the reservoir. Typical relief valve settings range from 2,000 to 3,000 PSI, depending on cylinder and pump specifications.

Flow control valves regulate the speed of cylinder movement by restricting fluid flow to precise rates. These adjustable components allow operators to fine-tune lifting and lowering speeds for different load conditions. Proper flow control prevents sudden deck movement that could shift cargo or create safety hazards during operation.

Reservoir and Fluid System

The hydraulic reservoir stores fluid when the system is not operating and serves multiple critical functions beyond simple storage. This tank allows air bubbles to escape from the fluid, provides space for thermal expansion, and enables contaminants to settle away from the pump intake. Reservoir design significantly impacts overall system reliability and service life.

Proper reservoir sizing is essential for effective system cooling and contamination control. Most drop deck trailers require reservoirs holding 1.5 to 3 times the pump’s output per minute. For example, a system with a 10 GPM pump should have a 15 to 30-gallon reservoir. Undersized reservoirs cause fluid overheating and accelerated component wear due to inadequate cooling time.

Internal baffles within the hydraulic reservoir separate the return line from the pump suction line, forcing fluid to follow a longer path through the tank. This design maximizes the time available for air release and contaminant settling. Quality reservoirs also include sight gauges for fluid level monitoring and drain plugs positioned at the lowest point for complete fluid removal during service.

The complete fluid system includes hoses, rigid lines, and fittings that carry pressurized fluid between system components. High-pressure hoses must meet specific burst pressure ratings—SAE J517 standards specify that hydraulic hoses should maintain a 4:1 safety factor above maximum operating pressure. Hydraulic lines should be properly secured with protective routing away from sharp edges, exhaust components, and moving parts that could cause damage or leaks.

2. Safety Protocols for Hydraulic System Maintenance

Safety must be the top priority when servicing hydraulic systems, as pressures exceeding 2,000 PSI can cause life-threatening injuries. Drop deck trailer hydraulic systems operate under extreme pressure conditions that demand strict adherence to established hydraulic safety protocols. Operators are the first line of defense against hydraulic breakdowns and must follow comprehensive safety measures during every maintenance task.

2.1 Essential Safety Gear and Protection

Personal protective equipment forms the foundation of safe hydraulic system maintenance. Safety glasses or face shields are mandatory when working near pressurized hydraulic lines to protect against fluid injection into the eyes. Standard prescription glasses do not provide adequate protection from high-pressure fluid streams.

Chemical-resistant gloves rated for hydraulic oil contact must be worn during all fluid handling procedures. These specialized gloves prevent prolonged skin exposure to hydraulic fluids, which can cause dermatitis and other health issues. Steel-toed boots protect feet from falling components and provide stable footing on potentially oil-slicked surfaces.

Long-sleeved work shirts and full-length pants create a barrier between skin and hydraulic fluid. Loose clothing, jewelry, and long hair must be secured to prevent entanglement in moving parts. PPE requirements extend beyond basic equipment to include hearing protection when operating hydraulic power units and respiratory protection when working in enclosed spaces.

Essential safety gear includes ANSI-rated safety glasses or full-face shield, chemical-resistant gloves (nitrile or neoprene), steel-toed safety boots with oil-resistant soles, long-sleeved shirts and full-length work pants, and hearing protection for power unit operation.

2.2 Depressurizing Systems Safely

Pressure release procedures must be completed before any hydraulic component is disconnected or serviced. Never assume a hydraulic system is depressurized even when the power unit is off, as residual pressure can remain trapped in lines and cylinders. Releasing pressure incorrectly can result in violent component movement or high-pressure fluid discharge.

The first step involves lowering all raised trailer sections to their resting positions using normal operating controls. This action removes load from the hydraulic cylinders and reduces system pressure significantly. After lowering components, turn off the power unit and allow the system to cool if it has been recently operated.

OSHA’s lockout tagout requirements under 29 CFR 1910.147 mandate that hydraulic systems containing potentially hazardous stored energy must be relieved, disconnected, restrained, or otherwise rendered safe before maintenance. Remove the key from the power unit ignition and place a lockout device on the battery disconnect switch. Attach a clearly visible tag indicating that maintenance is in progress and listing the technician’s name and contact information.

Follow these pressure release steps in order: lower all raised components using normal controls, turn off the hydraulic power unit completely, engage lockout tagout on electrical power sources, slowly loosen a pressure test port to verify zero pressure, and open manual pressure relief valves if equipped. Residual pressure can remain in the system even after following standard procedures—always crack fittings slowly while wearing full protective equipment to detect any remaining pressure.

2.3 Safe Hydraulic Oil Handling

Hydraulic fluid safety extends beyond preventing skin contact to include proper storage, transfer, and disposal practices. Hydraulic oil can irritate skin and eyes, and prolonged exposure may cause more serious health effects. Always work in well-ventilated areas to minimize inhalation of hydraulic fluid vapors.

Store hydraulic fluid in approved containers away from heat sources and open flames. According to NFPA 30 Flammable and Combustible Liquids Code, petroleum-based hydraulic fluids are combustible and require proper storage away from ignition sources. Keep containers tightly sealed when not in use to prevent contamination and evaporation. Label all containers clearly with fluid type and date of opening to ensure proper fluid management.

When transferring hydraulic fluid, use appropriate pumps and funnels to minimize spills. Never use compressed air to pressurize fluid containers for transfer purposes, as this creates explosion hazards. Clean up any spills immediately using absorbent materials, and dispose of contaminated materials according to local environmental regulations.

Used hydraulic fluid must be collected in designated waste oil containers and disposed of through approved recycling channels. Pouring hydraulic oil on the ground or into storm drains violates environmental regulations and creates soil and water contamination. Many service centers and parts suppliers offer used oil collection services at no charge.

2.4 Responding to Hydraulic Emergencies

Emergency procedures must be established and understood before beginning any hydraulic maintenance work. Hydraulic injection injuries require immediate emergency medical attention, even if the entry wound appears minor. Fluid injected under the skin can travel along tissue planes and cause extensive internal damage.

If hydraulic fluid is injected into the body, do not wait to see if symptoms develop. Transport the injured person to an emergency room immediately and inform medical staff that this is a high-pressure injection injury requiring surgical evaluation. Time is critical, as delays in treatment significantly worsen outcomes.

Hydraulic line failures can release pressurized fluid in violent streams capable of cutting through clothing and skin. If a line ruptures during operation, immediately shut down the power unit using emergency stop controls. Do not attempt to stop fluid leaks by placing hands or other body parts near the leak source.

Emergency response guidelines for common scenarios include: injection injury requires immediate emergency medical care without delay; fluid in eyes requires flushing with water for 15 minutes followed by medical attention; line rupture requires emergency shutdown and evacuation of the immediate area; large spills require containment with absorbent booms and notification of environmental response team; fire involving hydraulic fluid requires Class B fire extinguisher and evacuation.

3. Routine Maintenance for Drop Deck Trailer Hydraulics

Establishing a comprehensive routine maintenance schedule protects your hydraulic investment and maximizes equipment uptime. Operators who commit to consistent preventive maintenance avoid unexpected breakdowns that halt operations and generate expensive repair bills. The most effective approach combines daily checks with scheduled service intervals that address potential issues before they compromise system performance.

Routine hydraulic maintenance serves as your first defense against system failures. Small problems detected early remain inexpensive to fix, while neglected issues cascade into major component damage. This proactive strategy keeps trailers operational and extends the service life of every hydraulic component.

3.1 Daily Pre-Operation Inspections

A thorough pre-operation inspection identifies potential problems before they strand your equipment on the job site. Operators should complete this checklist every time they prepare to use the hydraulic system. This systematic approach takes only minutes but prevents hours of downtime.

Essential daily inspection points include visual examination of all hydraulic components for visible damage, cracks, or deformation; inspection of cylinder rods for scoring, pitting, or corrosion that compromises seal integrity; verification that all safety guards and protective covers remain securely in place; testing hydraulic controls for proper response and smooth operation; and listening for unusual sounds during initial system activation.

Pay particular attention to any wet spots around hose connections, cylinders, and valves. These indicate active leaks that will worsen with continued operation. Jerky movements during operation signal low fluid levels or air entrainment that requires immediate attention.

Odd sounds provide early warning of developing problems. Whining noises typically indicate cavitation from low fluid levels. Rattling or grinding sounds suggest blocked filters or failing pump components that need professional diagnosis.

3.2 Hydraulic Fluid Level Monitoring

Maintaining proper hydraulic fluid level is critical for system health and performance. Low fluid causes pump cavitation, which damages internal components and creates inconsistent operation. Checking fluid levels should be part of every pre-operation inspection.

Proper fluid level checking procedure begins by parking the trailer on level ground with all cylinders fully retracted. Clean the area around the reservoir cap thoroughly before opening. Remove the cap and check the fluid level against the sight glass or dipstick. Add manufacturer-specified hydraulic oil if levels fall below the minimum mark. Replace the cap securely and wipe away any spilled fluid.

Fluid levels decrease for several reasons. External leaks represent the most obvious cause, but internal consumption occurs naturally as cylinders extend. Evaporation also reduces fluid volume over time, particularly in hot operating environments.

Always use the exact hydraulic oil specification recommended by the trailer manufacturer. Mixing incompatible fluids damages seals and reduces system performance. Keep the fill area scrupulously clean to prevent dirt entry during topping off procedures.

3.3 Filter Maintenance and Replacement Schedule

Hydraulic filters protect system components from contamination, which causes the majority of hydraulic failures. Regular filter maintenance ranks among the most important preventive maintenance tasks. Neglecting filters allows contaminants to circulate through the system, accelerating wear on pumps, valves, and cylinders.

Inspect filter condition during every hydraulic fluid level check. Most filters include visual indicators that change color when replacement becomes necessary. These indicators provide reliable guidance for filter replacement schedule adherence.

Recommended filter replacement intervals include every 500-750 operating hours under standard conditions, every 250-400 operating hours in dusty or contaminated environments, immediate replacement after any system opening or repair work, and immediate replacement when indicator shows restriction or contamination.

Proper filter maintenance involves more than simple replacement. Always drain old fluid from the filter housing before installing the new filter. Pre-fill the new filter with clean hydraulic oil to prevent dry starts. Verify that all seals seat properly during installation. The consequences of neglecting filter maintenance extend beyond component wear—contaminated fluid loses its lubricating properties and generates excessive heat, creating a destructive cycle that compromises the entire system.

3.4 Connection and Fitting Inspections

Hydraulic connections and fittings endure constant vibration and pressure cycles that can loosen connections or damage seals. Systematic fitting inspection prevents leaks that waste fluid, contaminate the environment, and reduce system pressure. This inspection should occur weekly at minimum, with more frequent checks for trailers operating in demanding conditions.

Comprehensive fitting inspection includes examining all hose connections for signs of seepage or wetness, inspecting threaded fittings for corrosion, cross-threading, or damage, checking quick-disconnect couplers for proper seating and seal condition, looking for hose abrasion, bulging, cracking, or worn spots, and verifying that protective sleeves and guards remain intact. Per FMCSA inspection requirements, parts and accessories must be in safe and proper operating condition at all times.

Vibration gradually loosens hydraulic fittings over time. Use a torque wrench to verify that connections meet manufacturer specifications during routine inspections. Over-tightening damages threads and crushes seals, while under-tightening allows leaks and pressure loss.

Replace any hose showing visible damage immediately. Hydraulic hoses operate under extreme pressure, and failure can cause serious injury. Watch for hoses that have hardened, become brittle, or show surface cracking—these conditions indicate age-related deterioration that requires replacement regardless of external appearance.

Stay Current on Hydraulic Maintenance Best Practices

Get practical maintenance tips, troubleshooting guides, and industry updates delivered to your inbox. Join fleet managers and technicians who rely on HDJ for actionable technical content.

Email

Email *

Submit

4. Hydraulic Fluid Service and Management

Dirty or degraded hydraulic fluid causes more system failures than any other single factor in drop deck trailer hydraulics. Contaminants like water, dust, and metal shavings can scratch valve seats, clog filters, and destroy pumps within weeks of entering the system. Proper fluid management protects your investment and ensures consistent performance throughout the trailer’s service life.

Hydraulic fluid serves multiple critical functions beyond simply transmitting power. It lubricates moving components, dissipates heat generated during operation, and protects internal surfaces from corrosion. When fluid contamination occurs or the fluid degrades over time, all these protective functions deteriorate rapidly.

4.1 Fluid Type Selection and Specifications

Selecting the appropriate hydraulic fluid types begins with consulting your trailer manufacturer’s specifications. Using non-approved fluids voids warranties and can cause seal damage, poor lubrication, and temperature-related performance issues. Never substitute fluids without manufacturer approval.

Three primary categories dominate the market for drop deck trailer applications. Petroleum-based fluids remain the most common choice due to their cost-effectiveness and proven performance in standard operating conditions. Synthetic fluids offer superior temperature stability and longer service life but come at a higher initial cost. Biodegradable fluids meet environmental requirements for sensitive work areas but may require more frequent changes.

Viscosity ratings represent the most critical specification for seasonal operation. The Society of Automotive Engineers (SAE) viscosity grade determines how the fluid flows at different temperatures. Winter operations in cold climates typically require ISO VG 32 or similar lower-viscosity fluids to maintain proper flow. Summer operations in hot environments may need ISO VG 46 or higher to prevent thinning and maintain adequate lubrication.

Hydraulic oil specifications also include additives that enhance performance. Anti-wear additives protect pump components under high pressure. Rust and oxidation inhibitors extend fluid life and protect internal surfaces. Foam suppressants prevent air entrainment that reduces system efficiency. Always use OEM-approved hydraulic fluid to maintain warranty coverage and optimal performance.

4.2 Contamination Detection Methods

Fluid contamination enters hydraulic systems through multiple pathways despite protective measures. Particulate matter infiltrates through worn seals, dirty fill ports, and breather caps. Water enters through condensation in reservoirs or damaged seals exposed to weather. Air contamination occurs through leaks in suction lines or low fluid levels.

Visual inspection provides the first line of contamination detection for operators. Check fluid color during daily inspections—clean hydraulic oil appears amber or light brown. Dark brown or black coloration indicates oxidation and thermal breakdown. A milky appearance signals water contamination requiring immediate attention.

Field testing methods offer deeper insight into fluid condition without laboratory analysis. Simple blotter tests reveal particulate contamination by placing a drop of fluid on filter paper and examining the spread pattern. Clean fluid creates a uniform stain, while contaminated fluid shows dark particles or rings indicating different contaminant types.

Professional fluid analysis services provide the most comprehensive contamination detection available. These laboratories test for particle count and size distribution revealing wear patterns, water content measured in parts per million (PPM), viscosity changes indicating thermal degradation, metal content identifying specific component wear, and acid number showing oxidation levels. Implementing regular fluid sampling intervals catches problems before they cause damage—sample fluid quarterly during heavy use periods or semi-annually for standard operations.

4.3 Fluid Change Procedures

Performing a hydraulic fluid change at manufacturer-recommended intervals prevents degradation-related failures. Most drop deck trailer systems require fluid replacement annually or every 1,000-2,000 operating hours, whichever comes first. Heavy-use applications or contamination findings may necessitate more frequent changes.

Begin fluid change procedures by positioning the trailer on level ground and allowing the system to cool completely. Hot hydraulic fluid can cause severe burns and expands significantly, leading to inaccurate fill levels. Release all system pressure before opening any fittings or drain plugs.

The drainage process requires complete fluid removal from the reservoir and lines. Locate the reservoir drain plug at the lowest point of the system. Open the drain valve and allow fluid to flow into an appropriate collection container rated for petroleum products. Operate cylinders through their full range of motion to purge fluid from actuators and lines.

Filter replacement must occur simultaneously with every hydraulic fluid change. Old filters contain trapped contaminants that would immediately pollute fresh fluid. Install new filters according to manufacturer torque specifications to prevent bypass or leakage.

Environmental regulations govern used hydraulic fluid disposal in all states. Never pour waste fluid down drains, onto the ground, or into storm sewers. Store used fluid in sealed, labeled containers and transport to an approved recycling facility or hazardous waste collection site. Many auto parts stores and service centers accept used hydraulic fluid for recycling.

4.4 System Flushing Techniques

Complete system flushing becomes necessary after major repairs, severe contamination events, or when changing fluid types. Flushing removes residual contaminants, old fluid, and degradation products that simple drainage cannot eliminate. Skip this step only when changing fluid in clean, well-maintained systems.

Flushing procedures begin with draining all existing fluid as described in standard change procedures. Inspect the reservoir interior for sludge, varnish buildup, or debris accumulation. Clean the reservoir thoroughly with lint-free cloths and approved cleaning solvents before proceeding.

Select an appropriate flushing fluid compatible with your system’s seals and components. Purpose-designed hydraulic flushing oils work best for petroleum-based systems. Some manufacturers approve using the same fluid type for flushing that will be used for final filling, though this increases costs.

The flushing process requires multiple cycles for effective cleaning. Fill the reservoir with flushing fluid to the minimum operating level, start the system and operate all functions at low pressure for 15-30 minutes, monitor flushing fluid condition and watch for contaminant purging, drain the flushing fluid completely and inspect for debris, then repeat the process until drained fluid appears clean without visible contamination. Most heavily contaminated systems require three to five flushing cycles to achieve adequate cleanliness.

5. Diagnostic Testing and Troubleshooting Procedures

Understanding diagnostic testing procedures empowers maintenance personnel to identify hydraulic problems quickly and accurately. Systematic hydraulic diagnostics eliminate guesswork and prevent unnecessary component replacements that waste both time and money. Proper system diagnostics require specialized equipment, methodical testing protocols, and the ability to interpret test results within the context of normal system operation.

Warning signs of hydraulic failure demand immediate attention. Slow or jerky movement indicates air in the system or low fluid levels. Overheating breaks down hydraulic fluid and accelerates seal wear. Foamy or discolored fluid suggests water contamination or air entrainment. Unusual noises like screeching, knocking, or groaning signal component distress. A sudden performance drop points to worn pumps, clogged filters, or internal cylinder leaks.

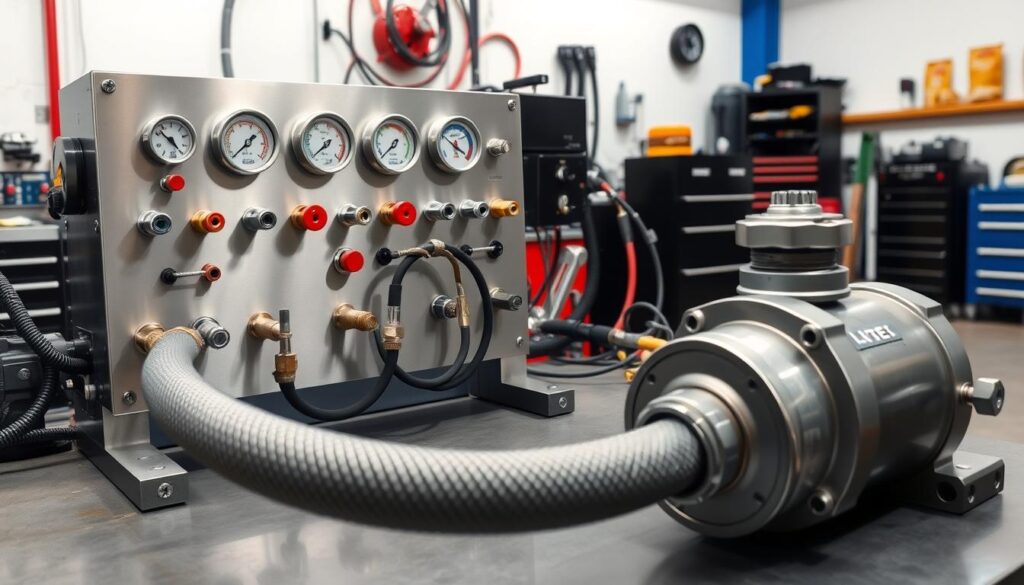

5.1 Pressure Testing Equipment and Methods

Accurate pressure testing forms the cornerstone of effective hydraulic troubleshooting. Essential diagnostic tools include hydraulic pressure gauges rated for your system’s maximum pressure, flow meters to measure hydraulic fluid movement, and temperature sensors to monitor operating conditions. Digital gauges provide precise readings and often include data logging capabilities for tracking trends over time.

Installing test equipment requires strategic placement at various circuit points. Connect pressure gauges at the pump outlet, cylinder ports, and before relief valves. Thread adapters and test hoses must match your system’s specifications to prevent leaks during testing.

Interpreting pressure readings reveals specific problems within the hydraulic circuit. Low pressure indicates pump wear, internal leakage, or relief valve problems. Excessive pressure suggests relief valve malfunctions or flow restrictions in the circuit. Pressure fluctuations point to air contamination or inconsistent pump output.

Establish baseline pressure measurements during normal operation. Record pump output pressure, cylinder extension pressure, cylinder retraction pressure, and system relief valve settings. Compare future readings against these baselines to identify performance degradation before complete failure occurs.

5.2 Identifying Leak Sources

External leak detection begins with systematic visual inspection of all hydraulic components. Look for fluid accumulation around fittings, hose connections, cylinder seals, and pump housings. Fresh leaks appear wet and shiny, while older leaks collect dirt and form dark deposits.

UV dye tracing provides the most reliable leak detection method for difficult-to-locate leaks. Add fluorescent dye to the hydraulic fluid, operate the system through several cycles, then use a UV lamp to illuminate leak paths. The dye glows brightly under UV light, revealing even microscopic leaks invisible to the naked eye.

Paper test methods work effectively for pinpointing active leaks. Hold clean paper near suspected leak areas while the system operates under pressure. Spray patterns indicate leak direction and help locate the exact source among closely spaced components.

Internal leaks within cylinders and valves require performance testing to detect. Cylinder drift testing measures how much a loaded cylinder drops over time when hydraulic pressure is applied but valves are closed. Significant drift indicates internal seal wear allowing fluid to bypass from one chamber to another. High-pressure hydraulic leaks pose serious injection injury risks—never use your hand to search for leaks, always use cardboard or paper to locate suspected high-pressure leaks.

5.3 Diagnosing Slow or Weak Operation

When hydraulic cylinders extend or retract slowly or fail to develop full force, systematic hydraulic troubleshooting identifies the root cause. Begin with the simplest potential problems before disassembling components or replacing parts unnecessarily.

Check fluid level and condition first. Low fluid levels reduce pump efficiency and allow air into the suction line. Contaminated or degraded fluid increases internal friction and reduces system efficiency. Dark, burnt-smelling fluid or fluid containing metal particles indicates serious internal wear.

Verify pump output through performance testing. Connect a flow meter to the pump discharge line and compare measured flow against manufacturer specifications. Worn pumps produce reduced flow at rated pressure, resulting in slow cylinder movement despite adequate pressure readings.

Test for internal cylinder leakage when pressure readings appear normal but cylinder force seems weak. Apply pressure to extend the cylinder fully, then close all valves and monitor pressure decay. Rapid pressure loss indicates internal seal wear allowing fluid to bypass from the rod side to the cap side.

5.4 Electrical System Testing

Electrically-operated hydraulic systems require electrical diagnostics alongside hydraulic testing. Power unit motors, solenoid valves, pressure switches, and control circuits all affect system performance. A multimeter becomes essential for testing electrical components systematically.

Test power unit motors by measuring voltage at the motor terminals during operation. Compare readings against the motor nameplate voltage specifications. Low voltage indicates wiring problems or inadequate power supply. Measure current draw to identify motors working harder than designed, suggesting mechanical binding or pump problems.

Solenoid valve testing verifies both electrical function and mechanical operation. Measure coil resistance with the system de-energized. Resistance readings significantly higher or lower than specifications indicate coil damage. Listen and feel for the distinct click when energizing the solenoid, confirming mechanical movement of the valve spool.

Pressure switches control when pumps activate and deactivate based on system pressure. Test switch operation by monitoring continuity while manually adjusting pressure. The switch should open or close at its rated pressure setting. Switches that fail to operate at the correct pressure require adjustment or replacement.

Professional diagnostic testing is necessary when constantly topping off fluid, experiencing sluggish operation, or finding metal particles in filters. These symptoms indicate serious internal wear requiring expert analysis. Accurate diagnosis before attempting repairs saves money and ensures the actual problem gets resolved.

6. Hydraulic Pump Repair and Replacement

When hydraulic pumps fail, the entire trailer system loses functionality, demanding immediate diagnostic attention and expert repair procedures. The pump creates flow by pressurizing hydraulic fluid throughout the system, making it the most critical component in drop deck trailer operations. Loss of pump function means complete system shutdown, resulting in significant downtime and lost productivity.

Recognizing pump failure early prevents secondary damage to other hydraulic components. Common warning signs include unusual whining or grinding noises during operation, progressive loss of system pressure, excessive heat generation, and contaminated fluid with metallic particles. These symptoms indicate internal wear that requires immediate attention before catastrophic failure occurs.

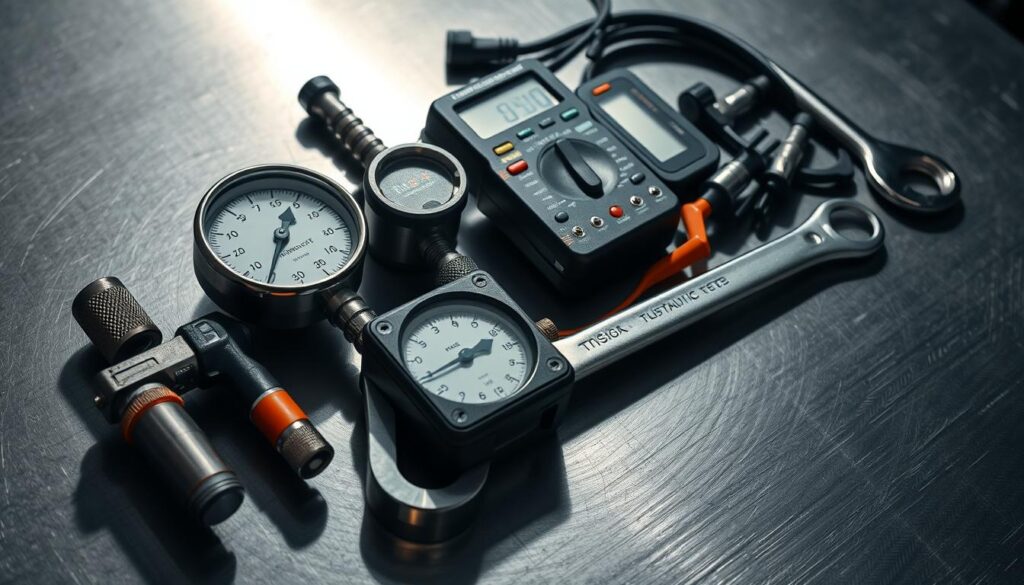

6.1 Pump Diagnosis and Testing

Accurate pump diagnosis separates actual pump failures from problems elsewhere in the hydraulic system. Many technicians mistakenly replace expensive pumps when the real issue lies in valves, cylinders, or contaminated fluid. Systematic testing eliminates guesswork and prevents unnecessary component replacement costs.

Flow testing measures the pump’s actual output against manufacturer specifications. Connect a flow meter to the pump output line and operate the system under no-load conditions. Record the flow rate at specified RPM and compare results to the specification sheet. Output below 85% of rated capacity indicates significant internal wear requiring pump rebuild or replacement.

Pressure testing reveals the pump’s ability to generate working pressure under load. Install a calibrated pressure gauge at the pump outlet and gradually increase system load. A healthy pump maintains rated pressure throughout the operating range. Pressure drop under load points to internal leakage from worn gears, pistons, or valve plates.

Noise and vibration analysis provides early warning of internal pump damage. Excessive whining indicates cavitation from air entry or restricted inlet flow. Grinding sounds signal bearing failure or metal-to-metal contact from worn components. Use a mechanic’s stethoscope to isolate noise sources and determine severity.

6.2 Removal and Disassembly Steps

Proper pump removal requires careful preparation to prevent system contamination and ensure successful reinstallation. Clean the external surfaces of the pump, mounting area, and all hydraulic connections thoroughly before beginning work. Even small amounts of dirt entering the system during service cause rapid component failure.

Relieve all system pressure completely before disconnecting any hydraulic lines. Follow the lockout procedures outlined in safety protocols to prevent accidental system activation. Place drain pans under connections to capture spilled fluid and minimize environmental contamination.

Disconnect hydraulic lines systematically while documenting their positions. Take photographs or create diagrams showing hose routing and connection points. Cap or plug all open ports immediately to prevent dirt entry and fluid leakage. Label each line clearly for correct reassembly.

Remove drive couplings or power take-off connections carefully to avoid damaging drive shafts. Support the pump weight properly before removing mounting bolts. Check coupling alignment and condition during removal, replacing worn components before installing the new pump. Misaligned couplings cause premature pump bearing failure.

Disassemble pumps only in clean workshop conditions with proper tools and expertise. Gear pumps and piston pumps require different disassembly techniques and specialized knowledge. Mark component orientation during disassembly to ensure correct reassembly—even slight misalignment causes internal leakage and reduced performance.

6.3 Seal and Component Replacement

Inspect all internal pump components thoroughly during disassembly to determine rebuild feasibility. Examine gears, pistons, cylinder blocks, and valve plates for wear patterns, scoring, or cracks. Measure critical dimensions using precision tools and compare results to manufacturer specifications.

Component wear exceeding specification limits requires replacement rather than continued use. Worn gears show rounded tooth profiles and increased clearances. Scored cylinder blocks or valve plates leak internally, reducing pump efficiency. Piston bores with scratches or wear grooves cannot maintain proper sealing.

Select seal kits specifically designed for your pump model and application. OEM seal kits ensure proper fit and material compatibility, while aftermarket kits may use inferior materials that fail prematurely. Verify part numbers carefully before ordering to avoid receiving incorrect components.

Replace all seals during pump rebuild regardless of their apparent condition. O-rings and shaft seals harden over time, losing elasticity even when they appear intact. Installing new seals prevents early failure after reassembly. Contaminated or damaged seals represent the leading cause of rebuilt pump failures.

6.4 Installation and Break-In Procedures

Verify shaft alignment before installing the rebuilt or replacement pump on the power unit. Misalignment causes bearing loads that destroy pumps within hours of operation. Use dial indicators or alignment tools to check both angular and offset alignment. Correct any misalignment by adjusting motor or pump mounting positions.

Install the pump using new gaskets or seals at mounting surfaces. Tighten mounting bolts gradually in a cross pattern to specified torque values. This ensures even clamping force and prevents housing distortion. Double-check coupling alignment after final bolt tightening.

Reconnect hydraulic lines following your installation documentation or photographs. Install new O-rings at all connection points to prevent leaks. Tighten fittings to proper torque specifications using two wrenches to prevent line twisting. Over-tightening damages threads and distorts sealing surfaces.

Initial break-in procedures extend pump life significantly by allowing components to seat properly under controlled conditions. Run the system at idle speed for 15-20 minutes without load. Monitor temperature, pressure, and noise during this period. Any unusual sounds or rapid temperature rise indicates installation problems requiring immediate attention. Gradually increase operating pressure over the first few hours of operation, avoiding full-load operation during the initial 10-hour break-in period.

7. Cylinder Rebuild and Seal Replacement

Cylinder maintenance and seal replacement work stands as the most frequently performed repair on drop deck trailer hydraulic systems. Hydraulic cylinders convert fluid pressure into linear motion to lift and lower trailer deck sections. When seals fail or internal components wear, cylinder repair becomes necessary to restore proper operation and prevent costly downtime.

Understanding cylinder construction helps technicians approach cylinder rebuild procedures with confidence. Single-acting cylinders use hydraulic pressure for extension with gravity providing retraction force. Double-acting cylinders apply pressure in both directions for precise control during raising and lowering operations. Common cylinder problems include leaking seals that cause fluid loss and reduced performance, scored cylinder rods that damage seals and accelerate wear, and internal component deterioration that reduces force output.

Cylinder Removal and Inspection

Safe cylinder removal requires careful planning and proper support equipment before disconnecting any components. The trailer deck must be fully supported with adequate blocking to prevent unexpected movement when hydraulic pressure releases.

Begin cylinder repair procedures by lowering the deck section to its fully retracted position. Disconnect hydraulic lines at the cylinder using proper wrenches to avoid damaging fittings. Position drain pans to catch fluid spillage during line removal. Cap or plug all open hydraulic connections immediately to prevent contamination entry and additional fluid loss.

Document the mounting configuration before removing cylinder mounting bolts. Take photographs or make detailed notes showing clevis pin orientation, spacer locations, and any shims present. This documentation ensures correct reinstallation alignment and prevents operational problems.

Inspect the removed cylinder externally for obvious damage before proceeding with disassembly. Check for bent rods that indicate impact or overload conditions. Examine the barrel for dents, cracks, or corrosion that compromise structural integrity.

Disassembly and Cleaning Process

Proper cylinder disassembly requires a clean workspace and appropriate fixtures to hold components securely. Mount the cylinder in a sturdy vise or specialized cylinder stand that supports the barrel without crushing or distorting it. Cleanliness during cylinder disassembly directly determines seal life and repair success.

Remove the cylinder gland nut using the correct size spanner wrench or strap wrench. Some cylinders use retaining rings instead of threaded glands. Carefully note the orientation of seals and backup rings as you remove them for reference during reassembly.

Extract the piston and rod assembly by gently pulling the rod while supporting the piston. Avoid dropping or striking components against hard surfaces. Remove all seals, O-rings, and wear rings from both the piston and gland.

Clean every component thoroughly using approved hydraulic system cleaning solvent. Remove all traces of old hydraulic fluid, seal residue, and any contamination. Scrub the cylinder barrel interior with a soft brush to remove deposits without scratching the honed surface. Flush the barrel multiple times with clean solvent and dry all components completely using filtered compressed air.

Seal Kit Installation Procedures

Selecting the correct seal kit ensures compatibility with both the cylinder design and hydraulic fluid type. Verify part numbers against manufacturer specifications or cylinder identification tags. Seal kit installation requires premium quality seals manufactured from materials compatible with the system’s operating fluid.

Modern hydraulic systems typically use nitrile rubber (Buna-N) seals for petroleum-based fluids or polyurethane seals for enhanced durability. Specialized applications may require Viton seals for high-temperature operation or compatibility with synthetic fluids. Using incorrect seal materials results in rapid deterioration and repeat failures.

Lubricate each seal generously with clean hydraulic fluid or assembly lubricant before installation. Proper lubrication prevents seal damage during assembly and ensures correct seating. Never install dry seals as they tear or roll during installation.

Install seals in the sequence specified by the seal kit instructions. Most kits include detailed diagrams showing correct orientation for each component. Pay particular attention to backup ring positioning as reversed installation causes immediate failure. Use seal installation tools or carefully shaped wooden implements to guide seals into their grooves without stretching or twisting—metal tools can cut or nick seals during installation.

Rod and Barrel Damage Assessment

Thorough evaluation of cylinder rod condition determines whether components can be reused or require replacement. Inspect the chrome-plated rod surface under bright light while slowly rotating the rod. Look for scoring marks, scratches, or pitting that extends through the chrome layer into the base metal.

Minor surface imperfections can sometimes be polished out using fine abrasive cloth and careful technique. Deep rod damage that you can feel with a fingernail will cut new seals and cause rapid failure. Rods with significant damage require professional re-chroming or replacement.

Barrel inspection focuses on the precision-honed interior surface that seals ride against during operation. Examine the bore for scoring, corrosion, or wear patterns using a bright flashlight. Run your fingers carefully along the bore to detect roughness or grooves.

Measure the barrel inside diameter at multiple locations using an inside micrometer or bore gauge. Compare measurements to manufacturer specifications to determine wear levels. Out-of-round conditions exceeding 0.005 inches typically require barrel replacement or professional honing services. Installing new seals on damaged rods or worn barrels guarantees premature failure regardless of seal quality.

8. Preventive Maintenance Programs and Documentation

Systematic maintenance scheduling distinguishes successful fleet operations from those plagued by unexpected failures and costly emergency repairs. A preventive maintenance program establishes a proactive framework that addresses potential issues before they escalate into major problems. This structured approach reduces downtime, extends equipment lifespan, and significantly lowers overall operating costs compared to reactive maintenance strategies.

The foundation of effective hydraulic system care rests on implementing consistent service routines supported by thorough documentation. Federal regulations under 49 CFR Part 396 require motor carriers to systematically inspect, repair, and maintain all motor vehicles and equipment subject to their control. The Commercial Vehicle Safety Alliance (CVSA) establishes inspection criteria used during roadside inspections—hydraulic system deficiencies can result in out-of-service violations. Regular inspection and maintenance of cylinders, hydraulic fluid, and associated components ensures safe and efficient operation while meeting compliance requirements.

8.1 Establishing Maintenance Intervals

Determining appropriate maintenance intervals forms the cornerstone of any successful preventive maintenance program. These schedules must balance equipment protection against operational demands and resource availability. Multiple factors influence the optimal timing for each service activity.

Manufacturer recommendations provide the baseline for establishing your maintenance schedule. These specifications reflect engineering testing and real-world performance data. However, adjustments become necessary based on your specific operating conditions and application requirements.

Operating hours serve as the primary metric for scheduling most hydraulic maintenance tasks. High-utilization equipment requires more frequent service than trailers with occasional use. Track actual operating time rather than calendar days for more accurate maintenance timing.

Environmental conditions significantly impact maintenance frequency requirements. Dusty or sandy conditions require increased filter changes and seal inspections to prevent contamination-related failures. Extreme temperatures demand more frequent fluid condition monitoring as heat accelerates degradation while cold affects viscosity. High humidity or corrosive atmospheres require inspection of external components for corrosion and protection of exposed metal surfaces. Off-road or rough terrain operation demands checks of mounting hardware, connections, and structural components for vibration damage.

8.2 Daily, Weekly, and Monthly Service Tasks

Organizing service tasks by frequency creates manageable routines that operators and maintenance personnel can consistently execute. This structured approach ensures critical inspections occur regularly while preventing oversight of essential maintenance activities.

Daily pre-operation tasks focus on immediate safety and functionality verification. Operators should conduct visual inspection for hydraulic fluid leaks around cylinders, pump, hoses, and fittings; verify hydraulic fluid level in reservoir and add fluid if necessary; test hydraulic system operation through complete cycle to confirm proper function; listen for unusual noises indicating cavitation, air entrainment, or mechanical problems; and check for damaged or abraded hoses that could fail during operation.

Weekly maintenance tasks involve more thorough examinations requiring additional time. These inspections identify developing issues before they cause failures through detailed inspection of all hydraulic hoses and connections, examination of filter condition, cleaning of external surfaces, checking of mounting bolts and brackets, testing of safety systems, and documentation of any abnormalities.

Monthly service activities require dedicated maintenance time and often specialized tools. These comprehensive checks include detailed component inspections, hydraulic fluid sample collection for analysis, measurement and recording of cylinder rod extension, verification of torque specifications on critical fasteners, lubrication of mechanical components, and review of maintenance documentation with findings and recommendations.

8.3 Annual Comprehensive Inspections

Yearly or major service interval inspections provide opportunities for thorough system evaluation beyond routine maintenance. These comprehensive examinations identify issues requiring immediate attention and establish baselines for future condition monitoring.

Complete system pressure testing verifies hydraulic circuit integrity and component performance. This diagnostic procedure identifies internal leakage, valve problems, and efficiency losses not apparent during normal operation. Document baseline pressure readings and flow rates for comparison in subsequent testing cycles.

Detailed cylinder inspection during annual service includes disassembly if performance concerns exist or operating hours warrant preventive rebuilding. Examine internal components for wear, scoring, or corrosion. Replace seals proactively based on service intervals even if no external leakage appears evident.

Pump performance evaluation assesses efficiency and identifies developing problems before catastrophic failure occurs. Measure output pressure, flow rate, and operational noise levels. Compare results against manufacturer specifications and previous test data to identify performance degradation trends.

Annual comprehensive inspections should include complete hydraulic fluid and filter replacement regardless of apparent condition, inspection and testing of all electrical components, verification of safety systems under simulated emergency conditions, structural inspection of trailer frame and hydraulic component mounting points, and update of maintenance records with detailed findings and recommendations.

8.4 Maintenance Record Keeping Systems

Comprehensive maintenance documentation transforms routine service activities into valuable asset management data. Systematic record keeping provides accountability, enables trend analysis, and supports informed decision-making about equipment repair or replacement.

Effective maintenance records capture essential information for each service event. Document what was inspected, conditions found, actions taken, and parts replaced with serial numbers. Include fluid analysis results, measurement data, and service dates for complete traceability.

Various record-keeping methods accommodate different operational scales and technical capabilities. Traditional paper logbooks stored with each trailer provide immediate access for field personnel. These simple systems work effectively for small fleets with limited equipment diversity.

Computerized maintenance management systems (CMMS) offer significant advantages for larger operations through automated scheduling that generates service reminders based on operating hours or calendar intervals, centralized data storage accessible from any authorized location, trend analysis capabilities identifying recurring problems, parts inventory integration tracking component usage, and regulatory compliance reporting generating required documentation.

The value of thorough maintenance documentation extends beyond operational benefits. Detailed service records support warranty claims by demonstrating proper care and scheduled maintenance compliance. This documentation proves essential when manufacturers require evidence of proper fluid use, filter changes, or component service. Equipment resale value increases significantly when supported by comprehensive maintenance records—prospective buyers pay premium prices for well-maintained trailers with verified service histories.

Frequently Asked Questions

How often should hydraulic fluid be changed in a drop deck trailer?

Most drop deck trailer hydraulic systems require fluid replacement annually or every 1,000-2,000 operating hours, whichever comes first. Heavy-use applications or contamination findings may necessitate more frequent changes. Regular fluid analysis helps determine optimal change intervals for your specific operating conditions. Signs indicating immediate fluid change include dark or black coloration, burnt smell, milky appearance suggesting water contamination, or metallic particles visible in the fluid.

What causes hydraulic cylinder drift in trailer systems?

Cylinder drift typically results from internal seal wear allowing fluid to bypass from one chamber to another. Other causes include worn control valve spools, damaged check valves, or external leaks reducing system pressure. Performance testing under load reveals the specific cause—rapid pressure decay indicates internal seal problems requiring cylinder rebuild. Minor drift over extended periods may be acceptable, but significant drift during operation demands immediate attention to prevent load shifting or equipment damage.

What are the signs of hydraulic pump failure?

Common pump failure indicators include unusual whining or grinding noises during operation, progressive loss of system pressure, excessive heat generation, slow or weak cylinder movement, and metallic particles in the hydraulic fluid. Flow testing that shows output below 85% of rated capacity confirms significant internal wear. Cavitation noise—a distinct rattling or knocking sound—indicates air entry or restricted suction flow that will quickly destroy pump internals if not corrected.

How do I safely depressurize a trailer hydraulic system?

Lower all raised trailer sections to resting positions using normal controls. Turn off the power unit completely and allow cooling if recently operated. Engage lockout tagout procedures on electrical sources. Slowly loosen a pressure test port to verify zero pressure before disconnecting any components. Always wear full protective equipment including safety glasses and chemical-resistant gloves. Never assume the system is depressurized—residual pressure can remain trapped in lines and cylinders even with the power unit off.

What hydraulic fluid type should I use in my drop deck trailer?

Always use the exact hydraulic oil specification recommended by your trailer manufacturer. Petroleum-based fluids (typically ISO VG 46) work well for standard operations in moderate climates. Synthetic fluids offer superior temperature stability for operations in extreme heat or cold. Never mix different fluid types or brands as chemical incompatibility can cause seal deterioration, sludge formation, and premature component failure. When in doubt, consult your trailer manufacturer’s documentation or contact their technical support.

When should I call a professional for hydraulic repairs?

Seek professional service for pump rebuilds requiring specialized tools and clean-room conditions, major cylinder overhauls involving scored barrels or bent rods, electrical system diagnostics beyond basic multimeter testing, system flushing after severe contamination events, and any repair where you lack confidence in the diagnosis. Complex repairs demand expertise, precision tools, and controlled environments that justify professional investment for the warranty protection and reliable outcomes they provide. The cost of professional service often proves less than parts wasted on misdiagnosed problems.

9. Maintaining Your Hydraulic Investment

Proper care of drop deck trailer hydraulics directly impacts system reliability and your bottom line. The procedures outlined in this guide provide the tools to keep your equipment running at peak performance. Daily inspections, regular fluid checks, and timely repairs prevent small issues from becoming major failures that sideline your operation.

Many maintenance tasks fall within the capability of trained operators and in-house teams. Basic fluid changes, filter replacements, and routine inspections require minimal specialized equipment and form the foundation of system longevity and operational efficiency when performed consistently. Building relationships with qualified hydraulic repair shops ensures expert support when complex repairs demand specialized knowledge and tools.

The time and resources dedicated to hydraulic system care pay substantial returns through extended equipment life, reduced downtime, enhanced safety, and lower total operating costs. This systematic approach transforms routine servicing from an expense into a strategic advantage that keeps your drop deck trailers productive and profitable for years ahead.
